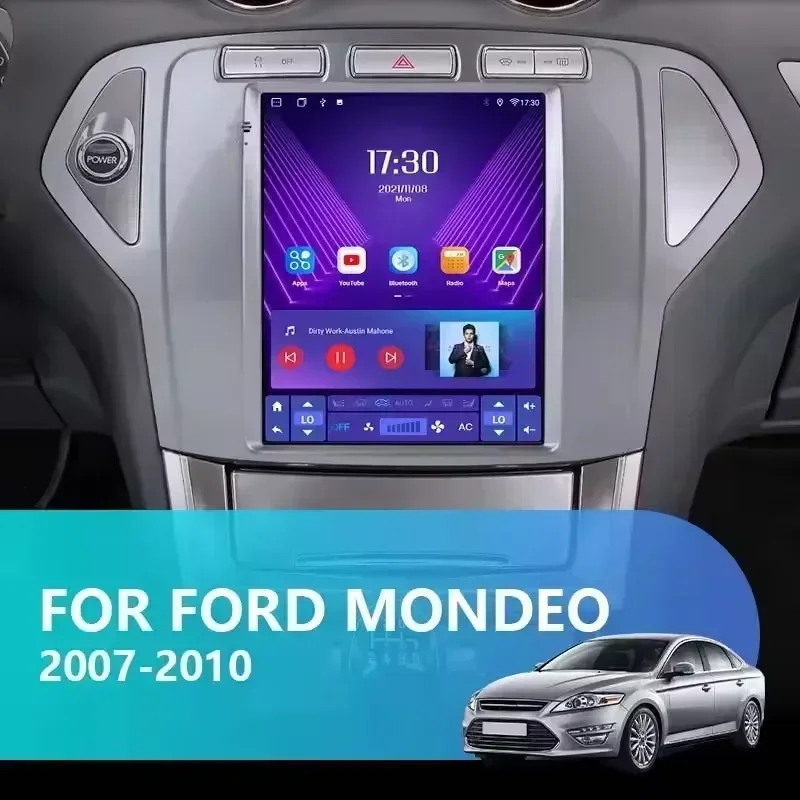

Srnubi 9.7" Car Radio For Ford Mondeo mk4 Galaxy A/C 2007-2010 Multimedia Video 2Din 4G WIFI GPS Carplay Android Navigation

Pre purchase notice

1. This product has black and silver frames, and you can choose the corresponding color by yourself

2. This product is only suitable for vehicles with automatic air conditioning control. If you are a vehicle with manual air conditioning control, please do not purchase

3. If your original car has special air conditioning, please do not purchase it

After Sales FAQ

1.This product supports steering wheel control, please don't forget to learn the buttons on the steering wheel. If the model you purchased includes a Canbus box, be sure to set the accurate Canbus protocol

2.The power cable is plug-and-play, please note that not all original because plugs need to be connected

3.Supports aftermarket rear view camera in AHD 1080P,AHD720P, CVBS, PAL, CTSC format,please note: T3L version does not support AHD1080P

4.Multimedia has a built-in microphone. In addition to K3/R3, you can also check whether the model you purchased comes with an external microphone based on the configuration diagram.

6.Radio setting interface password

S3/S4/S10/K3/T10/T3(T3L)/T4(T3L plus)/T8(T3L Max): 123456,8888,7890,000000,22558800,1234

\

The 9.7-inch super large screen can meet any of your needs.

Change the position of the host behind it at will without any damage to the original car frame.

Super easy installation instructions, so everyone can easily install.

(5-star feedback ) New radio firmware will be updated every year (the firmware may include system version upgrades and optimizations, function additions and adjustments, motherboard graphics upgrades, voice control), and the new firmware will be sent to 5-star feedback and Friends who follow my shop. I will continue to serve my friends and always provide some coupons.

FAQ

1.Why can't turn on the car radio?

1.1 Please check the Voltage of car radio: 12V

1.2 When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply.

1.3Replace the same type of insurance to test the car radio. Note: Please must use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine.

2.Why the car radio will show "No Signal" when we reversing?

Please check if the camera's line is properly connected to the car radio. Note:The video port of rear camera must insert the "CAMIN" port of car radio.

3.Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos?

Please turn off the "Video Warning" function in the settings,then will be OK.

4.Why can't search FM?

4.1: No radio antenna inserted

4.2: Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted

4.3: The signal of your location is not good. Please go to a better place to test again

4.4: The radio antenna on the car is broken/no effect; please replace the radio antenna and test again.

5.Why can't connect the Bluetooth of car radio?

6: Bluetooth signal is weak, WiFi signal is weak

please check and reconnect the Yellow rear Camera input connector, there are 2 short cables, they are the extension cords of the Bluetooth antenna and the WiFi antenna, or you can extend them to enhance the signal.

7: The navigation map does not work

8: The screen display is abnormal

click the one-key recovery button, if it can't be solved, remove the screw on the back, check whether the screen cable is loose, and reconnect the screen cable.

9: Abnormal sound

1 Check whether the original car cable has been modified by another car owner. If so, please check the speaker cable and reconnect it.

2 Check whether there is an original car or a modif

10:Radio setting interface password

T6 password: 111333, 1234, 1617, 16176699

K3/T10/T3L/T3L plus: 123456,8888,7890,000000

Programmer interface password: 7890 plus current time. For example, at 11 o'clock it is 789011. If it is 12 o'clock, it is 789012

11:The radio cannot be turned on

11.1. The condition for the radio to turn on is that ACC (G3) and 12V (G2) are connected to the positive pole of the car's 12V power supply, and G1 is connected to the negative pole of the power supply. There may be a very small probability that the power cord does not match your car. You can directly connect these 3 power cords Connect the power cord of the car without the radio

11.2. It may be that the connecting wire of the radio came off during transportation, just open the back cover to check and reconnect the connecting wire inside the radio

11.3. If you can't turn on after checking the above steps, please send a video to us for confirmation. The video needs to show that the power cord is nor
