OPCOM V5 For Opel 2021 OP COM V1.70 PIC18F458 FTDI Flash Firmware update CAN BUS OBD OBD2 Scanner Auto Tool Car Diagnostic Cable

OPCOM V5 For Opel 2021 OP COM V1.70 PIC18F458 FTDI Flash Firmware update CAN BUS OBD OBD2 Scanner Auto Tool Car Diagnostic Cable

Note before buy,Very important

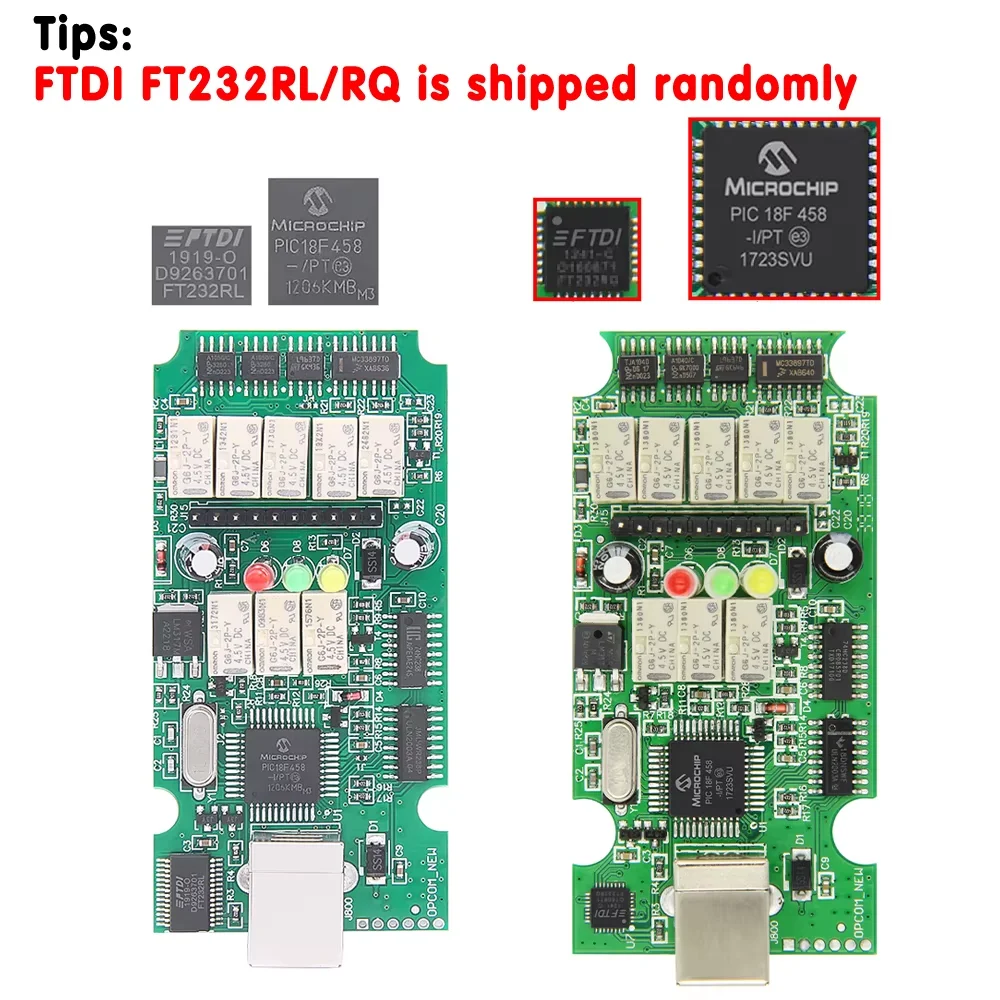

2.The Chip is FTDI FT232RQ and FTDI FT232RL in Random,if cannot accept,please don't make order.

3.OPCOM V1.70 can not support all cars for Opel，If you don't know whether your car is support or not, please install software at first,check support car list from software.

4. OPCOM is suggested to install on windows 7/XP 32bits, if you want install on windows 10/11 64bits, you need to turn off the 'digital signature' on the computer.

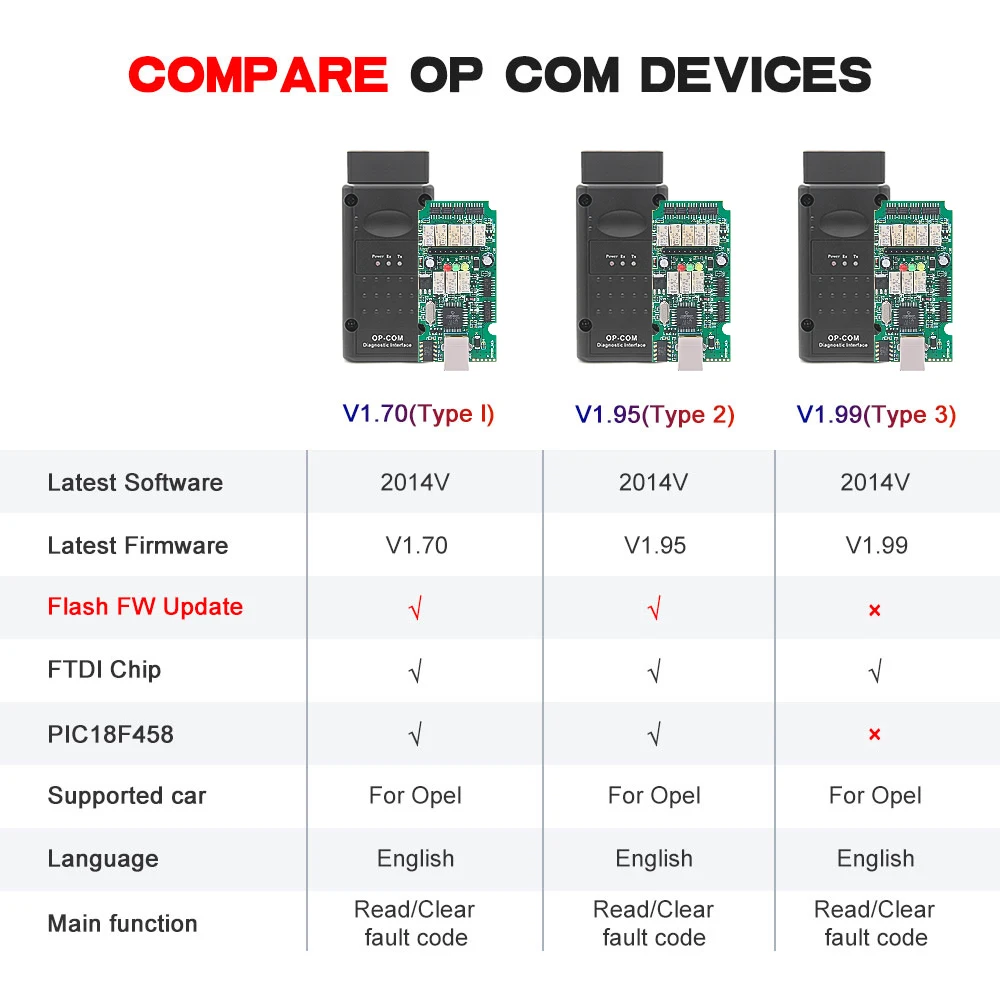

OPCOM Version Comparison

1. Software Version: V2021--200603a / V2014--120309a

2. Firmware Version: V1.70

3. FW Update

V1.70 can support flash firmware update, but V1.99 can't.

4. Special chip: FTDI+PIC18F458/PIC18F45K80

5. Car list: For Opel

6. Software Language: English

Software Language

In the 201008 software that supports car model in and before 2010, there are19 languages available in the setting!!（English, Magyar, Romanian, Danish, German, Turkish, Slovakian, Netherlands, French, Spanish, Portuguese, Bosnian-Groatian-Serbian, Polish, Swedish, Russian, Dutch, Czech, Greek）

For version 2021, 2014 and 2012 software, only English.

New OPCOM V1.70 Firmware 2014V Software Function

1. It covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as for Vectra-C,for Astra-H,for Zafira-B.

2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.

3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.

4. Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.

PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

5. Fault codes will be shown with all available information.

New OPCOM V1.70 Firmware 2014V Software Feature

1. OPCOM is a special PC Based diagnostic interface especially for OPEL.

2. Software Version: 2014 Firmware Version: V1.70

3. Never Update it Online, it will damage the OP-COM.

Attention for Latest Opcom Software VAUX-COM_120309a.exe

1. If you run it on XP or Win7, please make sure you install dotnetfx35_SP1 system patch, or Opcom software can't perform well.

2. When you install on Win7 and open software, please choose Run as administrator, and read the installation video on CD carefully.

Please do not update this one online.

Full Fault Code Text Description

1) Full status information (Present, Not present, Intermittent)

2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.

3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or for Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

FTDI FT232RL：

FTDI FT232RQ：

You can also run output tests on many controllers.

PIN6-PIN14

PIN3-PIN11

PIN1

FAQ

Q: Does this product has any other language other than English?

A: This product have only English version.

Q: What we can do with this device?

A: 1. You will get a feedback on the state of the activated output. This will helps you to find the failed. Components more easily. With OP-COM, you can learn keys to immobiliser, and remote keys to the central door locking.

2. You can also reset, and program the following immobiliser related items: ECM, BCM, IPC.

3. You will need the vehicle security code, which can be found on the CAR-PASS.

4. You can also reset, and program the Service interval reminder for Astra-G/Zafira/Corsa-C/Meriva

5. You can code SAB6, and SAB8 airbags with the software.

6. The diagnostic inteface is USB port based, so there will be NO COMPATIBILITY ISSUES, with serial to USB converters.

7. The speed of the communication over the USB-BUS is enough to handle the awesome speed of the High-Speed CAN-BUS systems, which is currently 500kbps. This is the main reason, why only the USB port based interface is available for CAN-BUS.

8. Compared to the TECH2, which is the dealers tool (with a 32 MB Card+CANdi interface), the price of OP-COM is quite affordable.

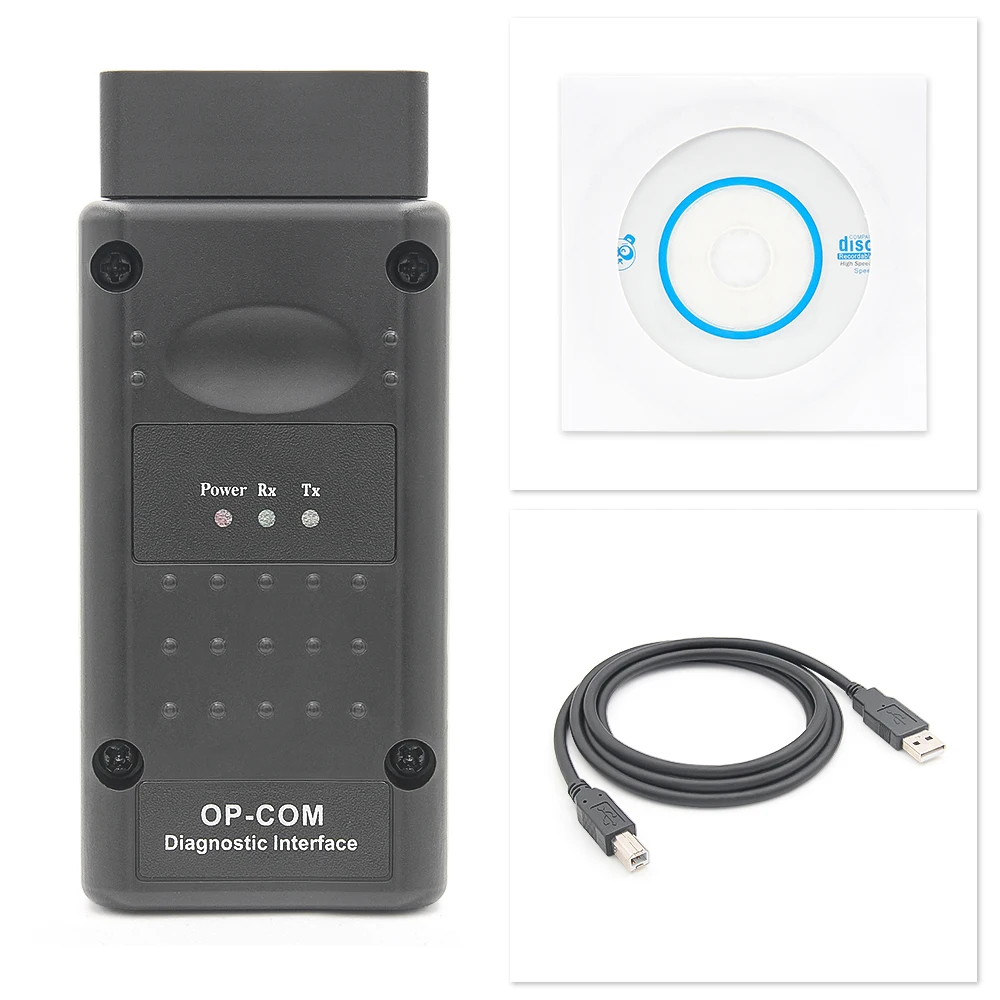

1pc x OP COM Interface

1pc x USB Cable

1pc x CD with Software and Drivers
