SK120X/SK120S CNC DC Regulated Power Supply DC-DC Step Up/Down Bench 6-36V to 0-36V120W Stabilized Voltage Boost Buck Converter
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
Penawaran AI untuk pasar Anda
Pilihan yang dikurasi berdasarkan kategori, rute pengiriman, kecepatan kirim, dan popularitas di pasar pilihan Anda.
Mengapa produk ini cocok untuk pasar Anda
- • Sinyal pelanggan yang kuat: 4.8★ dari 13 ulasan.
- • Rekomendasi fokus pada kategori ini dan ketersediaannya di pasar Anda.
Product specifications
Deskripsi detail produk
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: diymore
- Sales: 40
- Package size: 12 × 10 × 5 cm
- Package weight: 0.138 kg
- Rating: 4.8 / 5
Before adding to cart, choose an available option and check the quantity.
Features

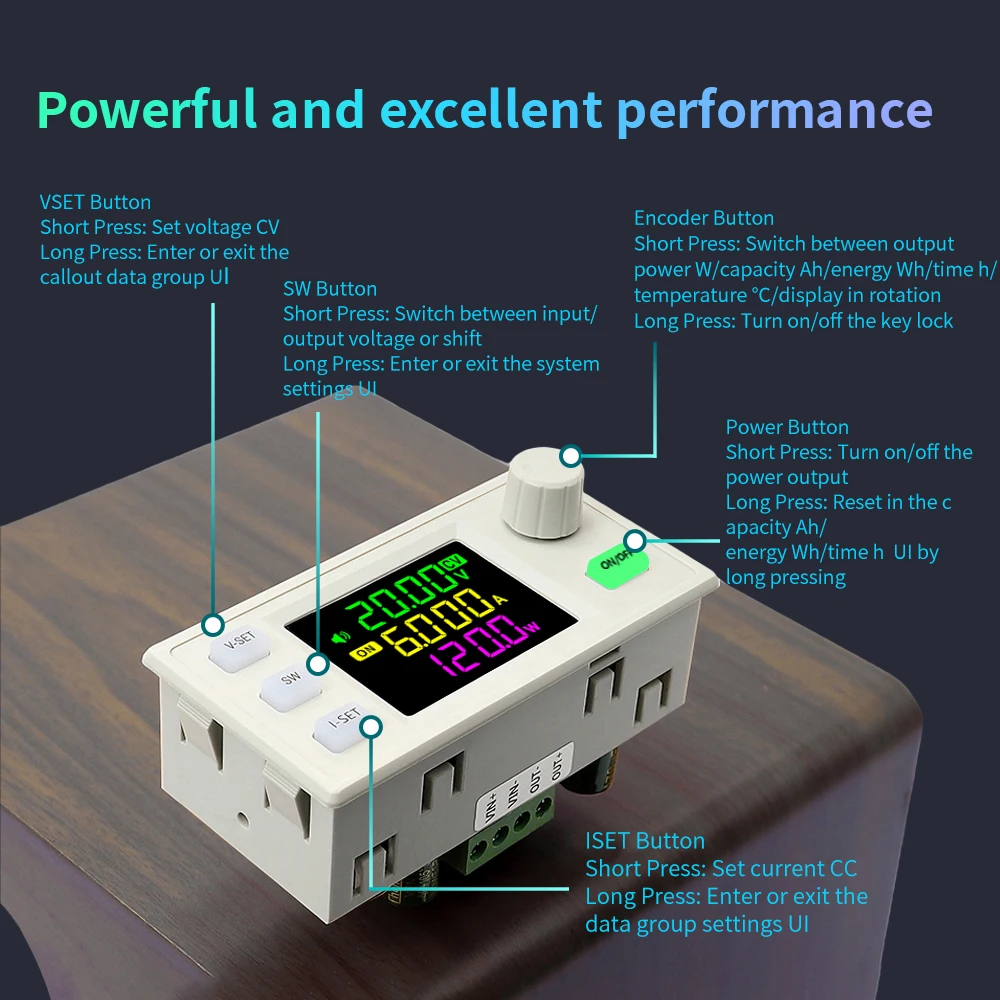

1.X series products use silicone buttons, feel comfortable, each button with cool indicator light

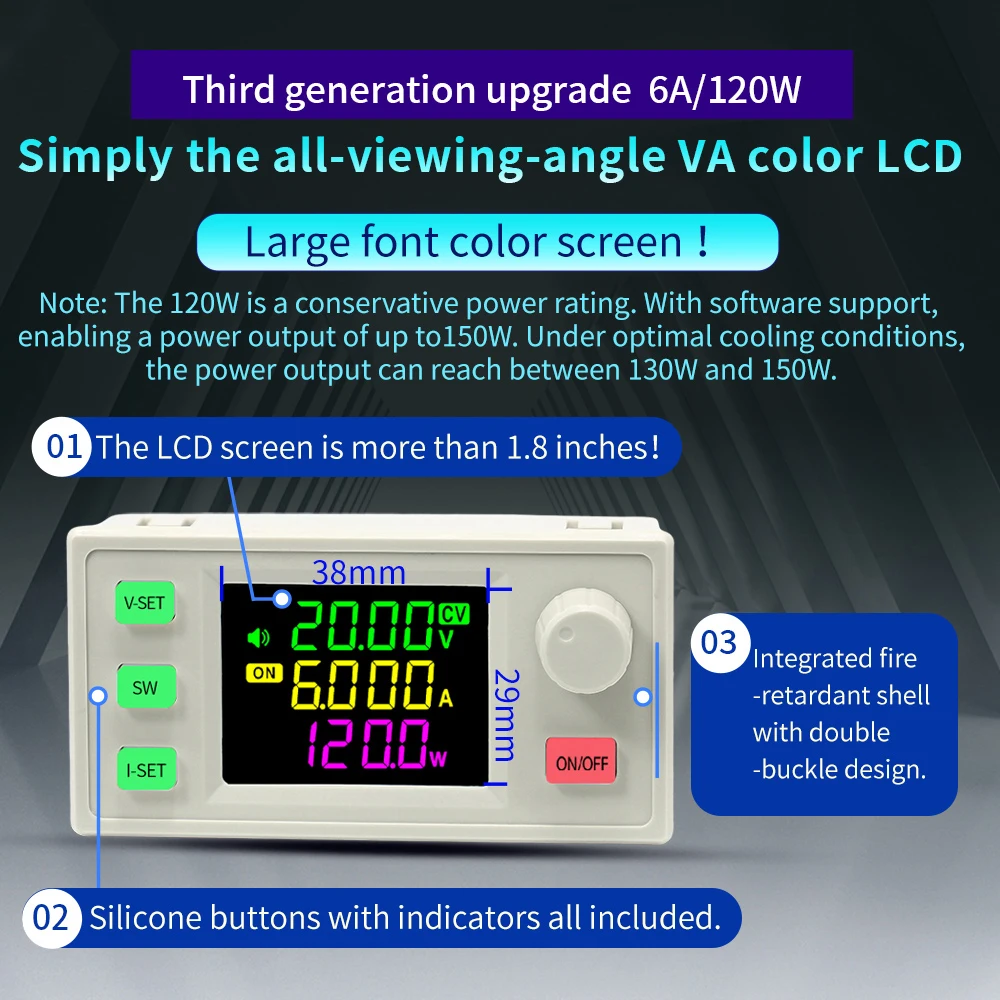

2.LCD screen layout is reasonable, the font is large and full of rounded, professional power supply LCD screen, you want the function it has!

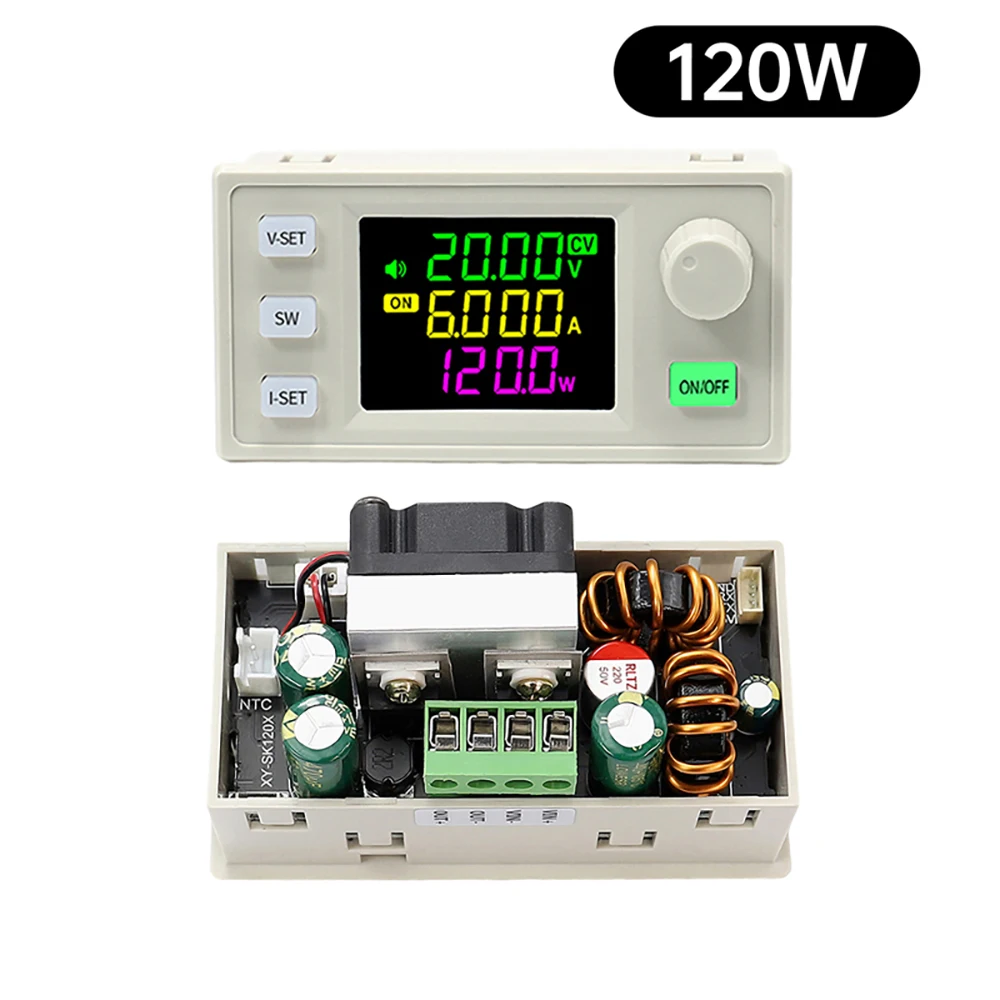

3. The display board adopts immersed gold design, anti-oxidation, better conductivity, more durable! The use of one-piece injection molding shell, flame-retardant material is safer! Double-layer buckle design, double-layer circuit board fixed more firmly!
4.The product supports serial communication standard Modbus protocol, support for firmware upgrade, support for MPPT solar charging, full-featured!
5.The product adopts high-precision external clock crystal to ensure the accuracy of time, capacity/energy statistics more accurate, 48-pin powerful MCU controller, 64M frequency computing speed faster!

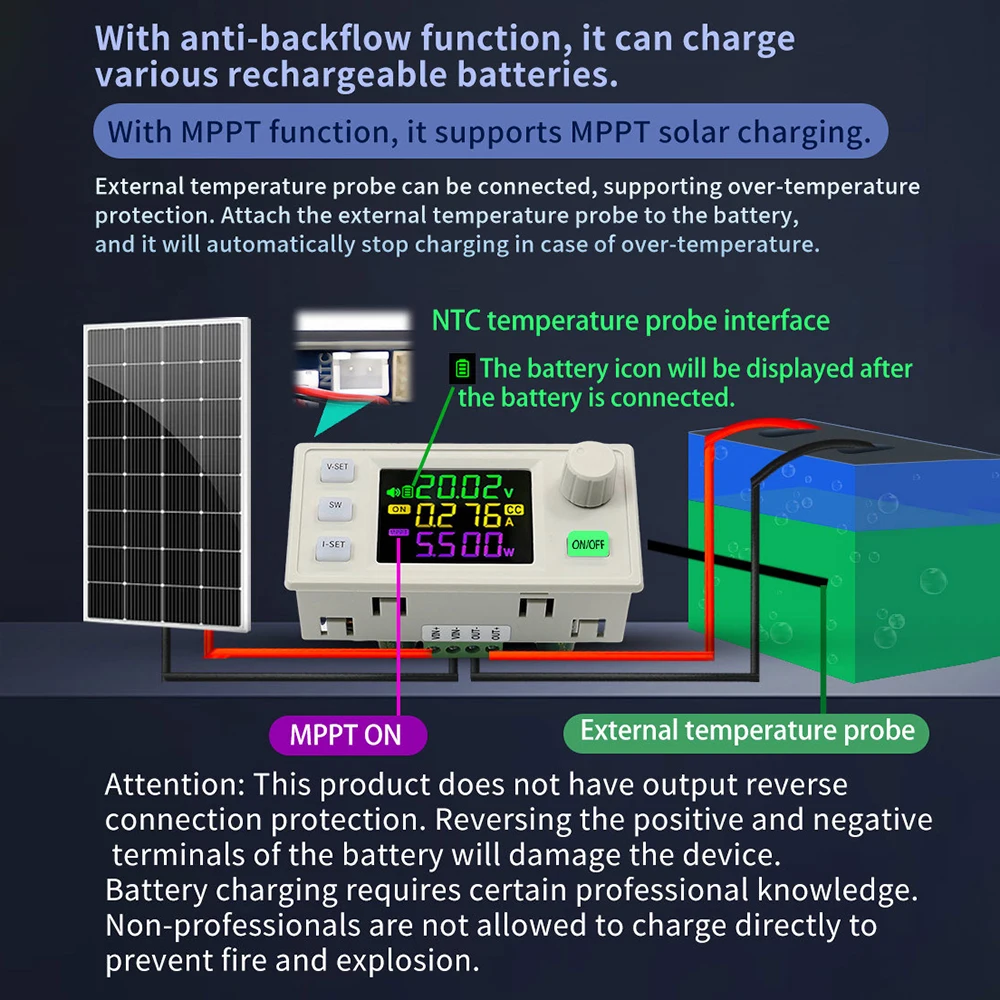

6. The product has a wide range of applications, there is a backflow prevention function can be charged to a variety of rechargeable batteries, and with MPPT function to support MPPT solar charging, can be connected to the external temperature probe to support over-temperature protection and so on!

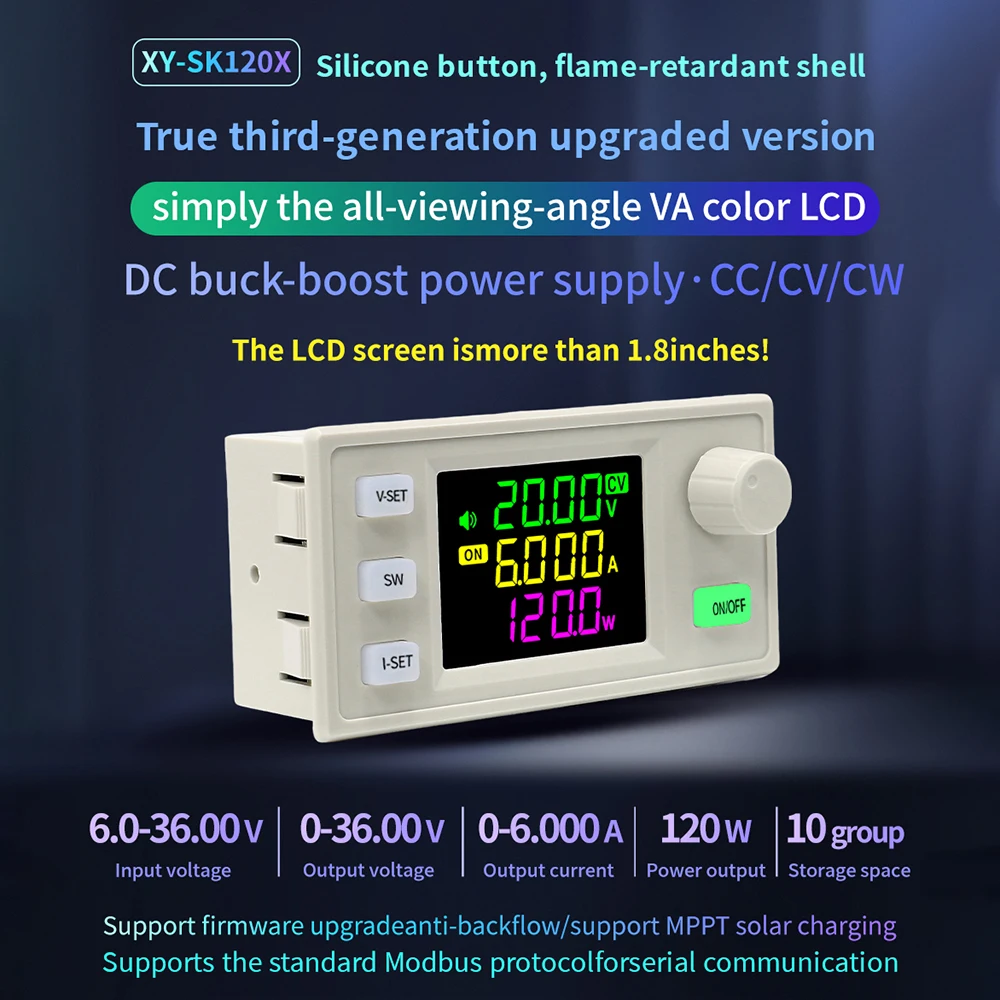

SK120X
Parameter
Input voltage: 6.0~36V
Output current: 0~6.000A
Output power: 120W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Output Voltage: 0~36V
Voltage accuracy: ±0.5%+1 word
Current accuracy: ±0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
MPPT function: support MPPT solar charging
Typical value of output ripple: VPP-150mv
Buzzer: Yes
Soft start: Yes

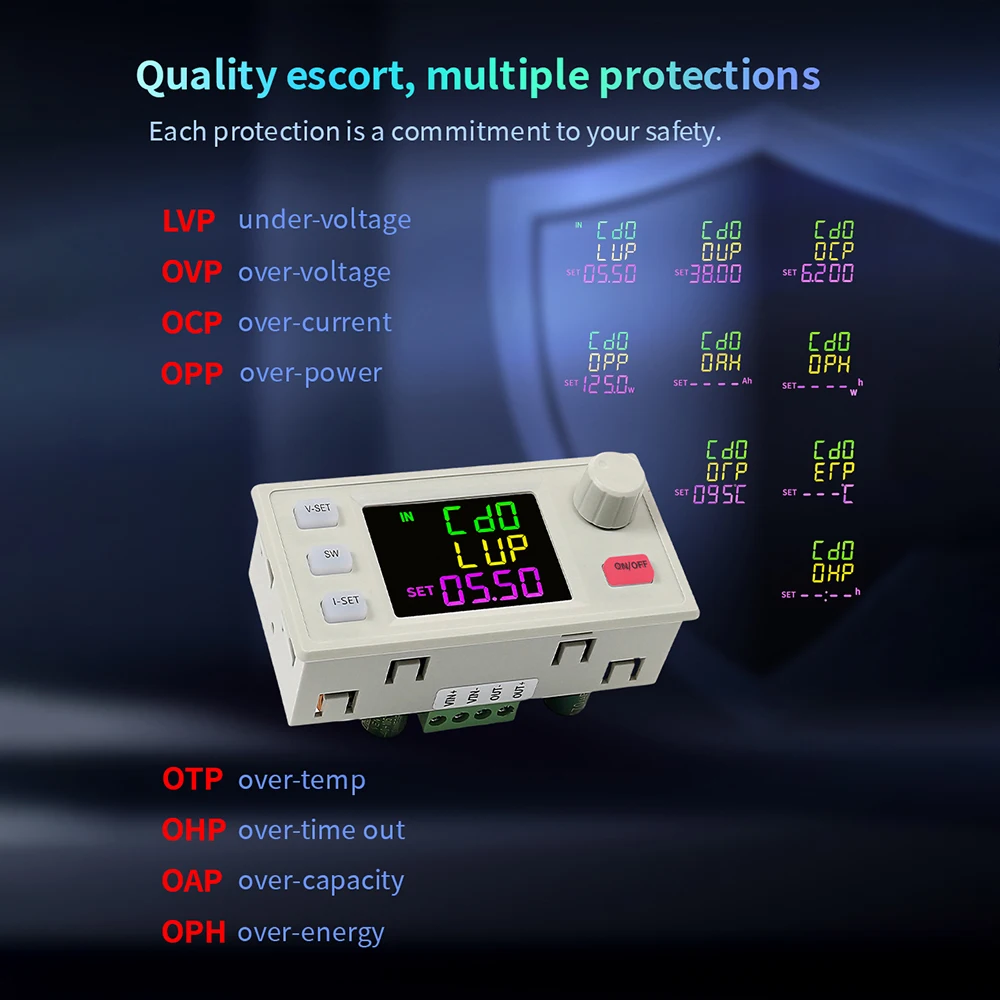

Protection mechanism
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection: 5.5-36V adjustable, default 5.5V
Output over-voltage protection: 0-38V adjustable, default 38V
Output overcurrent protection: 0-6.2A adjustable, default 6.2A
Output over power protection: 0-150W adjustable, default 125W
Over-temperature protection: 0-110°C adjustable, default 95°C
Timeout protection: 0 -100H adjustable, default off
Over capacity protection: 0~9999AH adjustable, default off
Super energy protection: 0~4200KWH adjustable, default off
Package include
Adjustable boost and buck module *1

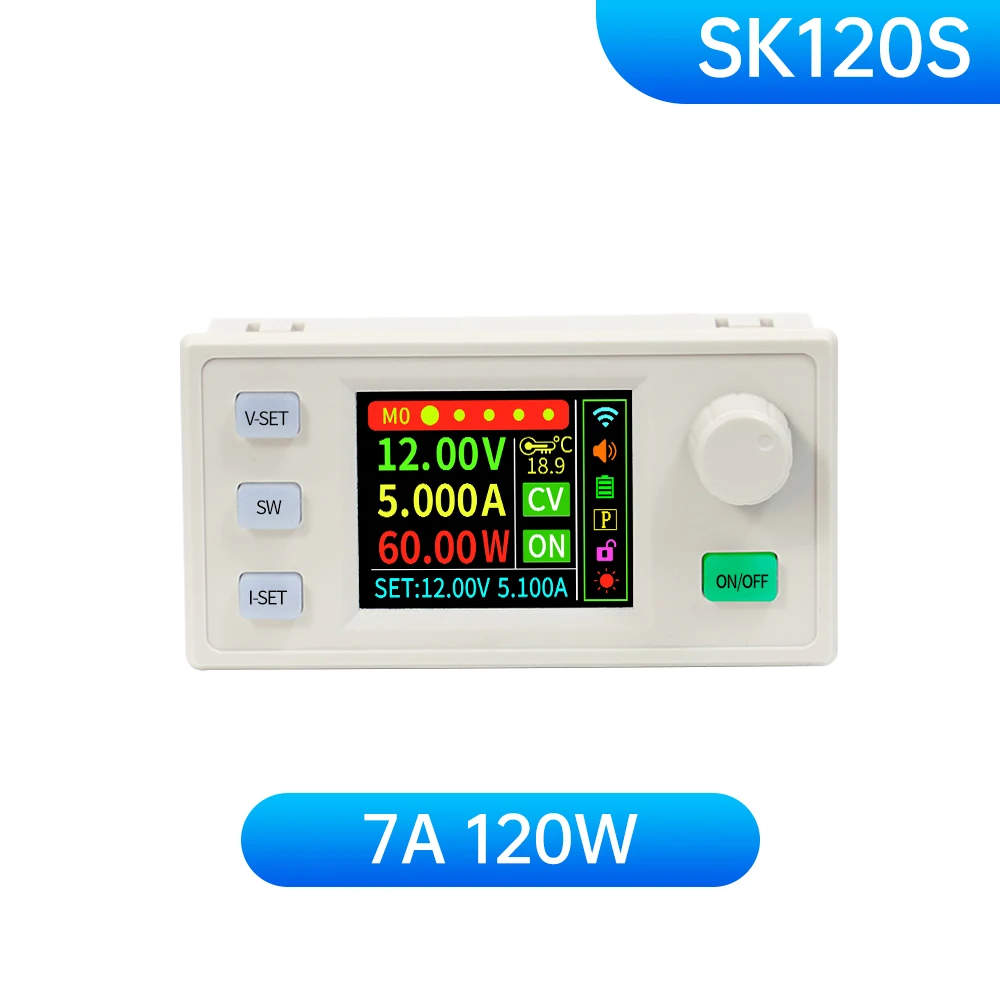

SK120S
Product Name: CNC DC Buck Power Supply
Input Voltage: 6.000~36.00V
Output Current: 0~7.000A Output Voltage: 0~7.000V 7.000A
Output voltage: 0~40.00V
Memory data group: 10 groups
Screen size: 1.8 inch LCD
Voltage precision: ±0.5%+1 word
Current precision: ±0.5%+3 words
Number of buttons: 5
Output ripple Typical value: vpp-150mv
Note: This product has no output reverse connection protection, the battery positive and negative poles will be reversed to damage the device, the battery charging requires a certain degree of professional knowledge, non-professionals do not charge directly in case of fire and explosion
Module * 1
