【Note】
[] Do not include Raspberry Pi5 and NVME SSD
【Overview】

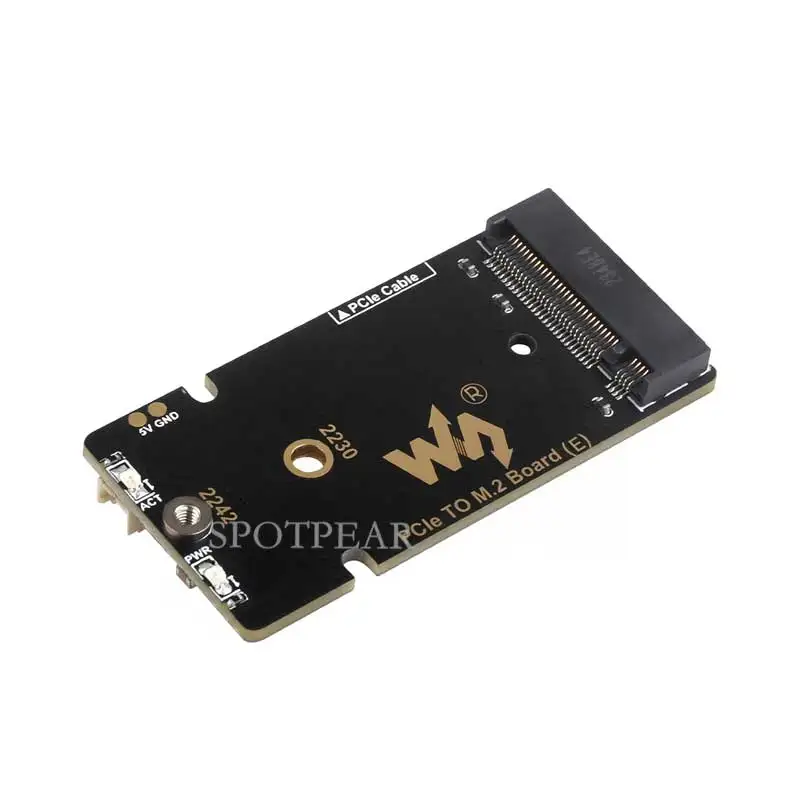

[] PCIe To M.2 Adapter Board (E) For Raspberry Pi 5, With Cooling Fan, Compatible With 2242 / 2230 Size NVMe Protocol M.2 SSD, 8Gbps Data Rate, High-Speed Reading/Writing, Raspberry Pi 5 NVMe
[]PCIe TO M.2 Board (E) Compact Size, Cooling Fan All-in-One Design, Suitable for Raspberry Pi 5
[]Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, Improves Working Efficiency
【Specifications】
[] FAN INPUT VOLTAGE: 5V DC (supplied via four-pin fan header on Raspberry Pi 5)
[] M.2 INTERFACE: Supports NVMe Solid State Drives (PCIe Gen2/3)
[] SOLID STATE DRIVE SIZE SUPPORT: 2242, 2230
[] FAN SPEED CONTROL: Pulse width modulation control with tachometer
[] MAXIMUM AIRFLOW: 1.39 CFM
[] FAN SPEED: 8000±10%RPM
[] MATERIAL: Anodised aluminium
【Improves Reading/Writing Speed Of Your Pi】
[] * for reference only, please refer to the Package Content for detailed part list
【NVMe Drive Slot Support】
[] Note: Only supports the NVMe Protocol Solid State Drives.
【Usage Examples】

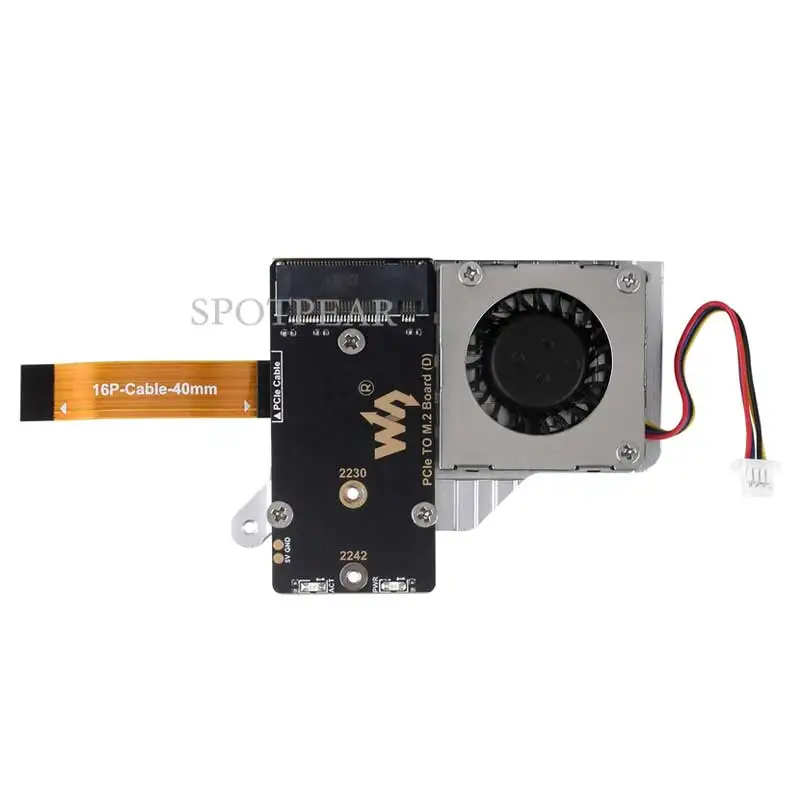

【Based On Raspberry Pi 5】
[] Matching The Size And Mounting Holes Of The Raspberry Pi 5

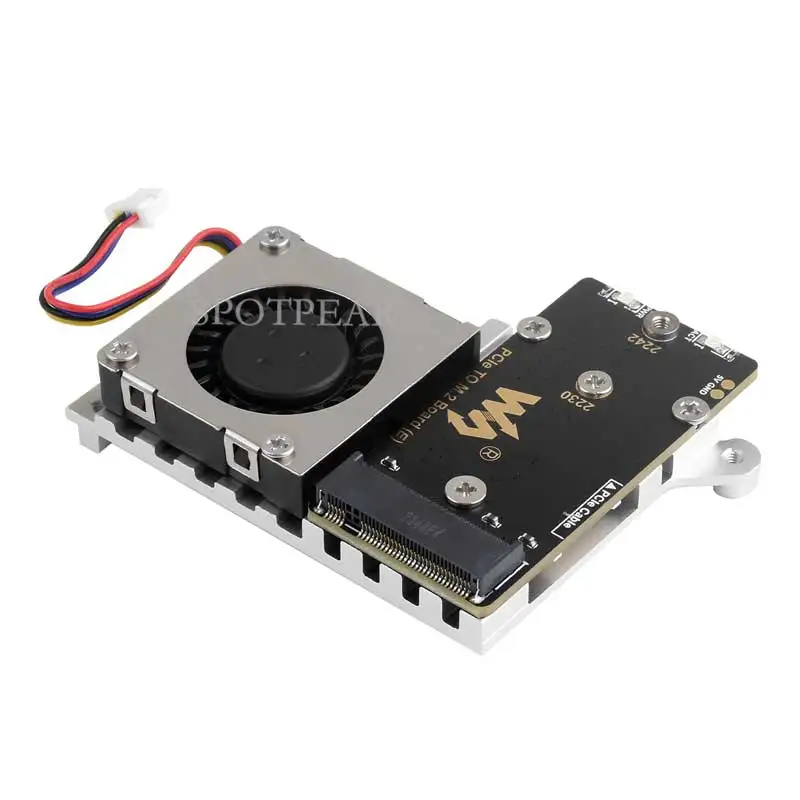

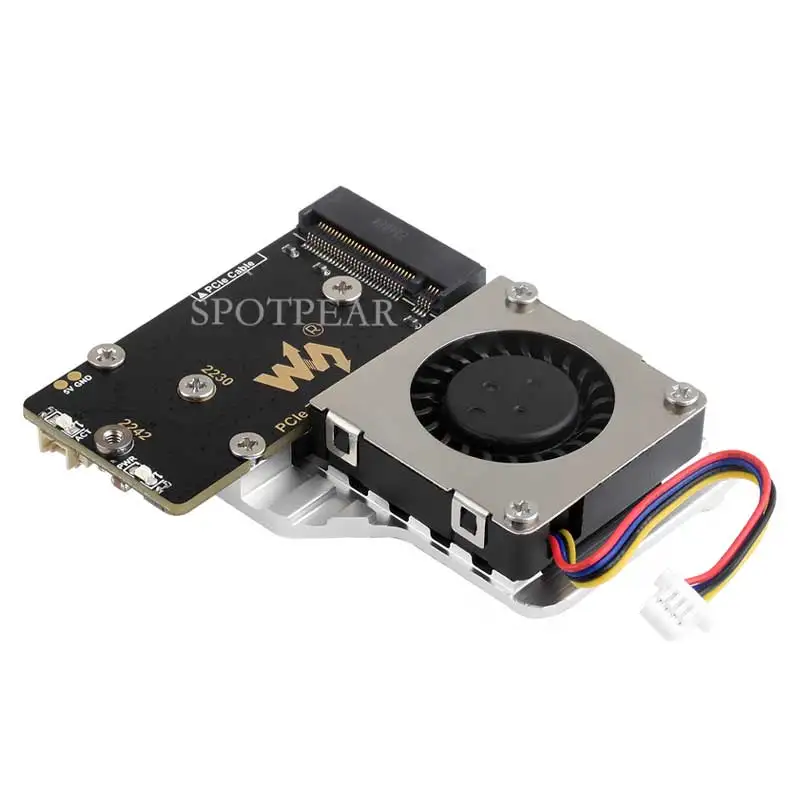

[] Combines A Temperature-Controlled Blower Fan With An Aluminium Heatsink To Accelerate Heat Dissipation
【Additional power supply】
[] Connect the power supply via a 2PIN cable (red connects to 5V, black connects to GND)
[] The PCIE cable only supplies 5W, and the device is underpowered through this 2PIN cable
【Connecting To PI5 Via 16PIN Cable】
[] Based On 16PIN PCIe Interface Of Raspberry Pi 5
【NVMe Solid State Drives Support】
[] Compatible With 2242 / 2230 Size M.2 Solid State Drives
[] Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive

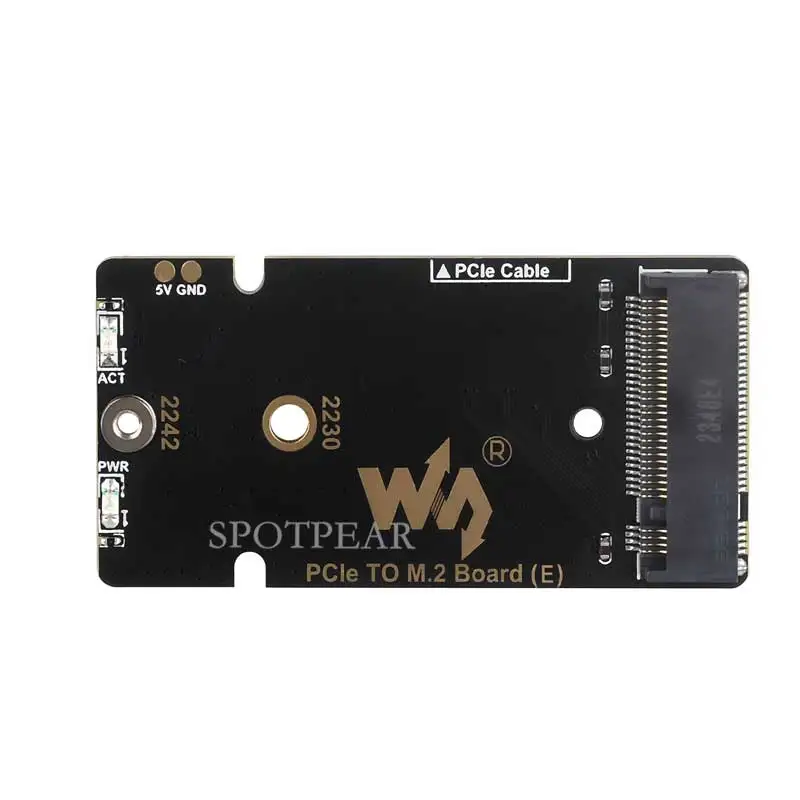

【Onboard Dual LED Indicators】
[] Easy To Monitor The Working Status
【Raspberry Pi 5 Cooling Solution Comparing】
【How To Install】
【Outline Dimensions】
Package Contains
[] PCIe TO M.2 Board (E) x1
[] MX1.25 2PIN cable x1
[] Thermal pad (3PCS) x1
[] Screws pack x1
