Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: GGBEE
- Sales: 27
- Package size: 15 × 13 × 4 cm
- Package weight: 0.031 kg
- Rating: 4.9 / 5
Before adding to cart, choose an available option and check the quantity.
Please Note
The system can store for 25 pcs of remotes, if the remote get more than 25 pcs, the initial remote control will be lost.
Specifications

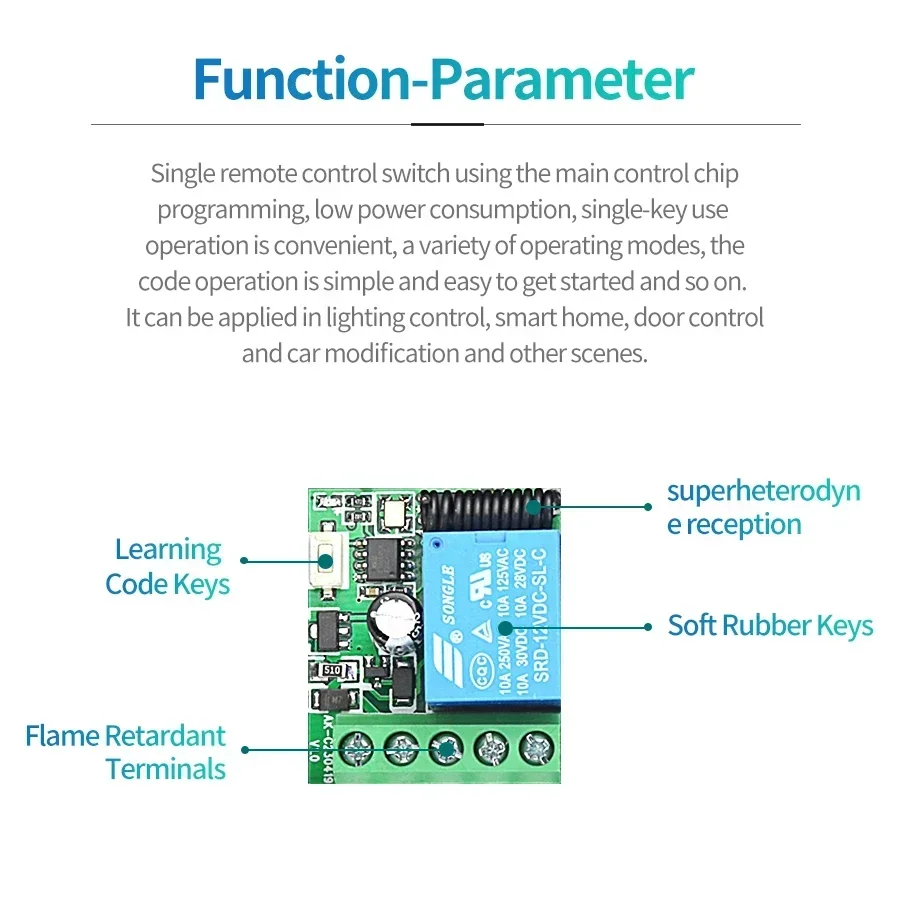

Receiver(switch)
Input voltage: DC 12V
Working current: 10A
Maximum load power: 110W
Frequency: 433Mhz
Support encoding format: EV1527
Wiring method: NC COM NO
Working mode: Momentary, Toggle, Latching Time delay (5s,10s,15s )

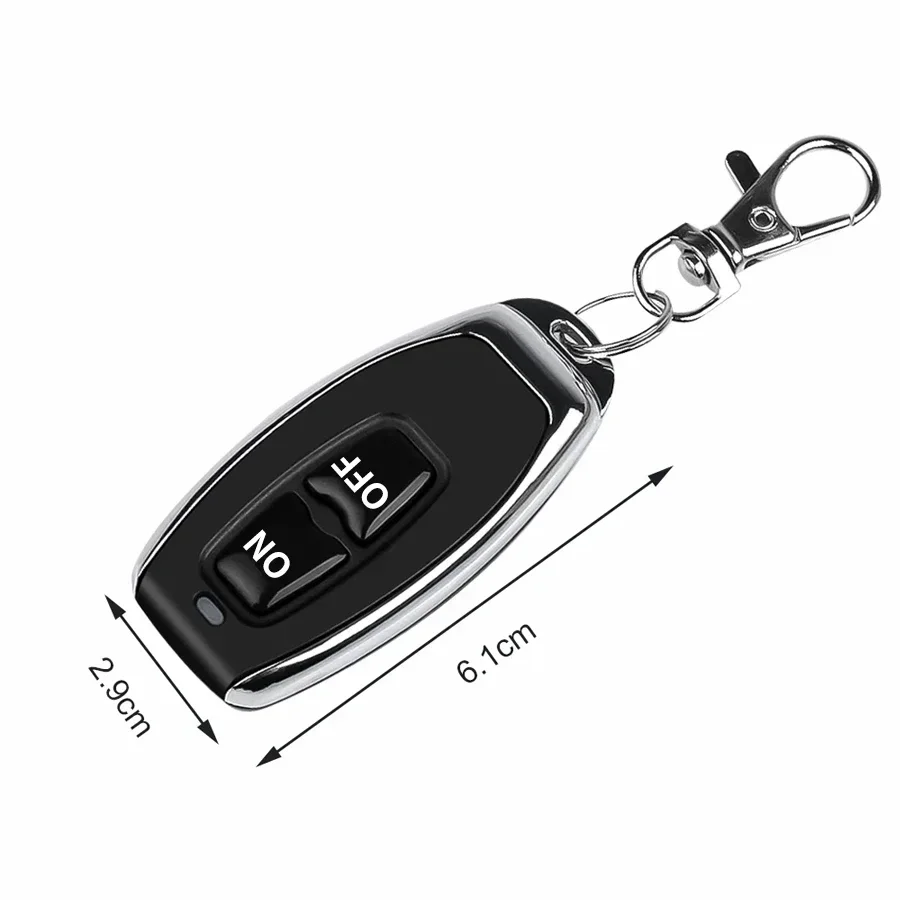

Remote Controller
Operating RF Frequency: 433MHz.
Coded System: 1527 Learning Code.
Working Voltage: DC 3V.
Working Current
Transmitting Power: 10mW.
Wireless Operating Distance: 50m(Free Space).
Transmission Rate: 50 ~ 60KHz.
Frequency Deviation: +0.2MHz or -0.2MHz.
Color: Black.
About Working Mode
Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.
Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
Time Delay Mode: Press the remote control button, the relay connects; Start timing when release the remote button, the relay disconnect automatically after 5s or 10s or 15s
