RF433Mhz Wireless Remote Control Light Switch 10A Relay Controller Mini Round Button Wall Panel Switch For LED Lamp AC100-240V
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 5.0★ from 16 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Sales: 37
- Package size: 6 × 6 × 2 cm
- Package weight: 0.022 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
Please Note
The relay controller is RF Receivers, the round wall switch is RF only. The wall switch itself cannot control lights ON/OFF. It needs to work withRF receiver together.
Specification
Transmitter (Remote)
Operating frequency: 433MHz
Power by 2 Pcs 3V CR2016 Battery (Battery included )
Material: PVC
Button: 2 buttons
Size: 60mm x 30mm
Operating voltage: 3V
Operating Current: 12mA
Transmitting power: 10mw
Modulation mode: ASK (AM).
Encoding type: Learning.
Transfers distance: 30~50m
Controller (Receiver)
Input Power: AC85-240V 60HZ/50HZ
Max current: 10 A
RF Frequency: 433Mhz
Working temperature:-30~+80
RF working mode: superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: more than 50 m ( open space)
Remote storage:10pcs
Support remote type: Learning code 1527code
Size: 47.4*42*22.8 (mm)
Features
1. New mini round wireless panel switch(50mm*50mm*15mm)
2. 10A power: suitable for most equipment, safer to use
3. Mini body: can be directly installed in the switch bottom box, maintenance and installation are more convenient
4. Up to 50 meters remote range.The more obstacles, the shorter the distance, the more serious the signal loss.
5. After turning off the power, turn on the power again, the device status is off.
FAQ

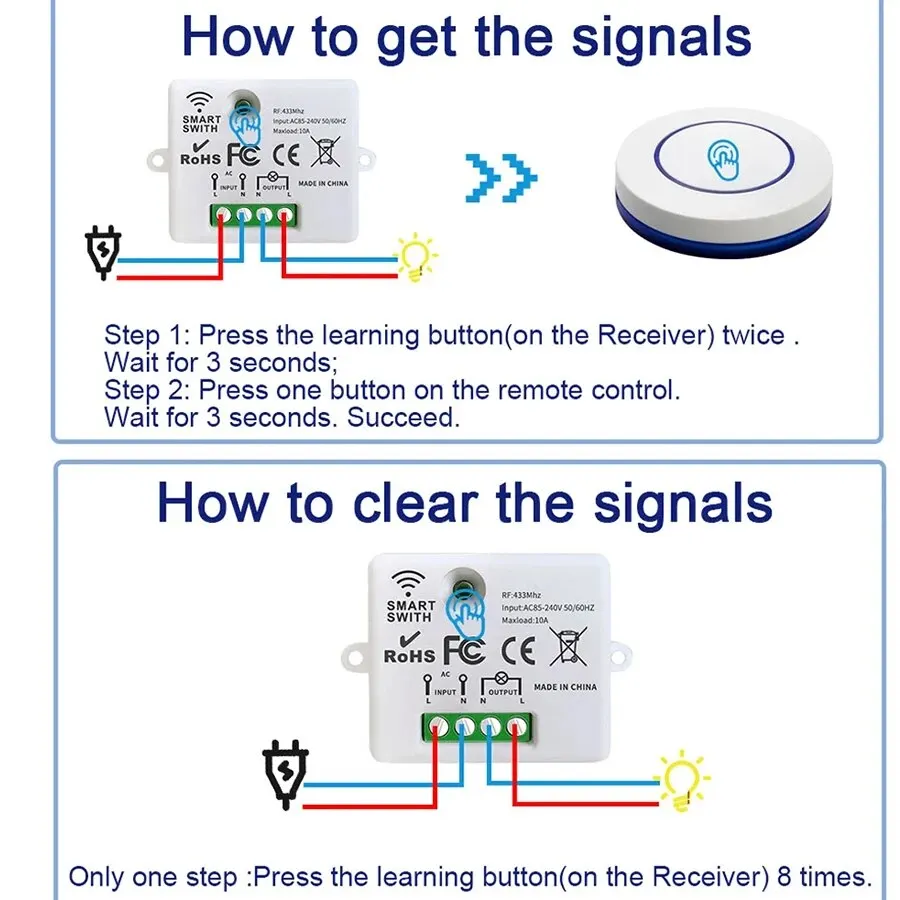

Q1: How to get the signals？
A:Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
Q2: How to clear the signals？
A: Only one step:Press the learning button(on the Receiver) 8 times.
