Solderless LED Connector 6 5 4 3 2 Pin LED Strip Connectors For RGB RGBW SMD 5050 WS2812B LED Strip Light Wire Connection
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 4.6★ from 401 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: DelightFire
- Sales: 2000+
- Package size: 1 × 1 × 1 cm
- Package weight: 0.02 kg
- Rating: 4.6 / 5
Before adding to cart, choose an available option and check the quantity.
All our products have been carefully selected and they are same as the picture which you see on our store. We already let the product color tend to the true as far as possible, however because of the monitor color error there more or less has a little bit of different. But definitely the product shape is the same as the picture.
Technical Data

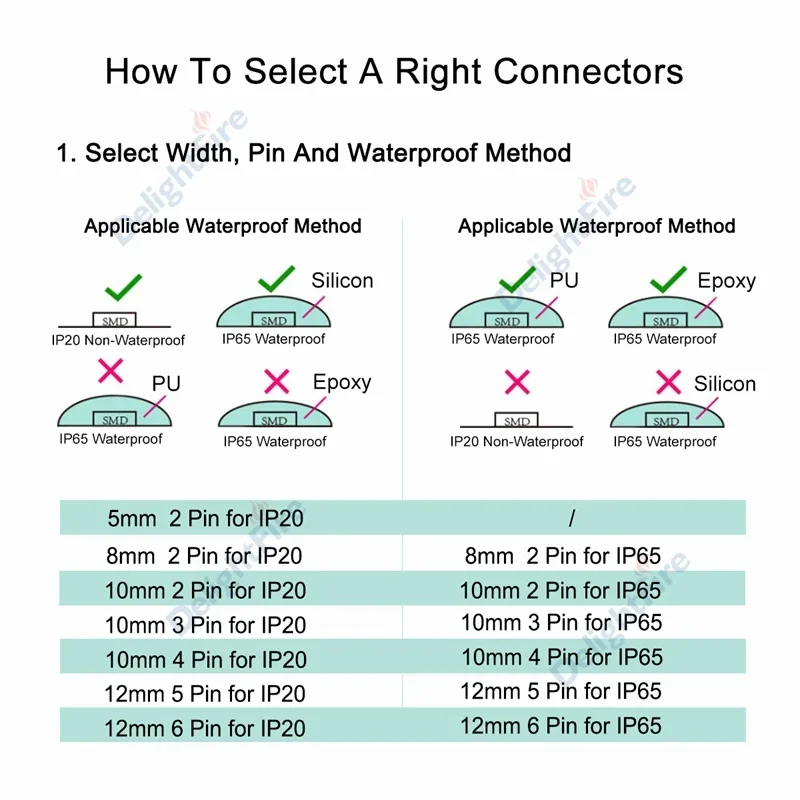

IP20 or IP54/65 Silicon Waterproof
IP54/65 Epoxy/PU Waterproof
Electrical Data
Working Voltage
DC3~24V
Max Current
5A
Pin Data
Pin Quantity

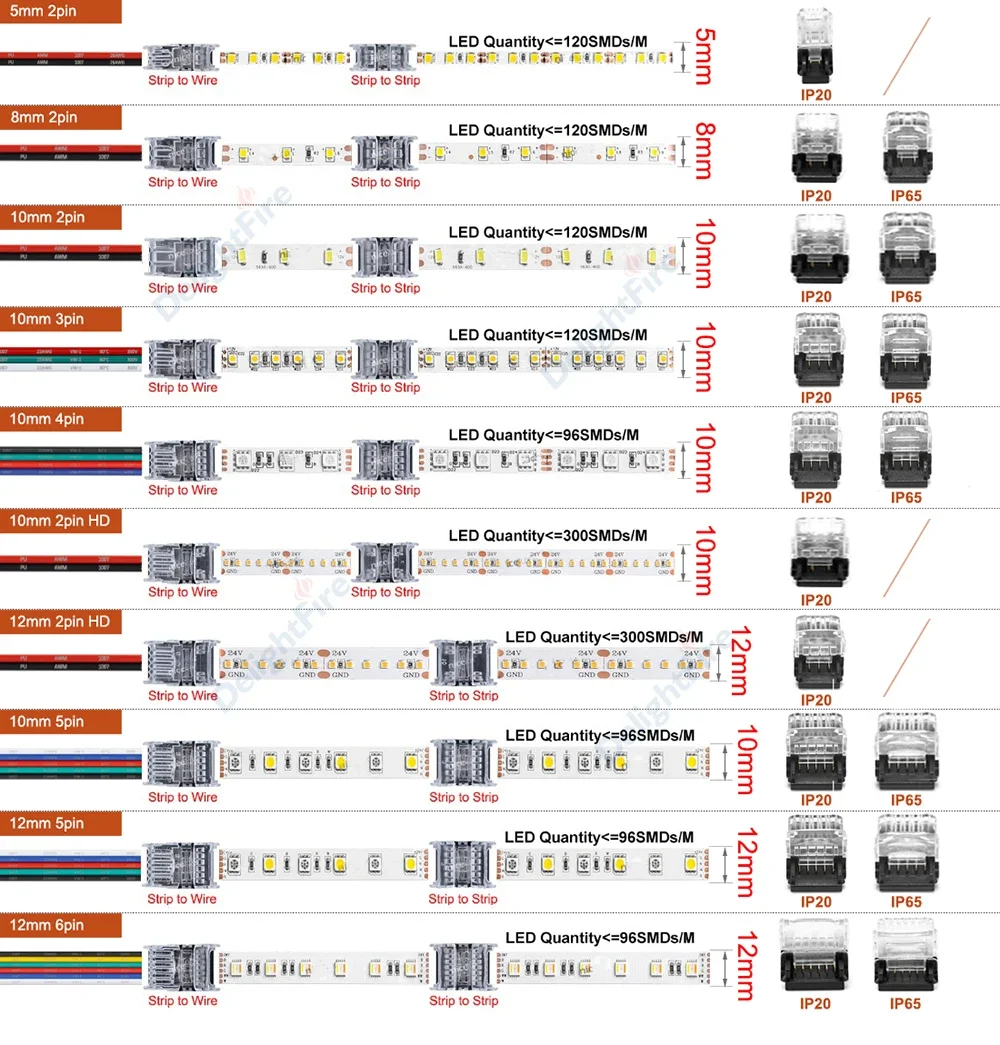

2/3/4/5/6 Pins
Material
Copper
Workable Strip Data
Strip Light Color
Single Color / Dual Color / RGB / RGB+White / RGBW /
RGB+Yellow / RGBWW / RGB+Dual Color
IP Rating
IP20
IP65 / IP54
Waterproof Type
Non-waterproof
One Side Glue Coating
FPC Thickness
0.2~0.35mm
LED Strip Height
/
>22 mm Include Glue
LED Strip Width
5/8/10/12mm
LED QTY / Meter
Workable Wire Data

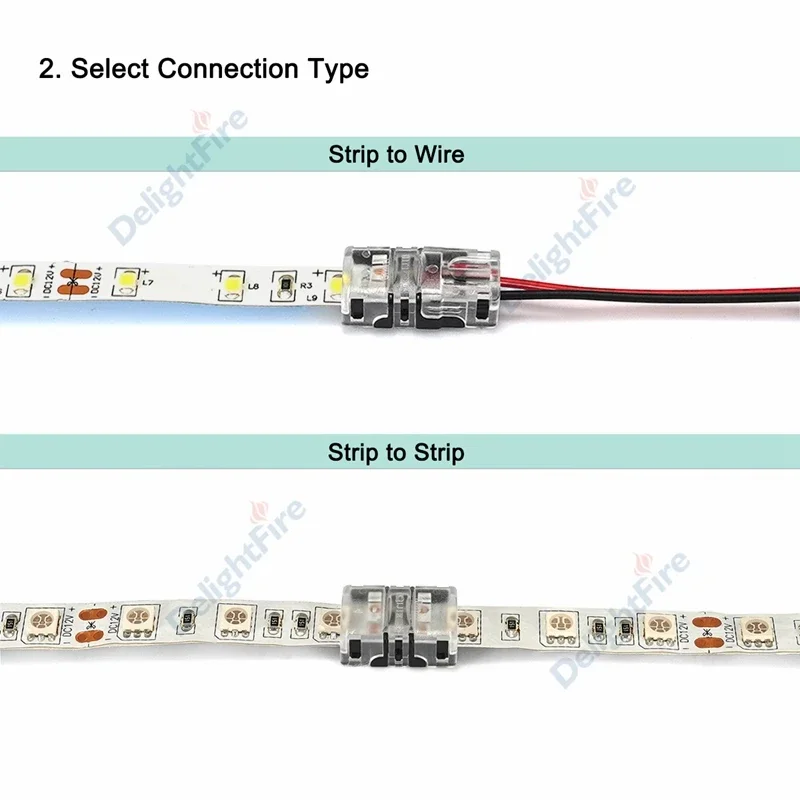

(for strip to wire)
Wire Gauge
22~18AWG(2pin), 22~20AWG(3/4/5/6pin)
Cross Section
0.34~0.72mm²(2pin), 0.34~0.5mm²(3/4/5/6pin)
Wire O.D.
Φ1.5mm~Φ2.1mm
Wire Type
Strand & Solid
Housing Data
Flame Retardant
UL94v~0
PC
Heat Resistance
105℃
Ambient Data
Temperature
20~50℃
Environment
Indoor
Note
1. For IP65/IP54 Strip Light, the IP rating will not be maintained after connection.
2. Due to silicon coating is softer, if IP65 type can not work well, please try connecting it with IP20 type.
Item Features
Package Includes
