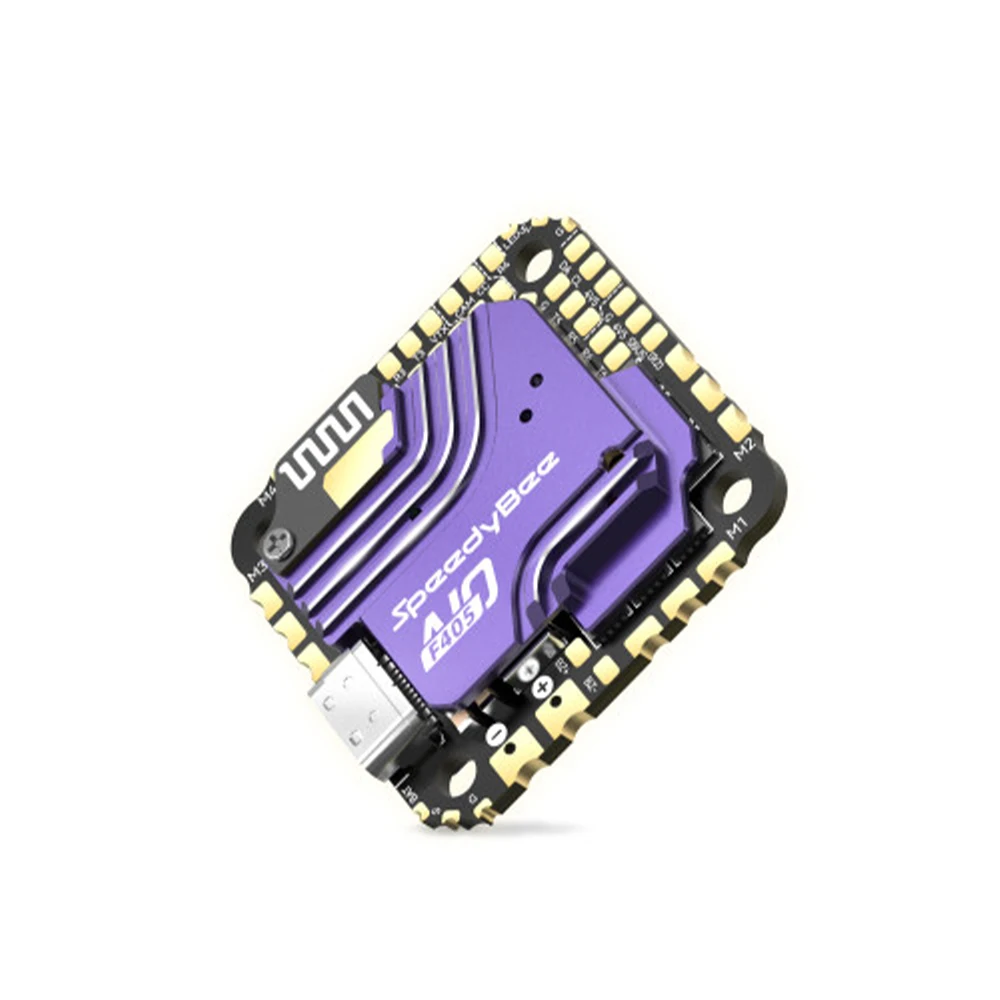

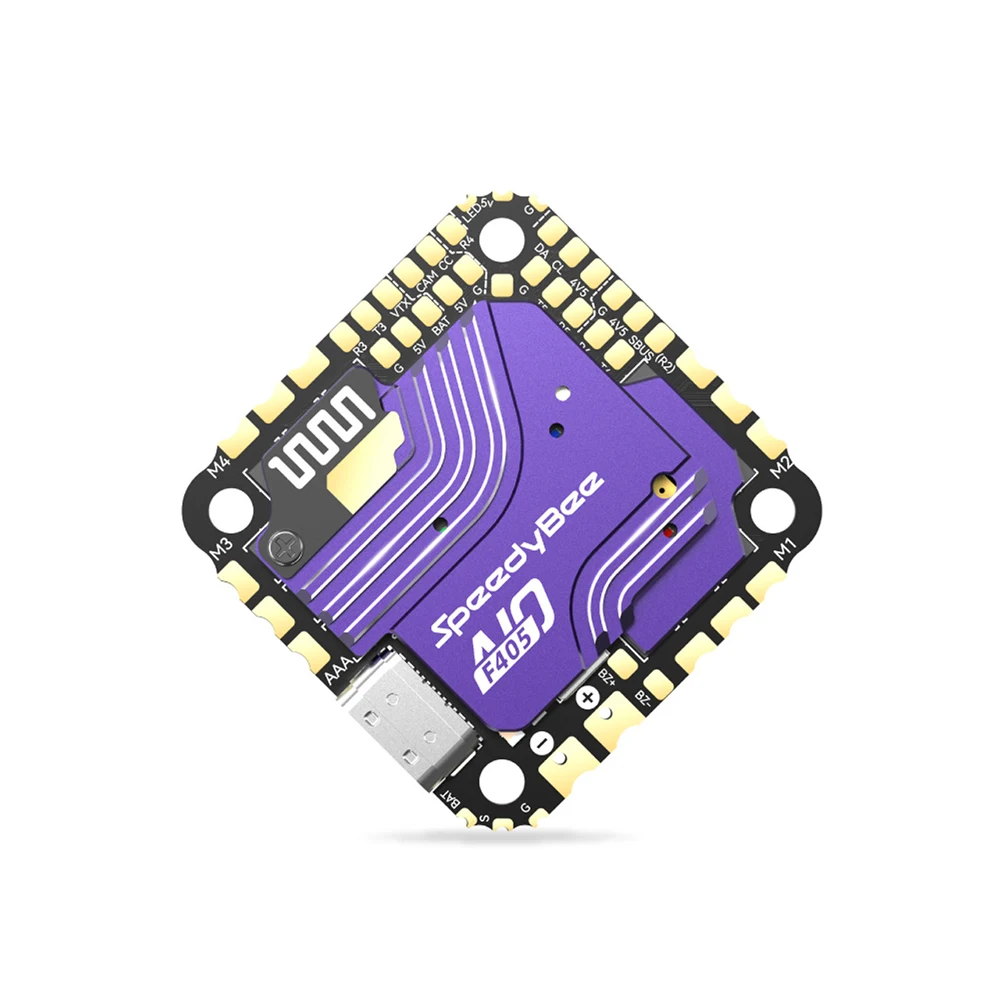

SpeedyBee F405 AIO 40A Flight controller 3S-6S For 2-4" Ultra-Light 5" FPV Drones
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 4.9★ from 13 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Sales: 78
- Rating: 4.9 / 5
- Reviews: 13
- Color: PURPLE
Before adding to cart, choose an available option and check the quantity.
SpeedyBee F405 AIO 40A Flight Controller 3S-6S LiPo ICM-42688P Gyro 25.5x25.5mm For 2-4" And Ultra-Light 5" FPV Drones Supports Wireless AIO DSHOT600/300
Features
1. Equipped with IEM-426ABP Gyro
2. Soldering Practice BoardAlso includes BEC module, power expansionboard, and USB extension module.
3. More processing powerand larger flash memory!
4. Wireless Configuration 2.0 Supports Meteor LED, wireless BOOT button,wireless tuning, firmware updates via APP.
5. ESC Performance Upgraded!Continuous curent 40A, peak curent 45A
6. For 2-4" and ultra-light5" FPV drones Supports 1002-2104 motors
7. Increased by 30% than F745 AI0,making soldering easier.
Description
F405 AIO 40A Flight controller wireless Configuration 2.0Supports Meteor LED, wireless BOOT button,wireless tuning, firmware updates via APP.More processing powerand larger flash memory!

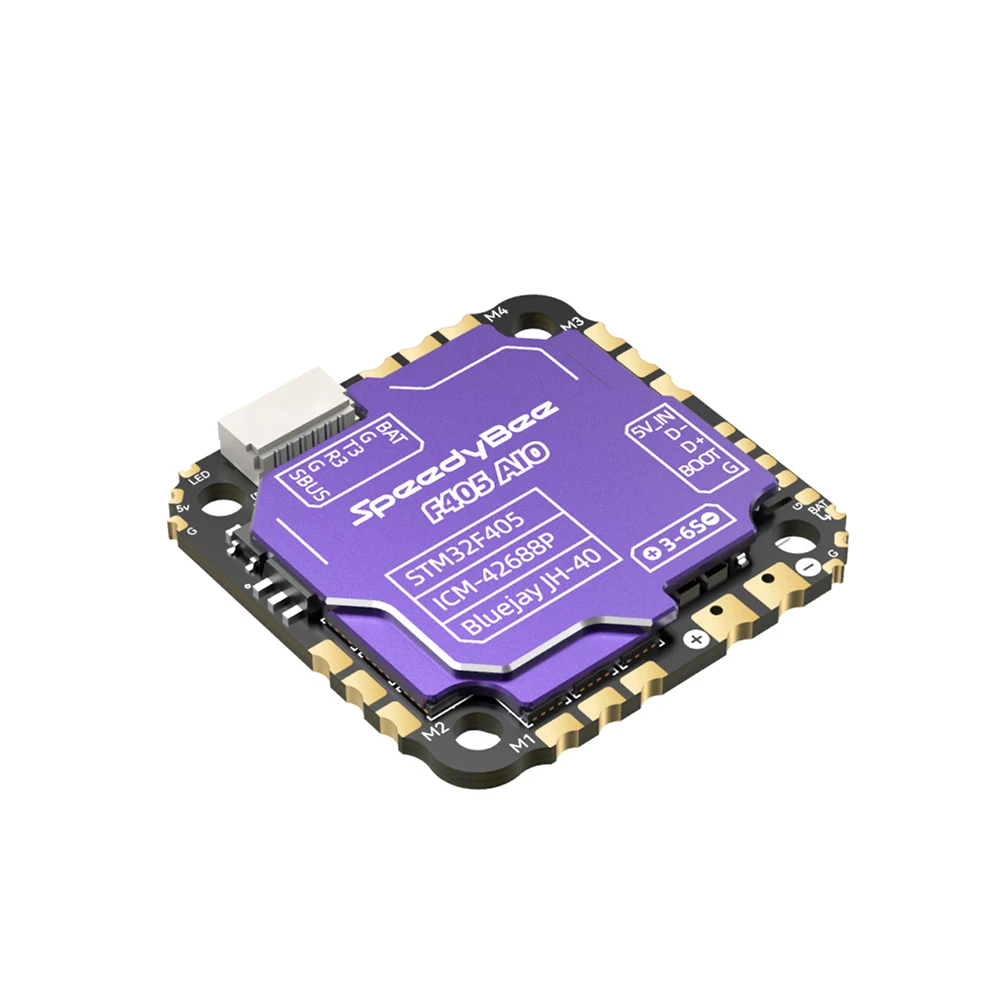

F405 AIO Flight Controller Specifications
Product Name: F405 AIO Flight Controller
MCU: STM32F405
Gyro: ICM-42688P
USB Port Type: Type.C
Barometer: SPA06-003
Bluetooth BLE: Supported,Bluetooth speed enhancement.2.0
Wireless Flight Controller Firmwsare Update: Supported (no need to press physical BooT button)
Flash (for BlackBox): 8MB
Betafight CC Pads(CameraParameter Adjustment): Supported
input Voltage: 3s-6s LiPo battery
MOTOR: M1-M4
Firmware: BetaFlight (Default), INAV
Mounting: 25.5 x25.5mm, 2mm hole diameter

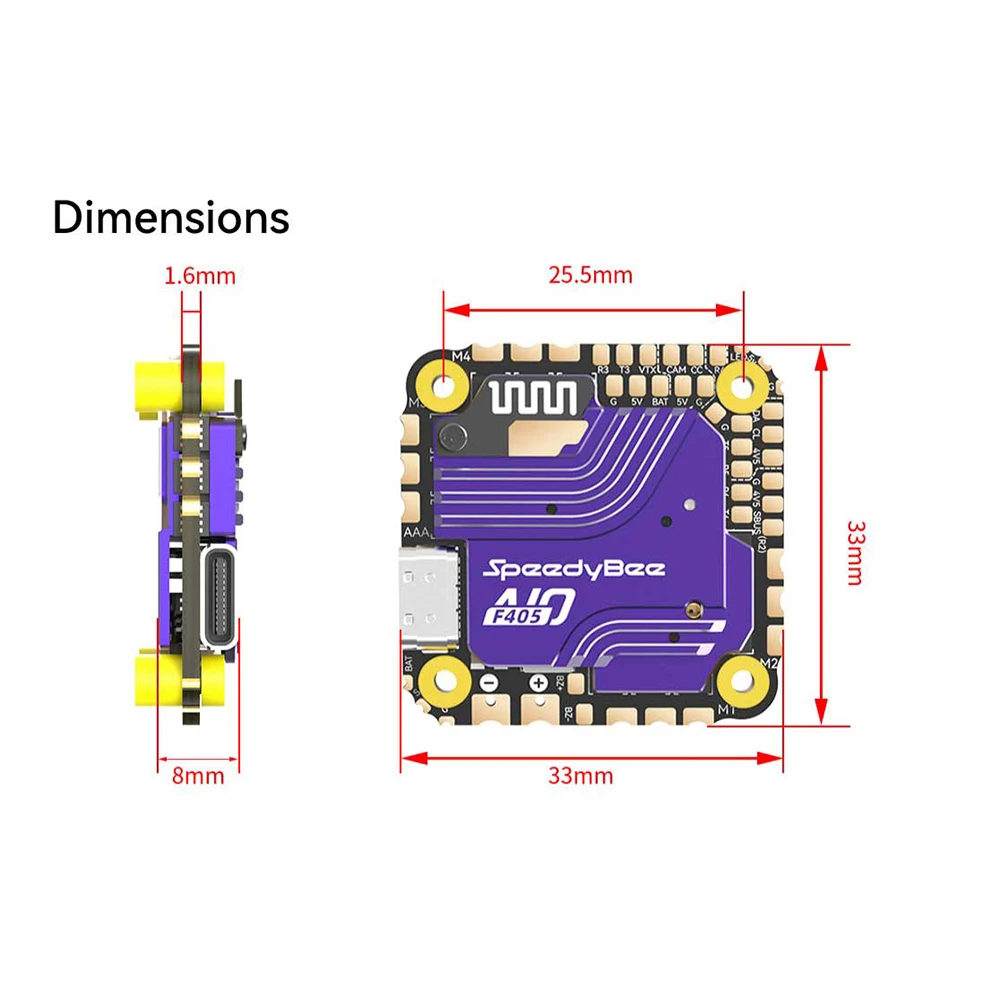

Dimensions: 33.0mm (length)x 33.0mm (width)x 8mm (height)
Weight: 13.6g (including CNC)
40A ESC Specifications
Input Voltage: 3-6S LiPo battery
Continuous Current: 40A
Burst Current: 45A (10s)
ESC Protocol: Supports DSHOT600/300, other protocols may cause severe errors
please use withcaution.
Output Voltage: VBAT battery voltage (used to power the flight controller)
Current Sensor: Supported (Scale= 254, Offset = 0)
Firmware: Bluejay JH-40 48kHz

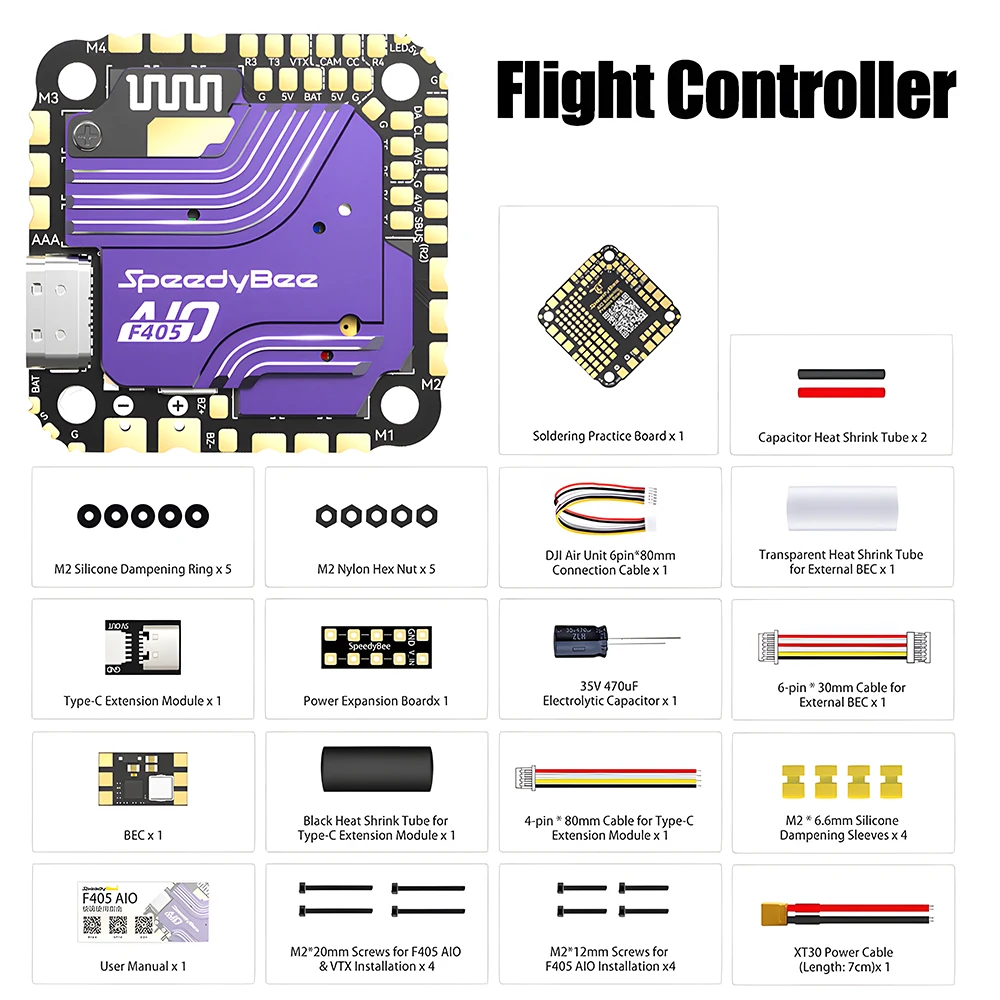

Package contents
1* F405 AIO Flight Controller
Note
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the
item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
