Street Coilovers for Mazda 3 BL Hatch BK 2004-2009 Coil Spring Shock Absorbers
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: MXR
- Package size: 70 × 51 × 20 cm
- Package weight: 28.35 kg
- Rating: 0.0 / 5
Before adding to cart, choose an available option and check the quantity.
Application
For Mazda 3 BK 2004-2009
For Mazda 3 BL 2009-2013
(includes Mazdaspeed 3)
Specification
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Damping adjustable: Available, 24 levels of rebound damping force

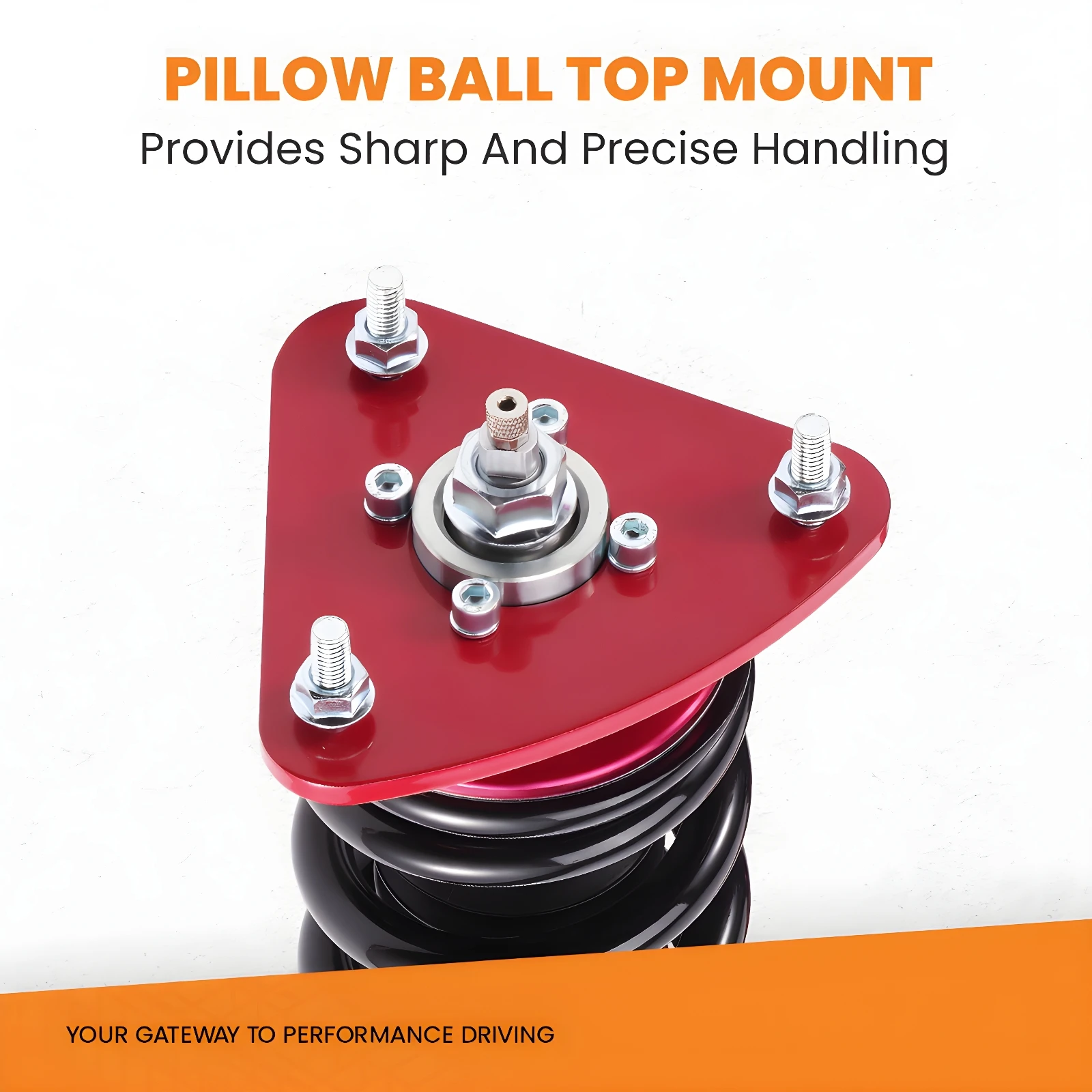

Front top mount: Pillow ball
Rear top mount: Standard rubber
Camber adjustable: Not available
Spring rate Front: 10 Kg/mm (560 lbs/in)
Spring rate Rear: 7 Kg/mm (392 lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 65-87 mm
Spring length Front: 200 mm
Spring length Rear: 194 mm
Spring Preload advised: 7-10 mm
Shock Tyep: Twin tube

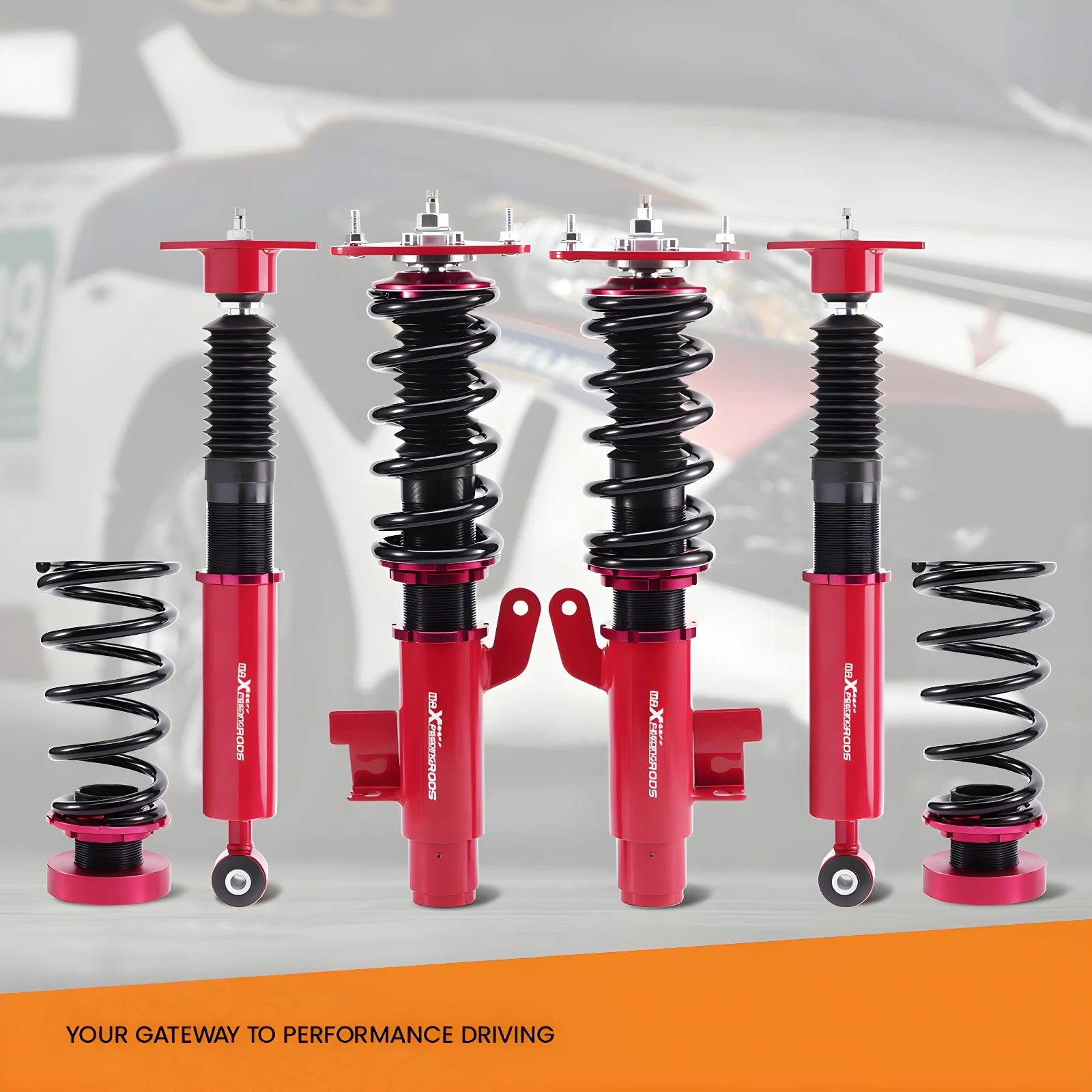

Package included
2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench
Dimension
Package size: 70*50*20 cm
Weight: 28350 g
Feature
1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower center of gravity and also adds a more aggressive stance
2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)

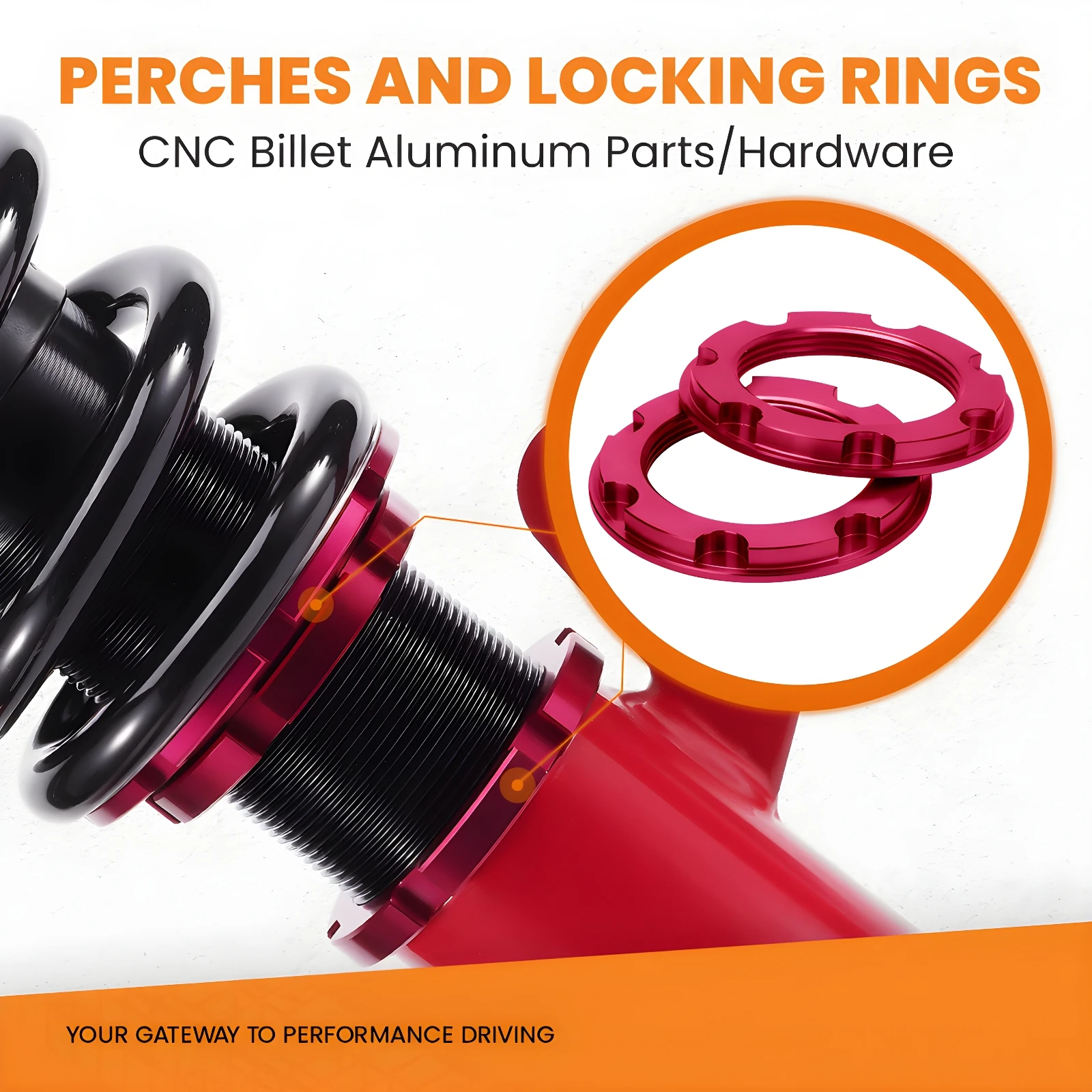

5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

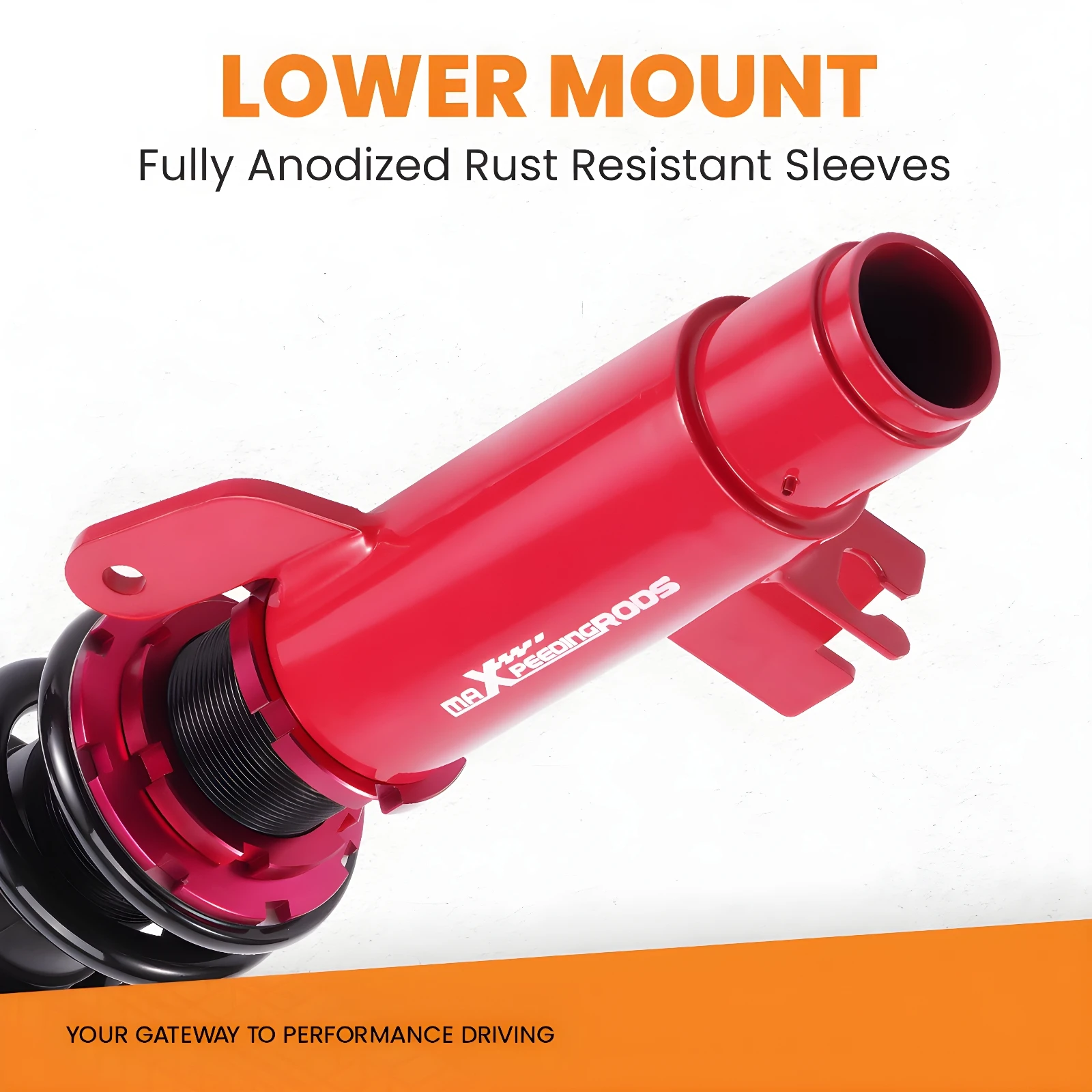

6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

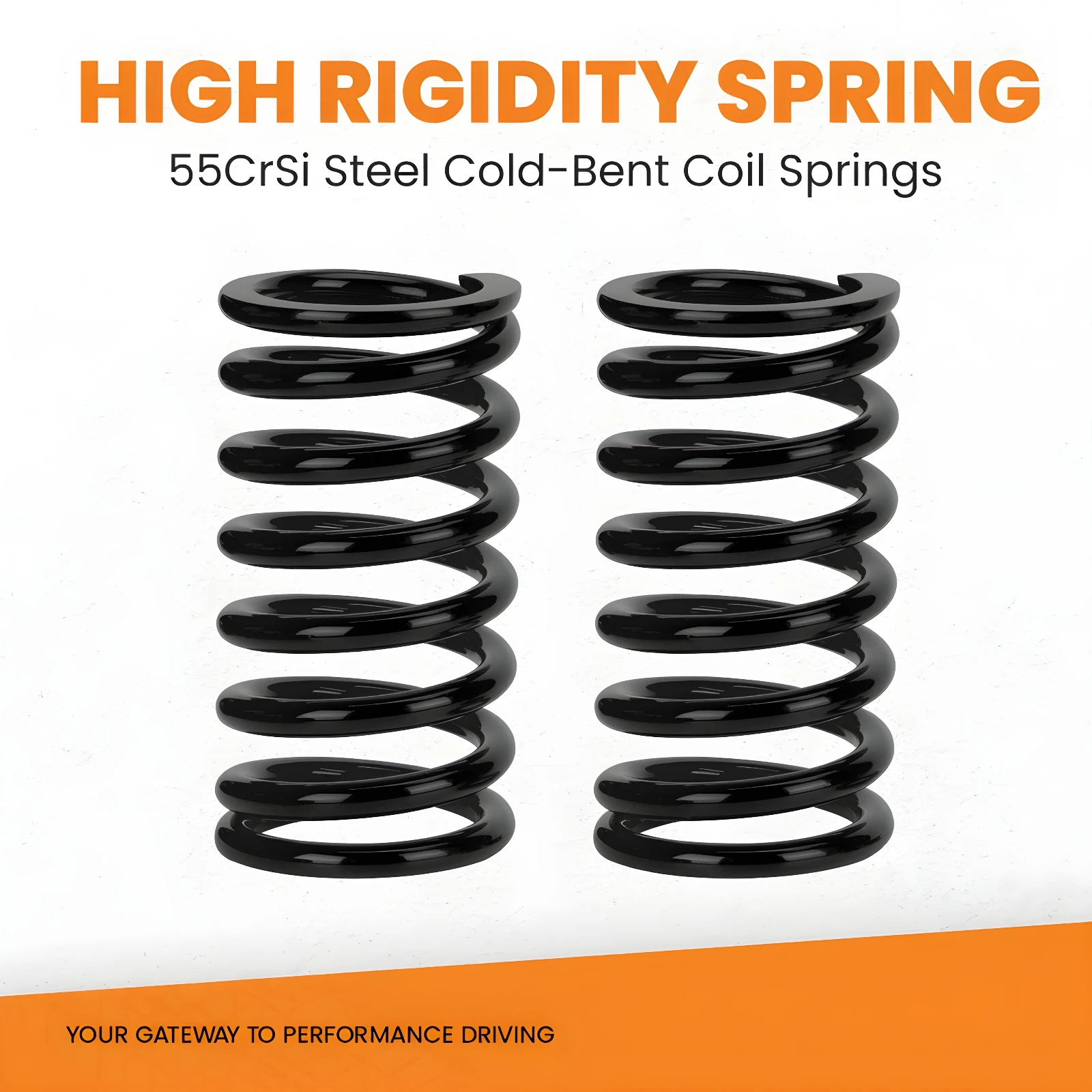

7. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
10. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
Note
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
