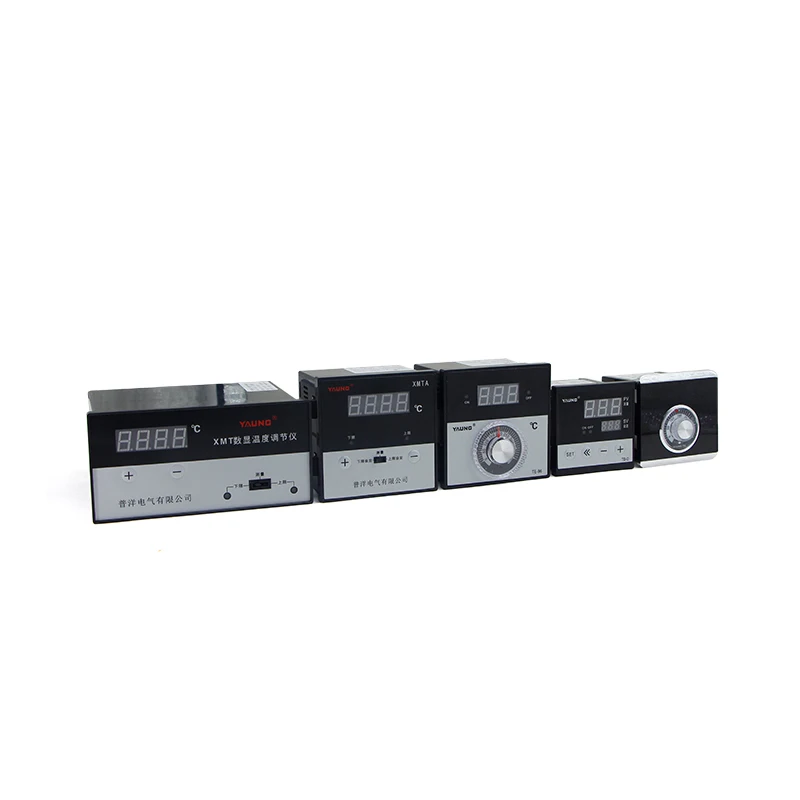

TED 72*72mm K J PT100 Type AC220V 110V 24V 380V Knob Degree Digital Thermostat Powered Temperature Controller
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Estimated delivery: 5.
- • Strong customer signal: 4.7★ from 69 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: NONE
- Sales: 178
- Package size: 15 × 13 × 10 cm
- Package weight: 0.28 kg
- Rating: 4.7 / 5
Before adding to cart, choose an available option and check the quantity.
Describtion
1. All of the controller series is AC 24V/ 220V/ 110V/ 380V, single input,we can select K/ J/ PT100 when we place the order.
2. Controller is one relay output, the relay rated current is 5A,so if the laod power more than 1000W, we need add one AC contactor.
TED Instrument Manual
1. The meter type must be used with the sensor type. For example, the K type can only use the K type sensor.
2. Common faults: display HHH - sensor damage / missed /K or E not match. The temperature does not rise and fall when heater working or display LLL: sensor reverse connection / K or E not match.
3. If it is unclear which is fault between the sensor and the meter(E/K type). We can short the 1 and 2 terminals, and the meter shows that the temperature is almost the same as the normal temperature. It means the instrument is normal, the sensor (thermocouple) is broken.
4. This method is not applicable to the detection and judgment of CU50 and Pt100 thermal resistance type meters.
Instrument description and wiring instructions
6.7.8 Terminals are relay output terminals (passive output) 7 is a common point and 6 is a normally closed point. 8 is a normally open point.no power output. When the temperature does not reach the set temperature,the panel green light (ON) is on / 7 and 8 terminals are closed (conducted):when the temperature reaches the set temperature or higher than the set temperature: the panel red (OFF) lights up / 7 and 6 twoTerminal pull-in (conduction)
