Ultra 1W6 4.9G-5.8GHZ 64CH 1600mW 1.6W Adjustable FPV VTX 7-36V Transmitter for RC FPV Drone Long Range Frame Quadcopter
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 4.9★ from 42 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: Readytosky
- Sales: 96
- Package size: 18 × 13 × 1 cm
- Package weight: 0.039 kg
- Rating: 4.9 / 5
Before adding to cart, choose an available option and check the quantity.

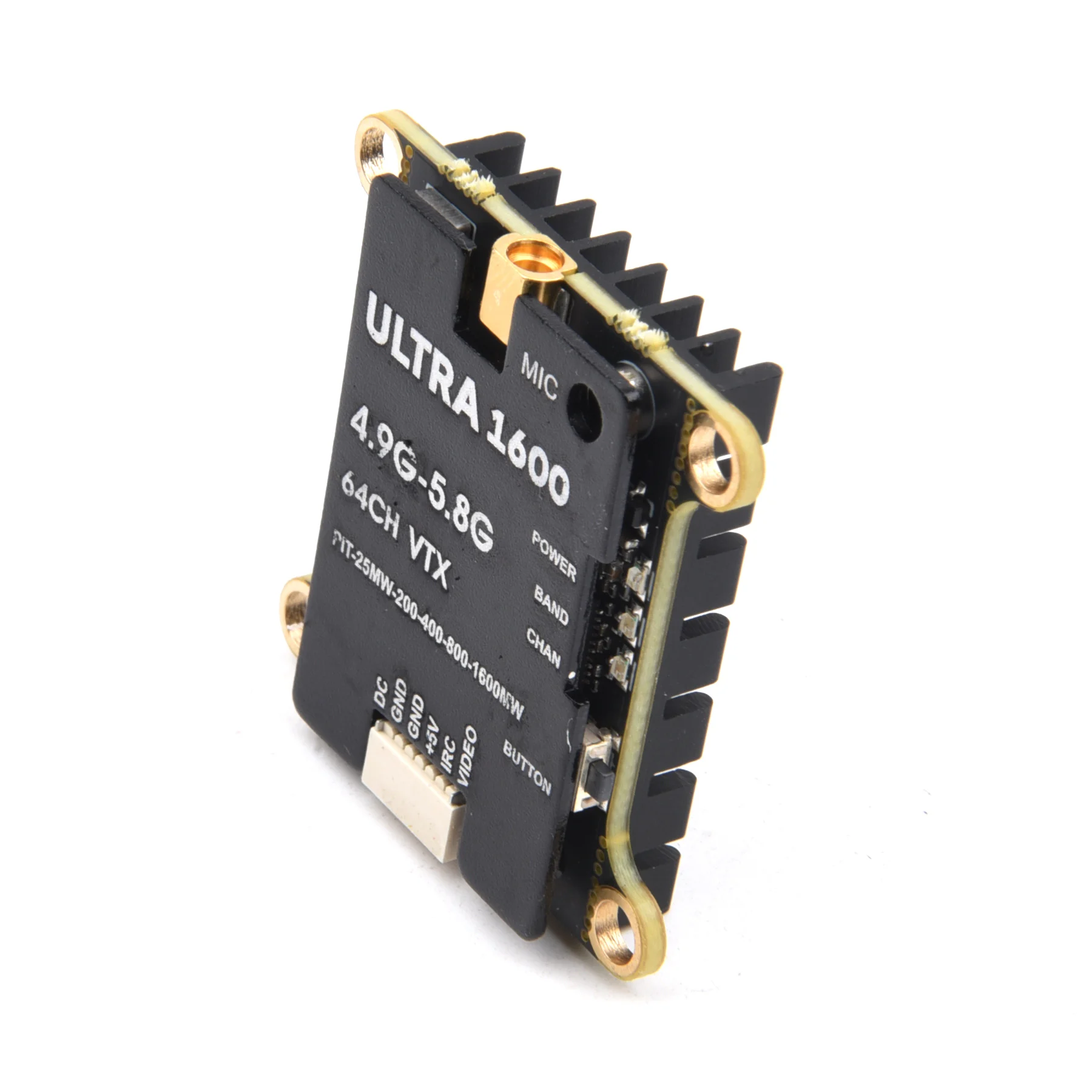

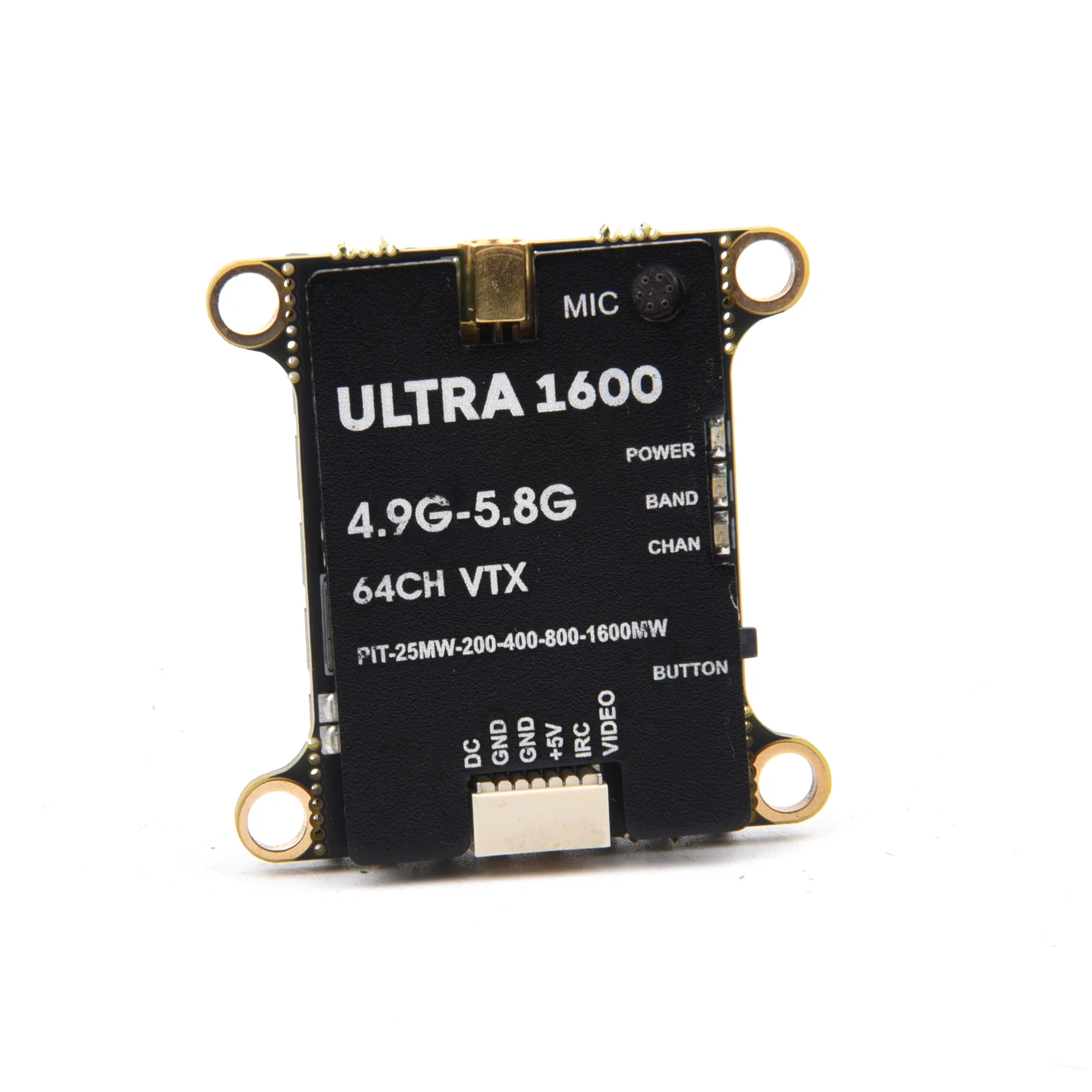

Model: Ultra1600 VTX 4.9G-5.8G 1.6W
Input voltage: DC 7-36V(2-8S Battery)
Output: 5V@600mA(Power 5V to camera)
Input impedance: 75Ω
Protocol: IRC Tramp
Antenna connector: MMCX connector
Cable connector: GH1.25-6P connector
Output power: 25mW/
400mW/800mW/1600mW/Pit mode
Frequency tables: 64 CH
Video format: PAL / NTSC
Microphone: Built in microphone
Size: 36.5mmx36.5mmx12mm
Weight: 15g(without cable)
Mounting holes: 30.5mmX30.5mm(M3)
Features
1. 1.6W super-power,suitable for Long Range flight with good stability.
2. Six power levels: 25mW/
400mW/800mW/1600mW/Pit mode.

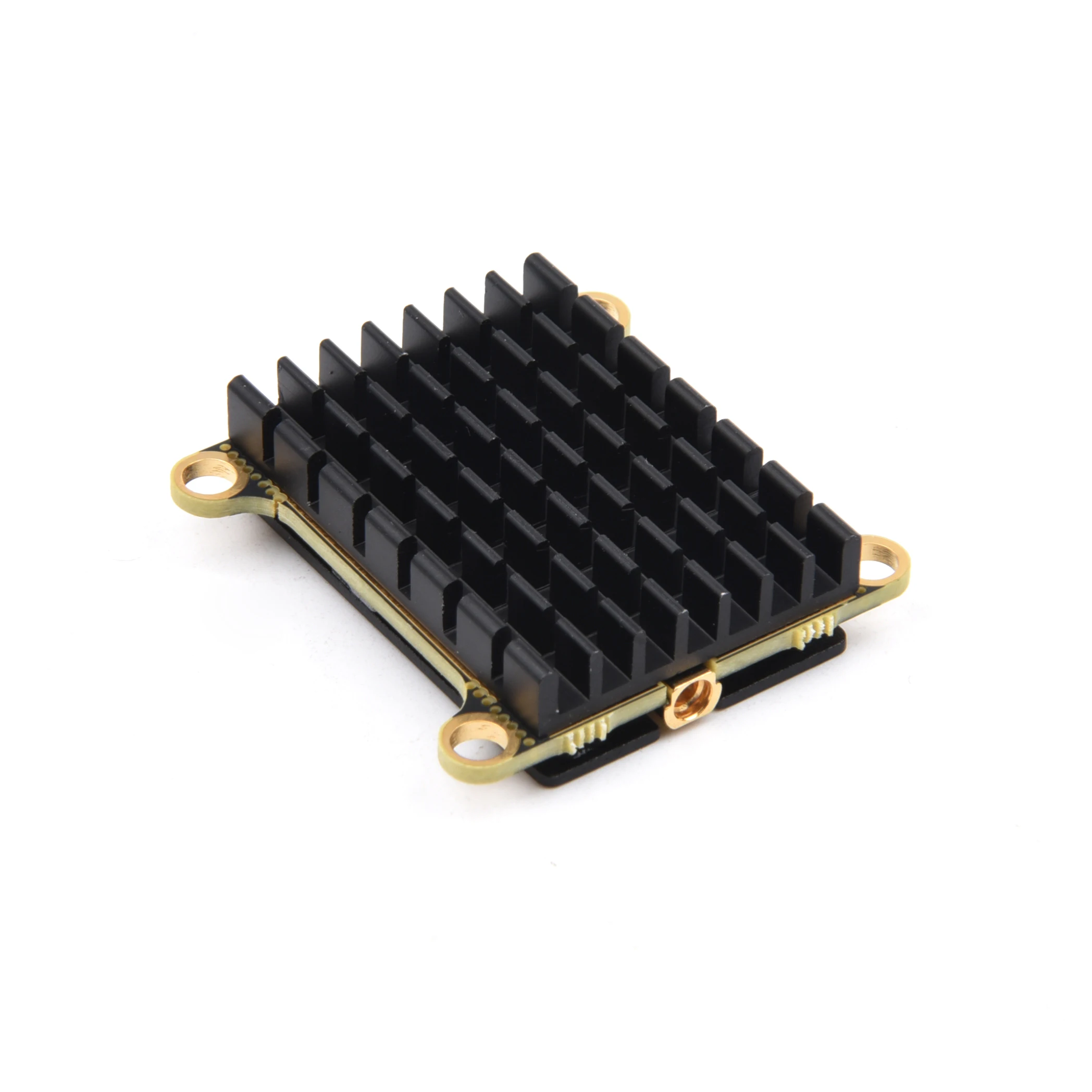

3. Two-layer board cooling structure,separate power BEC and main-board,reducing
and shielding from the insinal interference.
4. Temperature control protection function that can prevent high temperature
burning.
5. Wide voltage input, supports 7V-36V voltage input.
6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
7. VTX built in microphone,real-time return of Drone's sounds.
8. Has 3 regional frequency tables to meet the needs of various regions.
9. One function buttons, three indicator lights, easy to operate.
10. Mounting holes is 30.5mmx30.5mm.

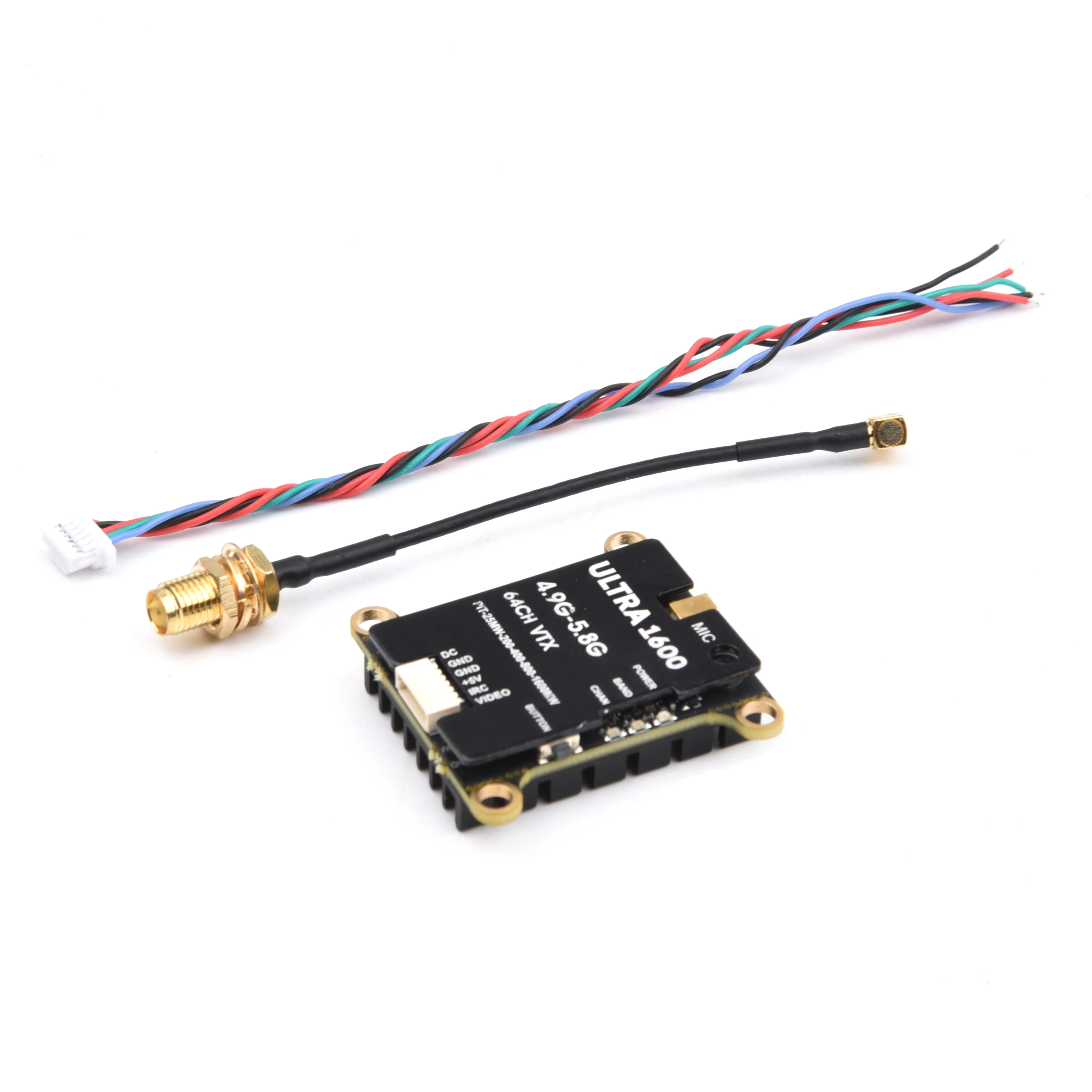

Package including
Send by your choice

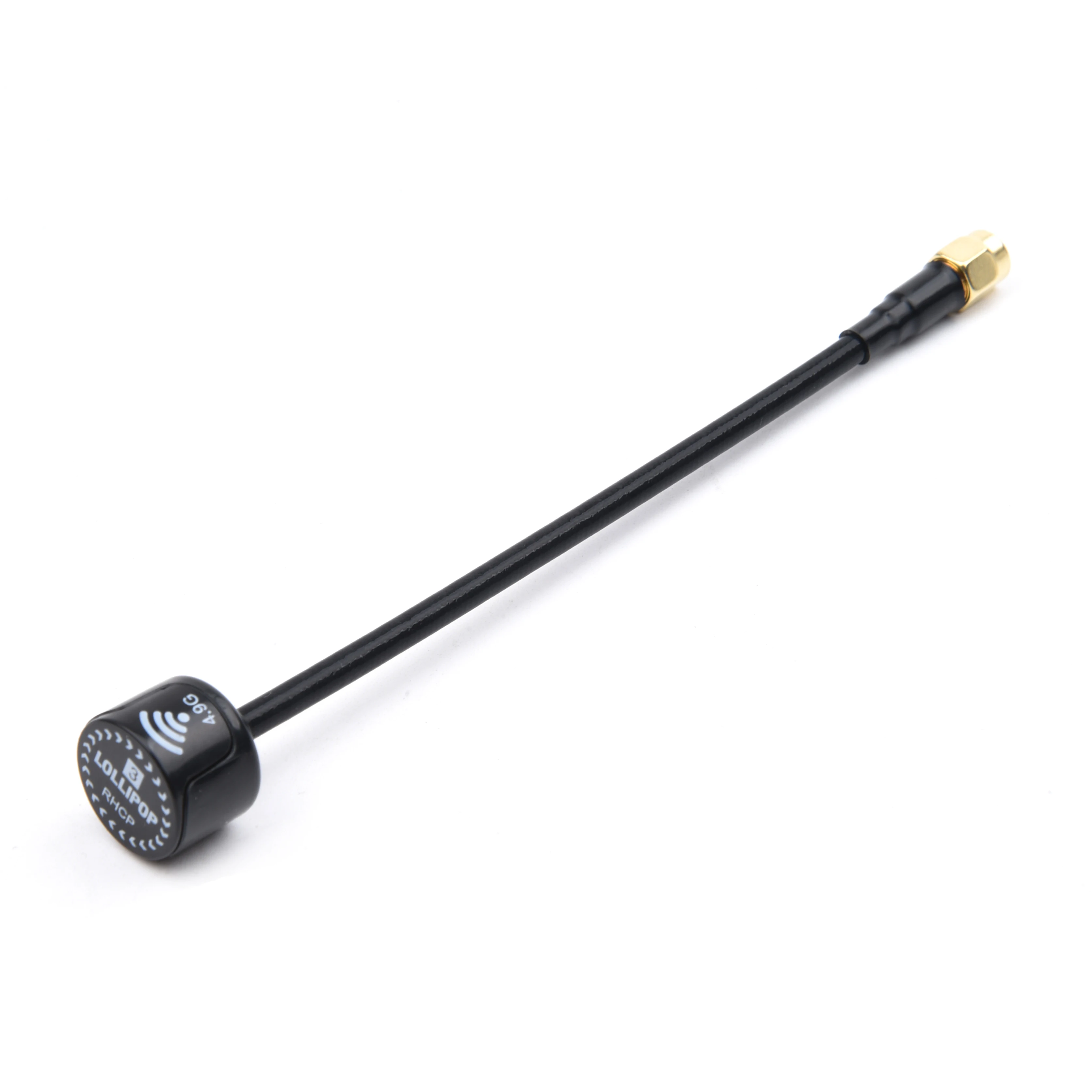

Note: If you want to use 4.9G and 5.8G bands at the same time, please use an antenna and VRX that can cover the frequency from 4.9Ghz-5.8Ghz. If the antenna and VRX cannot cover all bands, you may need to use different antenna and receiver when using 4.9G and 5.8G.
