WLED Controller Elite 1D2P-EXMU GL-C-620WL Built-in Relay/ Fuse Ethernet Type-C for Digital RGBIC PWM Single Color CCT LED Strip

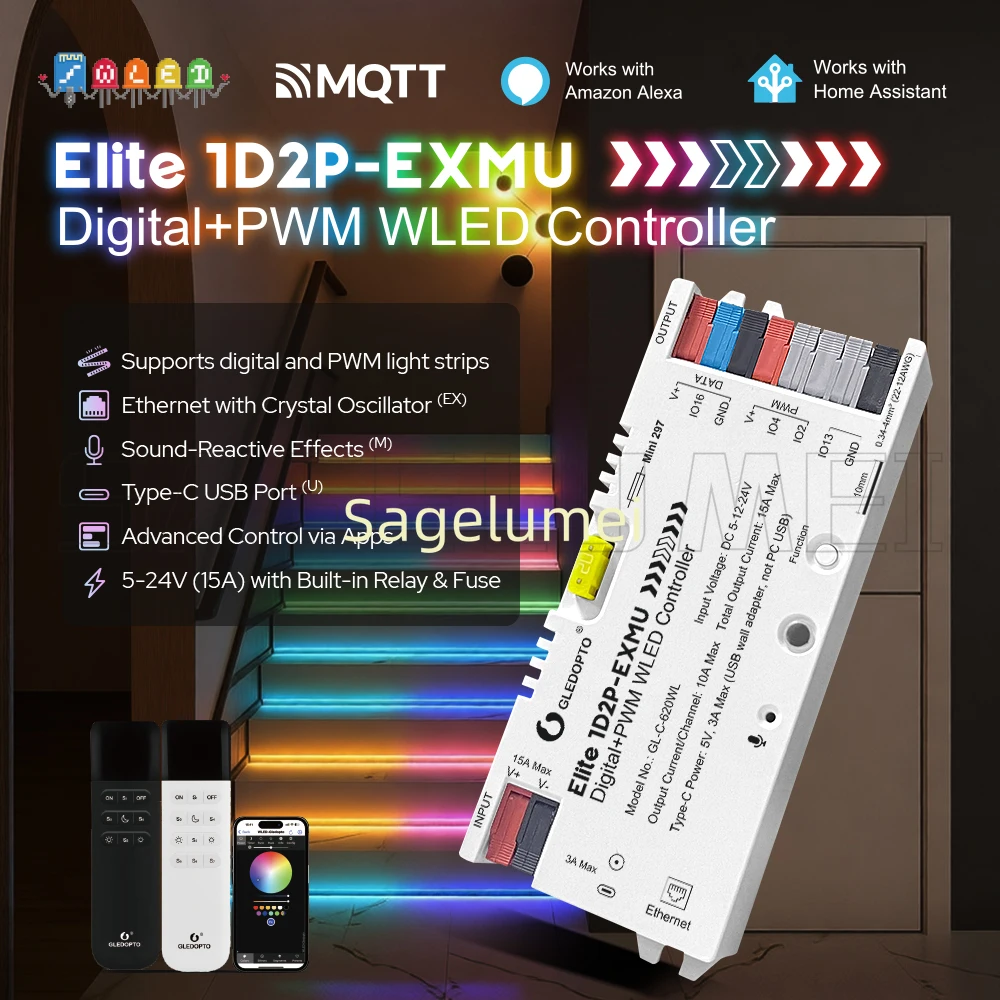

GLEDOPTO Elite 1D2P-EXMU WLED Controller
Elite 1D2P-EXMU Digital + PWM WLED Controller
️️️
Please Note: For DC port connections, do not exceed 3A, otherwise the controller may be damaged.
This controller has three PWM channels: V+, IO4, and IO2. It can only connect to 3-wire CCT LED strips or 2-wire monochrome LED strips. It cannot connect to PWM RGB/RGBW/RGBCCT light strips.
Key Features
Dual Output Support: Compatible with both Digital and PWM LED strips.
Wide Voltage Input: Supports DC 5V – 24V, with a maximum total current of 15A.
Built-in Relay & Fuse: Energy-saving relay reduces standby power consumption; fuse protects against overcurrent.

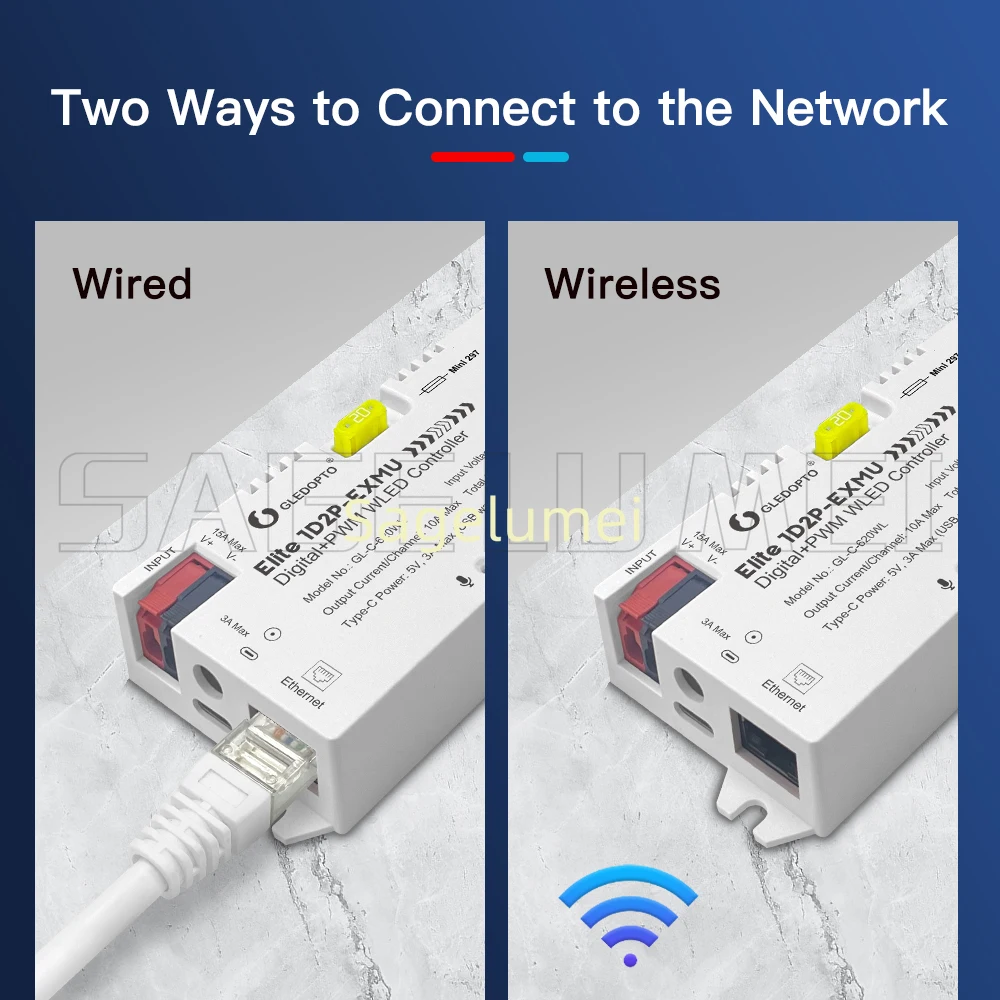

Ethernet Port with Crystal Oscillator: Stable wired network connection, plug-and-play.
Type-C Port: Can be used for power supply (5V, 3A max) and firmware downloading.
Sound-Reactive Effects: Built-in microphone allows LED effects to sync with music rhythm.

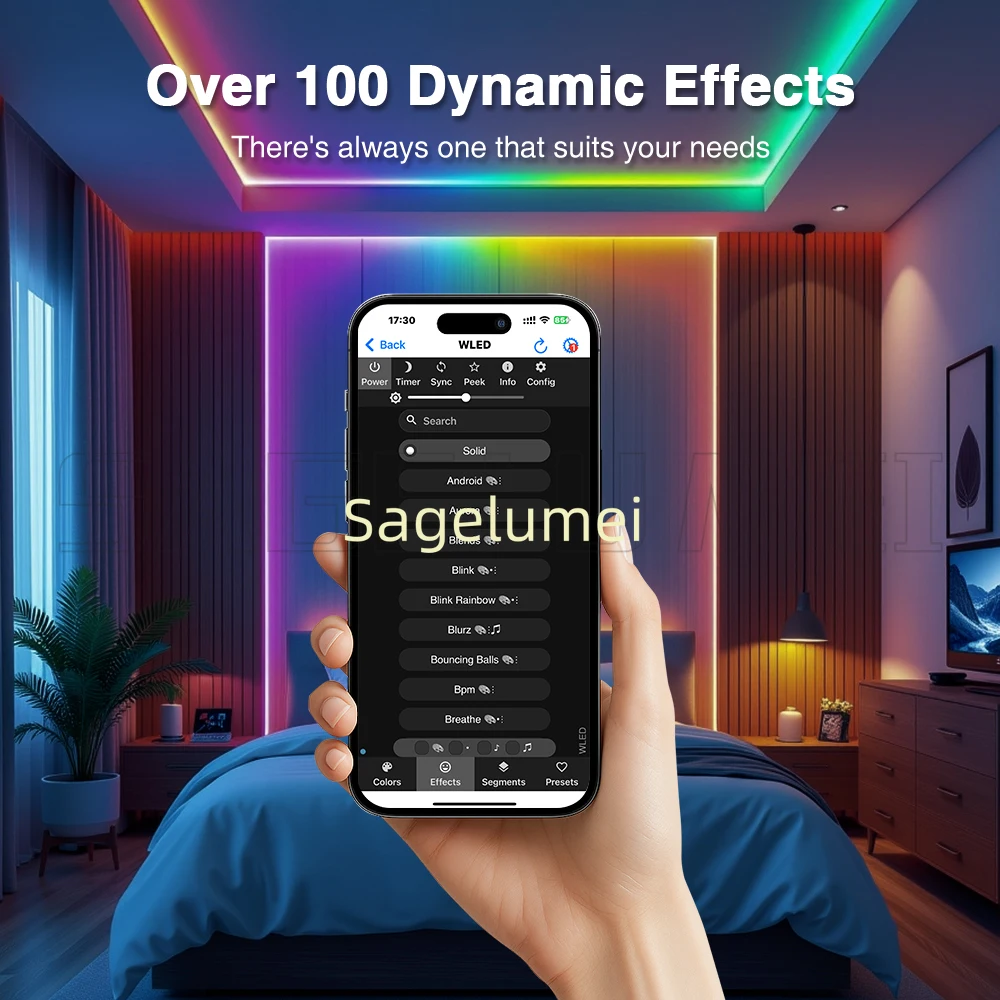

Advanced App Control: Fully compatible with WLED app, supports Alexa and Home Assistant.

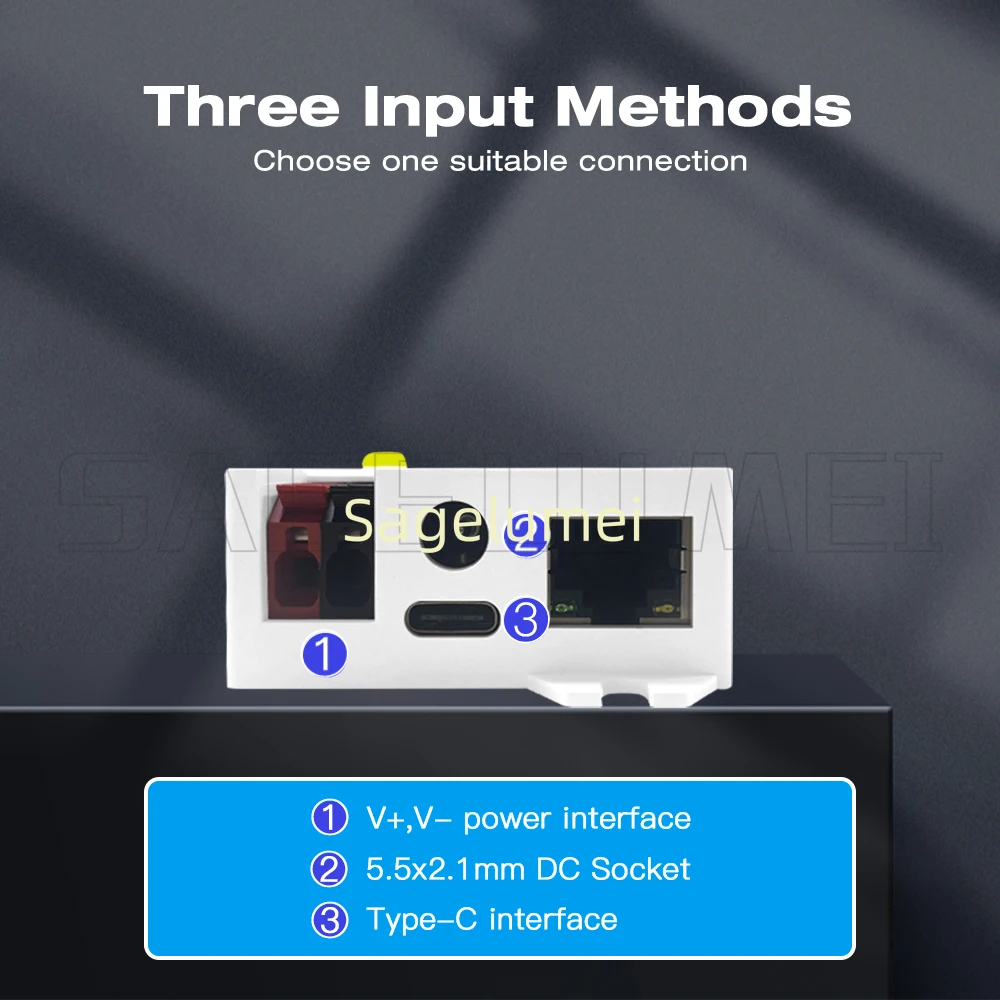

Multiple Input Options: Power via terminal block, DC jack, or Type-C.
GLEDOPTO - Your Intelligent Lighting Partner!
Package Included
1 x Elite 1D2P-EXMU Controller
1 x User Instruction
1 x 3cm Sticker
1 x 5A Pluggable Fuse
1 x Packaging Box
