WS2811 WS2813 WS2815 WS2812B Pixel Full Color LED Strip WS2812 Individually Addressable 30/60/144 Leds/m Tape Light DC5V DC12V
Pay attention
1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order!
2. IP30: Non- Waterproof
IP65: Waterproof in Silicon Coating
IP67: Waterproof in SiliconTube
3.If the order no more than $5,no tracking number!!
this link is not include power supply and led controller,please know it

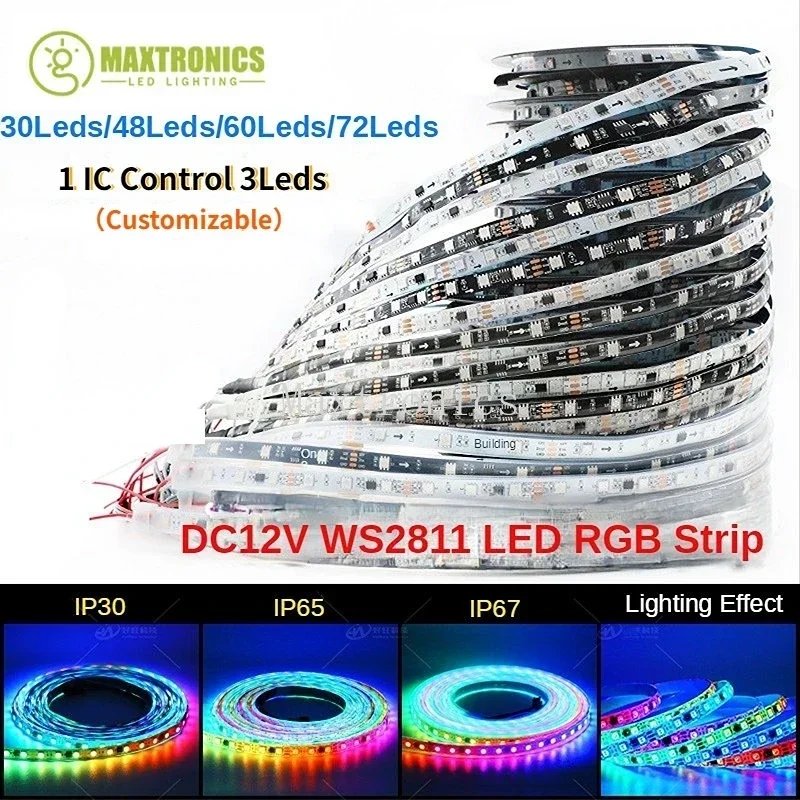

WS2811 LED Strip
(1) Working Voltage: DC 12V
(2) LED Source: SMD 5050 RGB
(3) LED Chip: Epistar
(4) LED QTY: 30/60 LED/M
(5) IC QTY: 10/20M
(6) Power: 9/18W /M
(7) Grey scale: 256 / Color
(8) Cutability: 3 led / cutting (Similar WS2811, 1 ic control 3 LED)
(9) Beam Angle: 120 °
(10) Color Mode: 133Pattern & 100 Speeds
(11) IP Grade: ip30 non -waterproof / ip67 waterproof
(12) Dimension: 5000 x 10 x 2.4mm
(13) Packaging: 5m/roll 12v WS2811 RGB Strip + 3Pin Connector
(14) Warranty: 2Years

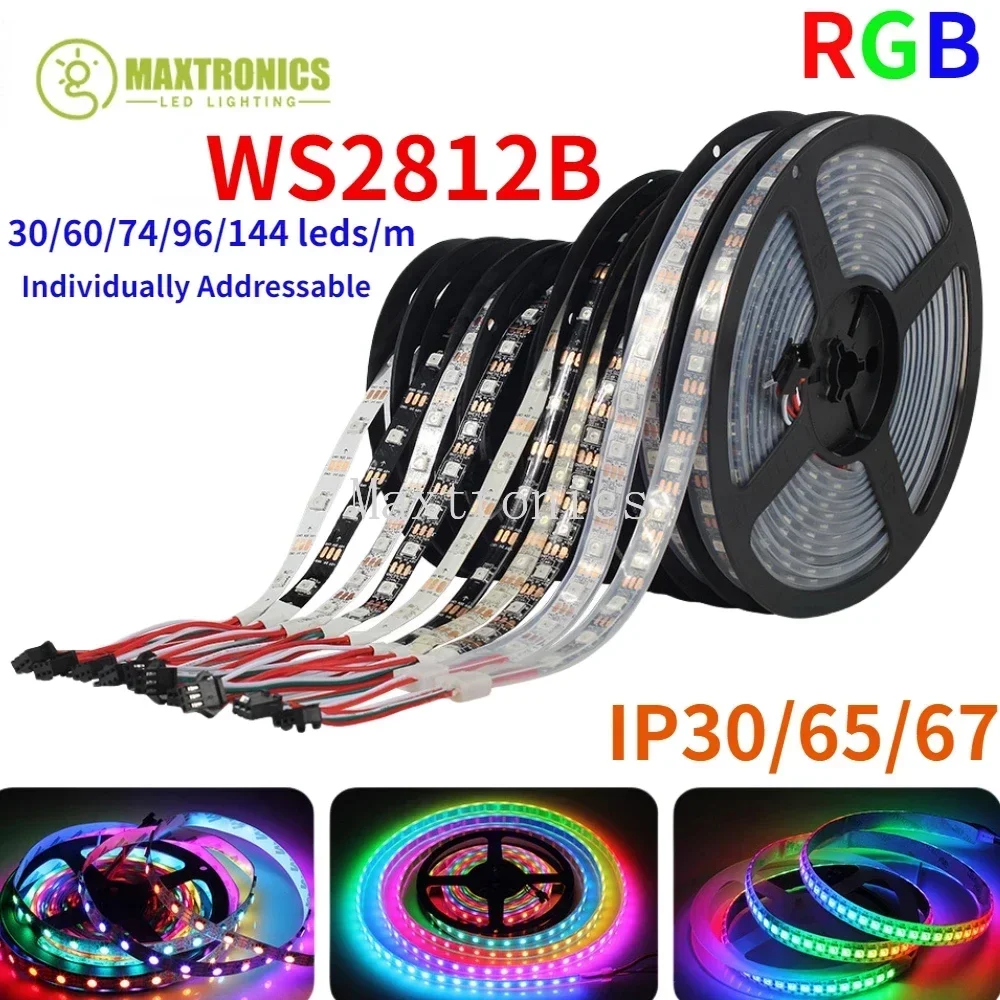

WS2812 LED Strip
Input Voltage: DC5V
Power: 30Leds/m----9Watt/meter
60Leds/m----18Watt/meter
144Leds/m----43.2Watt/meter
LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)
LED: Each Led is Separately Controlled
IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)
Of IC: 1 IC Drives 1 Led Chip
Pixels: 30/60/144/Meters
Pitch: 16.6mm(1000/64)
Grey Scale: 256
Bits/Color: 8-Bits/Color
FPC Width: 30Leds/m----10mm
60Leds/m----10mm
144Leds/m----12mm
FPC color: Black/White
Protection Rate: IP30/ IP65 /IP67
Colors: Full Color RGB, Dream Color Changing
Cuttable: Every LED is Cuttable
Package:In Anti-Static Bag,IP30 IP65 With 3M Adhensive Tape On The Back(IP67 Without 3M Adhensive)

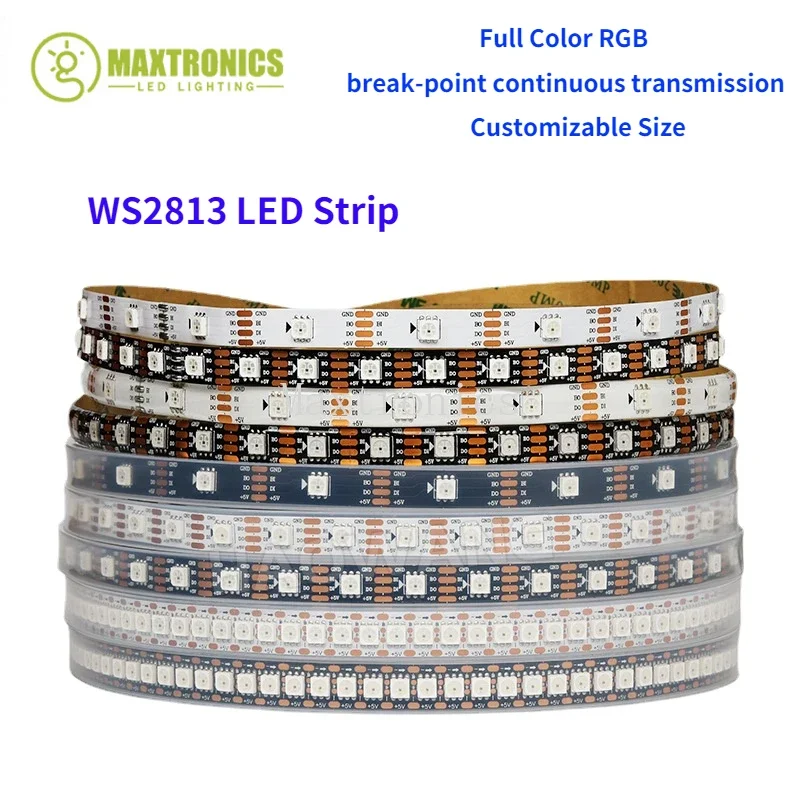

WS2813 LED Strip
Power: 30 Leds/M --- 9 Watt/Meter / 60 Leds/M --- 18 Watt/Meter / 144 Leds/M --- 43.2 Watt/Meter
LED Resource: WS2813 led (5050 SMD RGB LED with built-in improved version of ws2811 ic)
IC Type: Improved version ws2813 IC(built inside the 5050 smd rgb led)
Of IC: (1 IC Drives 1 led chip)
Pixels: 30Leds/60Leds/144Leds/meter
FPC Color: BLACK / White
FPC Width: 30 Leds/M --- 10 MM / 60 Leds/M --- 10 MM / 144 Leds/M --- 12 MM
Protection Rate: IP30 Non-Waterproof / IP65 Waterproof in Silicon Coating / IP67 Waterproof in Silicon Tube
Package: In anti-static bag, IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive), each strip with one free male connector for connector
Working Temperature: -40 - 70 °C
Storage Temperature: -50 - 80 °C
Source Life: 50,000 hours
Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)
Recommand controllers: T-1000s,T-8000A;T-100K;T-200K;T-300K

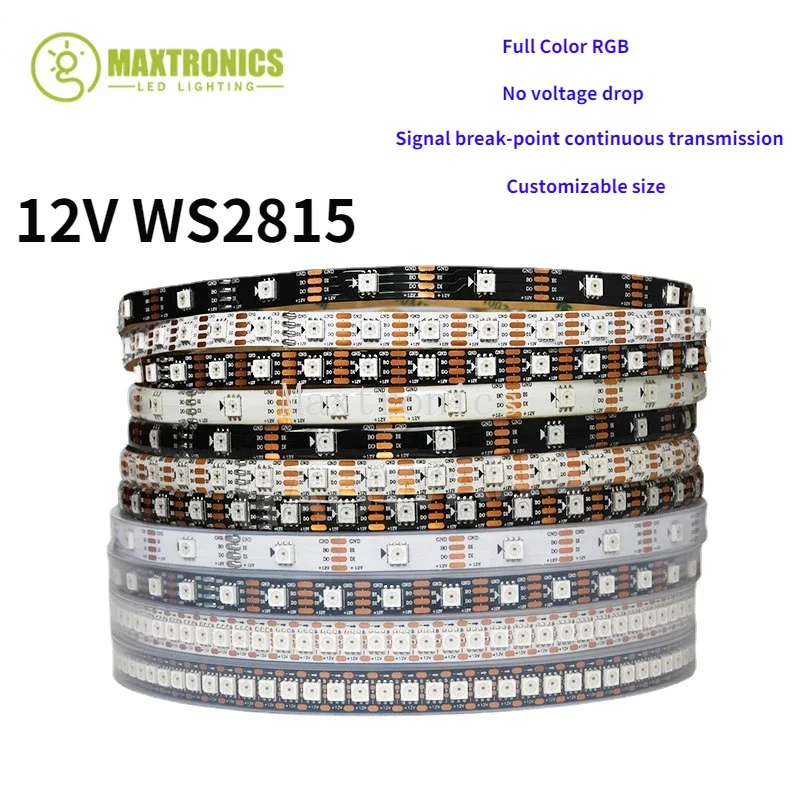

WS2815 LED Strip
Input voltage:.............DC12V
Power:.......................30leds/m----9watt/meter
.......................60leds/m----18watt/meter
.......................144leds/m----34watt/meter
LED resource:...........WS2815 led(5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED:...............Each LED is separately controlled
IC Type:....................Improved Version WS2815 IC(built inside the 5050 smd rgb led)
of IC:..................(1 IC drives 1 led chip)
Pixels:.........30/60/144/meter
Pitch:........................16.6mm(1000/64)
Grey scale:...............256
Bits/color:.................8-bits/color
FPC Width::..............30leds/m----10mm
.......................60leds/m----10mm
......................144leds/m----12mm
FPC color:.........White/Black PCB
Protection rate......IP30/ IP65 /IP67
Colors:.......................Full color RGB, dream color changing
Cuttable:.....................every LED is cuttable
Package:...................in anti-static bag,IP30 IP65 with 3M adhensive tape on the back(IP67 without 3M adhensive)
