Wurkkos TS30S PRO

Wurkkos TS30S PRO is the upgraded model of the TS30S with longer thrower, more powerful function, better grip and better beam shots, powered by one 21700 rechargeable Li-ion battery, designed for hiking, climbing or other outdoor activities. It uses single High-quality and Powerful LED and BLF Anduril 2.0 UI. With 5V/3A charging and reverse charging function, can be used as a power bank in emergency situations.

It delivers a maximum output of up to 6000 lumens with a maximum range of 1086 meters. It will be your reliable partner for outdoor use and with fun.

Specifications

Advanced Temperature Regulation (ATR) technology

(The product uses copyrighted code released under the GNU Public License v3 (GPLv3).

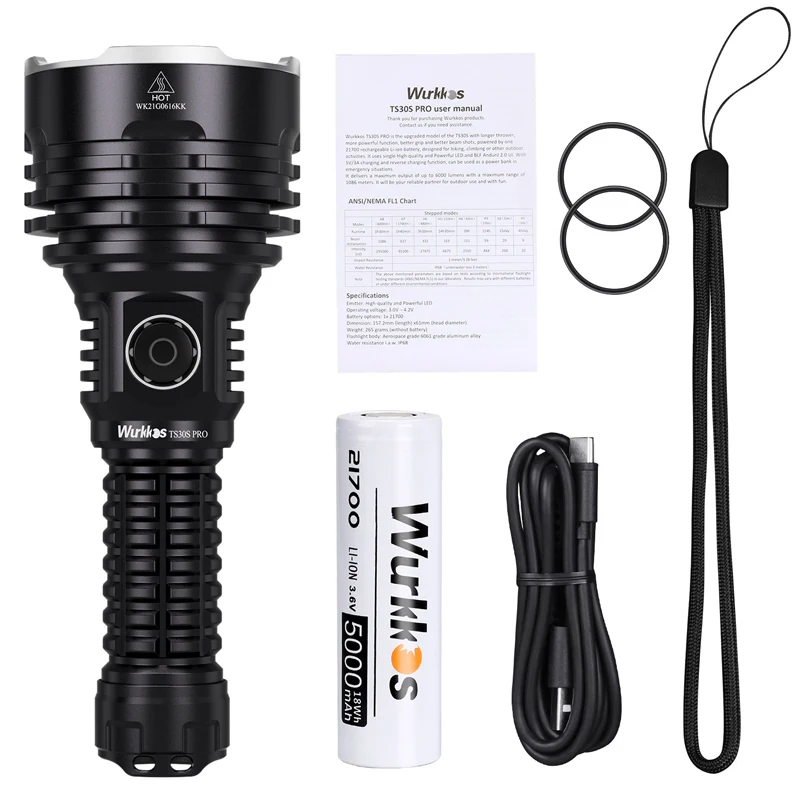

Packing list

1. TS30S PRO flashlight*1

2. 5000mah 21700 battery*1

3. O-ring*2

4. lanyard*1

5. user manual*1

6. USB cable*1

ANSI/NEMA FL1 Chart

Operation Instructions

Quick Start

Basic usage is simple

Click to turn the light on or another click to turn it off.

Hold the button to change brightness.

Release and hold again to change brightness the other way.

When on 3 clicks to toggle between stepless dimming and stepped modes

Aux button light(work in Advanced UI)

Just like with single-color aux in Anduril, RGB aux has 4 “modes” that are controlled by 7C

Off-Low-High-Blinking

But RGB aux adds color options that are controlled by 7H

Red-->Yellow (red+green)-->Green-->Cyan (green+blue)-->Blue-->Purple (red+blue)-->White (red+green+blue)-->Disco (random colors)-->Rainbow (changes colors in order)-->Voltage (changes color based on LED voltage)

When in the Voltage color option, the colors are

> 4.4V: white-ish (red+blue+green)

4.1-4.4V: purple (blue+red)

3.9-4.1V: blue

3.7-3.9V: cyan (green+blue)

3.5-3.7V: green

3.3-3.5V: yellow (red+green)

2.9-3.3V: red

< 2.9V: off

By default, Anduril 2 is set up to use

While off: low brightness, voltage color mode

While locked out: blinking, disco mode

I think you are in Voltage mode, which is the default. So the color is changing based on the battery voltage. When the flashlight is used, it causes the battery’s voltages to drop a little bit. The voltage goes back up slightly when you turn the flashlight off and the battery rests for a second.

Charge&Reverse Charging: Max input/output 5V 2.4A with USB C Rechargeable port.

When charging: power indicator flash orange and turns to orange after full.

Reverse Charging: Power indicator turns orange, while the indicator flash blue, means low battery.

That is all the user needs to know for basic use, but there are many more modes and features available for people who want more.

Before reading the rest of this manual, it is recommended that users look at the Anduril UI diagram(s), which should be provided along with the flashlight.

Button presses

Button presses are abbreviated using a simple notation

1C: One click. Press and then quickly release the button.

1H: Hold. Press the button, but keep holding it.

2C: Two clicks. Press and release quickly, twice.

2H: Click, hold. Click two times, but hold the second press.

3C: Three clicks. Press and release quickly, three times.

3H: Click, click, hold. Click three times, but hold the final press.

The same pattern is used with higher numbers too. For example, 10C means ten clicks... and 10H means ten clicks but hold the final press.

Simple UI Diagram

Not everything is covered in the diagram, please read the text.

By default, the light uses a simple UI. This is useful if you lend the light to someone else, or if you just don't want to bother with any crazy disco modes.

Simple UI has all the basic functions needed to work as a flashlight, but the minimum and

maximum brightness are limited to make it safer, and any complex or advanced functions are blocked.

Functions available in Simple UI include

1C: On / off

1H: Ramp up (or down, if button was released less than a second ago)

2H: If light is on: ramp down

If light is off: momentary high mode

2C: Double click to go to / from highest safe level

4C: Lockout mode.

Some other modes and functions are available too. When the light is off, these are the options

3C: Battery check mode. (displays voltage once, then turns off)

10H: Switch to Advanced UI.

15C or more: Version check.

7H：Aux LED mode adjust
