Y&H MPPT 60A 120A Solar Charge Controller 12V-96V with LCD, Max Solar Panel 230Vdc for Lifepo4 Lithium GELLead Acid Battery
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: Y&H
- Sales: 1
- Package size: 41 × 32 × 18 cm
- Package weight: 4.54 kg
- Rating: 0.0 / 5
Before adding to cart, choose an available option and check the quantity.
Y&H 60A 120A MPPT Solar Controller 12V 24V 36V 48V 60V 72V 84V 96V PV up to 230V for sealed lead-acid gel and lithium batteries
Descriptive

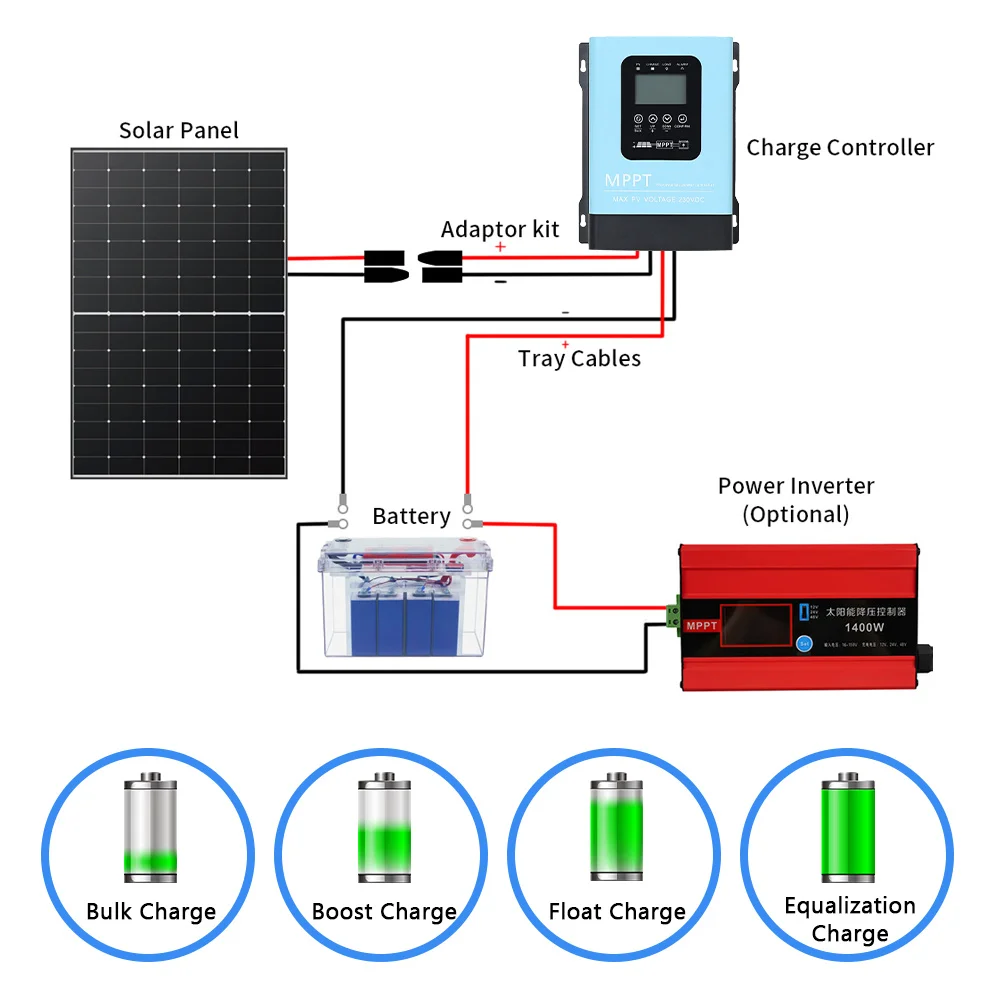

Y&H controller is used in solar off-grid power generation systems to automatically regulate battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar module to charge the battery; at the same time, its Low Voltage Disconnect (LVD) function prevents the battery from over-discharging and causing damage.
The MPPT controller's comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures.
Features
1.Maximum power point tracking technology, can significantly improve the energy utilization of solar energy system, conversion efficiency of up to 97%.
2.Battery voltage available:12V/24V/36V 48V/60V/72V/84V/96V
3.Multiple battery type settings: Lead Acid,Gel,LifePo4,Li,User
4.PV Open Circuit Voltage: 0V-230V,Charging current (A) is adjustable.
5.Automatic compensation of charging voltage and current according to battery temperature to prolong battery life.
6.Wide range of high voltage: the same type of 60A controller can withstand up to 150V, while the 12V battery can withstand up to 45V, Y&H controller 12V battery system can withstand up to 230V, the advantage is obvious.
7.PV minimum input is calculated as about 1.5-2 times the battery voltage. (Example: 12V battery, minimum input voltage is 18V-24V voc)
Echnical Data
Model
60A
120A
Charging Mode
MPPT automatic maximum power tracking
Charging
Method
MPPT tracks maximum power,fast charge
balanced charge,and float charge.
Battery Type
Lead Acid
(12V/24V/36V/48V/96V Auto +
12V/24V/36V/48V/60V/72V/84V/96VAdjustable)
Gel
12V/24V/36V/48V/60V/72V/84V/96V
LifePo 4
Single voltage 3.2*number of strings
(4 strings -45 strings adjustable)Saturation voltage 3.65V
Li-ion
Single voltage 3.7*number of strings
(2 strings -45 strings adjustable)Saturation voltage 4.2V
USER
Adjustable limit voltage for equal charge
float charge and DC discharge:8V-170V
With lithium battery
activation function
With photovoltaic input,there is charging voltage (activate
lithium battery),can be used without battery DC output
PV max open
circuit input voltage
0--230V
Max PV input
12V
720W
1440W
24V
2880W
36V
2160W
4320W
48V
5760W
60V
3600W
7200W
72V
8640W
84V
5040W
10080W
96V
11520W
The charging current
is adjustable
10-60A
10-120A
Start charging
PV voltage is greater than +3V of battery voltage
(low current charging on rainy days)
Direct charging current
out put function
DC continuousoutput 60A
DC continuousoutput 120A
Temperature
compensation
According to the temperature of the battery,the charging voltage and current are automatically compensated to prolong the battery life
Display
