YIZHAN 1080P HD Digital Microscope For Soldering HDMI VGA Electronic Camera 150X Magnification Lens For Industrial Inspection
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: Nice-power
- Package size: 23 × 20 × 10 cm
- Package weight: 1.8 kg
- Rating: 0.0 / 5
- Color: 13mp Camera
Before adding to cart, choose an available option and check the quantity.
Recommended for use

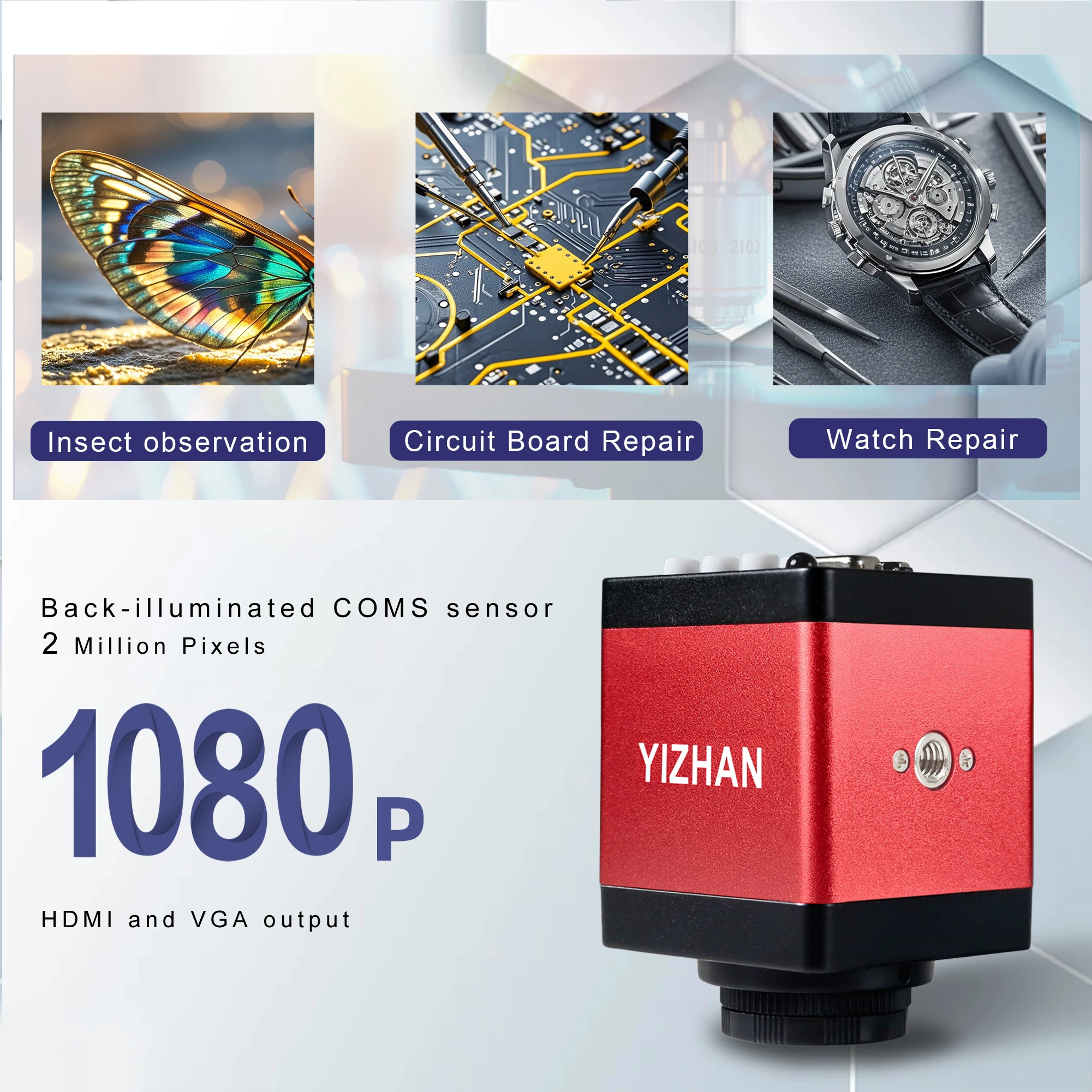

About Digital Microscope Camera
Overall dimension: 75*50*50mm

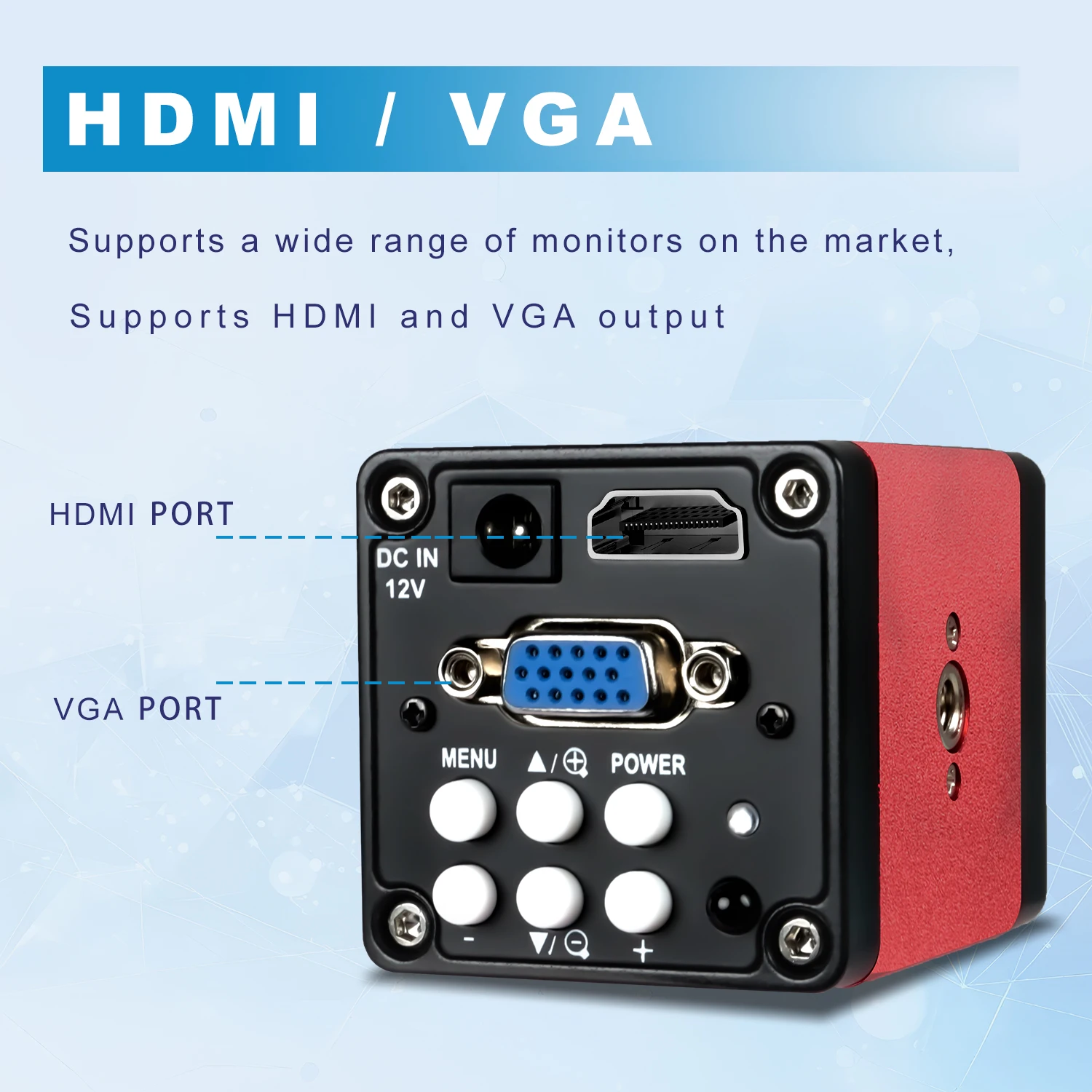

Video Interface: HDMI VGA
Lens: CS
Optical format: 1/3"
Pixel size: 2.8um*2.8um
Pixel array: 13MP
TV Lines: 1200TVLine
FPS of max image: 30FPS
Scanning mode: progressive
Dynamic range: 65dB
S/N radio: 45dB
AWB mode: One time white balance/manual/auto
Cross line: Support 8 colors/line width adjustable
B/W: allow
Output of display resolution: HDMI(16:9, 4:3) VGA:1920*1080/1600*900/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)
Plus Sets Packing List As Below
microscope camera*1
150x lens*1
ring light*1
Plus foldable stand*1
remote control*1
power plug*1
instruction manual*1
Clamp top folding bracket set As Below
13MP Camera Packing List As Below

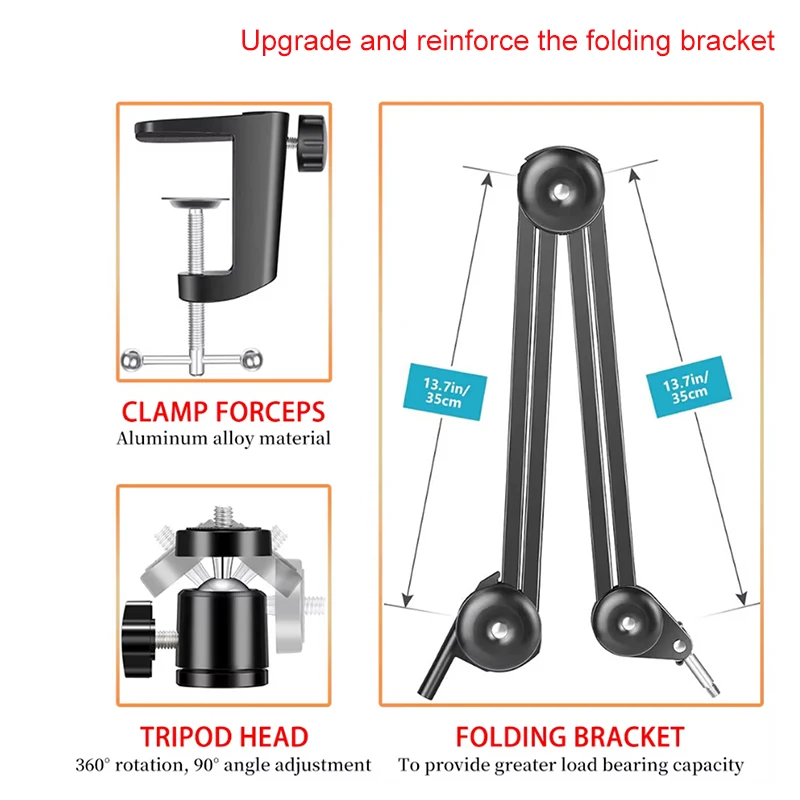

New upgraded folding bracket description
Flexible Stand, Remote Control:The digital microscope adopts the latest upgraded stand, this stand is very flexible and stanble, 4 parts of the stand can be adjusted at different angles. You can choose the most suitable position for you to observe the samples more clearly. The video microscope can be controlled by remote control, but this function is only available in HDMI output mode.
Adjustable bracket ：
Material: aluminum alloy
Size: 34*32cm
Weight: 540g
Maximum bottom installation size: 50mm

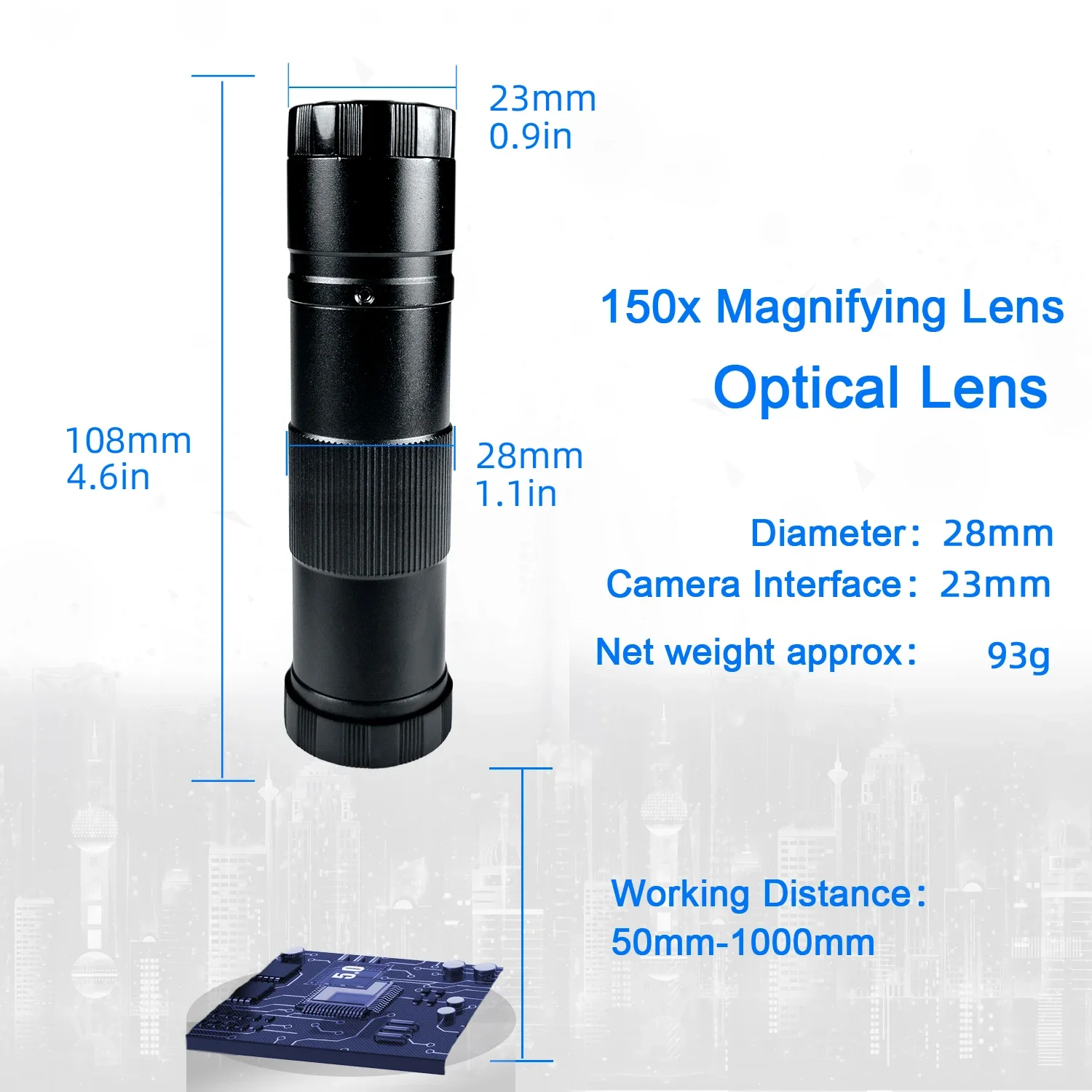

1X-150X Zoom C-mount Lens:Working distance
50mm-1000mm
zoom ratios: 1: 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple: 4.2mm*2.4mm
view field of Min multiple: 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g
150X lens
56 bright white LED bulbs：
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:400mm
