YIZHAN 4K 60MP UHD Electron Digital Microscope IMX415 HDMI Type-C Industrial Welding Camera 150X Zoom Lens Metal Stand 1080P
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 4.5★ from 15 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: YIZHAN
- Sales: 41
- Package size: 47 × 21 × 8 cm
- Package weight: 1.8 kg
- Rating: 4.5 / 5
Before adding to cart, choose an available option and check the quantity.
YIZHAN precision electronic repair microscope applicable scenarios
XHU4012 Camera Specifications
Interfaces: HDMI + Type-C

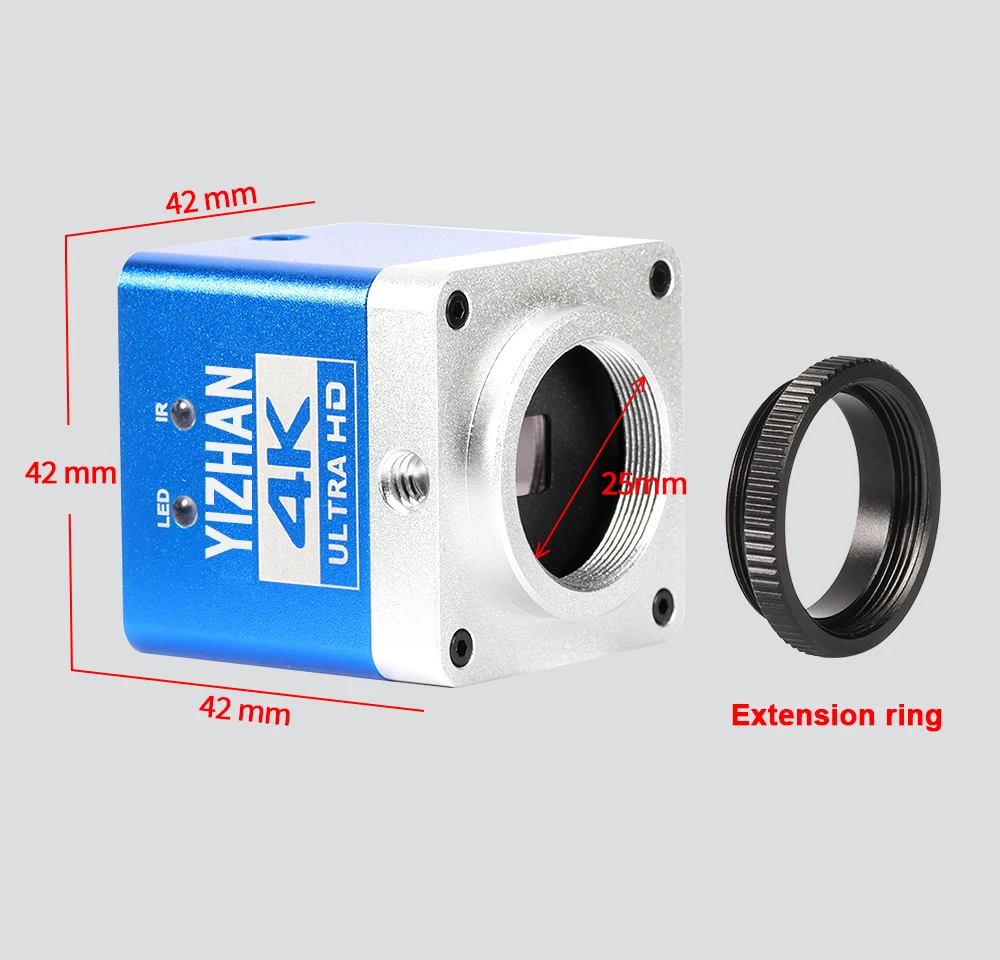

Dimensions: 42*42*46mm
Sensor Size: 1/2.7""
Power Supply: 12V/USB
HDMI Output Resolution: 4K @30FPS / 1080P @60FPS
USB-PC Output Resolution: 4K @30FPS / 1080p@30FPS
Shot Resolution: 60MP (10368*5888)
Video Resolution: 4K @30FPS / 1080P @30FPS
Menu Language: 11 languages
Modible Crosshairs: Supports 32 horizontal and vertical lines; color/line width adjustable
Lens Interface: CS
Operating Current: 190mA
Effective Pixels: 4K (3840*2160)
Scanning Method: Progressive Shutter Type: Electronic Shutter
Dynamic Range: 69dB
Signal-to-Noise Ratio: 40dB
White Balance Mode: Single White Balance/Manual/Auto
Reduced Reflection Adjustment: Adjustable
Black & White: Allowed
Negative: Allowed
Mirroring: Allowed
Freeze/Thaw: Allowed
Adjustable Image Brightness/Contrast/Sharpness/Saturation: Allowed
Package Includes
1*XHU4012
1*HDMI Cable
1*Type-C Cable
1*EU/US Plug
1*Remote Control
1*Instruction Manual
Please note
This microscope software is not suitable for Apple computers!
Describe
The ""S-EYE"" we developed is a powerful microscope camera control software that integrates real-time high-definition imaging, intelligent shooting and professional measurement, providing a full-process solution for scientific research, industrial inspection and education.
Software Features
1. Precise control: real-time adjustment of exposure, gain, white balance, color and image flipping, adapting to the imaging needs of complex samples, and ensuring high-quality image output.
2. Multi-function shooting: support photo taking, recording and custom parameter saving to meet the needs of dynamic observation and data archiving.
3. Intelligent measurement and annotation: provides geometric measurement tools such as straight lines, angles, arcs, concentric circles, and supports text annotation, arrow indication and particle counting, greatly improving analysis efficiency.
4. User-friendly design: intuitive interface layout, combined with real-time image display and fast parameter adjustment, simplifies the operation process, suitable for users with different experience levels.
5. Support multiple national languages: Chinese, English, French, German, Indonesian, Japanese, Korean, Russian (languages are still being enriched).

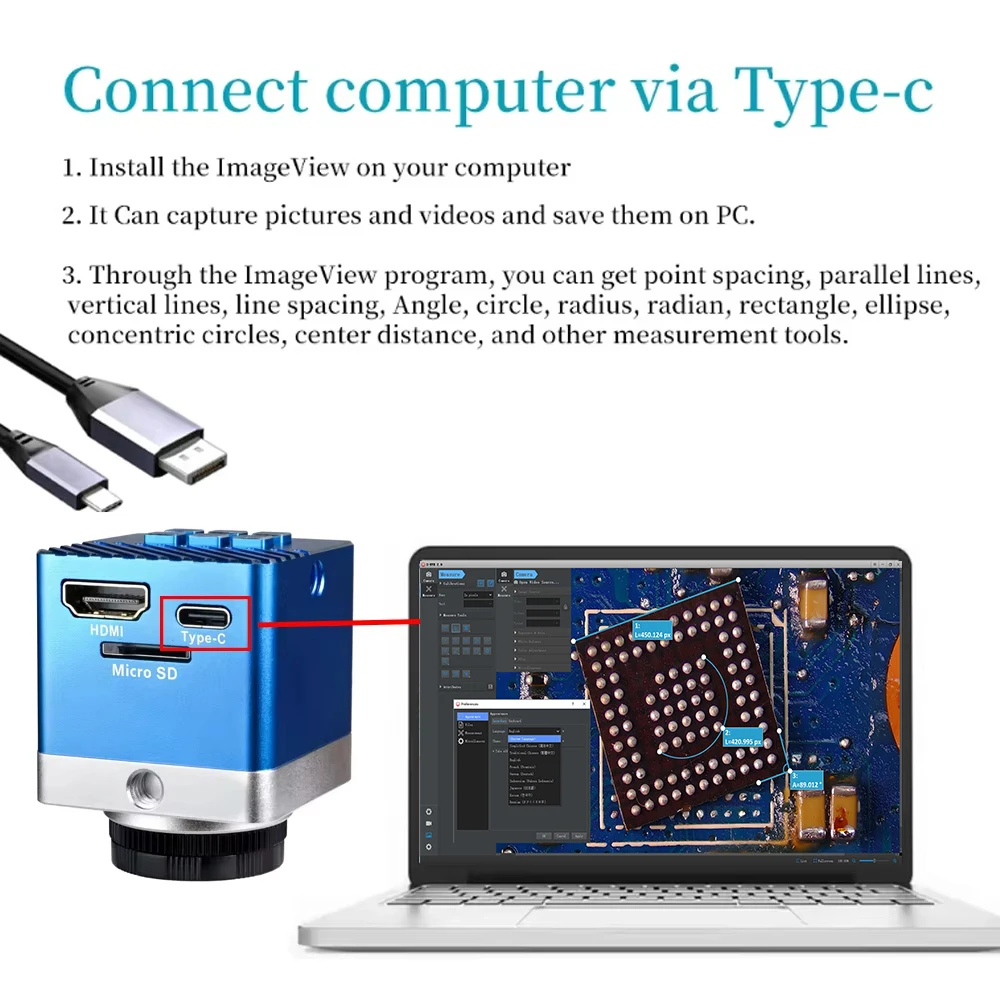

Connect computer via Type-c
1. Install the ImageView on your computer
2. It Can capture pictures and videos and save them on PC.
3. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.

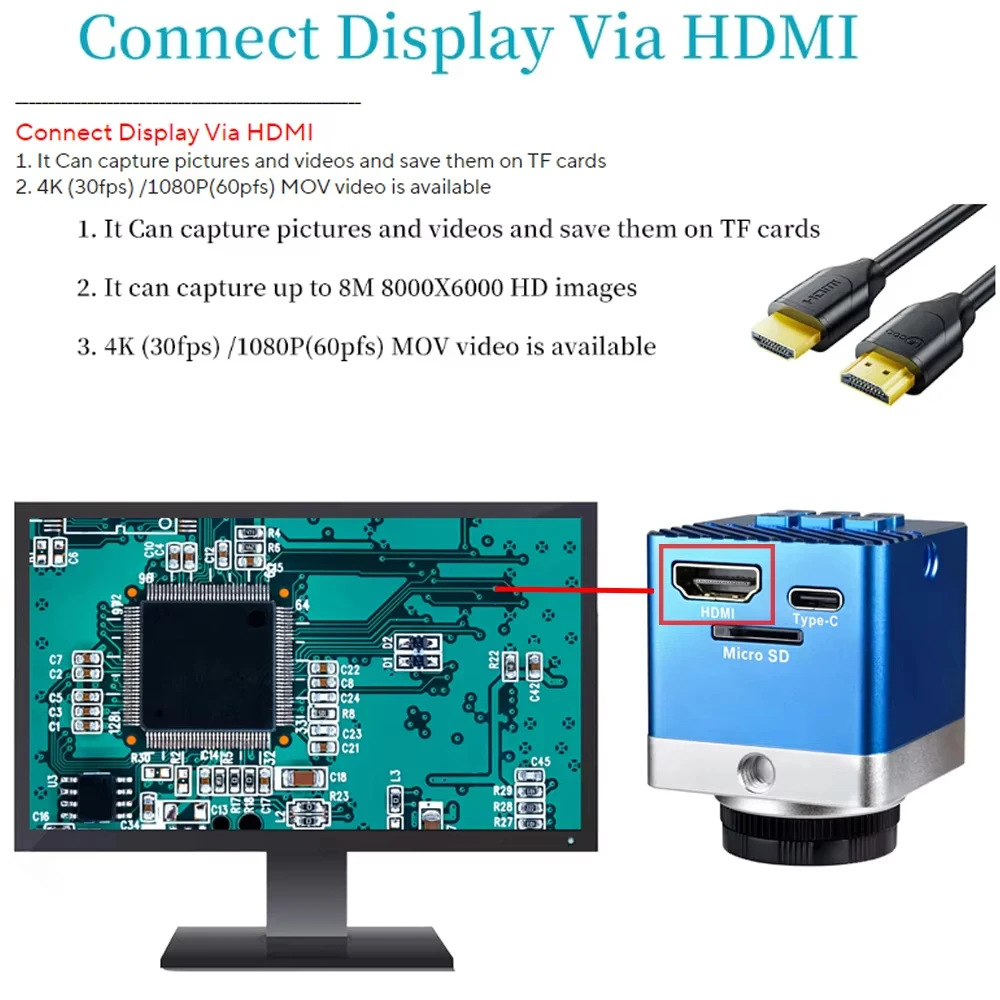

Connect Display Via HDMI
1. It Can capture pictures and videos and save them on TF cards
2. It can capture up to 8M 8000X6000 HD images
3. 4K (30fps) /1080P(60pfs) MOV video is available
150X Lens Specifications
Mounting diameter: 28mm
Working distance: 50mm-1000mm
Zoom ratio: 1:15
Magnification: 0.15-2X (approx. 1-150X on screen)
Maximum magnification field of view: 4.2mm*2.4mm
Minimum magnification field of view: 130mm*70mm
