ZHUCO SZW26/LW26-20 20A 660V ON OFF 1 Pole 4 Screws 2 Position 64X64/48X48 mm Panel Rotary Universal Changeover Cam Switch
Description
1.Product Name
SZW26/LW26-20/C02.1 20A 1 Phase Universal Rotary Changeover Cam Switch
2.Specification
Lacthing Selector; Ui: 660V, Ith: 20A; 1 Phase 4 Terminals
2 Position (OFF-ON)
3.Rating
AC-15: Ue 440V Ie 20A
DC-13: Ue 240V Ie 1A
4.Panel size:48 x 48 mm,Install Size:36 x 36mm
Panel size:64 x 64 mm,Install Size:48 x 48mm

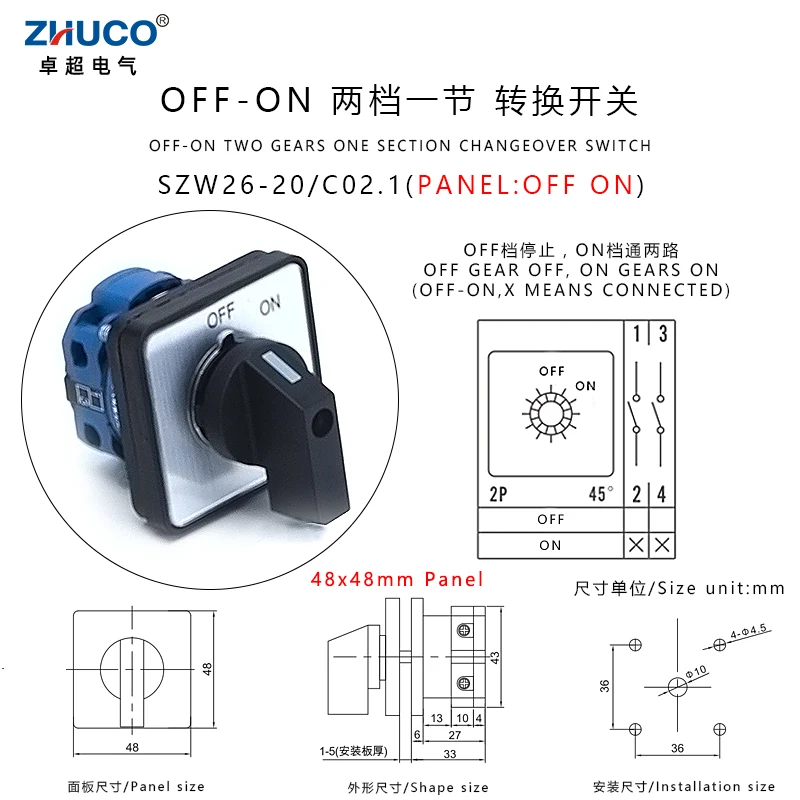

5.which terminal will be connected in different position, please read the wiring diagram as a reference.
Position OFF: All terminal disconnected
Position ON: 1-2, 3-4
6.Material
Flame retardant PC material, high temperature resistance; Premium copper parts with silver alloy point.
7.Suitable for the thickness between 1mm to 5mm of the mounting board.
8.Ideal choice for electrical wiring in the power switches, speed switches and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.
9.Widely used as circuit control switches, test equipment switches, motor control switches and master control switches, signal transfer switches, or change-over switch for electric welding machinery and other equipment.
