ZZPH6 High Precision Load Cell 0.3kg-10kg Aluminum Alloy Single Point Weight Sensor MAVIN NA6 for T70coffee Pricing Counting
Return&refund policy
Eligible items are covered by return and refund support. If the item does not arrive or is not as described, the buyer can request help.
Security & Privacy
Safe payments: We do not share your personal details with any third parties without your consent.
Secure personal details: We protect your privacy and keep your personal details safe and secure.
AI offer for your market
A curated pick based on category, shipping route, delivery speed and popularity in your selected market.
Why this product fits your market
- • Strong customer signal: 5.0★ from 12 reviews.
- • Recommendations focus on this product category and your market availability.
Product specifications
Detailed product description
This product is shown with available options, market-specific pricing and verified specifications.
- Brand: BENGBUZZYQ
- Sales: 23
- Package size: 18 × 11 × 5 cm
- Package weight: 0.06 kg
- Rating: 5.0 / 5
Before adding to cart, choose an available option and check the quantity.
参数项 (Parameter)
单位 (Unit)
技术指标 (Technical Data)
额定负荷 (Rated Capacities)
kg
0.3, 0.6, 1, 2, 3, 5, 7, 10
额定输出 (Rated Output)
mV/V
1.0±15% / 2.0±10%
综合误差 (Combined Error)
%R.O.
0.02
零点平衡 (Zero Balance)
±0.0200
线性度 (Linearity)
滞后性 (Hysteresis)
重复性 (Repeatability)
蠕变 (30分钟) (30mins Creep)
回零 (30分钟) (30mins Return)
Ω
410 ± 15
输出阻抗 (Output Impedance)
350 ± 5
绝缘电阻 (Insulation Impedance)
MΩ
推荐激励电压 (Recommended Excitation)
VDC
5 ~ 12
最大激励电压 (Maximum Excitation)
15
电缆规格 (Cable)
m
φ3 × 0.3m (4-wire shielded)
工作温度范围 (Operating Temp. Range)
°C
20 ~ 60
输出温度影响 (Temp. Effect On Output)
%R.O./°C
0.002
零点温度影响 (Temp. Effect On Zero)
0.003
150
极限过载 (Ultimate Overload)
200
材质 (Construction)
铝合金 (Aluminum Alloy)

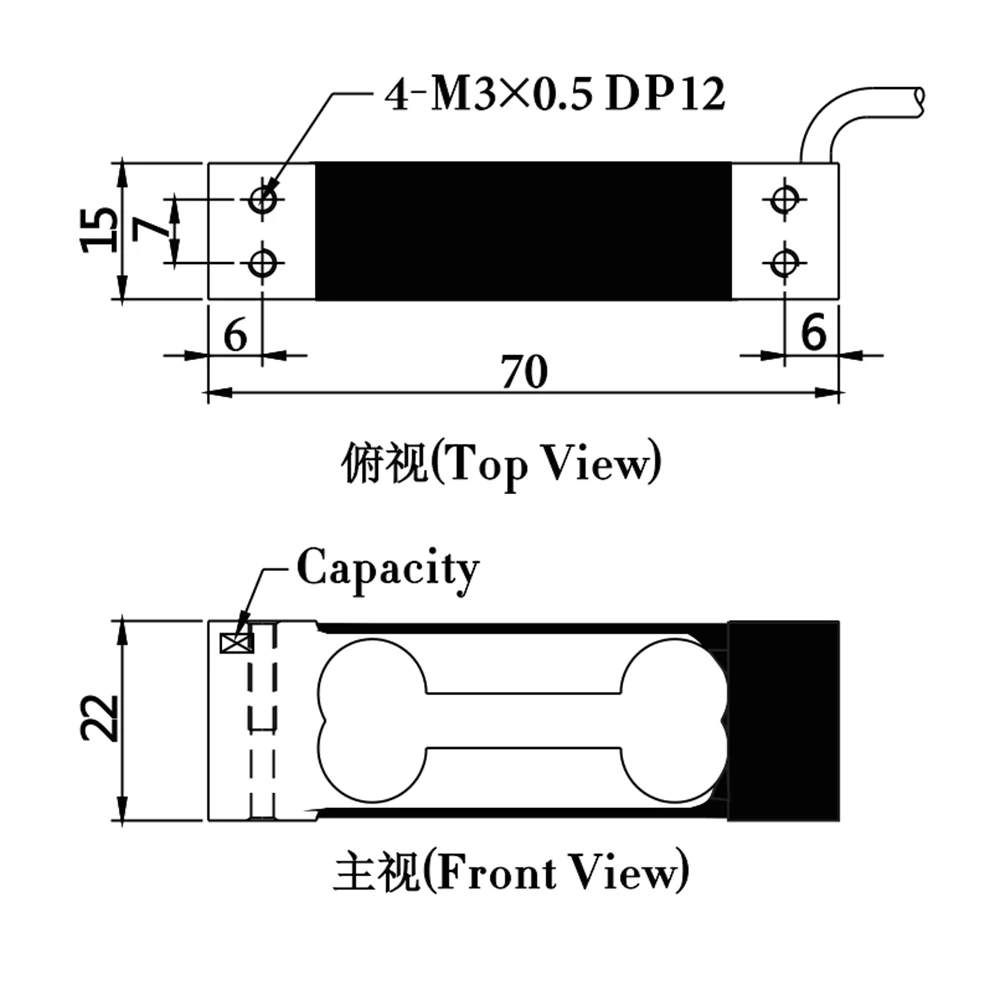

螺纹 (Mounting Holes)
4-M3 × 0.5 DP12
产品净重 (Approx. Weight)
g
约 33g (不含线缆)

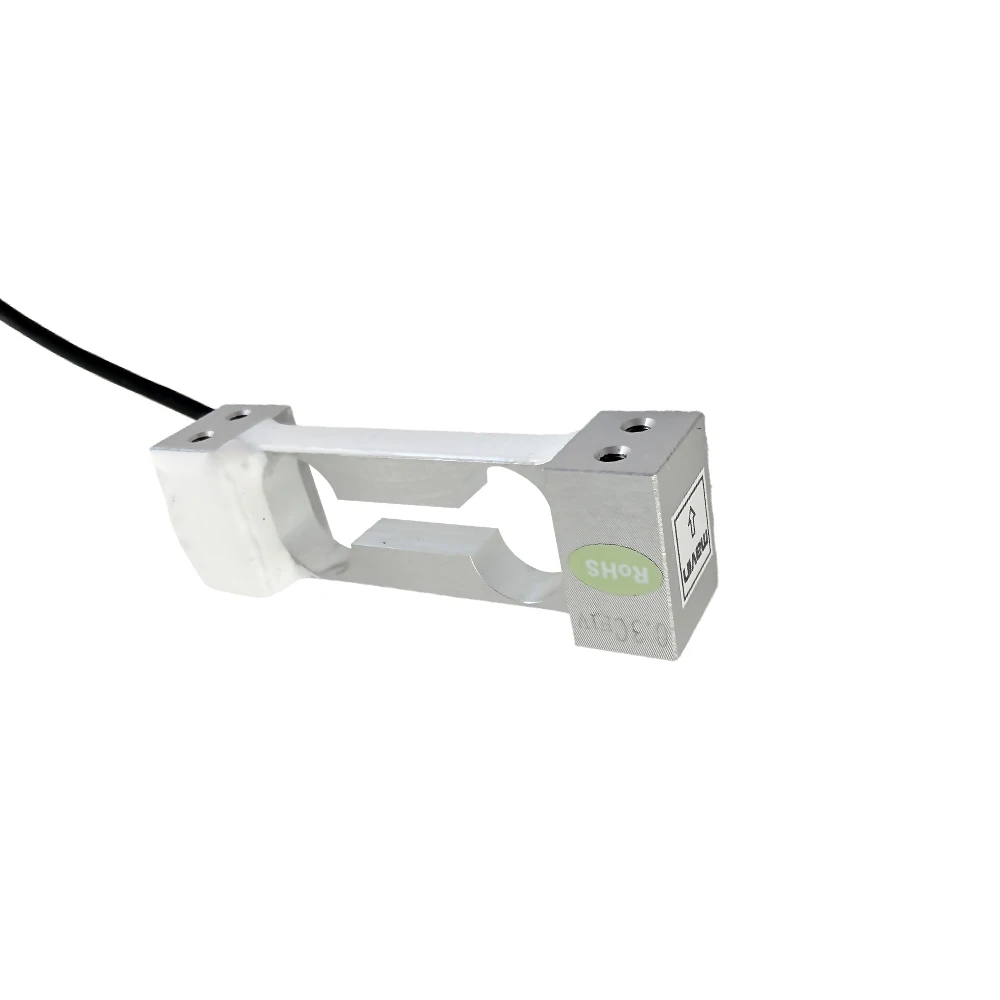

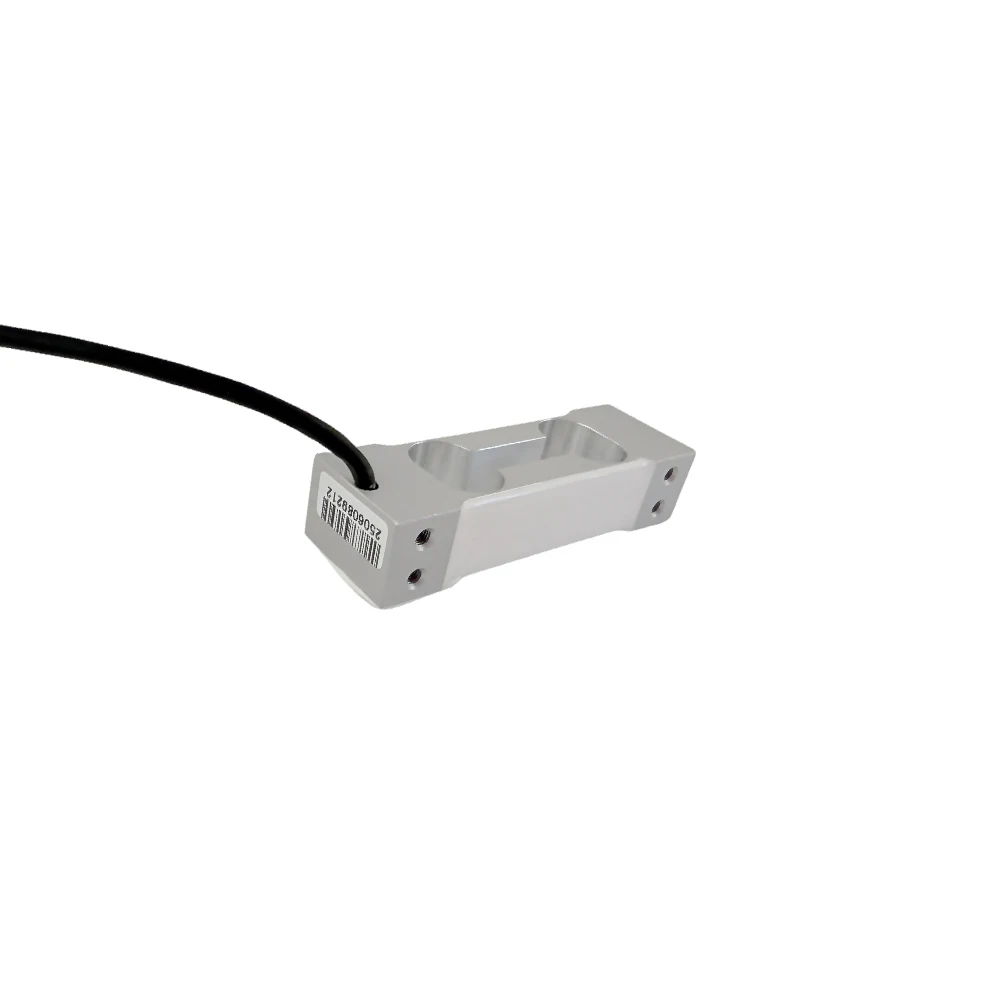

The ZZPH6 Single Point Load Cell is a high-performance weight sensor designed specifically for precision electronic scales. Manufactured from high-strength aluminum alloy, it offers outstanding long-term stability and fatigue resistance. With a 0.02% linearity, it is the ideal component for pricing scales, counting scales, and laboratory balances. Supporting multiple capacities from 300g to 10kg, this sensor features a 150% safe overload rating, ensuring accurate data feedback even in demanding environments.
