TZT 1/3PCS DIY Elektrische Einheit Hohe qualität C-D C CC CV Buck Converter Step-down Power Modul 7-32V zu 0,8-28V 9A 300W XL4016

Produktbeschreibung

1. Module properties: Non-isolated step-down constant current, constant voltage module (CC CV) charging module
2. Input voltage: DC 7-32V
3. Output voltage: (1) DC 0.8-28V continuously adjustable. (2) Fixed output:Choose between 0.8v-28v
4. Output Current: 8A (when power tube's temperature exceeds 65 degrees, please add cooling fan)
5. Constant current range: 0.2-8A ( adjustable )
6. Turn lamp current: Constant current value * ( 0.1 ), turn the lamp current and constant value linkage
such as constant current value is 3A, turn the lamp current is set to a constant current is 0.1 times (0.1 * 3A = 0.3A).
7. Lowest pressure: 1V
8. Output Power: Maximum power is about 300W
9. Conversion efficiency: Up to about 95%
10. Operating frequency: 300KHZ
11. Output ripple: 20M bandwidth
12. Input 24V output 12V 5A ripple around 50mV (Excluding noise)
13. Output short circuit protection: Yes, constant current
14. Input reverse polarity protection: None
15. Output prevent backflow: None
16. Wiring: Terminal
17. No-load current: Typical 20mA (24V switch 12V)
18. Load regulation: ± 1% ( constant )
19. Voltage regulation: ± 1%

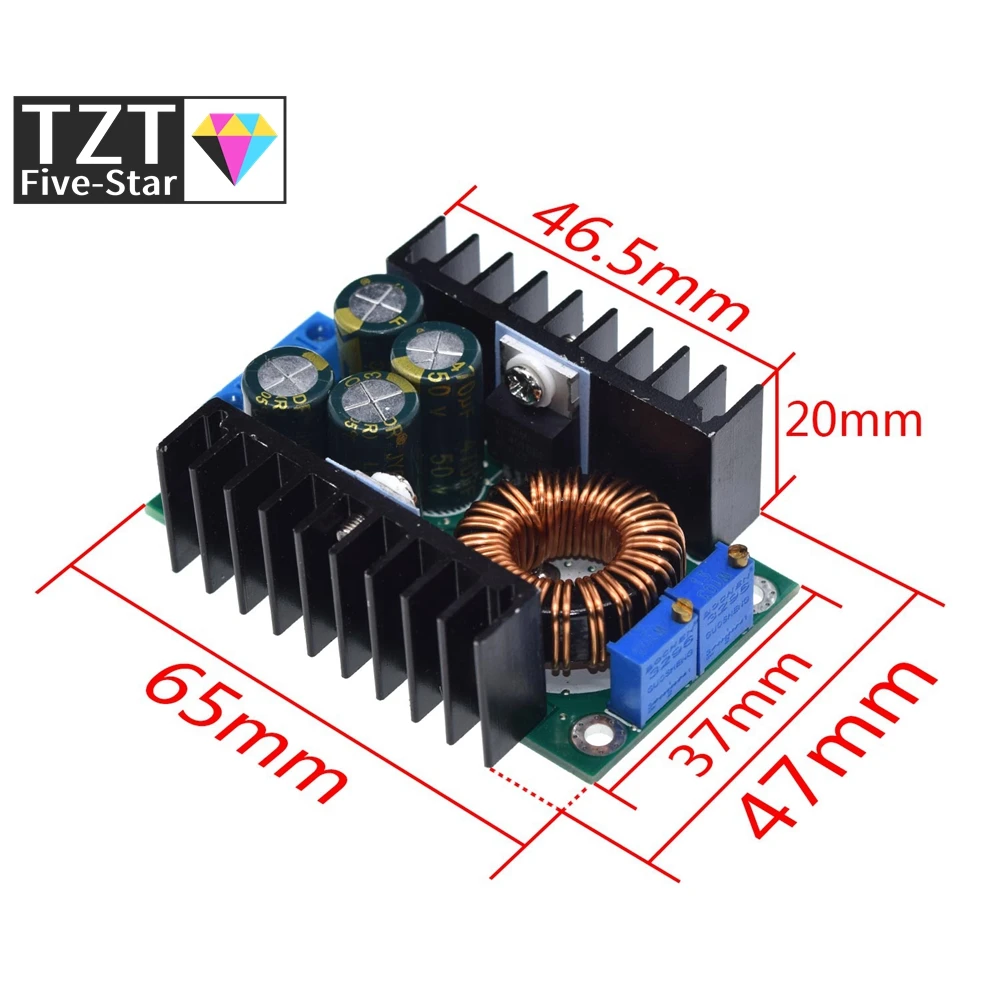

Produktdetails in Bildern

Produkteigenschaften

Markenname

TZT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Buck-Regler (Abwärtsregler).

Versorgungsspannung

7-32V

Verlustleistung

12A

ist kundenspezifisch

Ja

Betriebstemperatur

40-+85

Anwendung

experimental modules

Paket

DIY KIT
