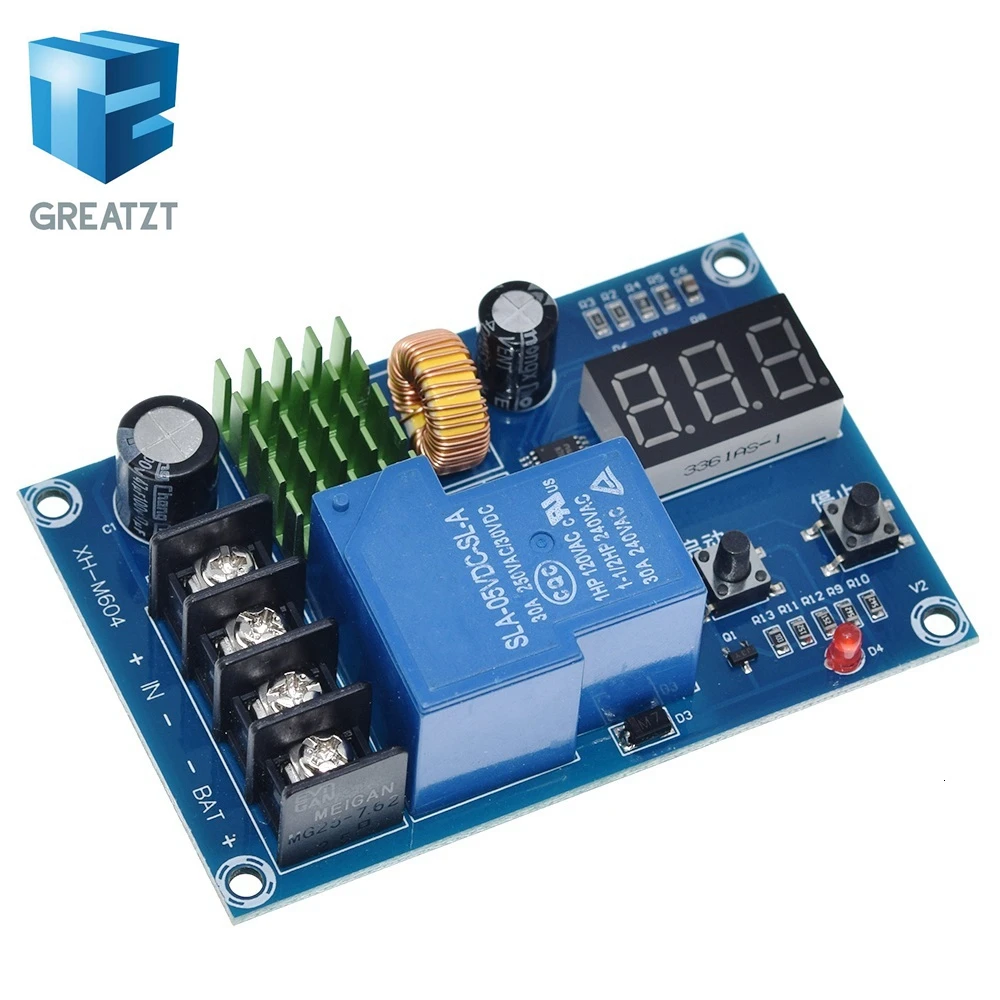

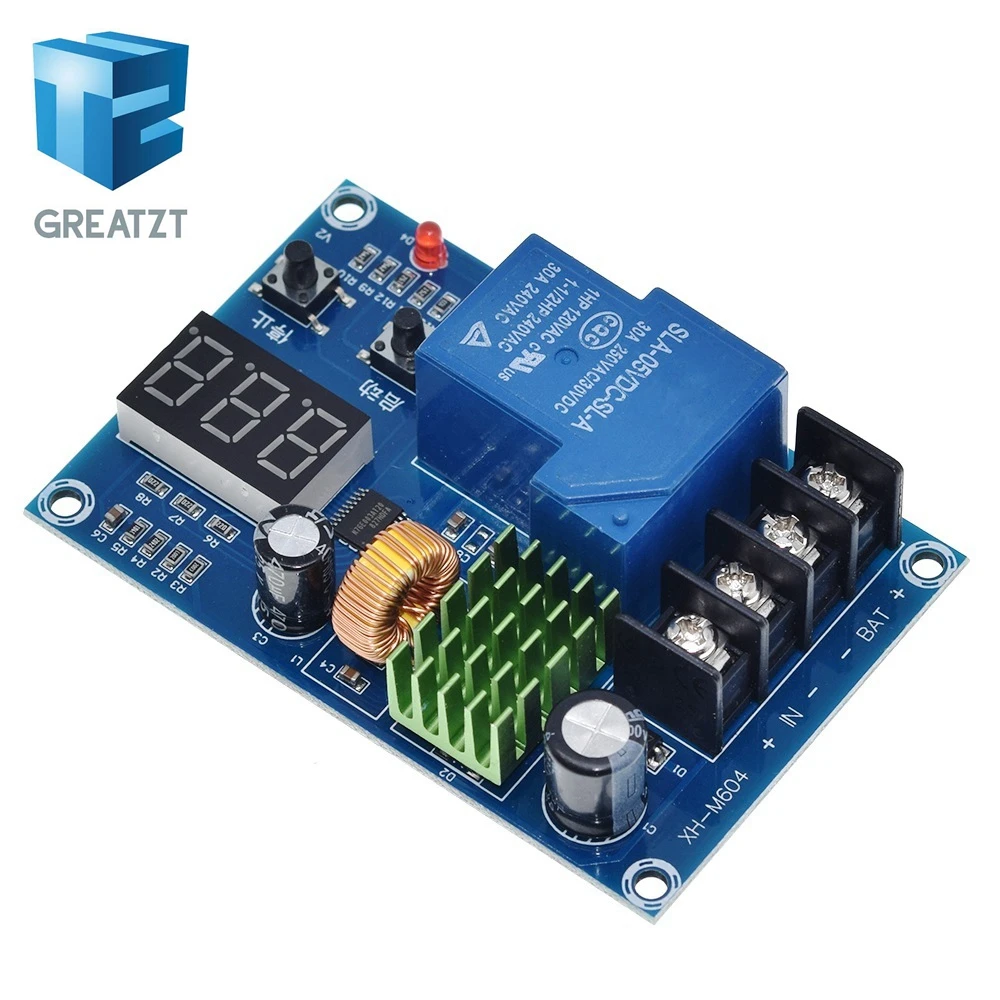

GREATZT XH-M604 Batterieladegerät-Steuermodul DC 6–60 V Speicher Lithium-Batterie Ladesteuerschalter Schutzplatine

Produktbeschreibung

Description
Input Voltage:DC 6-60V
Display Accuracy:0.1V
Control Accuracy:0.1V
Output Type:direct output
Voltage Tolerance:±0.1V
Apply For:6-60V MAX 80V battery
Dimension:81*54*18mm
Use: In the setting voltage value, start button play button raised, about stop button role to down key
1. Set the start voltage
Normal display voltage state, press to a starting voltage button,to display the start charging voltage. long Press the start button, digital flashes, by start and stop button, set the start charging voltage value.
2. Set Stop voltage
Normal Voltage normal display mode, press to a Stop voltage button,to display the Stop charging voltage. long Press the Stop button, digital flashes, by start and stop button, set the Stop charging voltage value.
3. Setting Error
Energized state while holding down the start / stop button, digital display 888, which is the factory setting.
Package Included
1 x Digital display Lead acid Battery Charge Control Module

Produktdetails in Bildern

Produkteigenschaften

Markenname

GREATZT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

RELÄS

Versorgungsspannung

6-60V

ist kundenspezifisch

Ja

Betriebstemperatur

40-+85

For Arduino STM

electronic module
