XL6019 DC-DC Booster Modul netzteil Modul Ausgang Einstellbar Super LM2577 XL6009 schritt-up modul ausgang 5V 12V 24V adjustabl

Produktbeschreibung

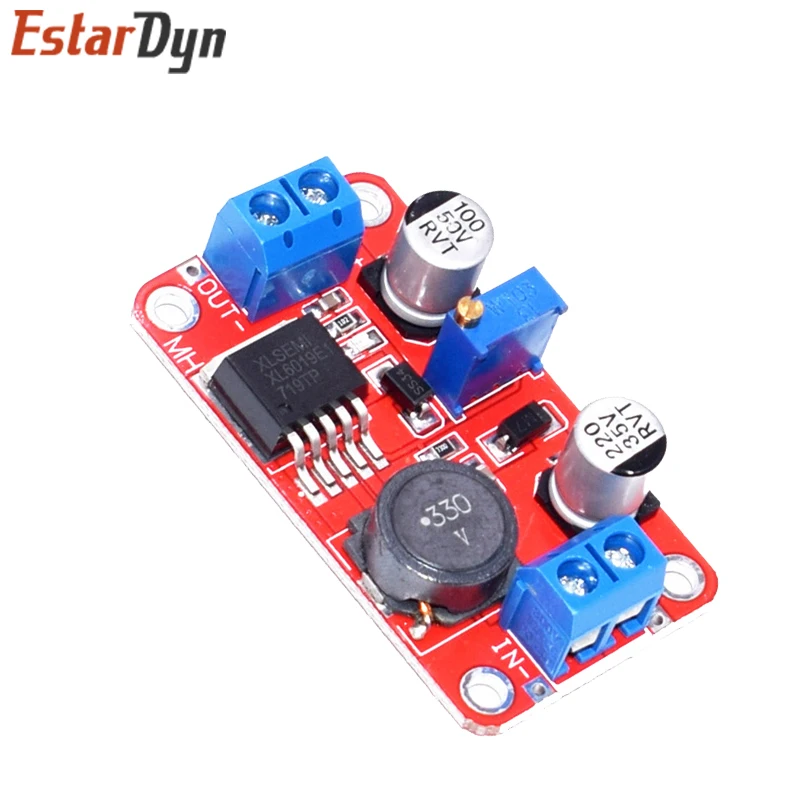

Red Version Performance
1.conventional constant voltage output topology BOOST fully integrated solutions, integrated MOSFET, fewer external components, lower system cost
2,.wide voltage range input,the input voltage up to 35V
3. output voltage is adjustable,supports up to 40V
4.built-in over-temperature protection, overcurrent protection circuit full set of reliability, high reliability
5.the system conversion efficiency of over 90%, to facilitate thermal design
6.TO263-5L standard package,suitable for 30W boost applications within
.
1. Power (3-35V), power indicator light, the module is working properly.
2. Adjust the blue potentiometer knob (counter-clockwise general boost, buck clockwise rotation) and with a multimeter to monitor the output voltage reaches the required voltage.
Heat sink (10W output above); because it is boosting module, in order to ensure stable output

Produktdetails in Bildern

Produkteigenschaften

Markenname

Estardyn

Ursprung

CN (Herkunft)

Zustand

Neu

Typ

SPANNUNGSREGELER

Modellnummer

DC DC XL6019

Versorgungsspannung

DC-DC-Boost-Stromversorgungsmodul XL6019

Verlustleistung

1

ist kundenspezifisch

Ja

Betriebstemperatur

40-+85

Anwendung

Computer

Paket

SMD
