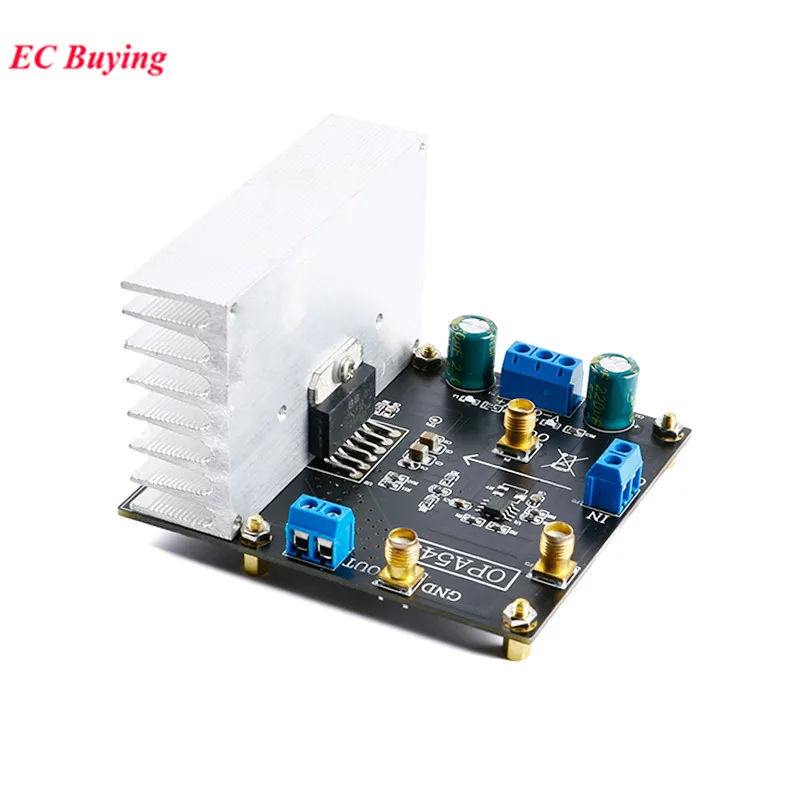

OPA549 Audio Power Verstärker Modul Bord HiFi AMP 8A Hochspannung Strom Niederfrequenz Stick Spule Motor Sound Verstärker

Produktbeschreibung

Highlights
The module is an audio power amplifier with high voltage and high current. It can output 8A current continuously with a peak value of 10A. It can ideally drive various loads, such as motor drive, horn drive, transformer drive and audio amplifier. It can also amplify triangular, sinusoidal and square wave signals.
Details
OPA549 is a low-cost, high-voltage, high-current operational amplifier, which can ideally drive various loads. This laser trimming monolithic integrated circuit provides excellent accuracy of low level signals and high output voltage and current. The flexibility of OPA549 design supports single or dual power operation. Input Common Mode Range Extension Lower than Negative Power Supply
OPA549 has internal temperature and current overload protection. In addition, OPA549 provides accurate, user-selectable current limits. Unlike other "power" resistors connected in series with the output channel, OPA549 indirectly senses the load. This allows it to perform current limitation from 0 A to 10 A through a resistor/potentiometer, or to perform digital control through a voltage or current output digital-to-analog converter (DAC). The enable/state (

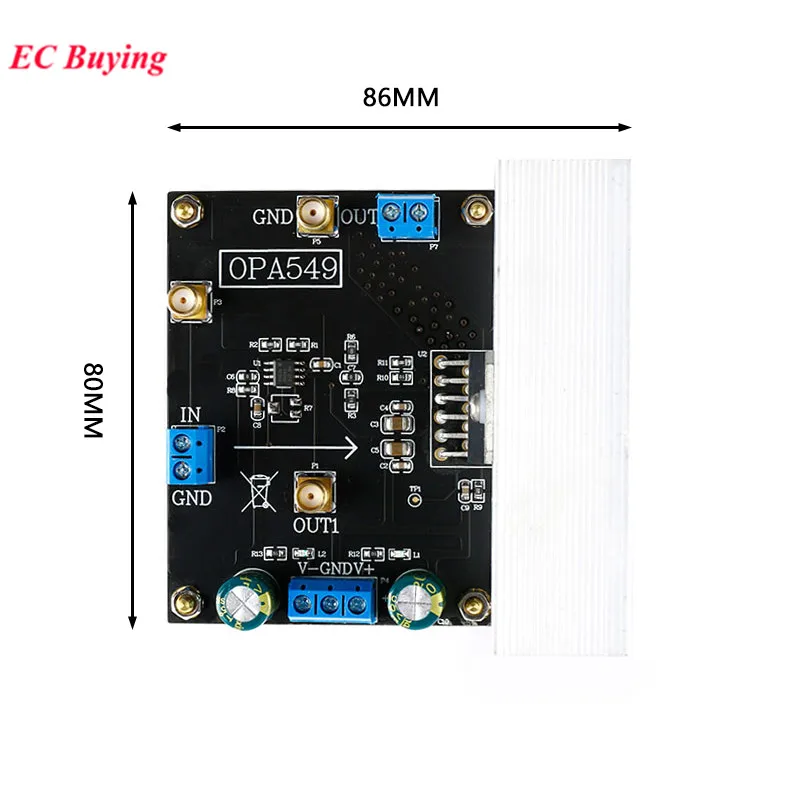

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

Current Driveable Coil Motor

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

Module

Other

OPA549 OPA548 OPA544 OPA541

Other 2

8A 3A 2A 5A
