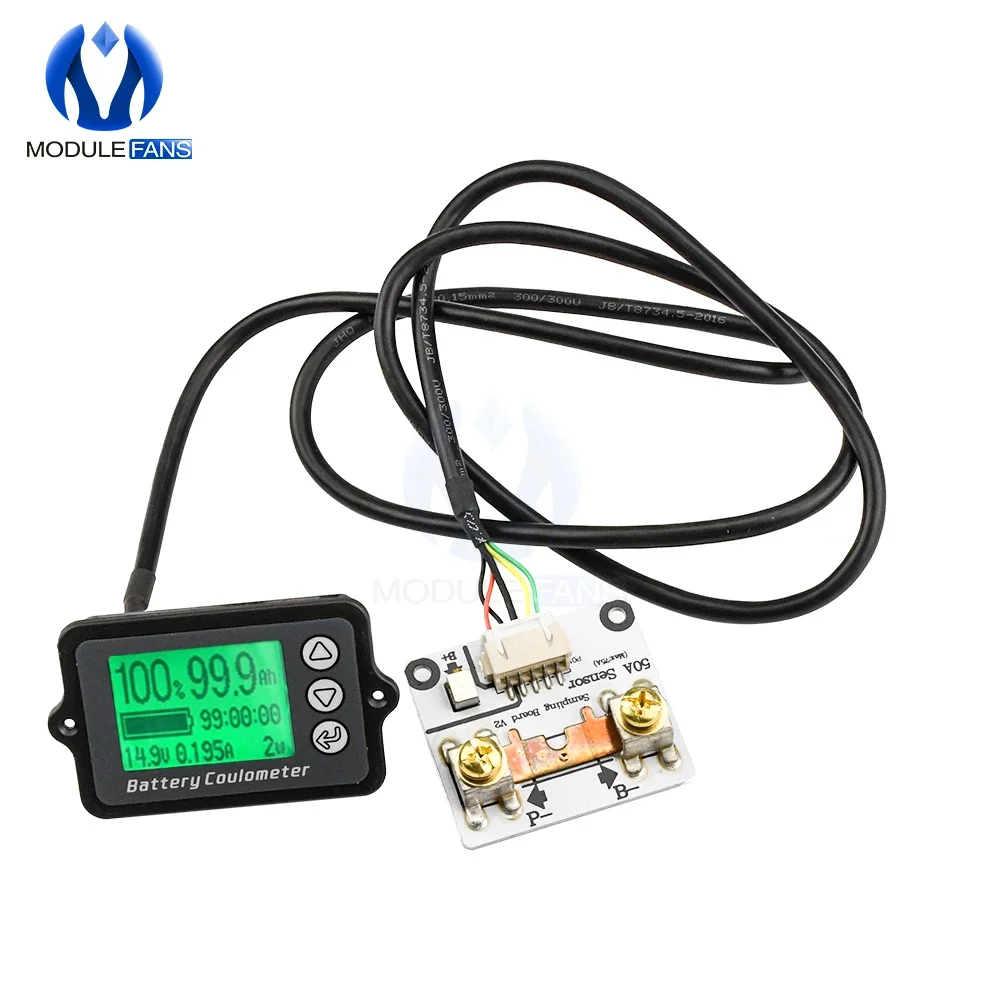

80V 50A TK15 Professioneller Präzisions-Batteriekapazitätstester Voltmeter für tragbare Geräte E-Bike Balance Car Reinigungsmaschine

Produktbeschreibung

80V 50A TK15 Professional Precision Battery Capacity Tester Voltmeter for Portable Equipment E-bike Balance Car Cleaning Machine

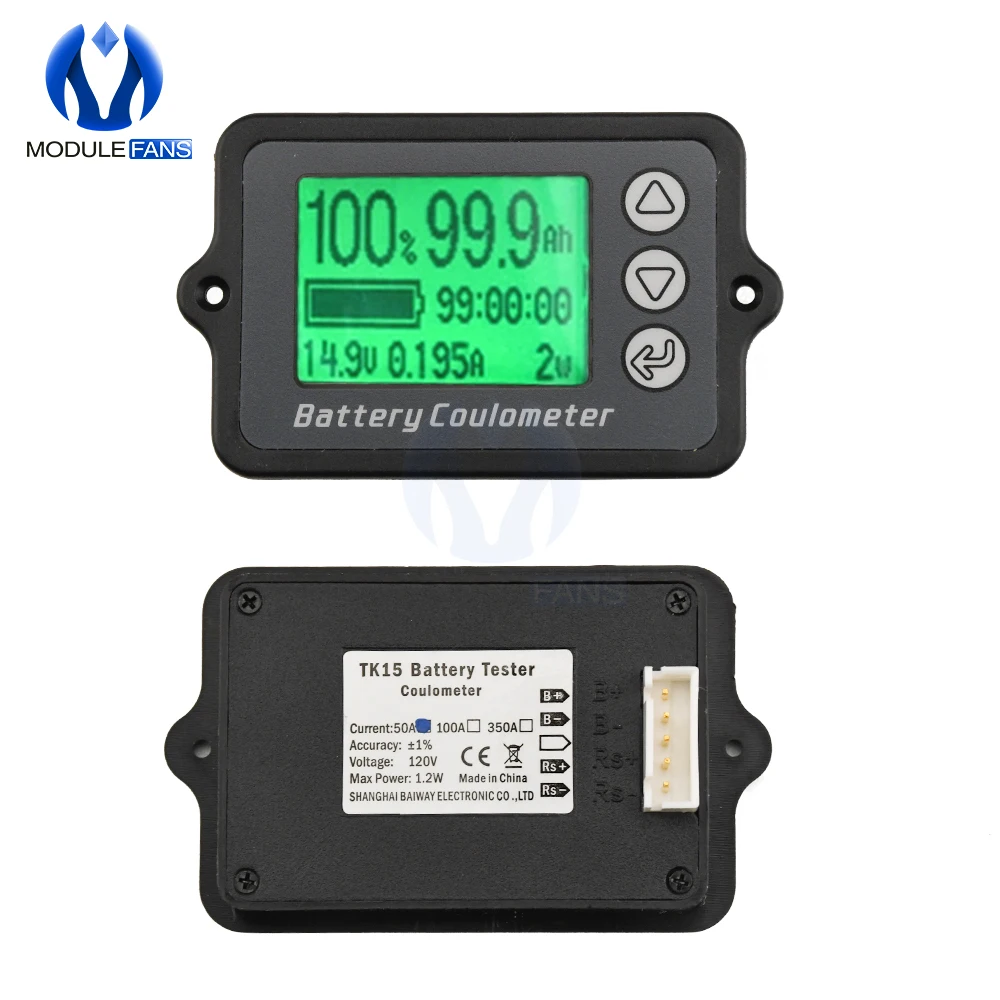

TK15 is a kind of high precision current type battery capacity tester(also known as coulometer)，which can test the voltage，current and capacity of battery to help users know the state of battery in time. TK15 has memory function. It is suitable for mobile and portable equipment、e-bike、balance car、cleaning machine、instrument、ups and so on.
Application
TK15 is suitable for lithium battery，lithium iron phosphate battery,lead-acid battery and nickel-metal hydride battery, which working voltage is from 8V to 100V.
Specifications
Type: Battery tester
Model: TK15
Operating voltage range: DC 8-80V
Current: 50A
Overall Size: 66x40x10mm
Display area size: 32x23mm

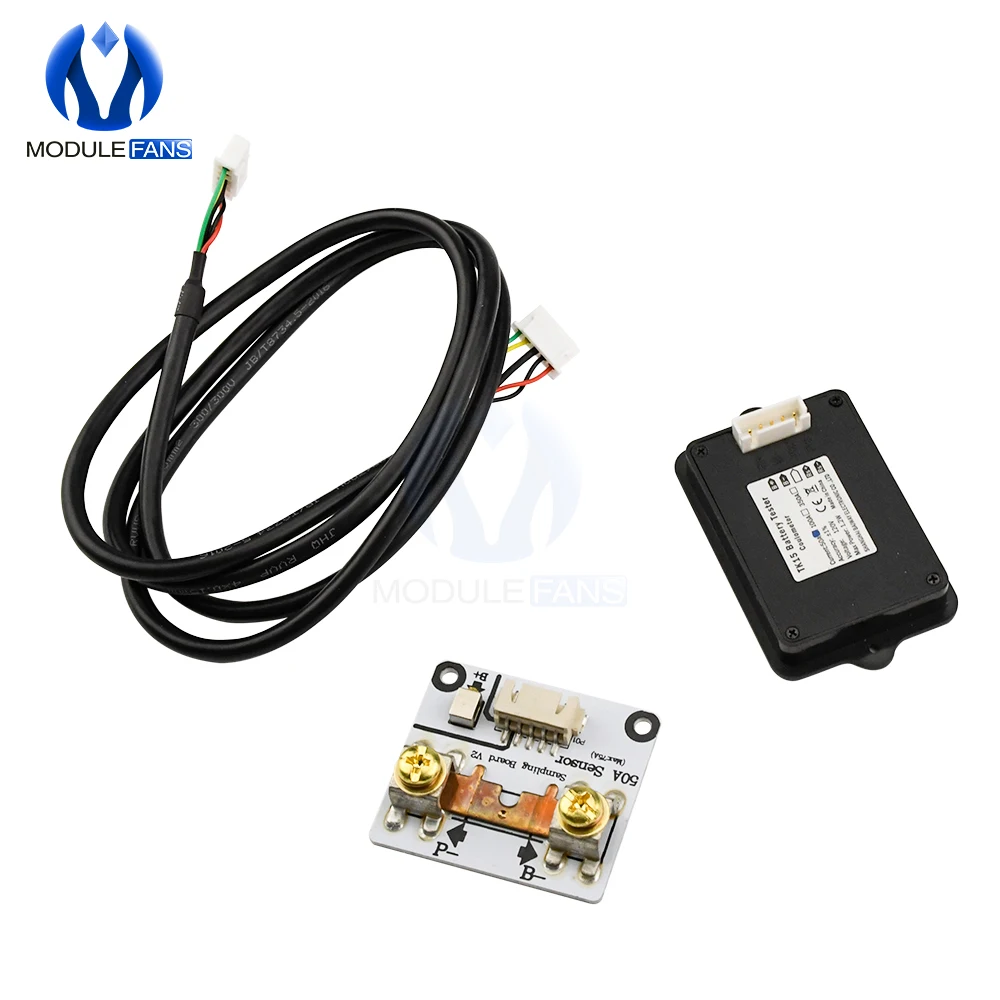

External normal Sampler Size:23x18x5mm
Working power consumption: 8.0mA (Max:10.0mA)
Standby power consumption: 0.5mA (Max:0.8mA)
Sleep power consumption: 50uA (Max:60uA)
Voltage acquisition accuracy: +/-1.0%
Current acquisition accuracy: +/-1.0%
Using ambient temperature rang: 0-35C
Backlight on current: 40mA (Max:50mA)
Backlight off current: 30mA (Max: 40mA)

Produktdetails in Bildern

Produkteigenschaften

Markenname

diymore

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul

Versorgungsspannung

Battery Capacity Tester Voltmeter

Verlustleistung

Battery Capacity Tester Voltmeter

ist kundenspezifisch

Ja

Betriebstemperatur

Battery Capacity Tester Voltmeter

Anwendung

Elektrisches Spielzeug

Paket

SMD
