Kurze Entfernung Scan Sensor Sweep Hand Sensor Schalter Modul 36W 3A Konstante Spannung für Auto Smart Home Kompatibel XK-GK-4010A

Produktbeschreibung

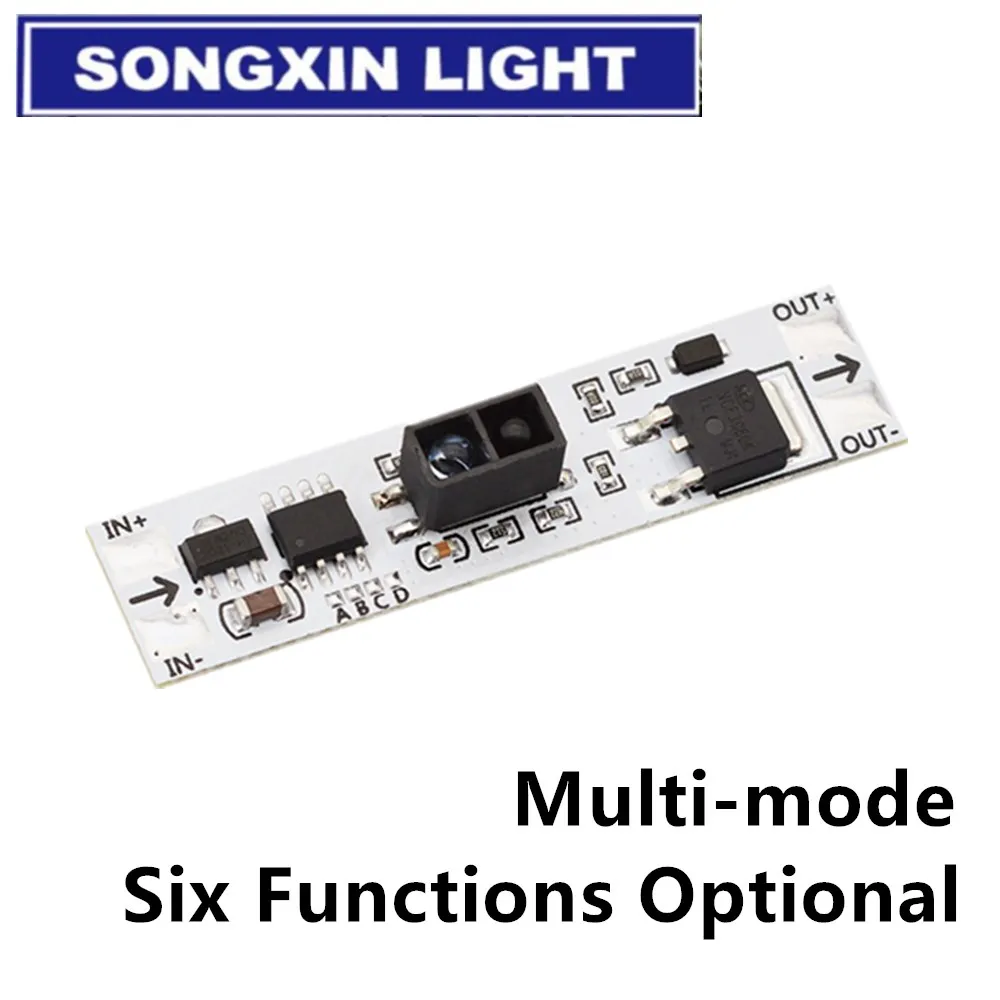

XK-GK-4010A DC 12V Hand Sweep Sensor Switch Module Short Distance Scan Sensor Board
Description:Model: XK-GK-4010AOperating voltage:Input: 12 Voutput: 12 VOutput type: Double outputDetection range: adjustable 10-50 MMDetection principle: distancePower load: 36 WDelayed off time: noneField of application: DC, constant pressureLoad current: 3A optionalStandby current: 10mAVIN: 12VFeature:The use of electrical appliances, such as small household appliances, KTV VOD system,Automotive industrial application systems and other electrical devices wide range of guests can accept custom special features;The sensitivity of the product can be customized, can penetrate plastic, acrylic, glass, ceramic, and other non-metallic medium, stable performance!Instructions:AC use: Need to apply reactive rectifier for it is DC, constant pressure.During installation, make sure that the medium insulation and tactile surface are tightly coupled and fixed!There shoule no gap! Installed and then power, wait 3 seconds after initialization, it may be normal operation!2. Recommended method of installation:The first, the shell design a card slot, the touch button can be put in firmly locked.The second, the use of hot melt adhesives, the touch button and shell close to the adhesive hot melt can be used to live.The third, the use of double-sided adhesive, directly touch the stickers inside the shell.

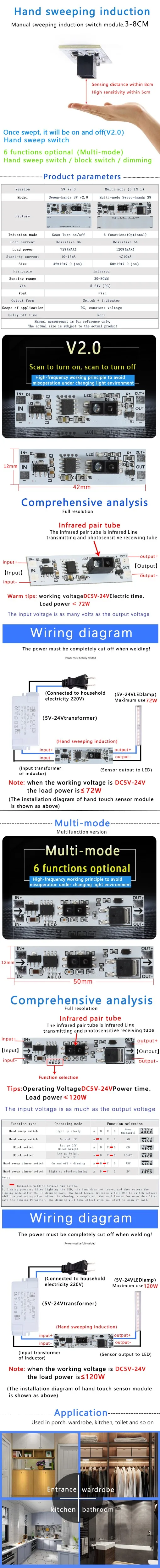

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Ausgabe

Schaltwandler

Theorie

Optischer Sensor

Typ

VAKUUMSENSOR

ist kundenspezifisch

Ja

Benutzen

Strahlensensor

Material

PORZELLAN

Model Number 1

Hand Sweep Sensor Switch

Model Number 2

XK-GK-4010A

Type

electronic module

Package

Module

is_customized

Yes

Operating Temperature

40°-+85°

Supply Voltage

5V - 24V

Application

Short Distance Scan Sensor

Dissipation Power

72W

Condition

New
