TZT 1/3PCS XL7015 DC-DC Dc konverter Step-down modul 5V-80V Breite spannung eingang 7005A LM2596

Produktbeschreibung

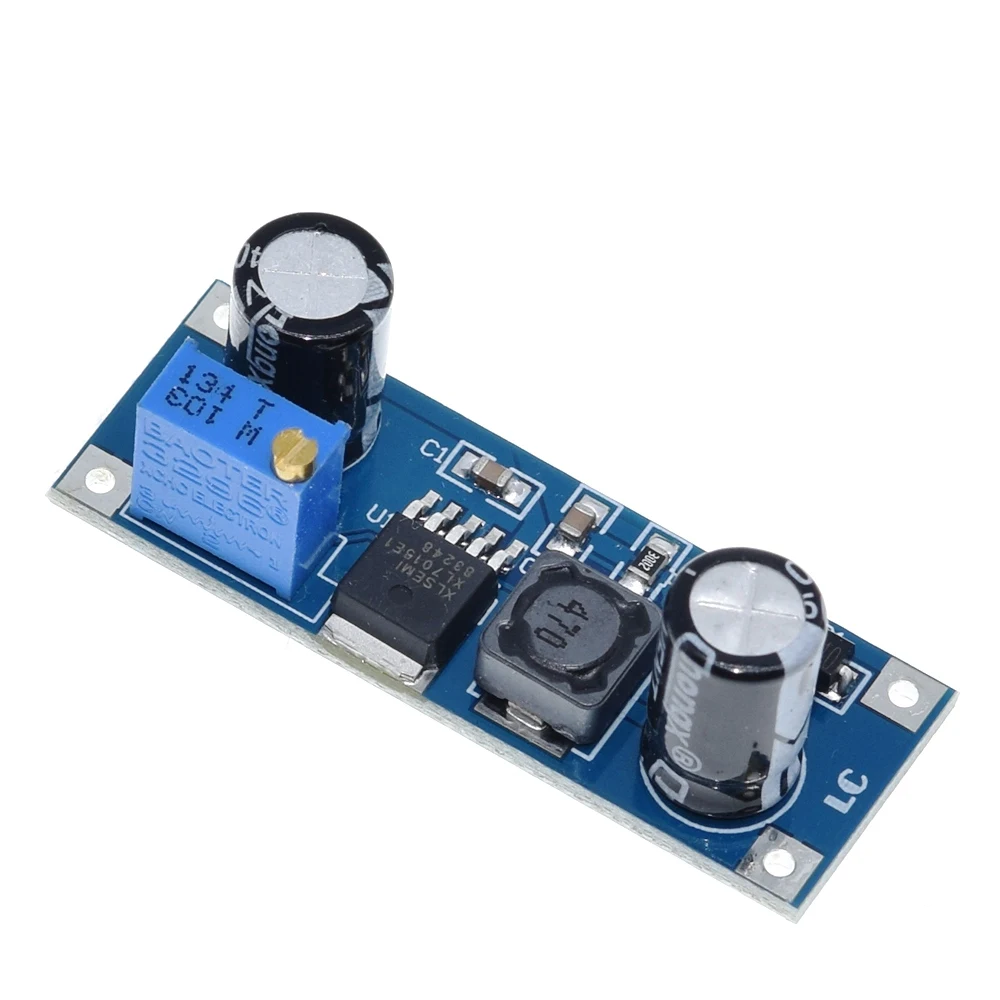

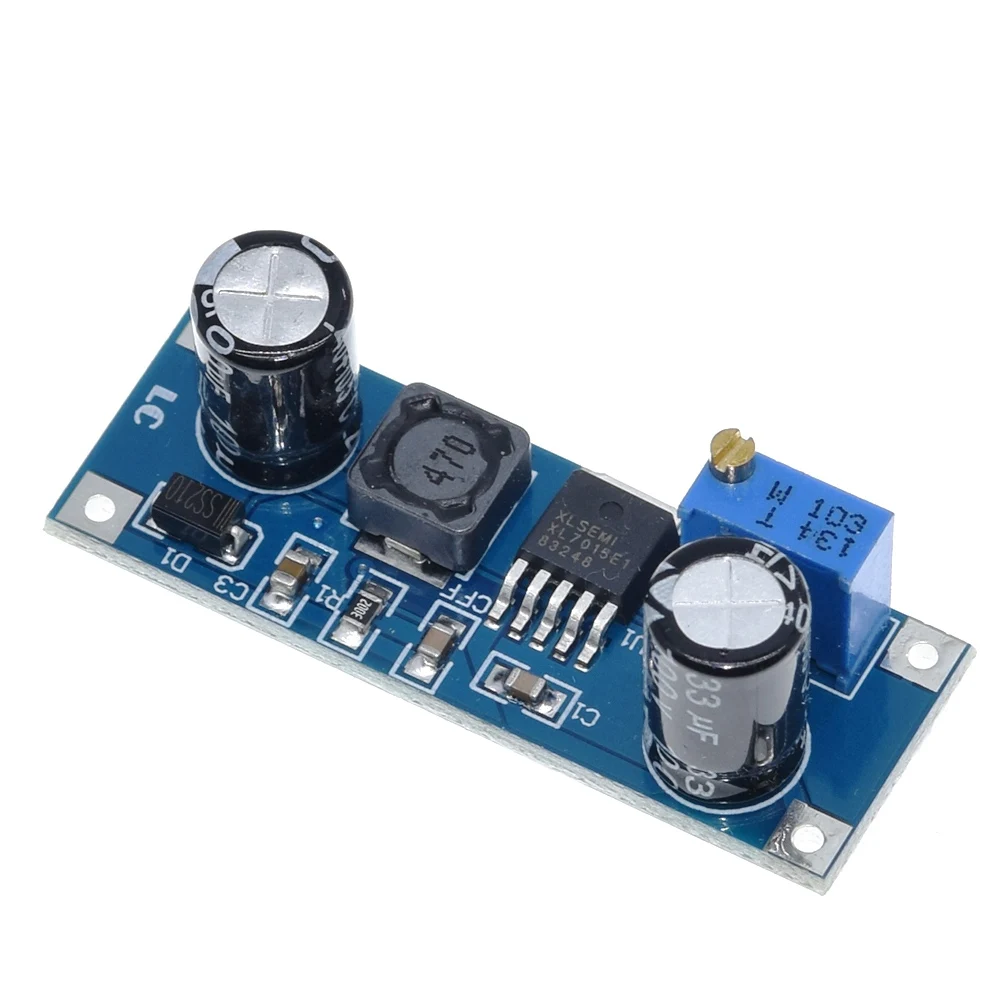

XL7015 DC-DC step-down module is a highly efficient, high-voltage step-down DC- DC converter that can deliver up to 0.8A output current capability, low ripple, excellent line regulation and load regulation, input voltage to a maximum of 80V, far more than 2596 modules. Chip built a variety of protection mechanisms. It can be applied to electric vehicle controllers.
1. 5V to 80V wide input voltage range
2. The output voltage is adjustable from 5V to 20V
3. The minimum pressure drop 1V
4. The maximum switching current of 0.8A
5. Recommended output power less than 7W
6. Built-in thermal shutdown protection, output short circuit protection, overcurrent protection
7. The excellent linearity and load regulation
Hardware introduction and notes

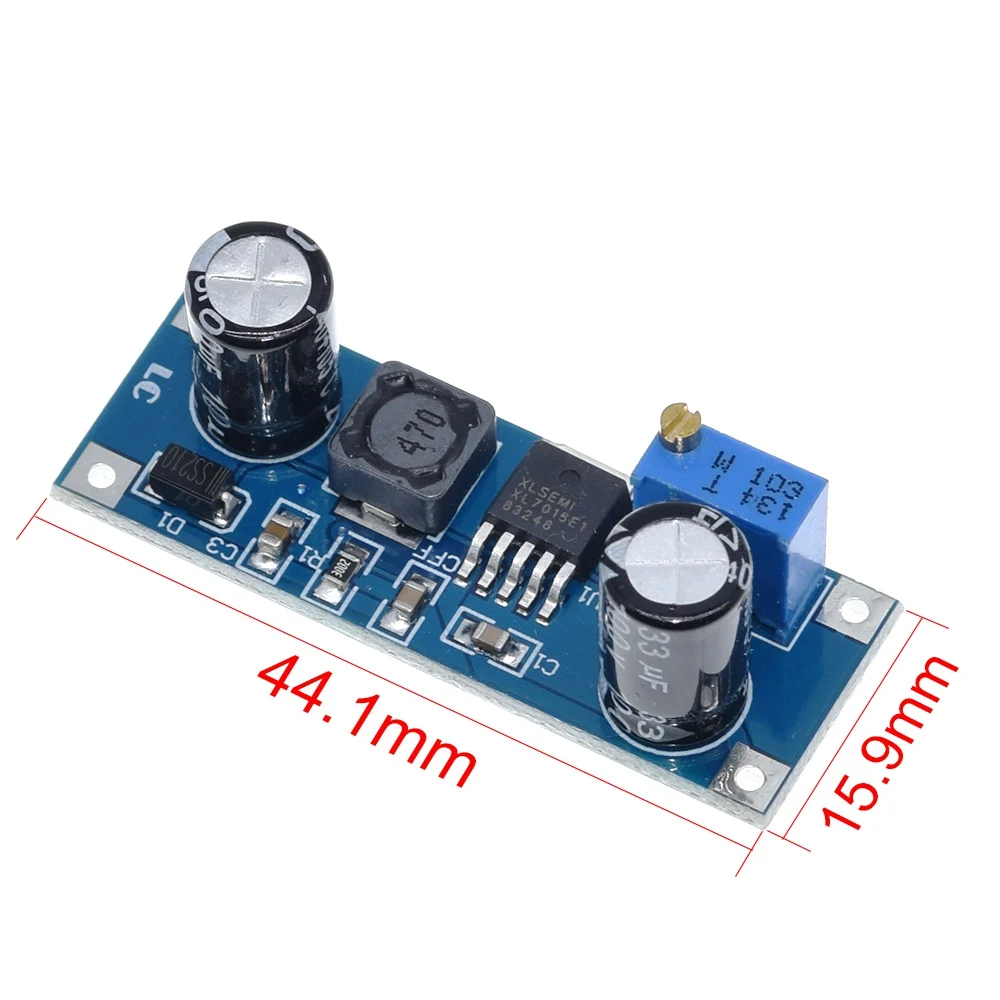

Board size: 16mm * 44mm
Wiring
1. VIN: input voltage (5V-80V)
2. GND: the input voltage ground terminal
3. VOUT: Output voltage terminal (5V-20V)
4. GND: output voltage of the ground terminal

Produkteigenschaften

Markenname

TZT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

5V-80V

Verlustleistung

..

ist kundenspezifisch

Ja

Betriebstemperatur

40-+85

Anwendung

Computer

Paket

DIY KIT

Funktionen

Elektronikmodul

Anwendungsbereich

Schalter und Sensor für Arduino STM
