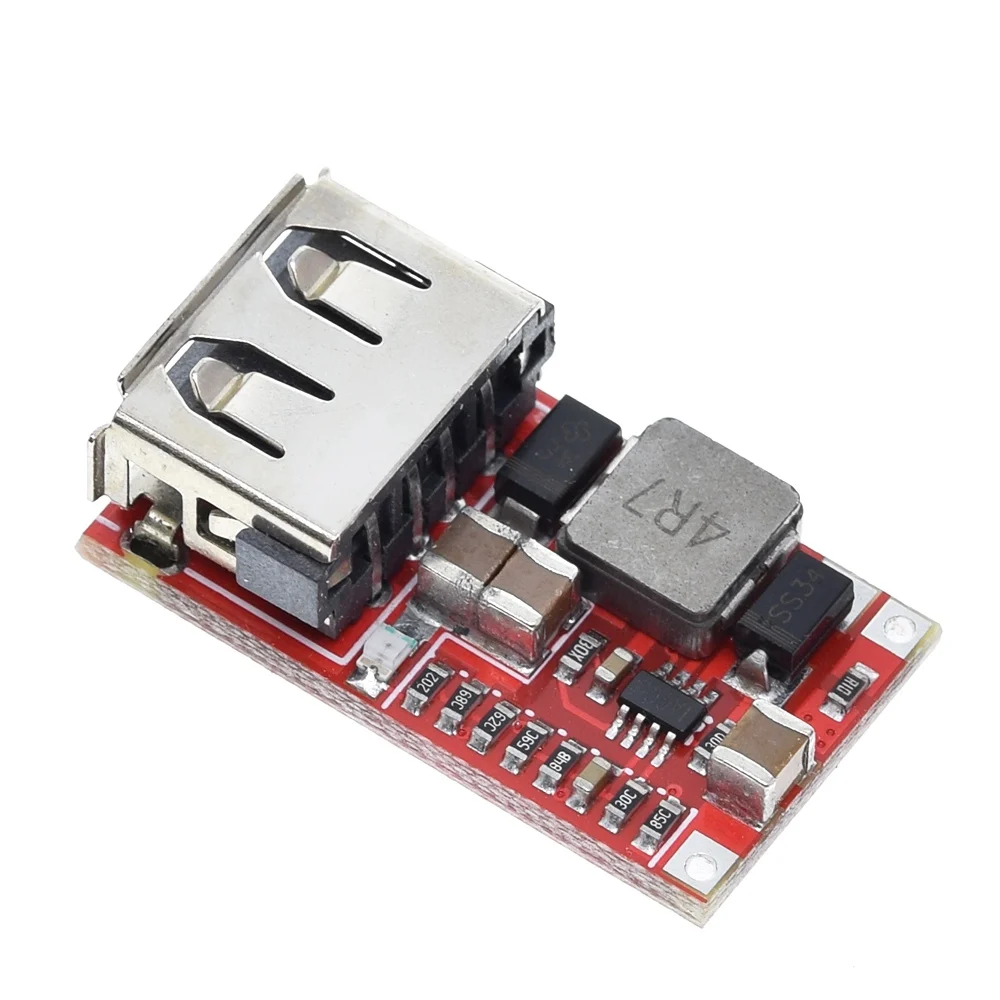

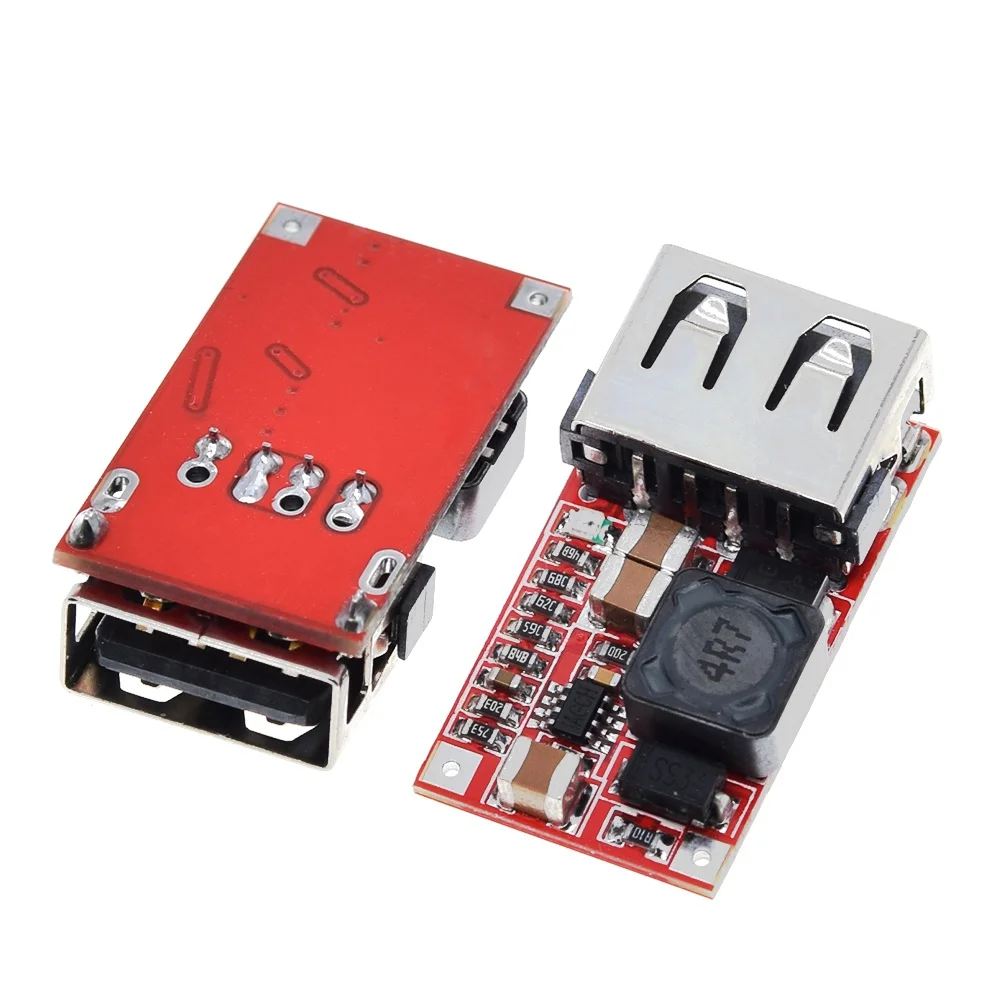

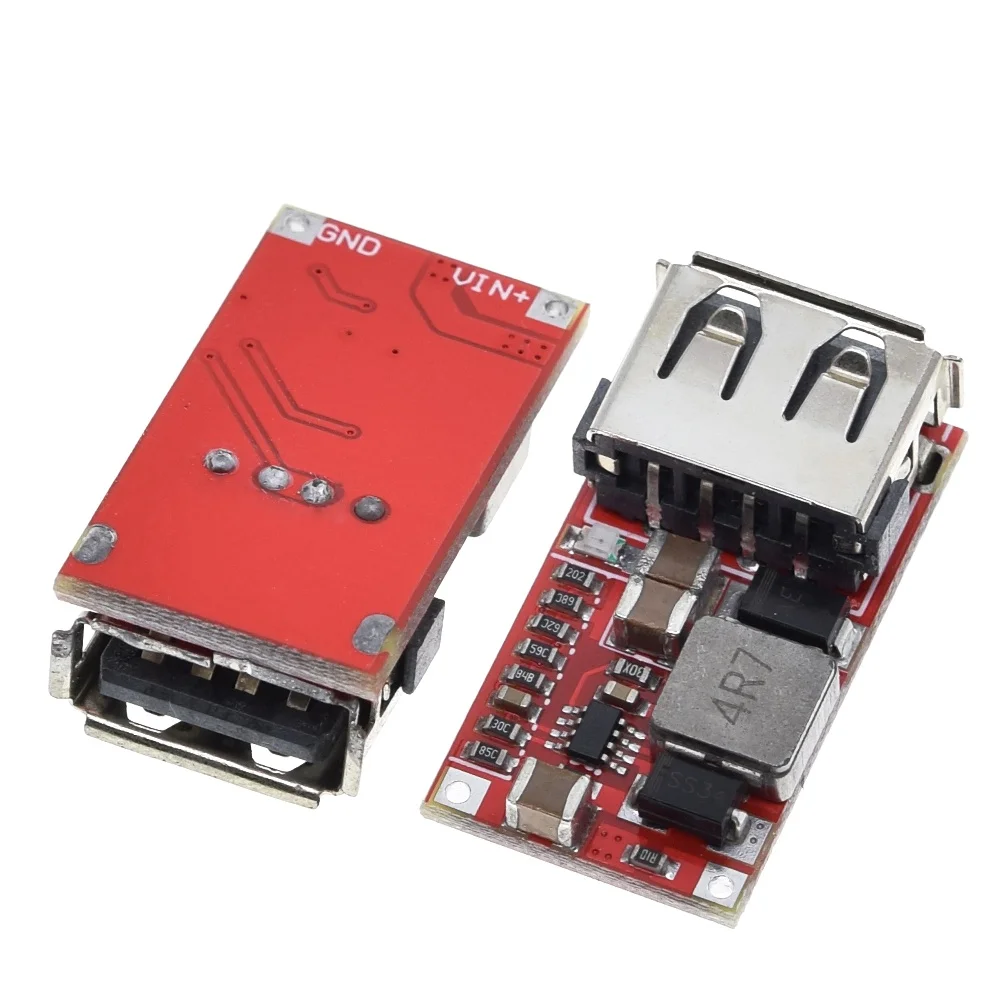

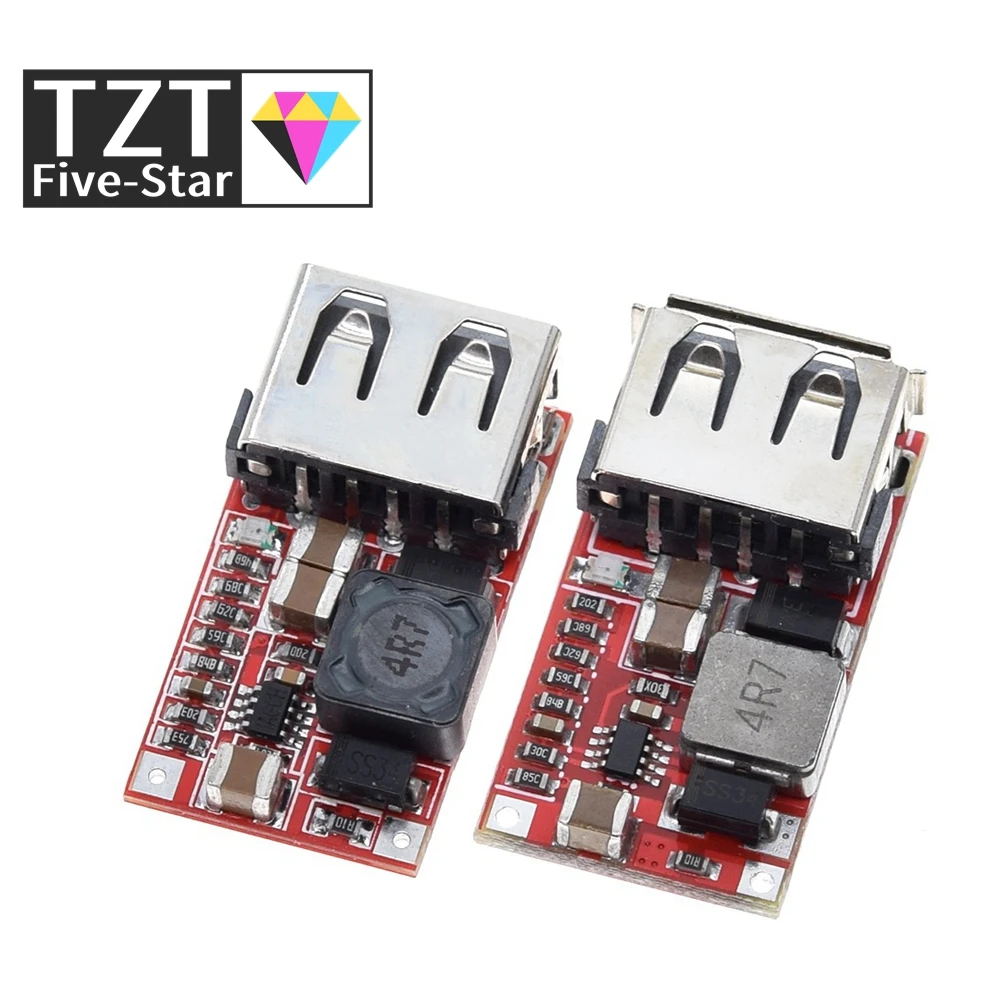

TZT Fine 6-24V 12V/24V zu 5V 3A AUTO USB Ladegerät Modul DC Buck Step Down Converter 12V 5V Netzteil Modul gut

4,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 16–25 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Press Release
1: The new United States imported chips, definitely not homemade chips, disassemble chip.
2: The maximum output current of 3A, the long-running 2.1A, sufficient margin.
3: The new design, circuit design does not require electrolytic capacitors and tantalum capacitors (electrolytic capacitor life is short, there is a risk of explosion tantalum capacitors). Now with the use of high-end large-size solid ceramic capacitor circuit (MCC) 3
Very low ripple, 12V switch 5V 3A only about 10 mV ripple many peers have reached 500 mV or greater, the device will cause an invisible injury, severe can cause fault or damage.
4: The new program uses synchronous rectification circuit conversion efficiency is very high, in turn 5V 0.7A 6.5V when efficiency up to 97.5%, 12V turn 5V 1A when it reached 94%, unlike some peers only 60-70% efficiency. (Efficiency test removed the input reverse polarity protection diode and fuse drop).
5: Using flat copper inductors, maximize conversion efficiency. Reduce heat.
6: The whole network first with output overvoltage protection, input fuse has 1.5A, 5V output of 300W TVS has done a pressure pipe clamp protection, protect USB devices.
7: Using the latest USB identification circuit.
8: Short head gilded boundless USB, long service life, not ordinary USB interface can be compared.
9: Output voltage indicator (red)

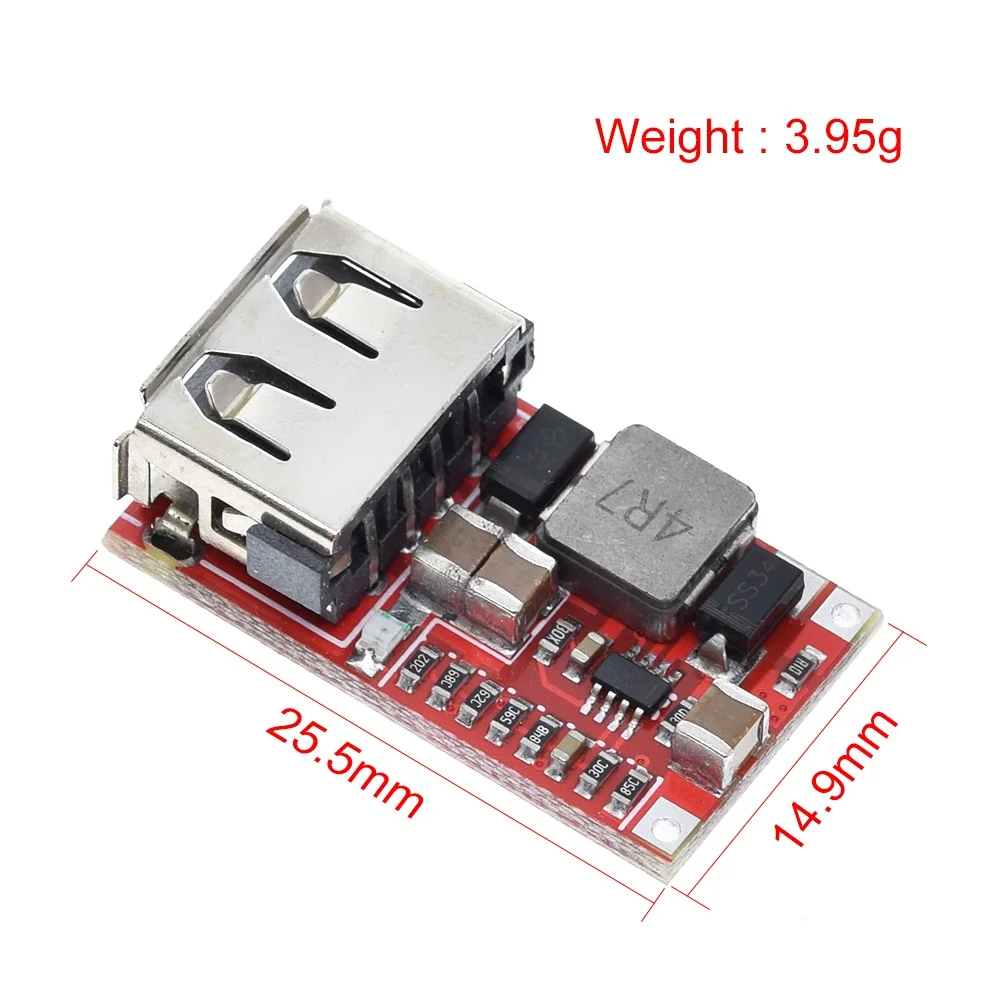

10: Ultra-small size, 26.4 (L) * 15 (W) * 7.4 (H) mm, the smallest of the whole network.
11: inputs with reverse polarity protection diode, the positive and negative input will not reverse damage (We tested the efficiency of ignoring the input diode and fuse drop)
12: ultra-low quiescent current, 0.85 mA quiescent current. Connected to the car battery without adding switches can be connected in a cigarette lighter line, or ACC power line cord.
Features
New main chip made in USA.
The max output current 3A, long time use 2.1A, enough use.
New design, 3 solid state ceramic capacitors (MLCC).
Synchronous rectification, High efficiency, 6.5V to 5V 0.7A can up to 97.5%, 12V to 5V 1A can up to 94%.
Flat copper inductor, improve conversion efficiency
