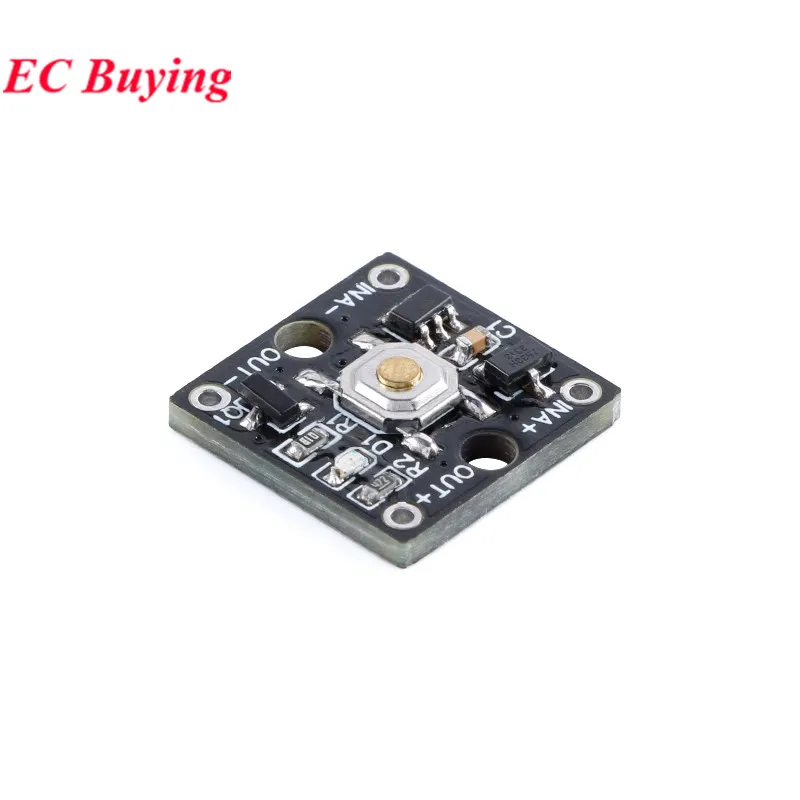

20 Stück/1 Stück Micro Single Bond Button Bistabil 4 Viergeschwindigkeits-einstellbares Schalter-Dimmmodul 3-24 V 3 uA Kontinuierliche Belastung Low Power

Produktbeschreibung

The YR-1016 single key switch module is a high-performance, cost-effective switch control device that uses a 3-24V power supply mode, supports low, medium, high, off, and four adjustable gears, and has a continuous output power of 10W with efficient performance. The standby current of this module is as low as 3ua, which means that it can maintain extremely low energy consumption even when not in use for a long time, saving energy and extending battery life, making the product more environmentally friendly and economical. In addition, the size of this module is only 15mm * 15mm, which is compact and suitable for installation in places with limited space, making it easy to install. The entire module adopts high-quality and highly reliable materials and components, which have undergone strict quality control and testing to ensure its excellent performance and stability, and can meet the needs of various occasions. In summary, this single button switch module is a practical, high-performance, and easy-to-use switch control device that combines intelligence and efficiency, while also being compact and lightweight. It is suitable for application scenarios such as plugs, light adjustment, audio, etc. It is worth promoting.
1.2 Performance parameters
Power supply voltage: DC 3-24V
Standby current: 3uA
Size: 15X 15mm
Continuous power: 0-10W
When powered by 12V, the maximum continuous current is 0.8A
Power on reset: After power on, it defaults to off. After pressing the switch, the output is low, medium, high, and off, with a four speed cycle.
1.3 Safety precautions for use
Before using this product, please read this manual carefully and understand the relevant content correctly
Use and keep properly
2. The working power supply of this product is DC3-24V. Please use it within the required capacity range of this product. No
It may cause a fire or malfunction.
3. When driving inductive loads, appropriate freewheeling diodes should be connected in parallel to avoid damaging the circuit
Switching elements.
1.4 Pin Definition
IN+: Power supply positive, OUT+: Output positive.
IN -: Power supply negative, OUT -: Output negative.

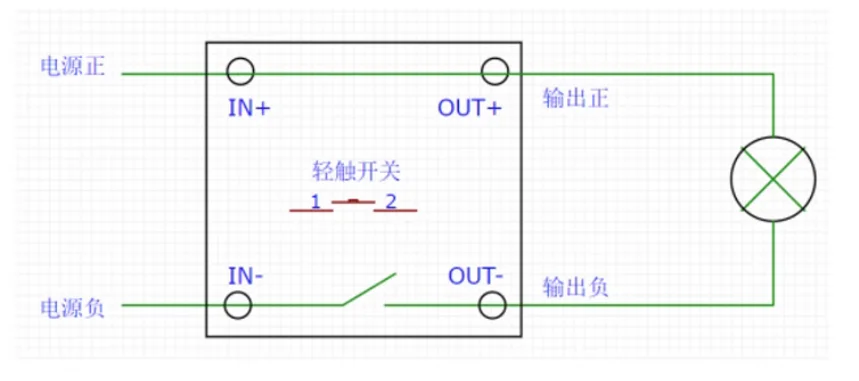

1.5 Application circuit
1. Directly connected to the load (note: the maximum continuous resistive load is 10W)

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

DC 3-24V DC3-24V

Verlustleistung

low PCB Board DIY

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

Module

Smart Electronics Experiment

Switch And Sensor For Arduino STM32

One Key Switch

3-24V wide voltage 0.8A 10W development board 3uA

Low Power Single Button Key Button Four Posision

Gear Adjustable Switch Dimming Module Micro DC3-24V Wide Voltage 10W
