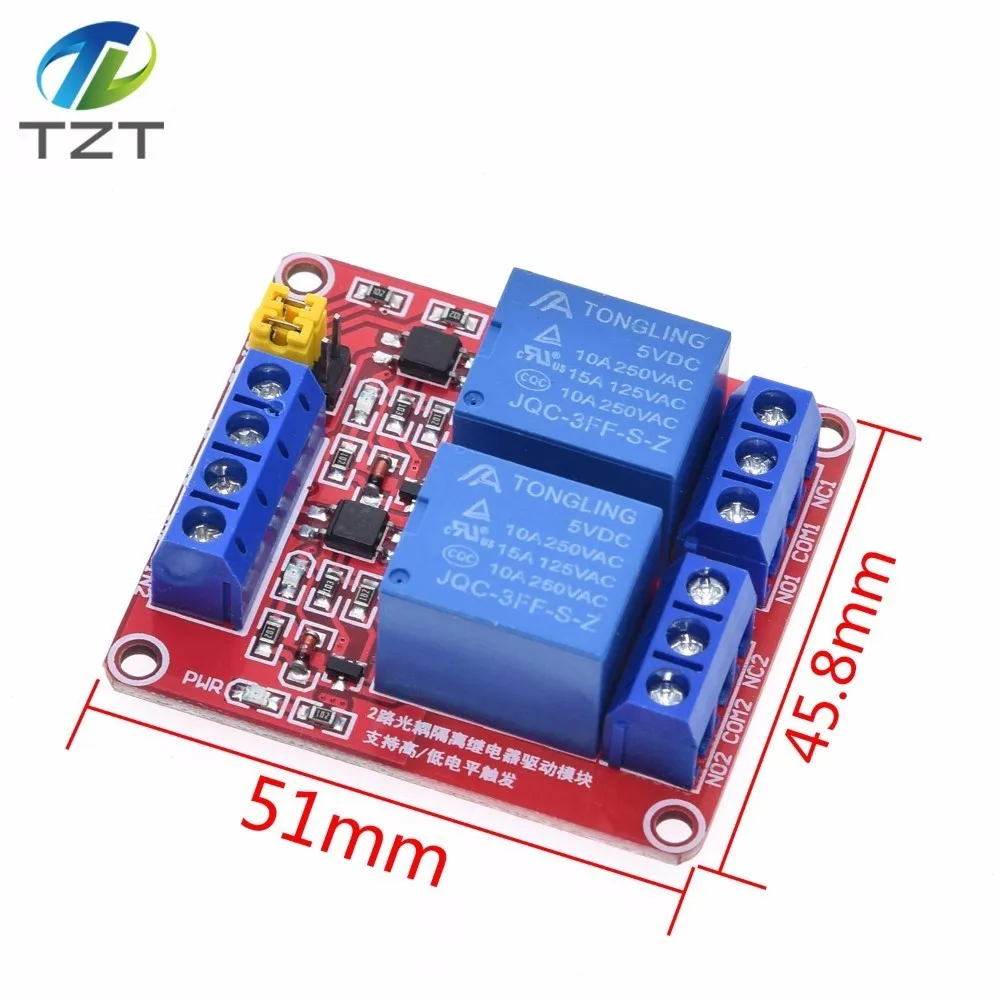

1 2 4 6 8 Kanal 5V Relaismodulschild mit Optokoppler-Unterstützung High- und Low-Level-Trigger 1-Wege-Relaisplatine 12V für Arduino

Produktbeschreibung

8 Channel Relay Module with Optocoupler
Features
1.Dual trigger design, use a dedicated two-way driver IC.
2.Strong resist interference, use diode continued current to protect it.
3.The relay contact part adopts double cloth line for large current, safe and reliable.
4.The input and output are 5.08mm wiring terminals, wiring is more convenient, suitable for PLC control.
5.Input terminals can be arbitrarily set high and low level, the control mode is more flexible.
6.Equipped with fixing screw hole, easy to install.
7.Each way module can be set high or low triggered by jumper.
Specifications
Material: Metal
Mounting bolts holes: 4
Holes diameter: 3mm
Voltage: 5V
Maximum load: AC 250V/10A, DC 30V/10A
Interface
VCC: Power end
GND: Ground strap
CTR1-CTR8: Signal input trigger
Outputs

Produktdetails in Bildern

Produkteigenschaften

Markenname

TZT teng

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

5V

Verlustleistung

....

Betriebstemperatur

40+85

Anwendung

Alarm

Paket

SMD
