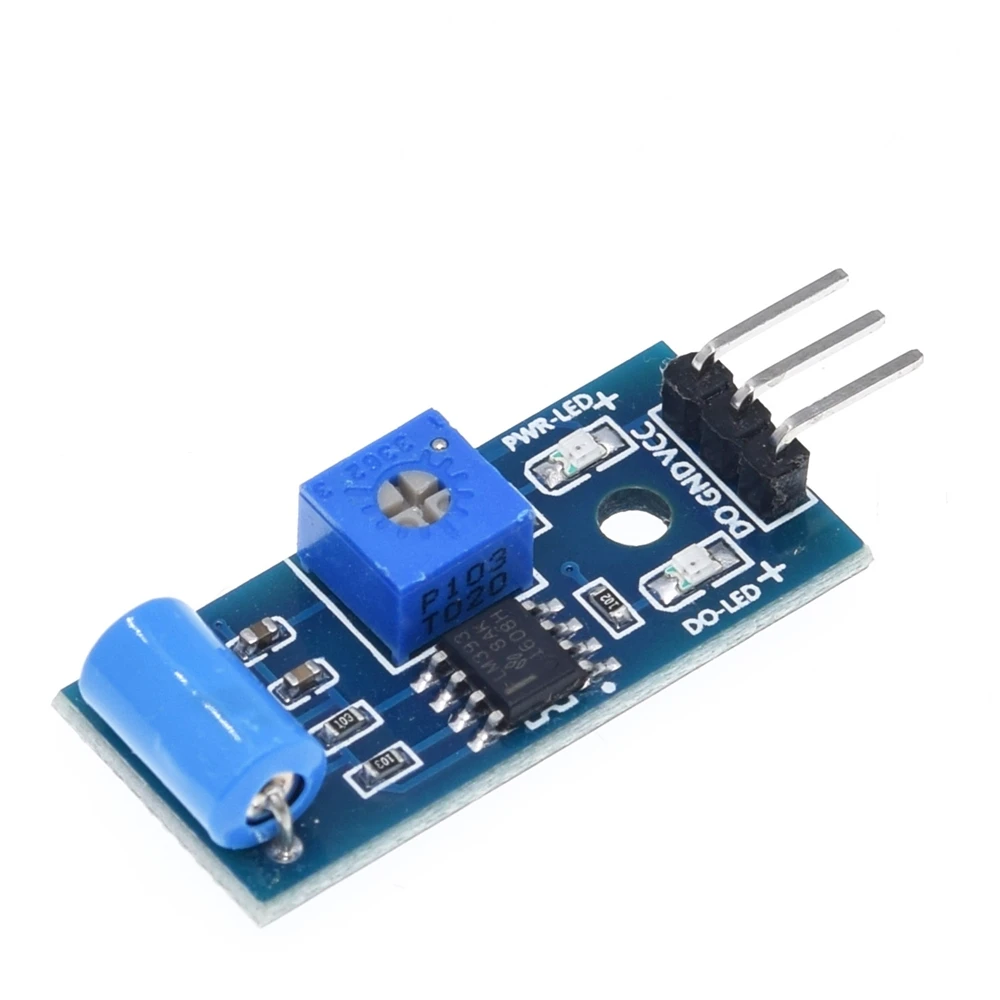

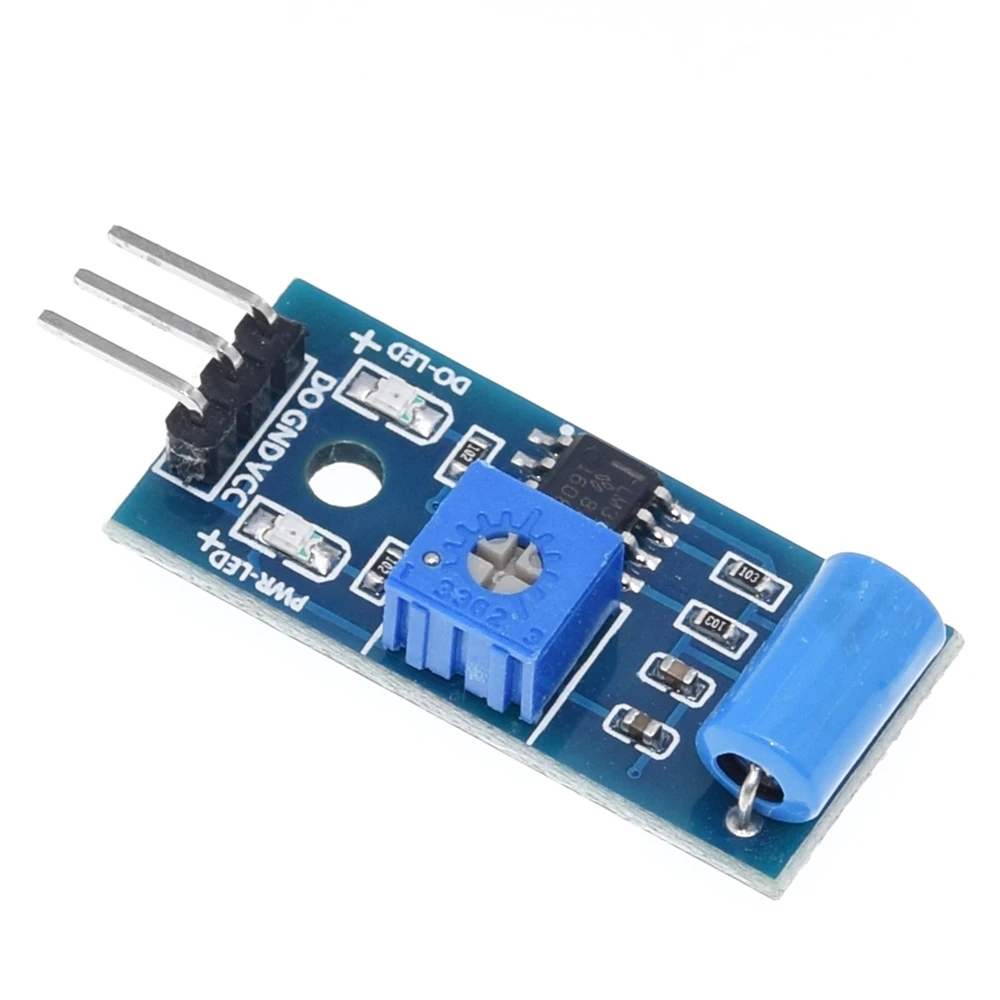

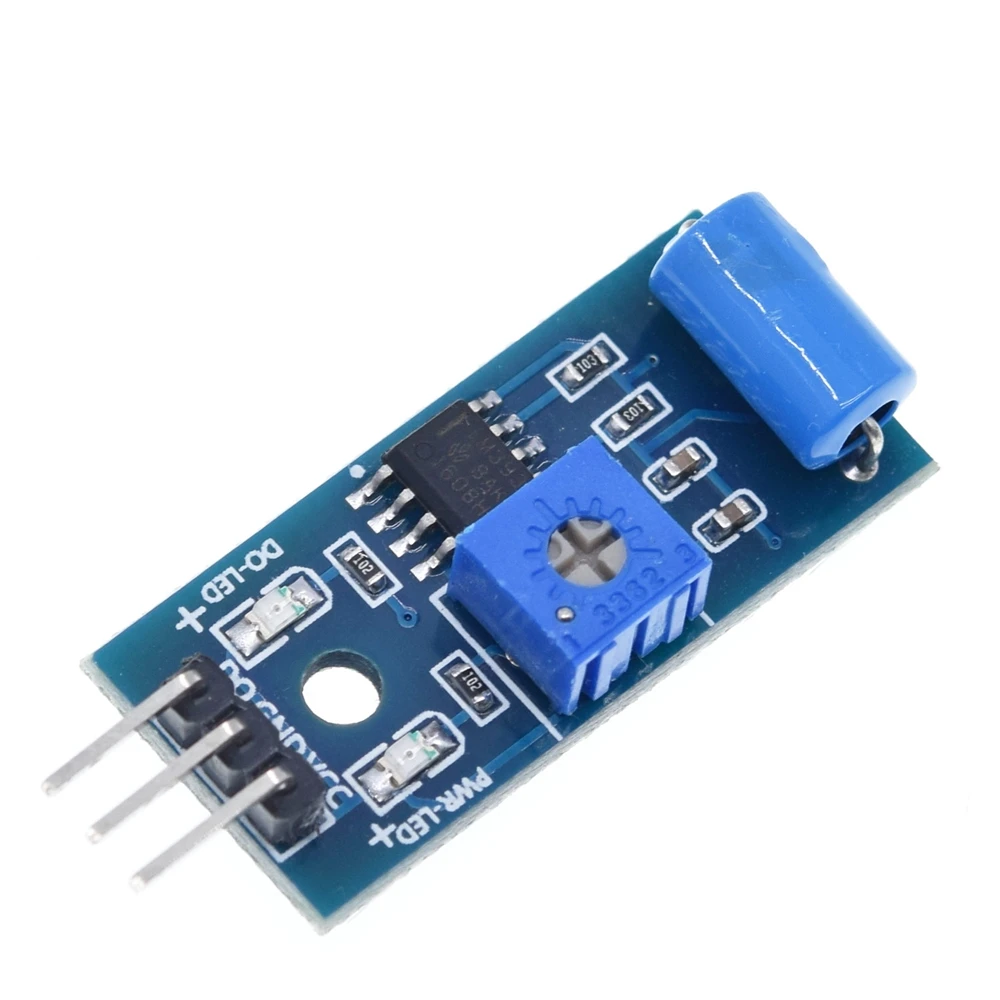

TZT 1/3PCS normalerweise geschlossen typ vibration sensor modul Alarm sensor modul Vibration schalter SW-420 für arduino

Produktbeschreibung

Module Features
SW-420 using the company's production of normally closed type vibration sensor.
The comparator output, the signal is clean, the waveform, the driving ability to exceed 15mA
Operating voltage 3.3V-5V
The output in the form: Digital switching outputs (0 and 1)
A fixed bolt hole for easy installation
Small board PCB size: 3.2cm x 1.4cm
Wide voltage LM393 comparator
Module using the instructions
The product does not vibrate, vibrate switch was closed conduction state, the output output low, the green indicator light
Product vibration, vibration switch instantly disconnect the output output high, the green light is not on
The output and the microcontroller is directly connected to the microcontroller to detect high and low, thereby detecting the vibration environment, play an alarm role

Produktdetails in Bildern

Produkteigenschaften

Markenname

TZT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Modul

ist kundenspezifisch

Ja
