NEXTION 4,3 Zoll LCD-TFT HMI-Display Kapazitives/resistives Touchpanel-Modul Intelligente Serie RGB 65K Farbe mit Gehäuse

95,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 8–15 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

NEXTION 4.3 Inch LCD-TFT HMI Display Capacitive/Resistive Touch Panel Module Intelligent Series RGB 65K Color With Enclosure

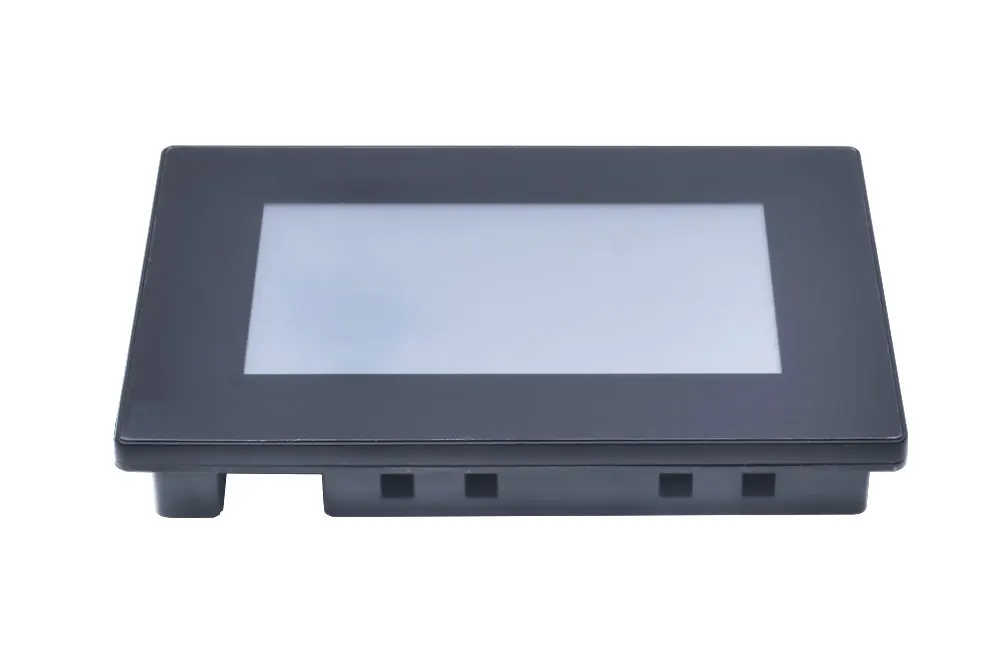

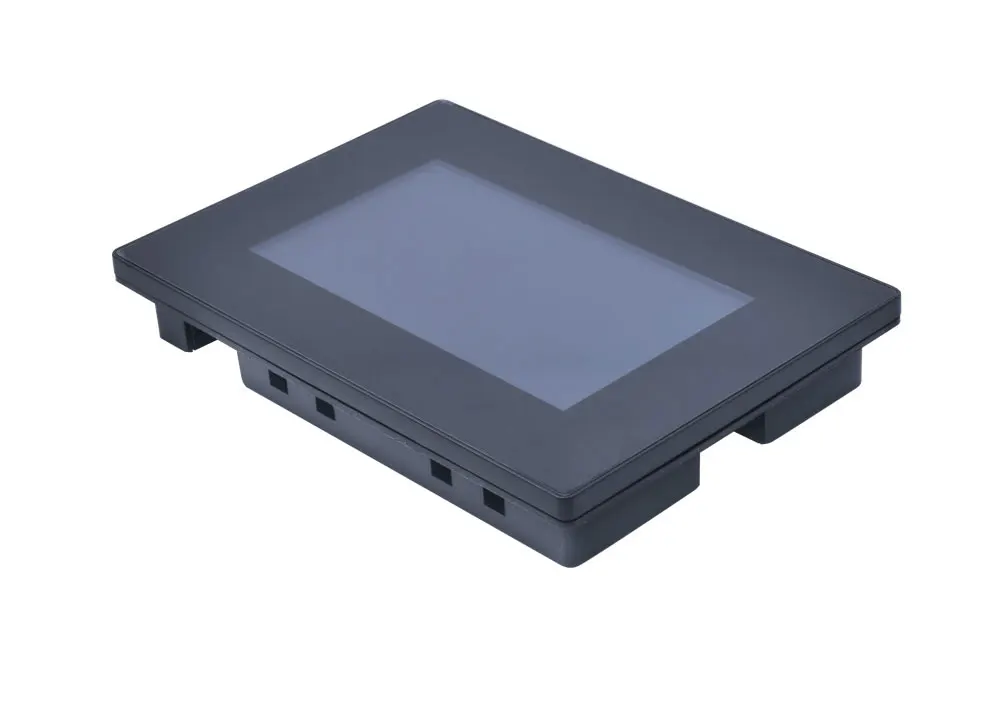

NX4827P043-011C-Y is a Nextion Intelligent series 4.3'' capacitive HMI touchscreen with enclosure.

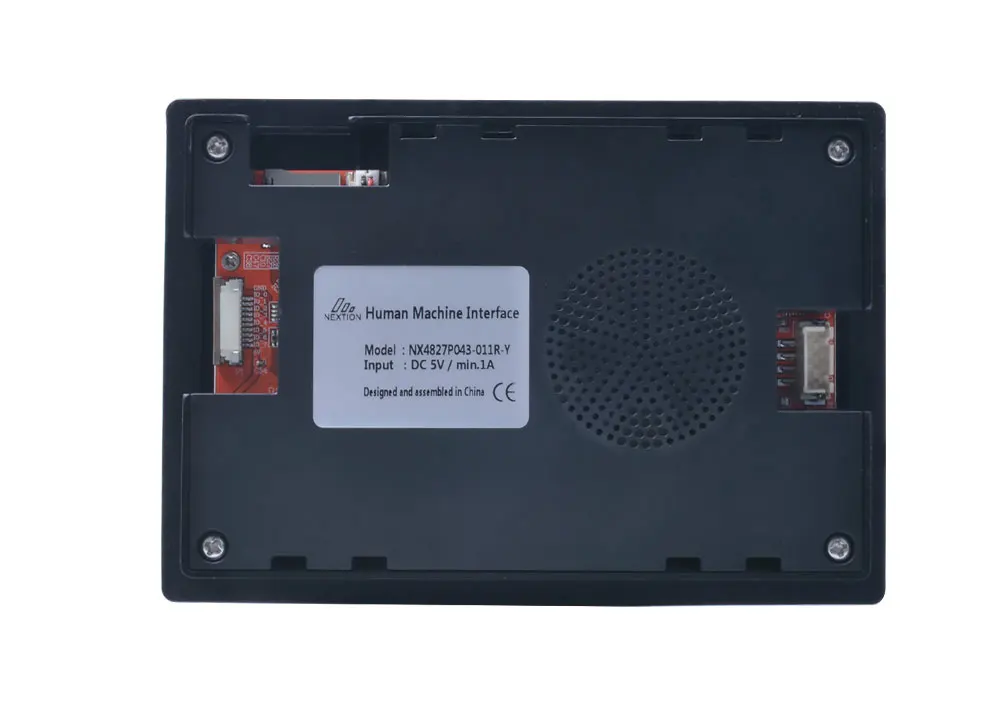

NX4827P043-011R-Y is a Nextion Intelligent series 4.3'' resistive HMI touchscreen with enclosure.
NOTE: 4.3 inch display is now transiting to IPS technology, please choose the correct SKU if you need.

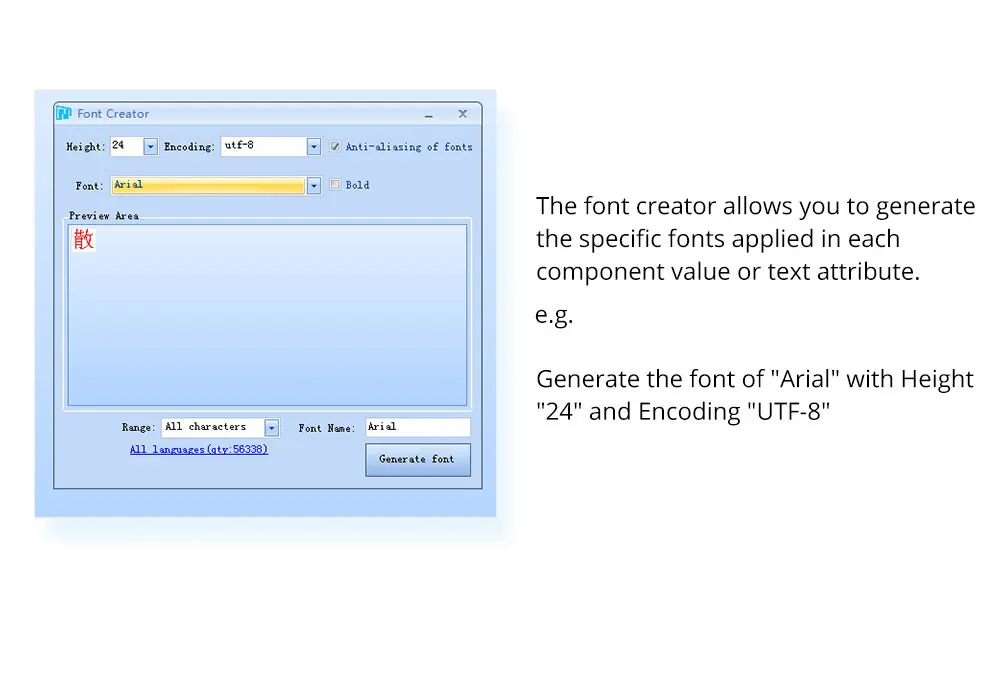

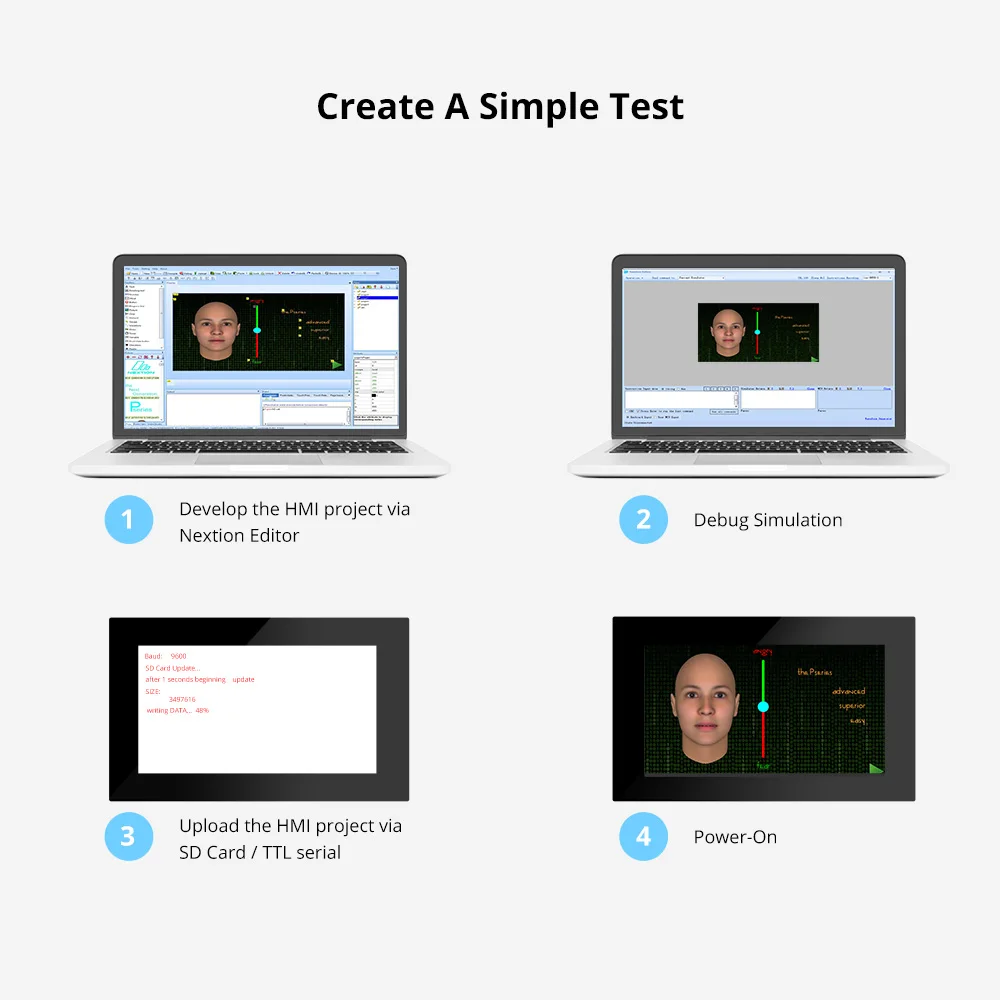

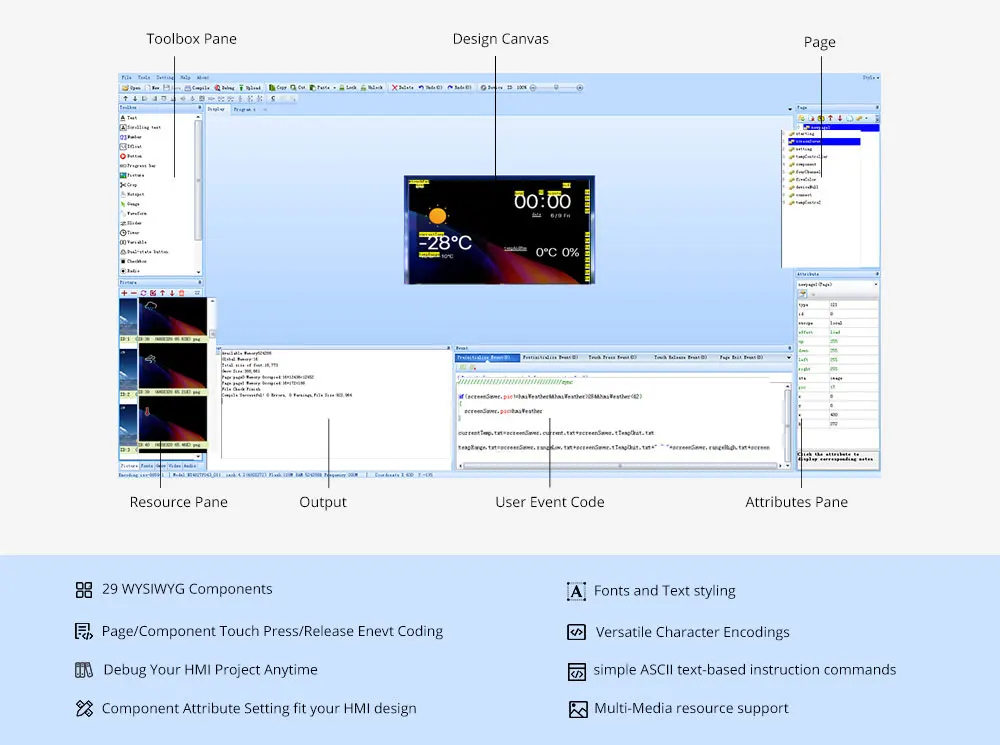

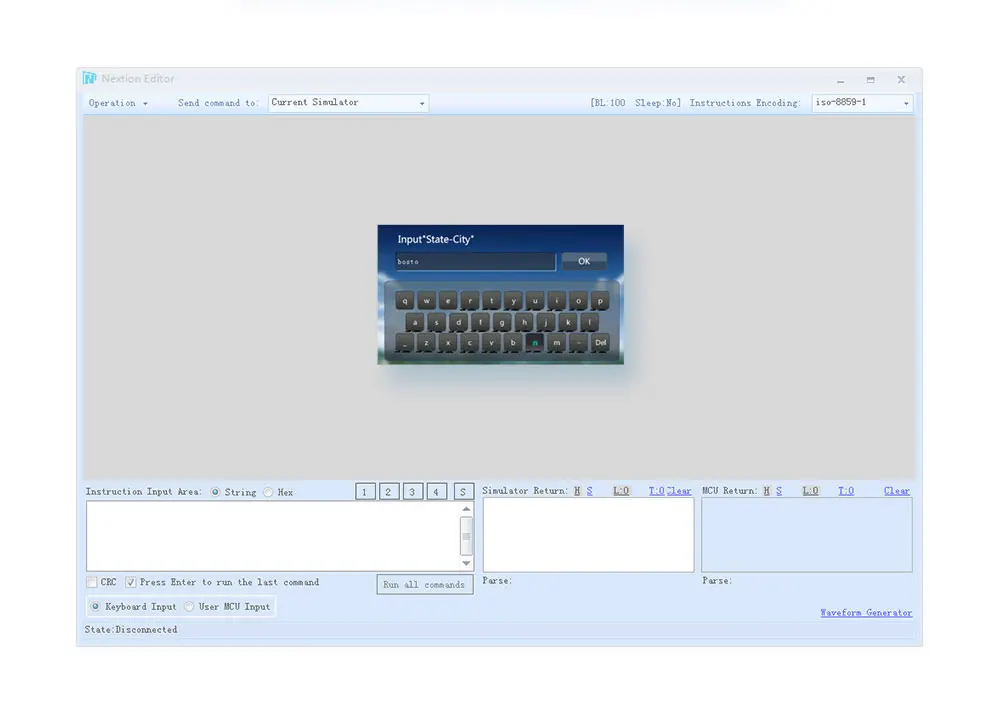

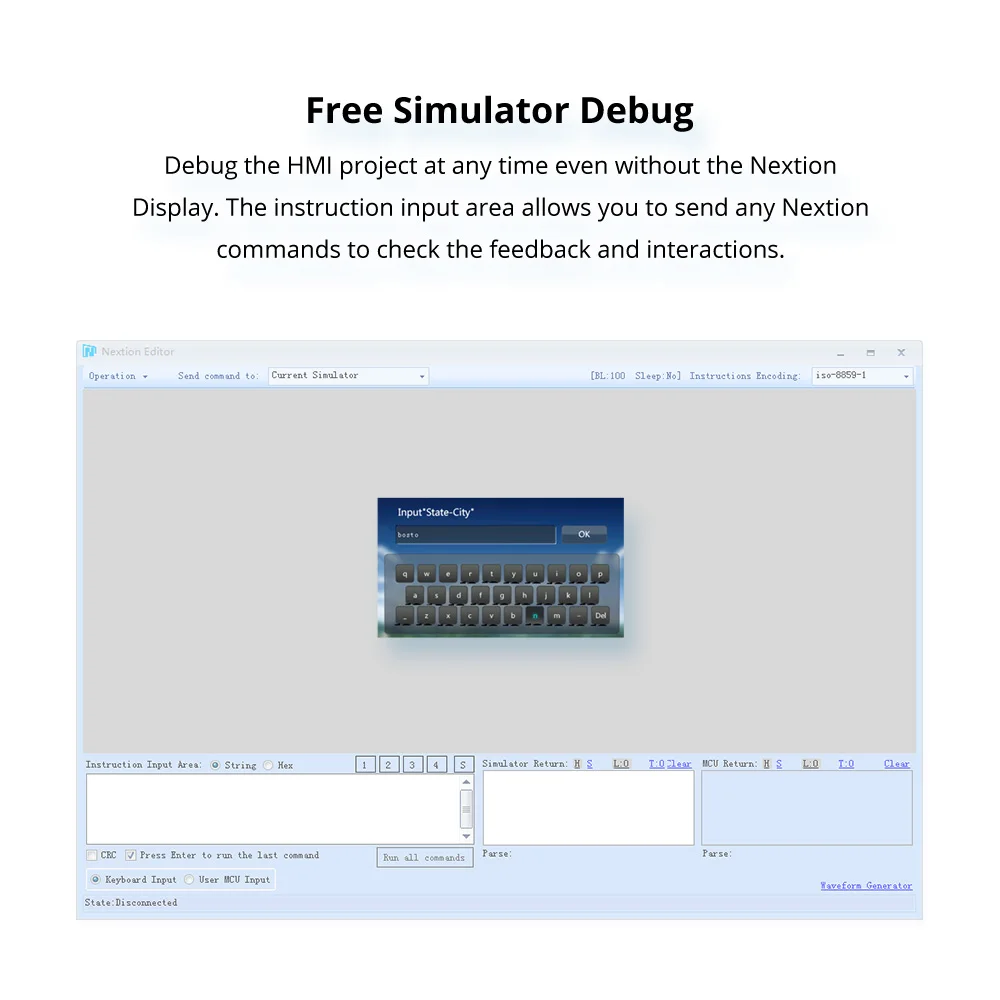

Nextion Editor

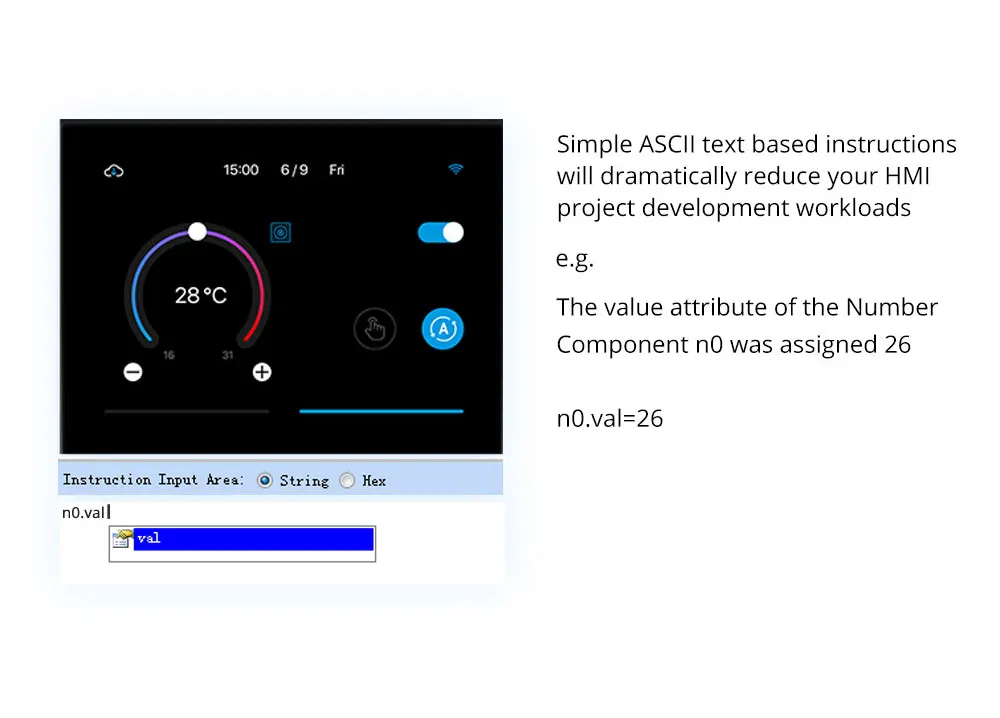

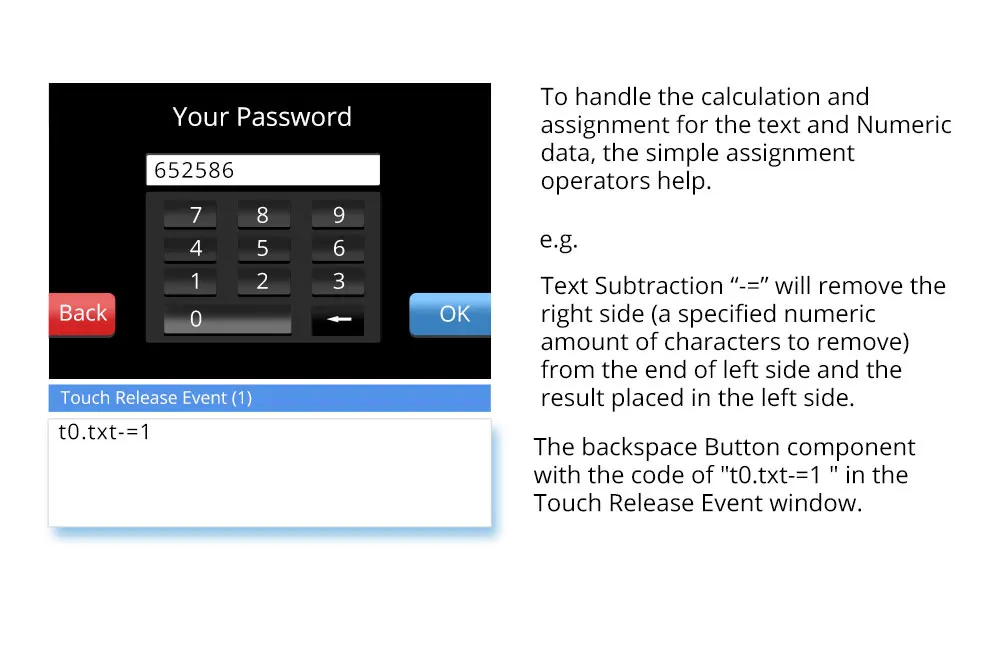

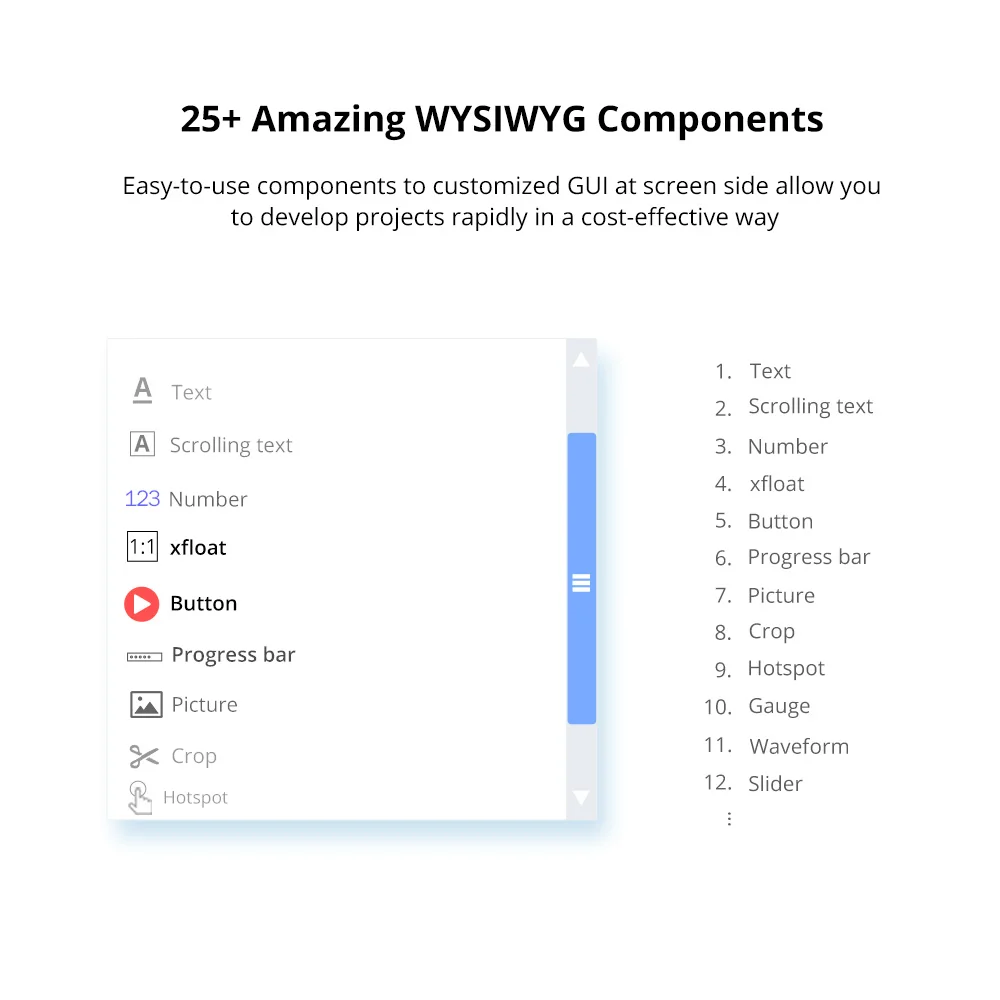

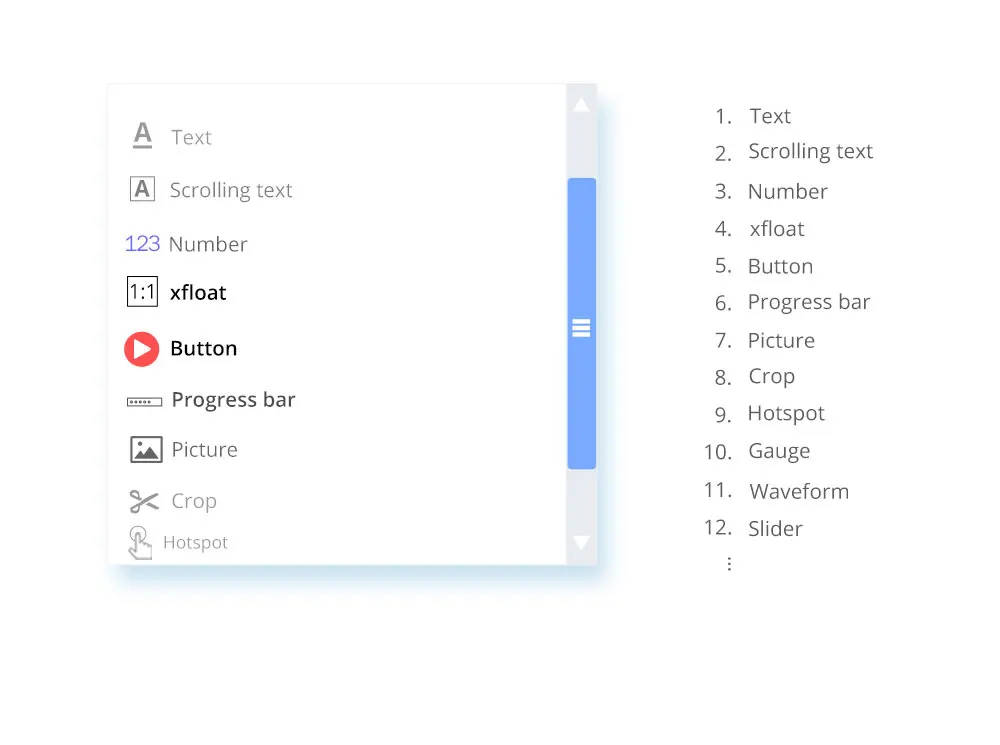

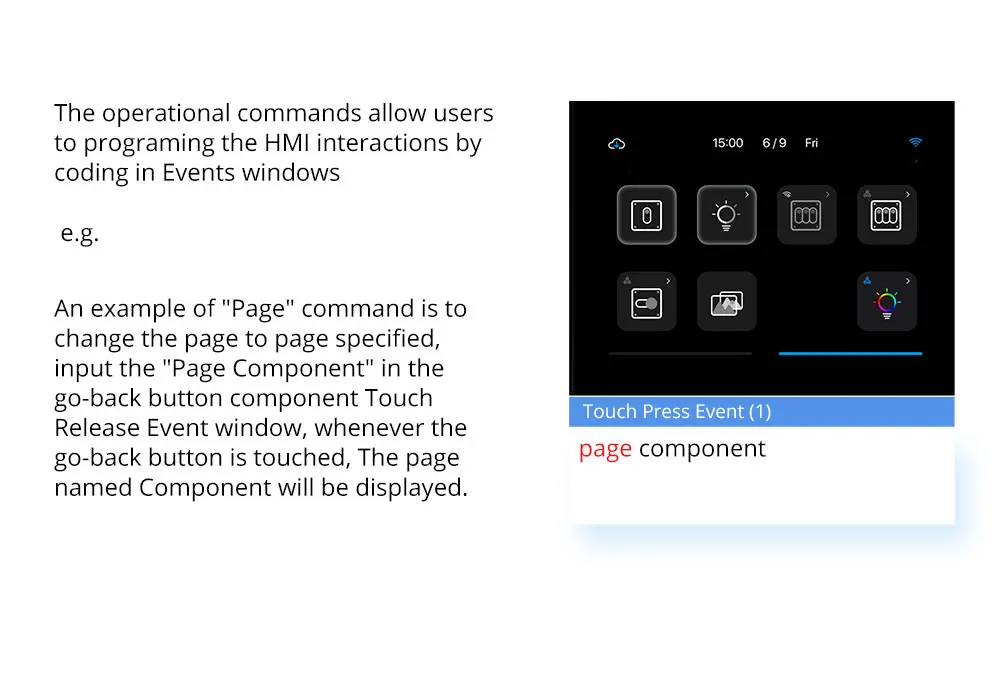

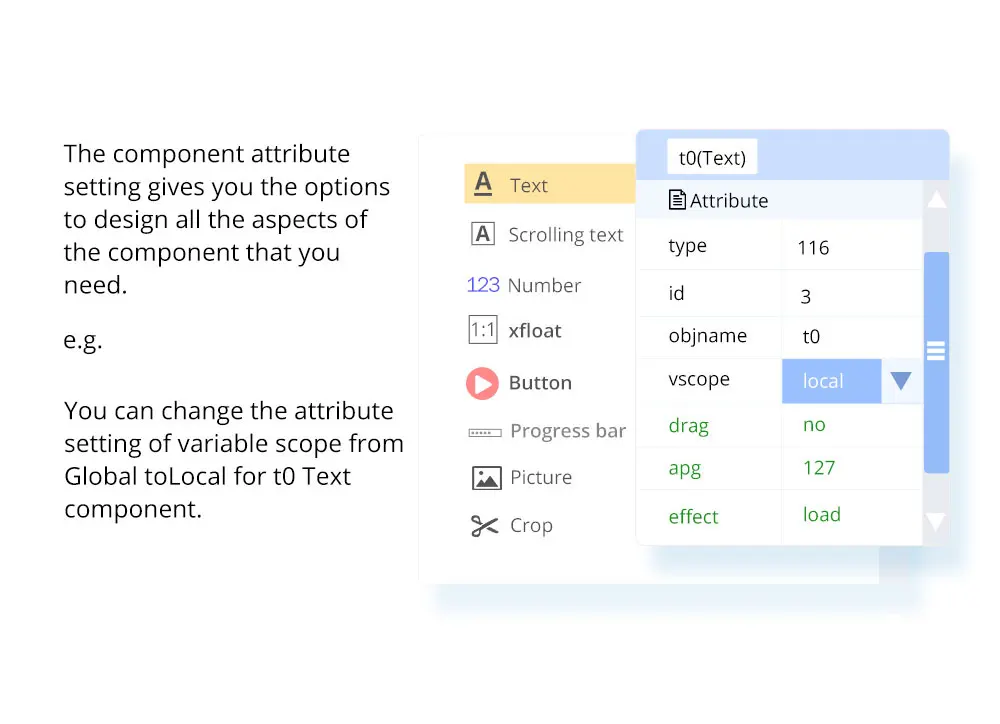

Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.

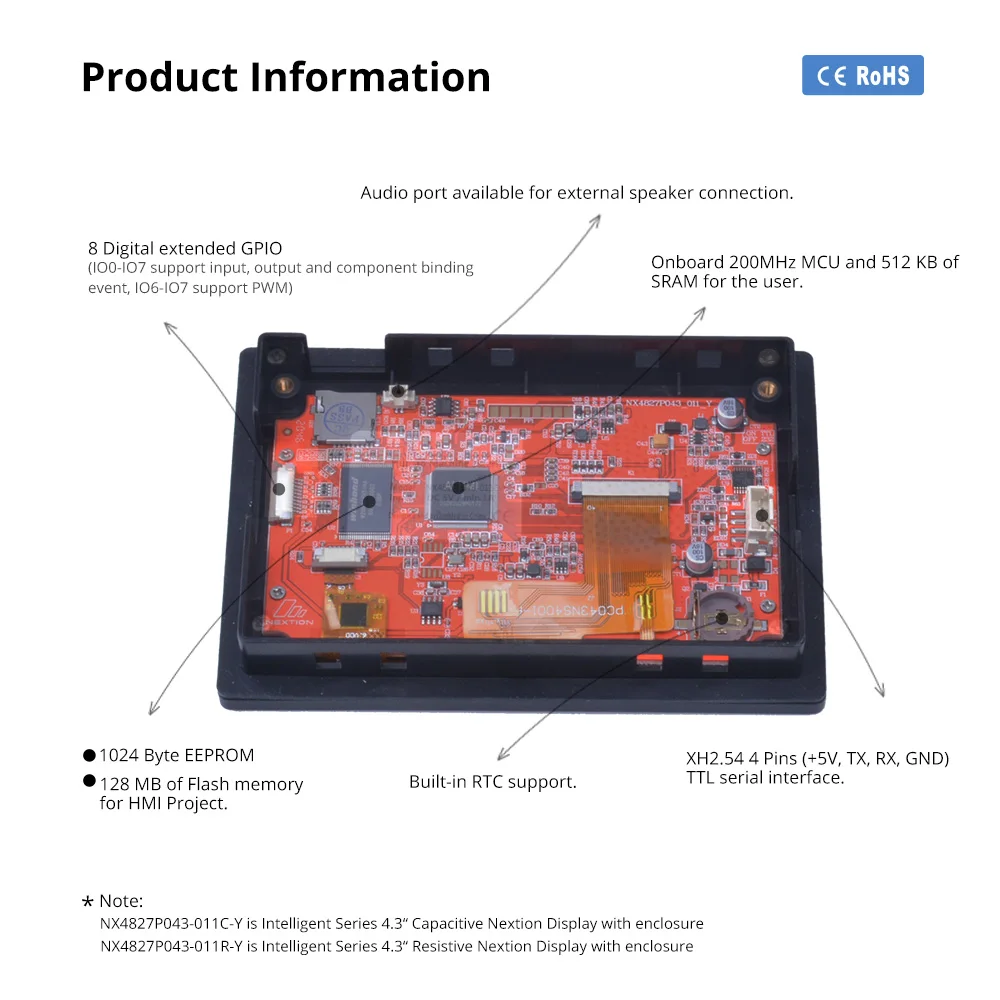

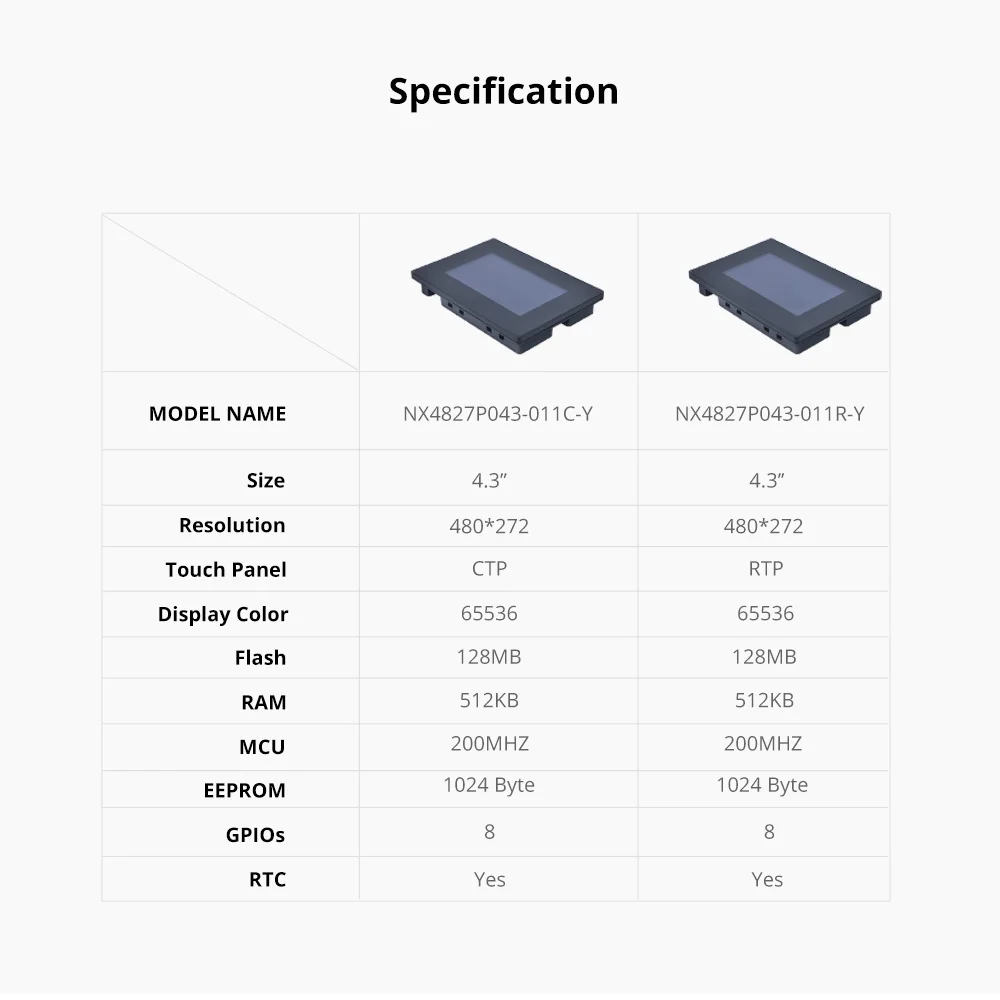

Hardware Features

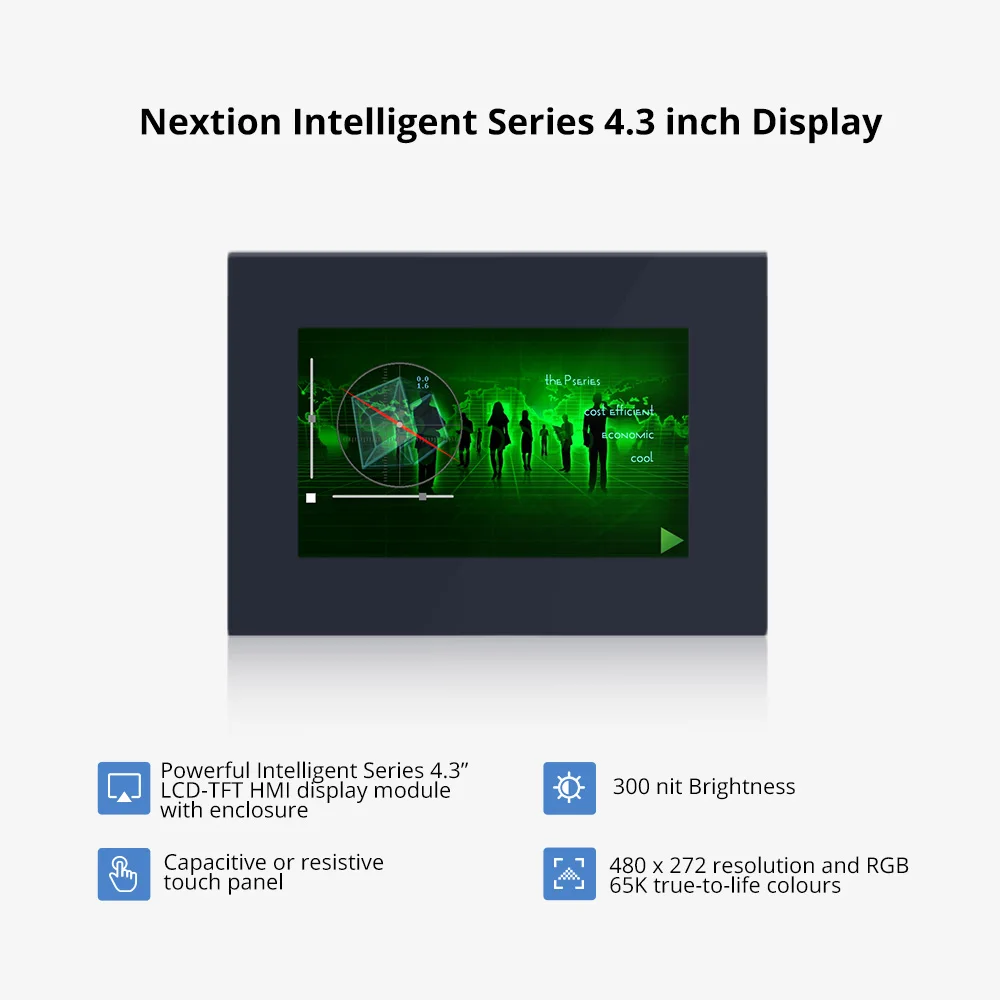

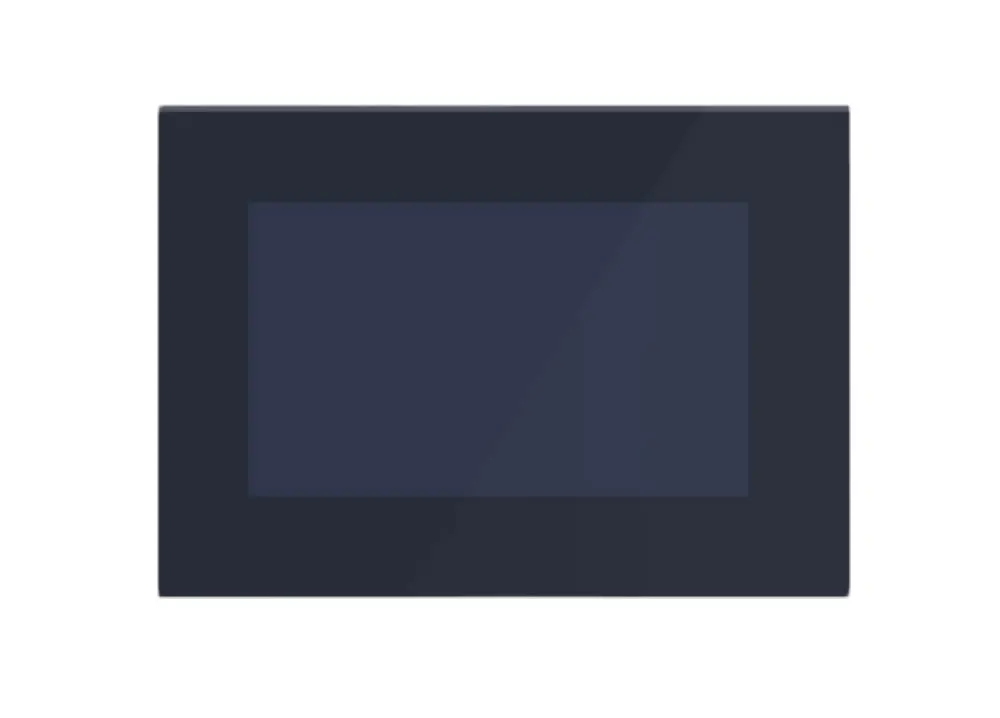

4.3” LCD-TFT HMI display module
480 x 272 screen resolution
RGB 65K true-to-life colours
Capacitive or Resistive touch panel
300 nit Brightness
Onboard 200MHz MCU
512 KB of SRAM
128 MB of Flash memory
1024 Byte EEPROM
XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
1.25T-2-2A Audio port for external speaker connection
8 Digital extended GPIO
(IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)
