20 Stück 2,54 mm SMD stapelbar 1x2/3/4/5P 6P 7P 8P 10P 20P-40P kurzes Low-Profile PH3.5 einreihiger Rohs SMT-Buchsenleiste

Produktbeschreibung

20pcs 2.54mm SMD Stackable 1x2/3/4/5P 6P 7P 8P 10P 20P-40P Short Low Profile PH3.5 Single Row Rohs SMT Female Header Connector
Specifications
Current Rating: 3Amp
Operation Temperture: -40 to 105 celsuis degree
Contact Resistance: 20mOHM Max
Insulation Resistance: 1000M ohm Min
Withstanding Voltage: AC1000V
Insulation Material: Polyester UL94V-0
Standard Nylon-6T
Contact Material: Phosphor Brone
Contact Plating: 0.8U Gold plated
For mating male 1X40P, it is breakable, you can cut into any pin you need
Package Content
This link is for PH3.5, for other PH
If you need PH8.5
Pictures

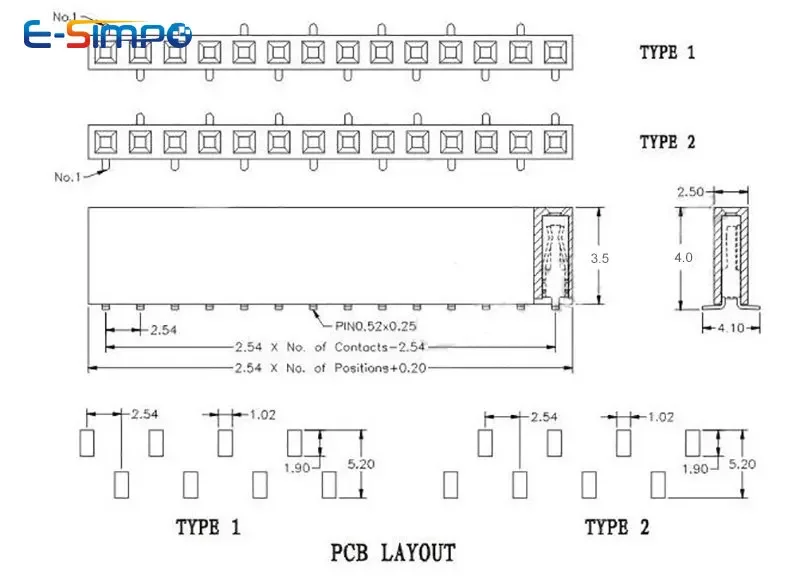

There are 2 different pins optional, TYPE 1, TYPE2, please check below different pin out and choose the type you need.

Produktdetails in Bildern

Produkteigenschaften

Markenname

E-SIMPO

Spannung

5v 12v 20v 30v

Ist drahtlose Funktionalität enthalten?

Nein

Ursprung

CN (Herkunft)

Ist eine Batterie im Lieferumfang enthalten?

Nein

Hochbetriebenes Chemikalienunternehmen

Keine

EU LVD-Spannung

Niederspannung: Unter 50 VAC oder 75 VDC

Modellnummer

SMD PH3.5

Model Number

SMT female header

Pitch

2.54mm

Pins

PH3.5 1x2P 3P 4P 5P 6P 7P 8P 9P 10P 20P~40p

Package

SMD SMT Surface Mount Type

Choice

yes

semi_Choice

yes
