Kondensator

1Pcs BENNIC 250V xpp Nicht-polarisierte Überlegene Kondensator Elektrolytkondensator SpeakerFrequency-Unterteilt Audio Kondensator Audiophile

13,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Variante auswählen

Lieferung nach Deutschland
Lieferzeit: 15–21 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

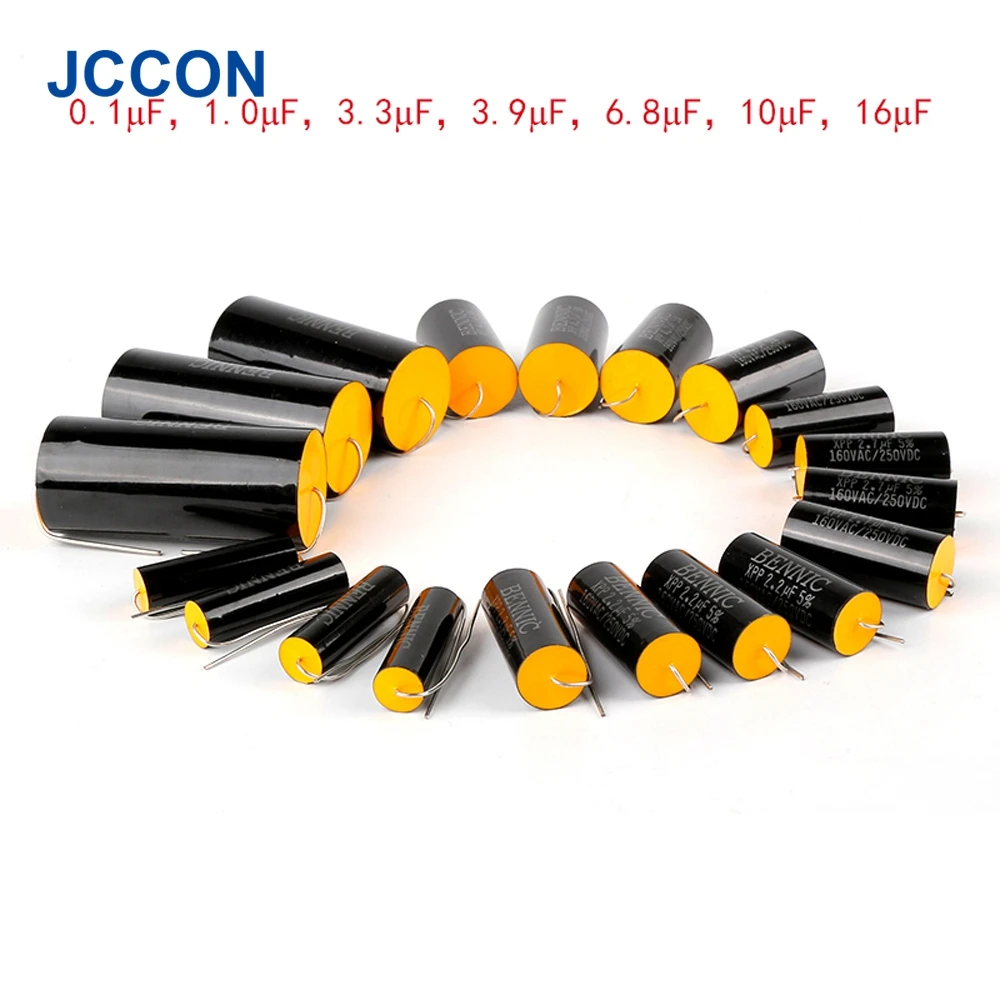

1Pcs BENNIC 250V xpp Non-polarized Superior Capacitor Electrolytic Capacitor Speaker Frequency-Divided Audio Capacitor Audiophile 1.0-12uF
Specification
Metallized polypropylene film capacitor XPP series (professional Ⅹ-OVER network use)
XPP series are BENNIO high-quality metallized polypropylene film capacitor series.
These capacitors have excellent characteristics and are very suitable for high-quality audiophile products
Such as amplifiers and speaker crossovers
Compared with other polypropylene capacitors, the XPP series has excellent value.
Capacity error: ± 10% (Kor ± 5% () or ± 2.5% (H) or ± 1% (F
Maximum loss angle DF: Max0.0007 (0.07%) A1KHz
Operating temperature range: -40°CTO+85°C (-40°CTO+105°C can also be provided)
Capacity drift (DRFT): Within the operating temperature range, the capacity drift does not exceed 2%
Insulation resistance I.R.
C≤0.33μF, I.R.≥9000Mega-ohm (AT20°C, 1min)
C>0.3yuF, I.R.≥7500Mega-ohm (AT20°C, 1min)
Life test: 150% of the rated working voltage AT1059CFOR is added for 1,000 hours
Humidity test: capacity change is less than 5%, loss angle DF is less than 2%
Wire tension load: insulation resistance R. greater than 70% (at a humidity of 95% at a temperature of 409C, 1,000 hours)
Wire bending load: it can bear at least 1.5KGS/30 minutes at room temperature.
Folding back and forth at 90° will not break once
