integrierte Schaltung

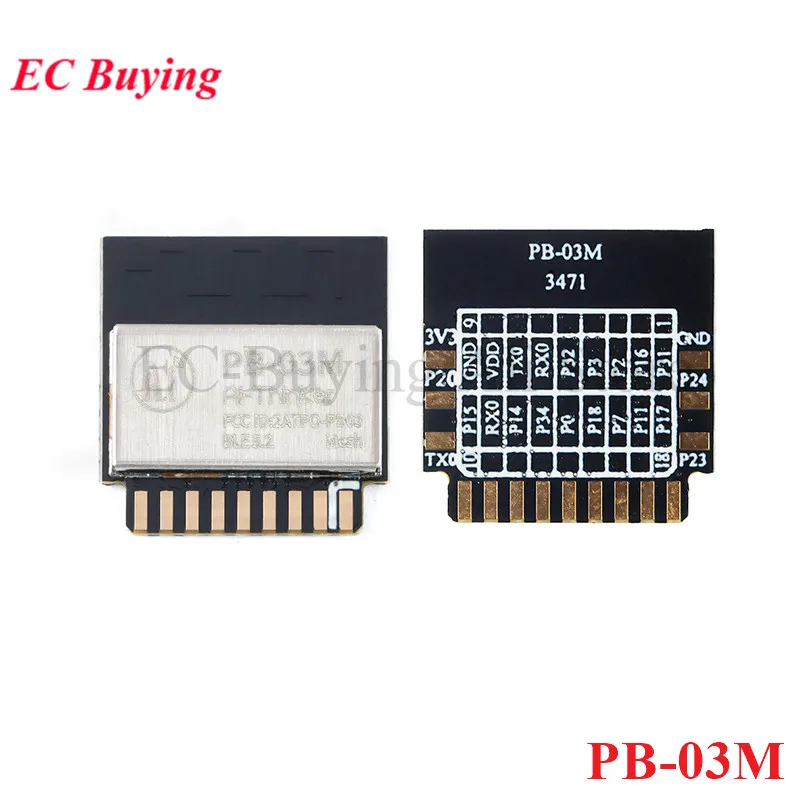

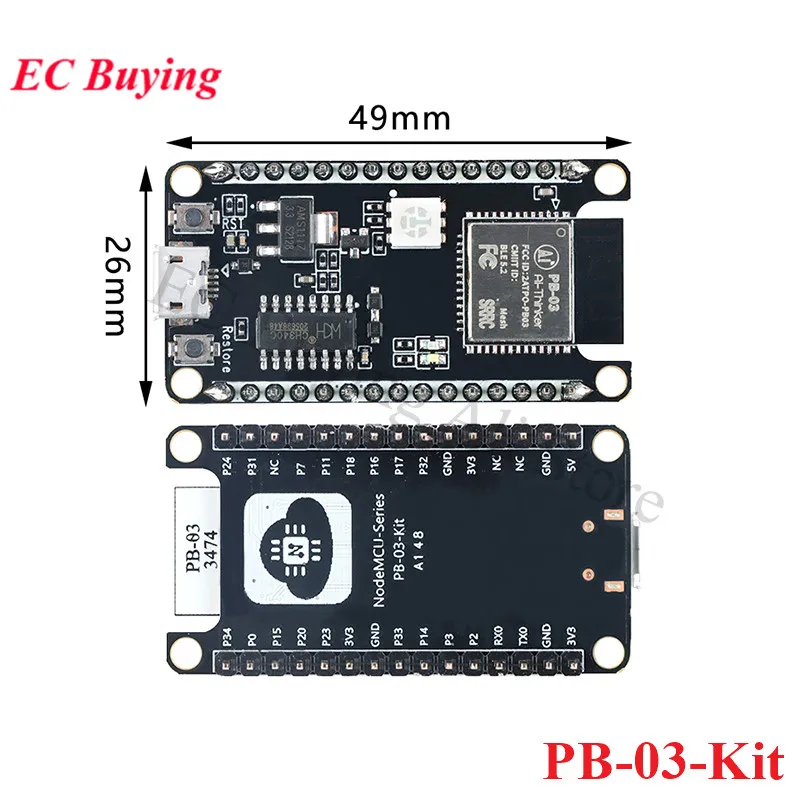

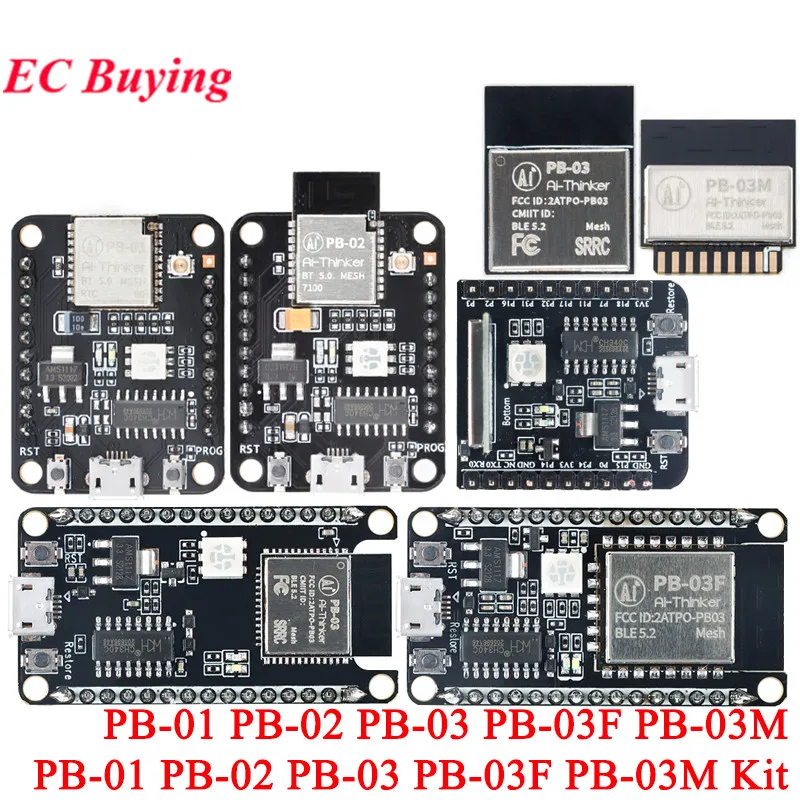

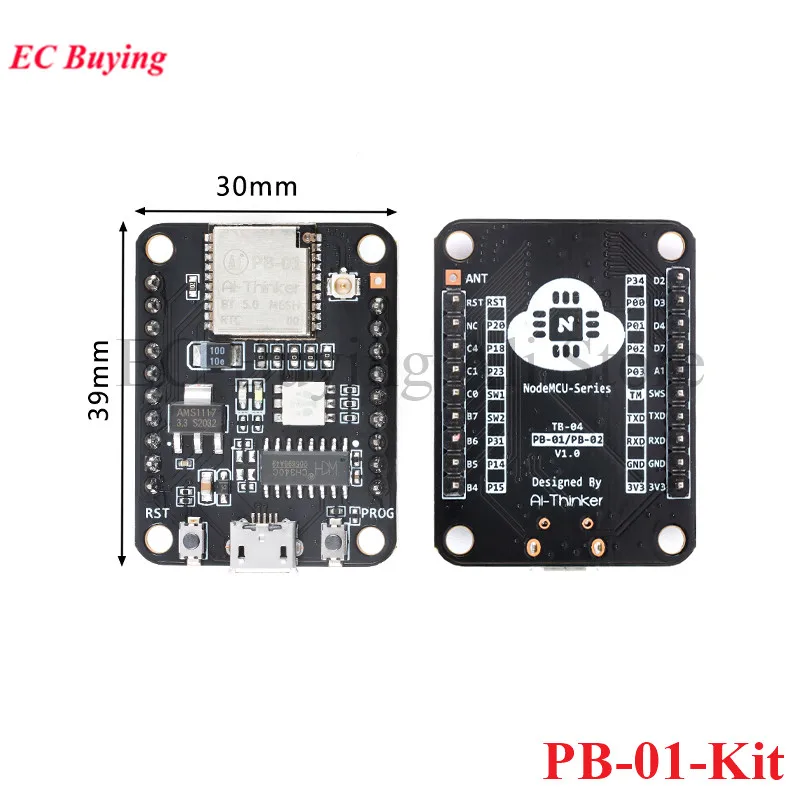

PB-03 PB-03M PB-03F PB-01 PB-02 BLE 5.2 Low Power PB-03M-Kit PB-03F-Kit PB-03 Kit Entwicklungsplatinenmodul PCB Onboard-Antenne

5,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Variante auswählen

Lieferung nach Deutschland
Lieferzeit: 18–21 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Product description
PB-02 is a Bluetooth-compatible module designed based on the PHY6212 chip and conforms to BLE 5.0 low power consumption; it supports SIGMesh. PHY6212 is equipped with ARM® Cortex™-M0 32-bit processor, equipped with 138KB SRAM, with ultra-low power consumption, high performance and wireless multi-mode features, and supports BLE functions for security, applications and wireless updates.
The PB-02 module has a Bluetooth-compatible mesh networking function; the devices communicate through a peer-to-peer star network and use Bluetooth-compatible broadcast for communication, which can ensure a timely response in the case of multiple devices. It is mainly used in the Internet of Things fields such as smart light control, smart wear, retail payment, etc.; it can meet the requirements of low-power, low-latency, and low-cost wireless data communication.
Characteristic
 1.1mm pitch SMD-20 package
 6 PWM outputs
 The antenna adopts PCB on-board antenna; at the same time, half-hole pads and antenna holes are reserved. Half-hole pad can guide the antenna to the motherboard
Above, the antenna hole can be directly welded to the spring antenna on the module
 Brightness (duty cycle) adjustment range 5%-100%
 The factory default cool color and warm color duty cycle are each 50%
 PWM output frequency 1KHz
 With night light function
 With wall switch to switch color temperature function
