Kondensator

2 Stück CBB60 Motorlaufkondensator 450 V Serie AC Wasserpumpe Startkondensatoren Startmotorlauf 450 VAC 3 uF-80 uF

9,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Variante auswählen

Lieferung nach Deutschland
Lieferzeit: 15–21 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

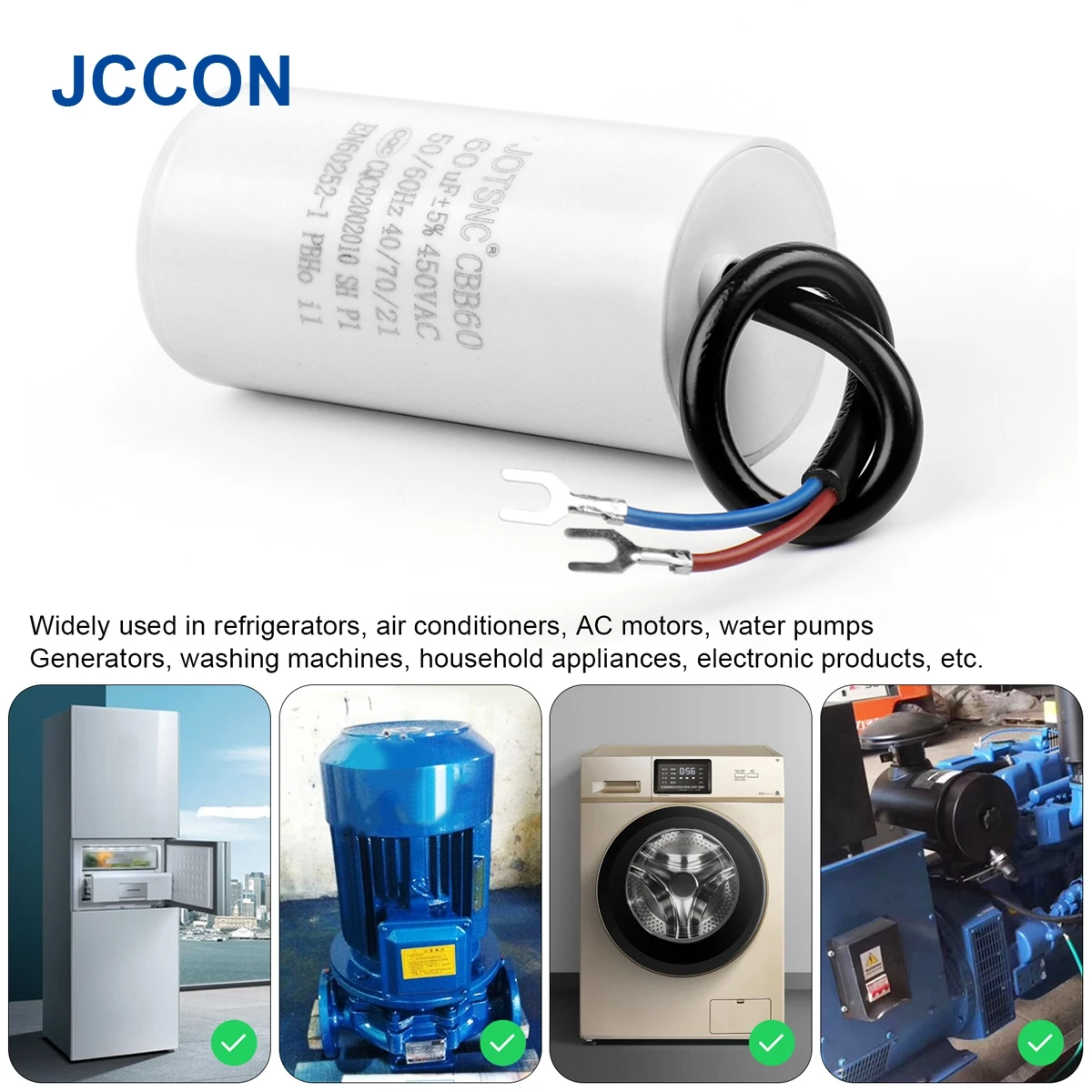

2Pcs CBB60 Motor Running Capacitor 450V Series AC Water Pump Startup Capacitors Start Motor Run 450VAC 3uF-80uF
Tip: Thank you for your support, some models may be out of stock due to hot sales, we will replace the capacitors with other brands, the product is exactly the same, thank you.
Technical characteristics
Climate category: 40/70/21 or 40/85/21
Capacity deviation: ±5%
Insulation resistance: ≥3000S (MOuF)
Loss tangent: tg8≤0.002 (50Hz~100Hz)
Requirements
Altitude: ≤2000m
Residual voltage at the time of input: no more than 10% of the rated voltage
Maximum allowable voltage: no more than 1.1 times the rated voltage
Maximum allowable current: not more than 1.3 times the rated current
Features
1. Epoxy resin fully sealed structure
2. Low loss and high insulation resistance
3. Good self-healing performance and stable performance
4. Strong resistance to impact current and overload
5. There is an explosion-proof device inside, which is reliable in use
