Koaxialer optischer Fasersensor, hohe Empfindlichkeit, M3, M4, M6, diffus, reflektierend, für Verstärker, Lichtschranke, mehrere Kerne

21,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Lieferung nach Deutschland
Lieferzeit: 13–23 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

1. Product Parameters
Product Name: Optical Fiber Sensor with Coaxial Multiple Cores
Type: Diffuse Reflective
Material of optical fiber: Plastic
Material of optical fiber head: Stainless Steel
Length of Cable: 1 meter
Minumum Bending Raidus: R15
Ambient Temperature: -35℃ - 50℃

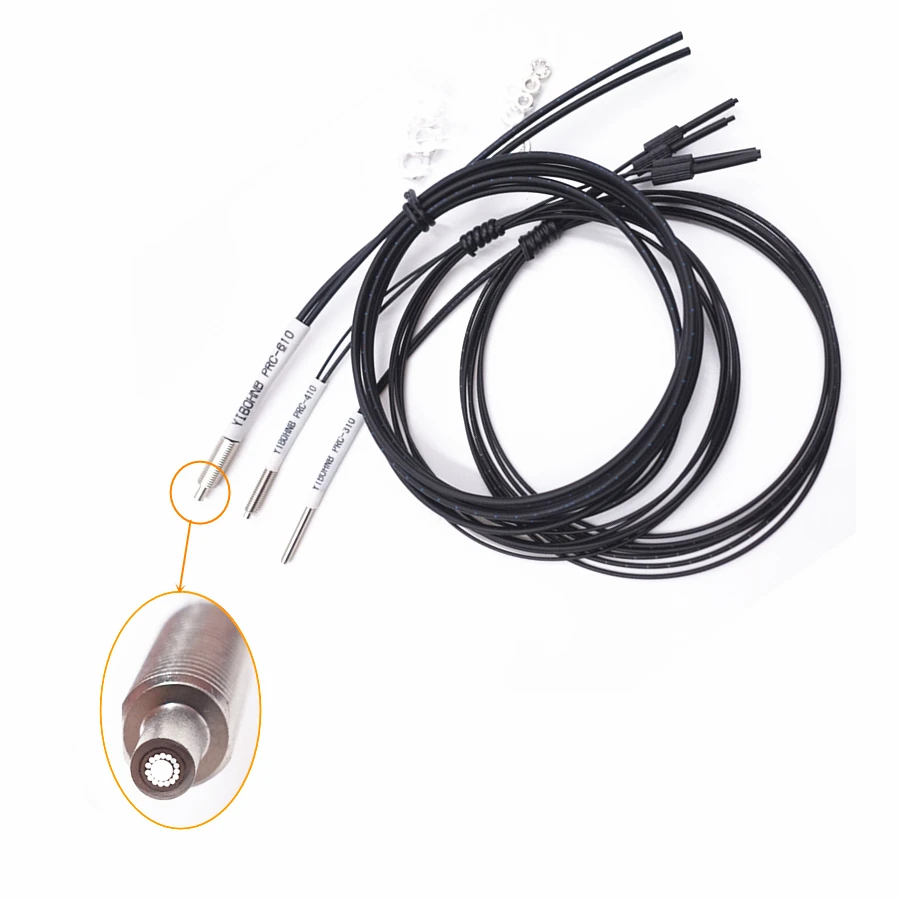

Models

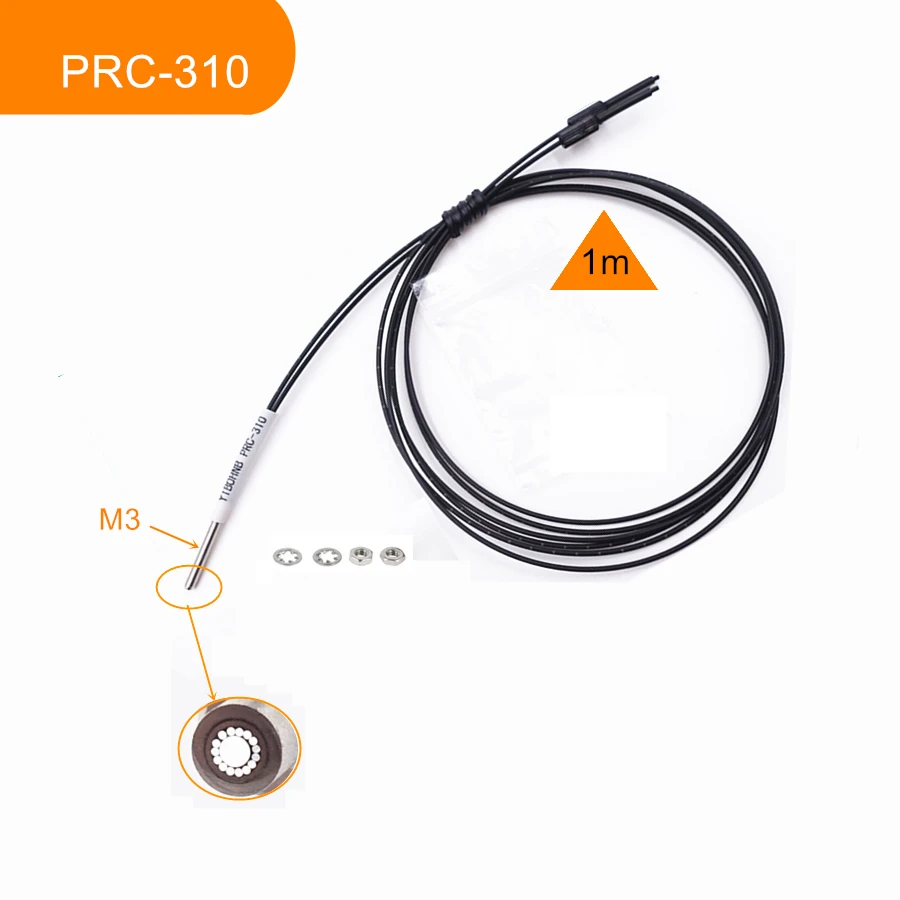

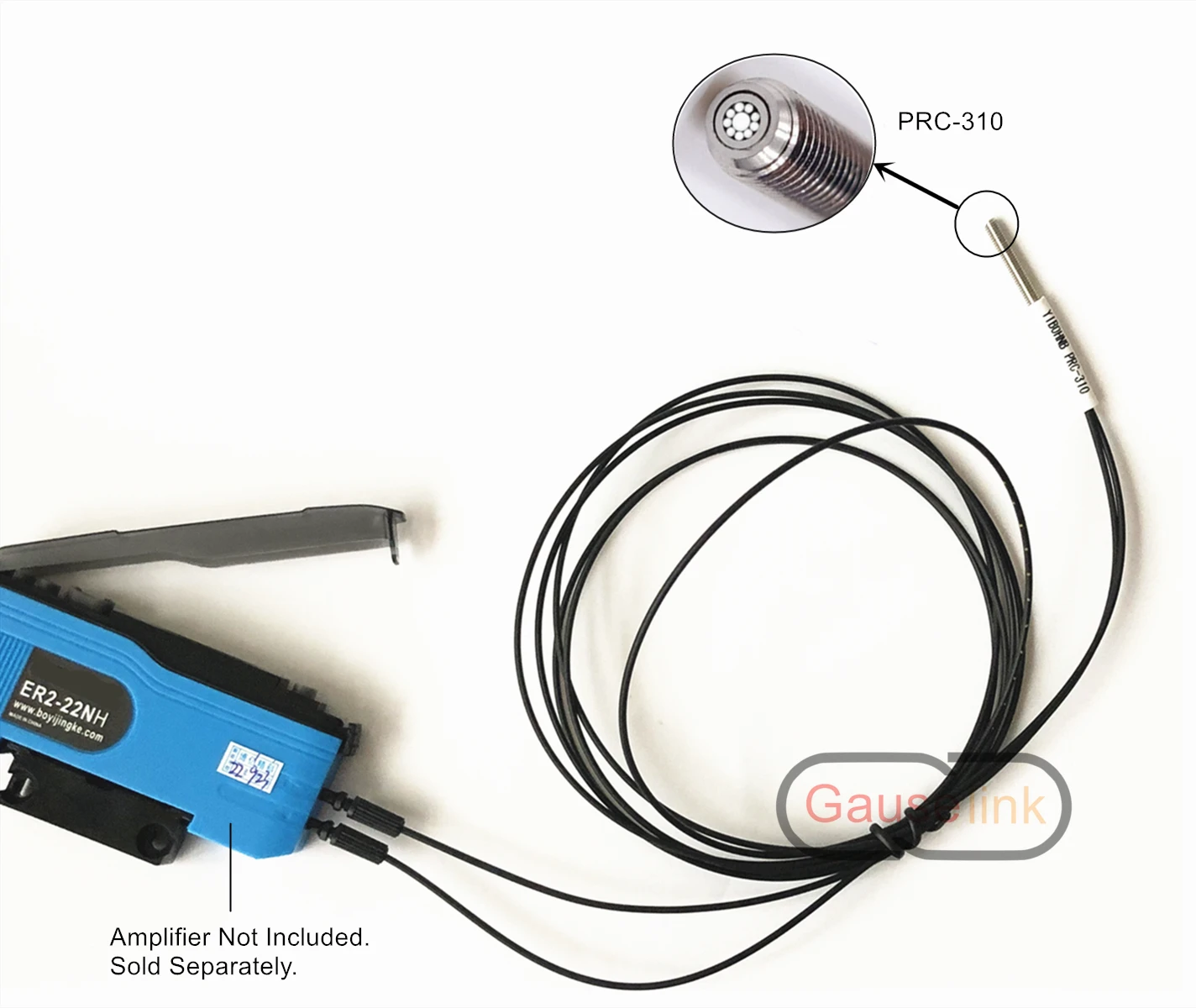

PRC-310

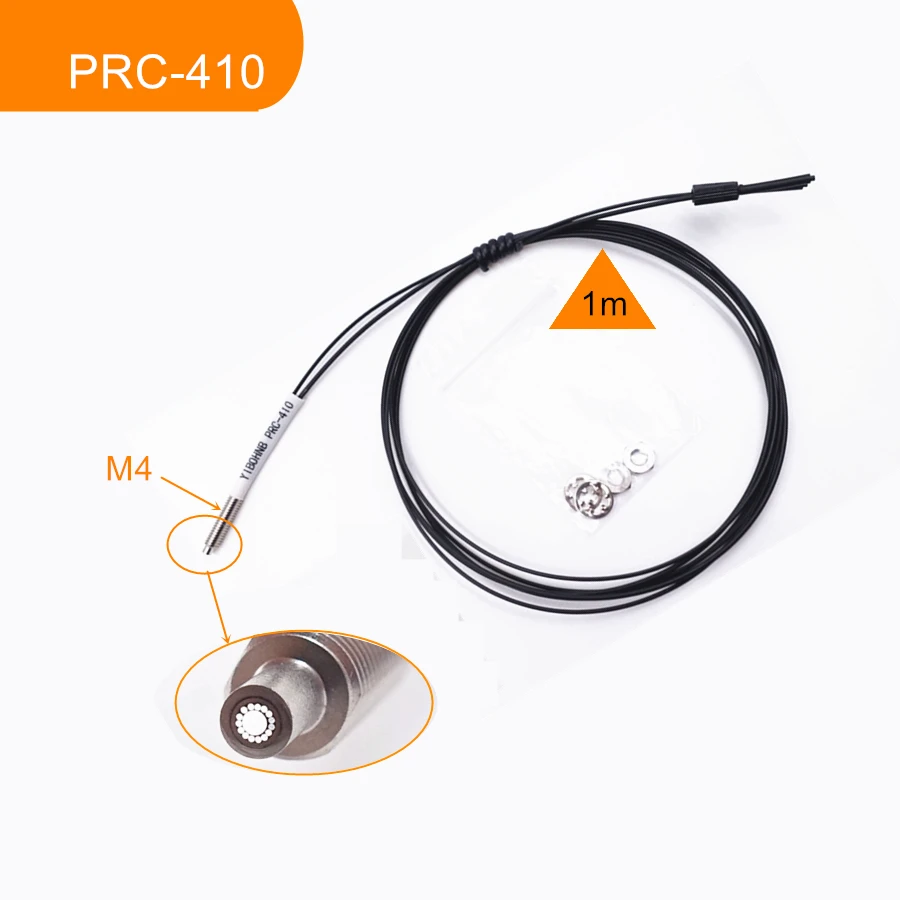

PRC-410

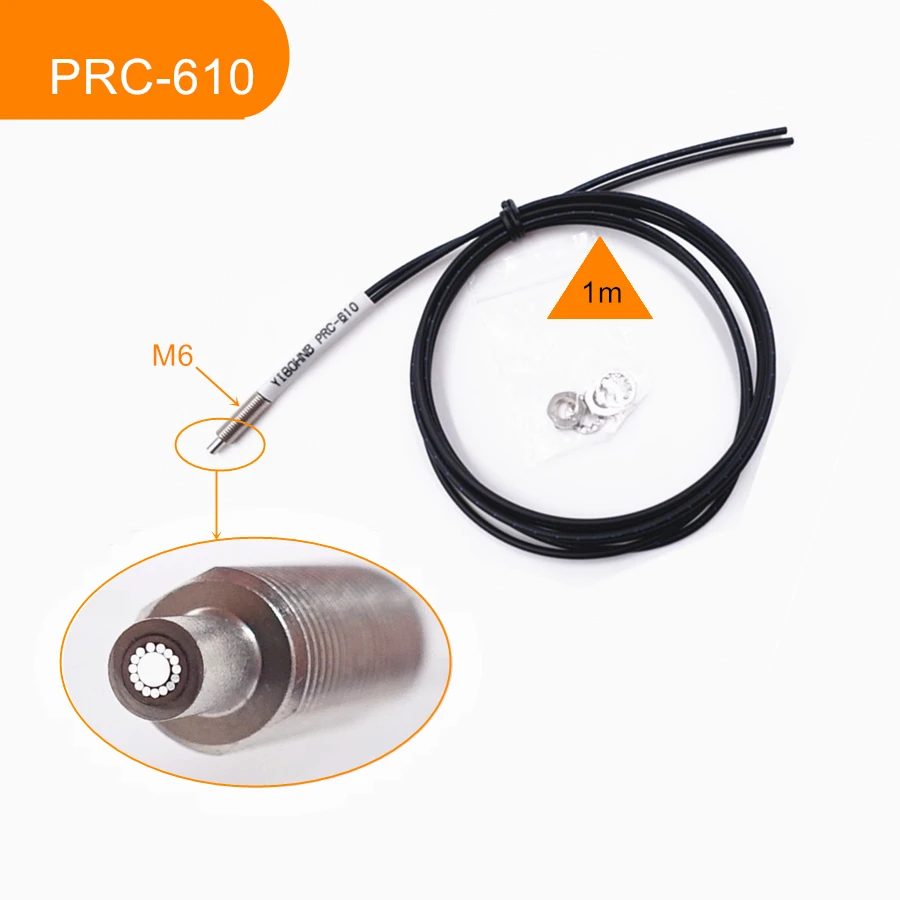

PRC-610
2. Attractive Features

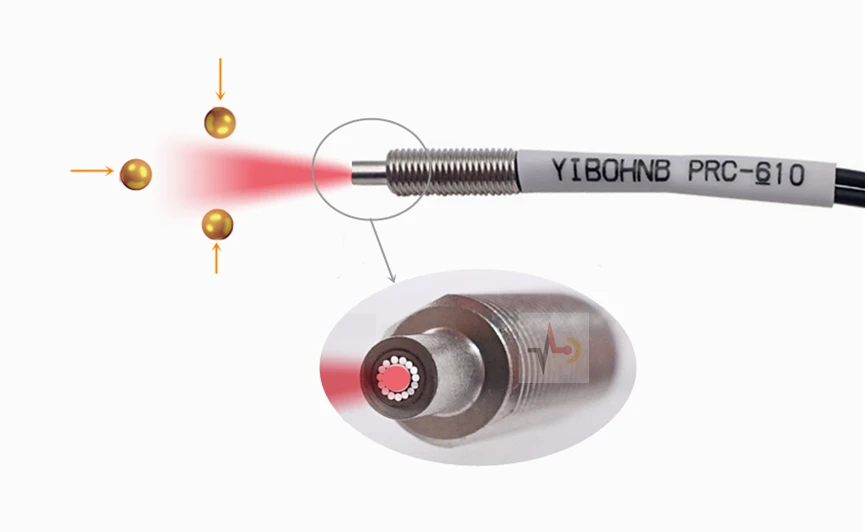

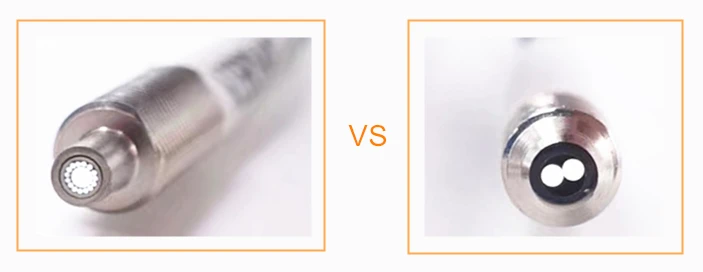

2.1 Coaxial multiple cores which highly increase the precision and swiftness of detection on approaching objects from different direction (left right up down).

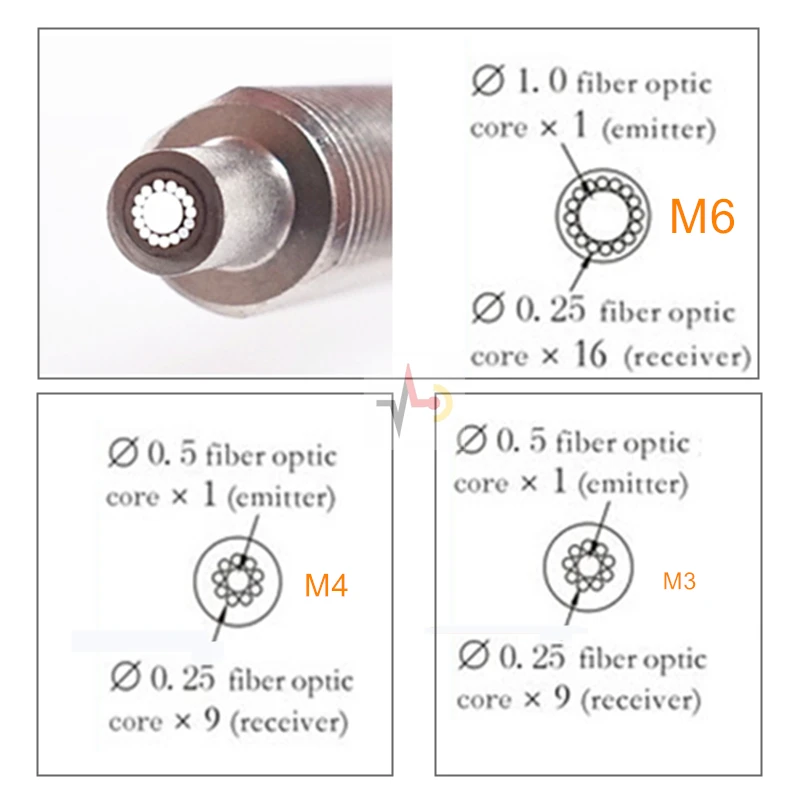

PRC-310 (M3) and PRC-410 (M4) have 9 cores separately and PRC-610 (M6) has 16 cores which receive the reflective light from different directions, compared with single core receiver.
2.2 Strong anti-interference ability
2.3 High transmittance inner core contributes to low transmission loss.

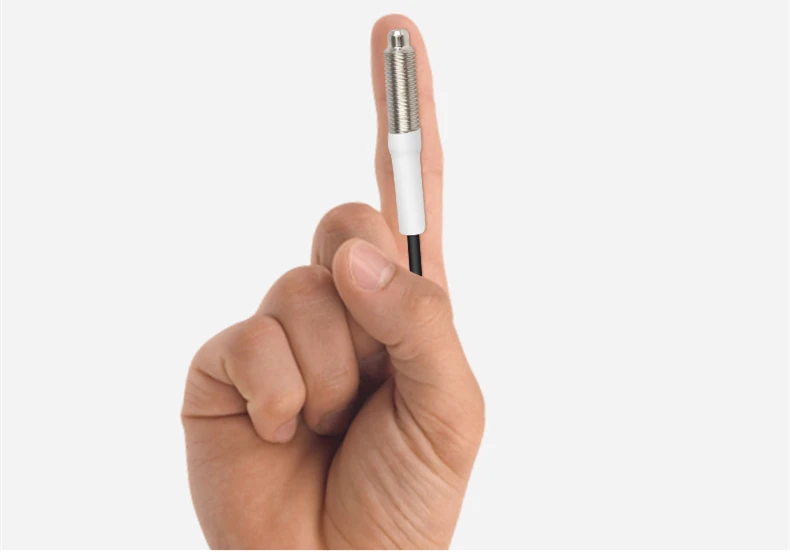

2.4 Easy installation. Tiny size.

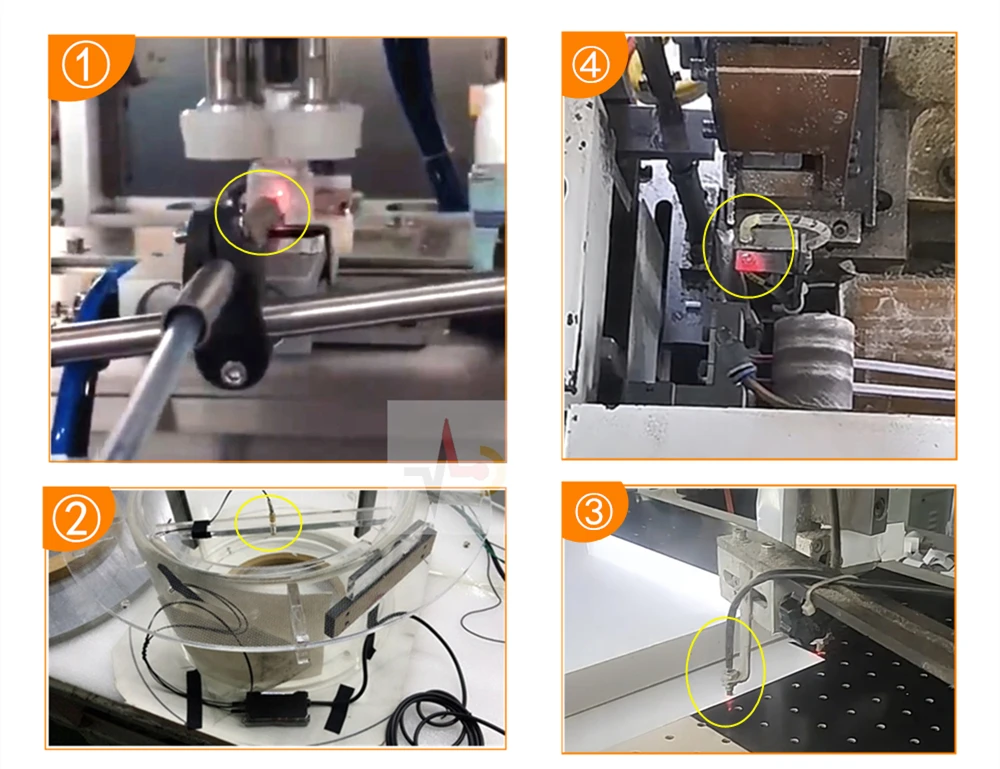

It can go through very narrow space and small tube to detect small object.

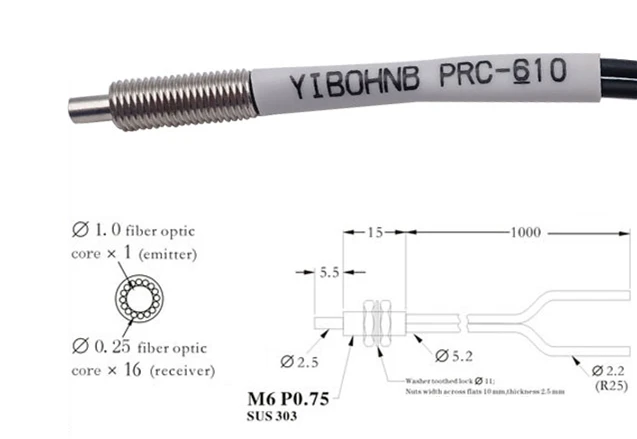

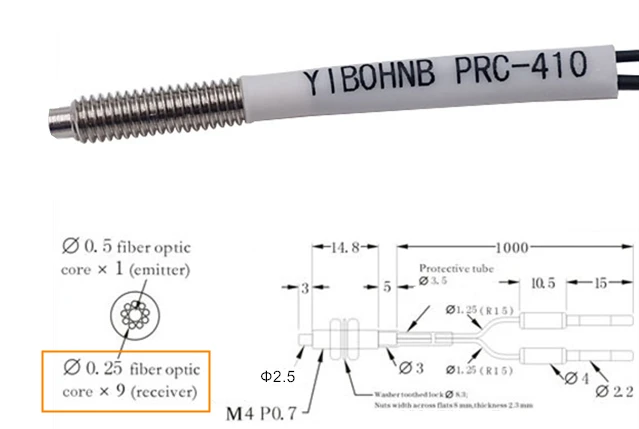

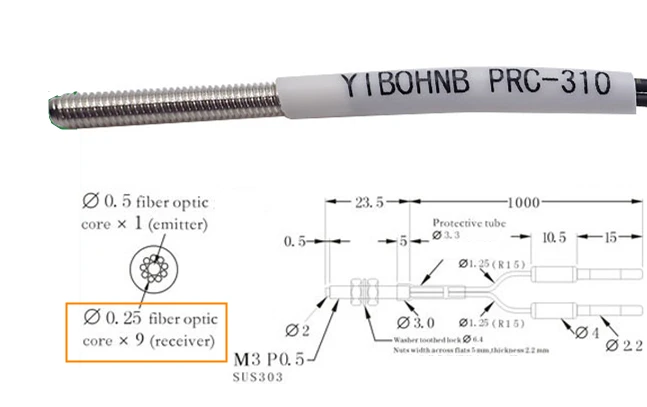

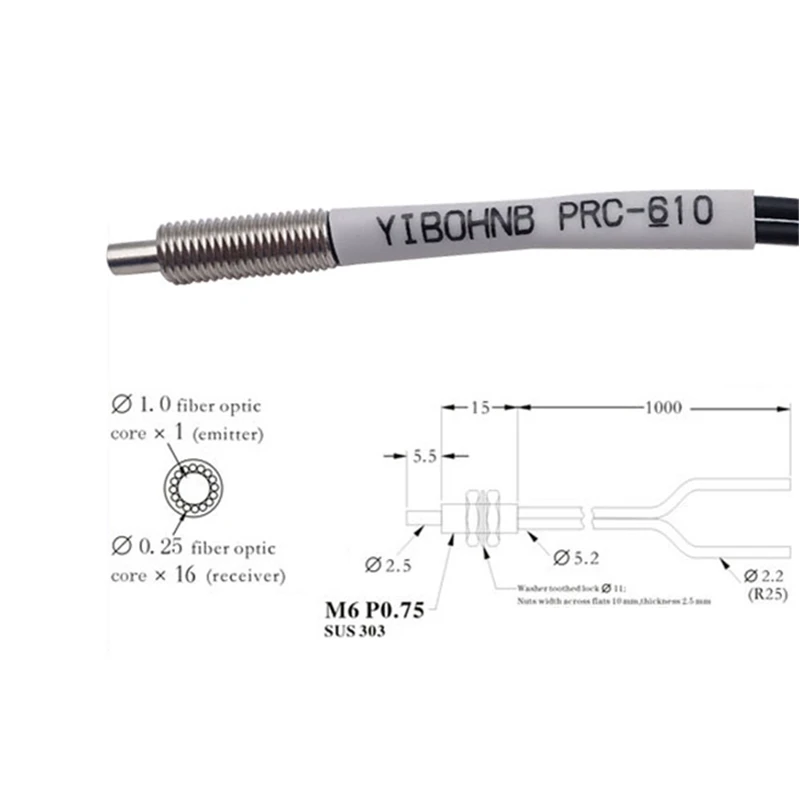

3. Drawings and dimensions
