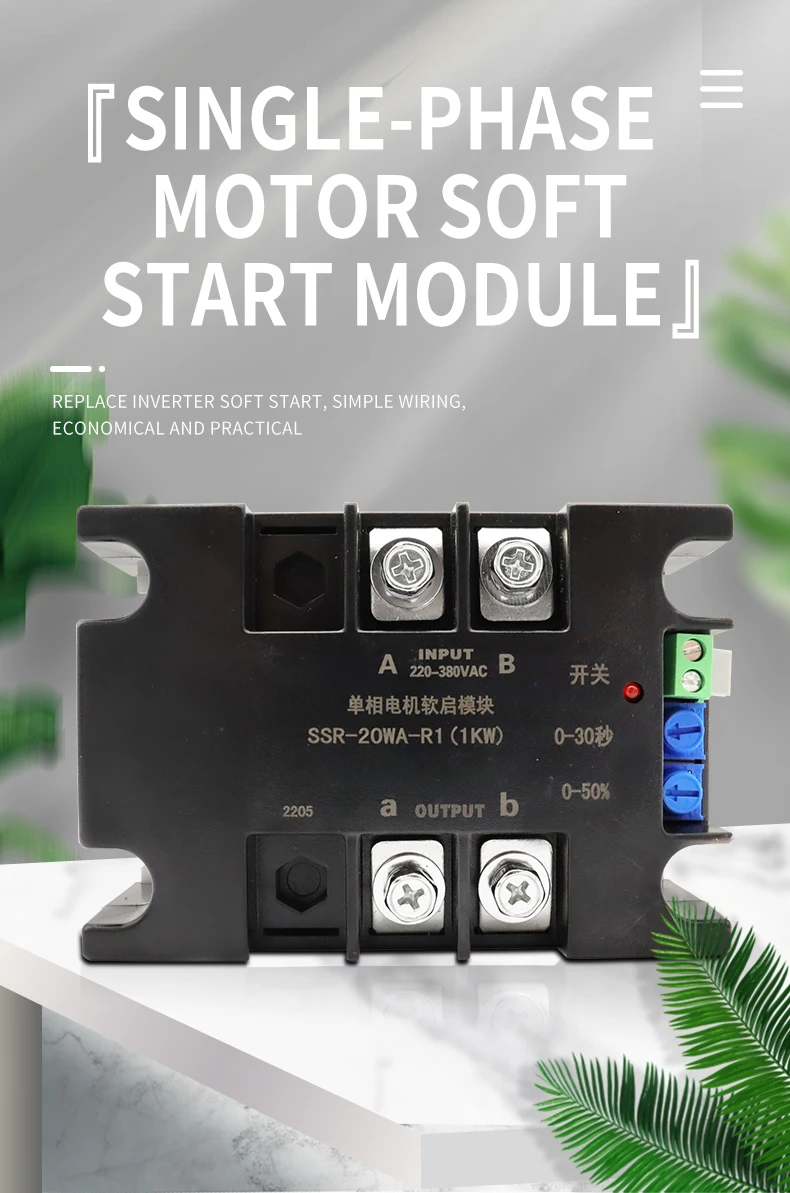

Einphasiger Intelligenter Motoranlaufregler Softstart-Modul für Wasserpumpenmotor 2KW 4KW 6KW 8KW Lüfter

Produktbeschreibung

If you need a fan and radiator, please purchase them at this link
Description
Purpose: Water pump, fan, navigation vehicle, ordinary single-phase motor soft, replace adjustable autotransformer start, soft start of frequency converter, etc. Simple wiring, no need to connect bypass contactor
Single motor start module, soft starter, simple wiring, manual or automatic, compatible with 220-380V, 50-60Hz
Voltage compatibility: single-phase 220VAC, two-phase 380VAC, frequency: 50-60Hz

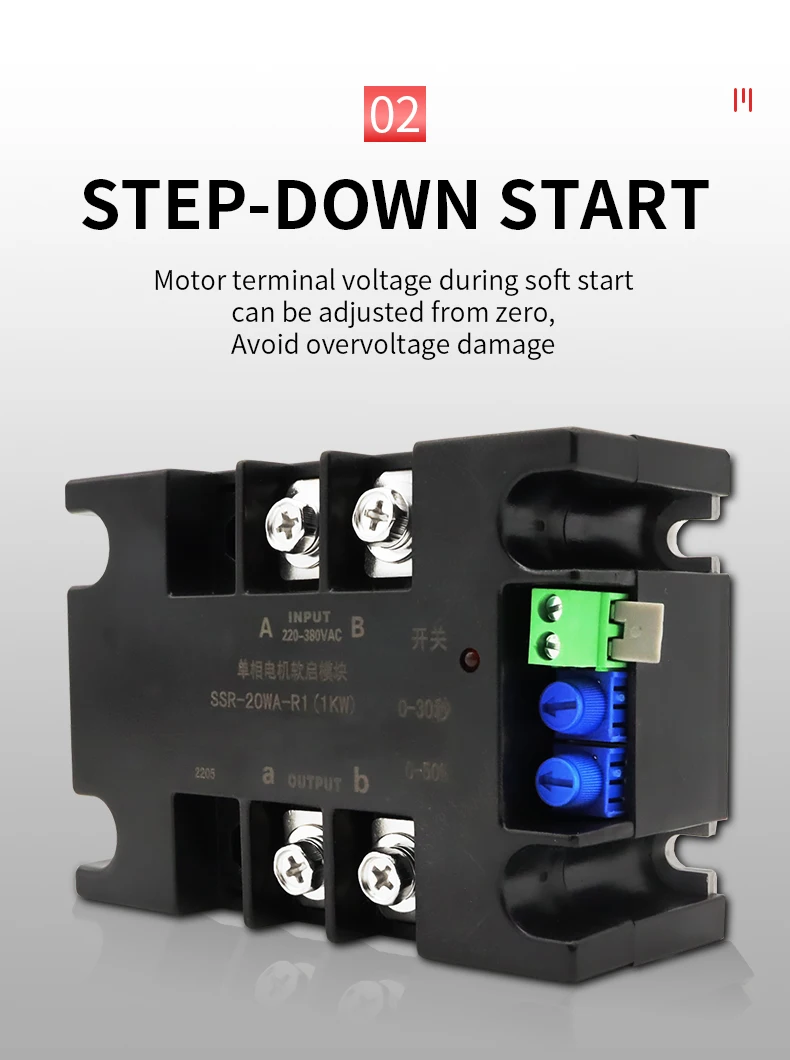

The soft start time is adjustable from 0-30s (soft start time refers to the whole process 0-220V, 0-380V)
The initial voltage is adjustable from 0-50% to the rated voltage (220V-380V)

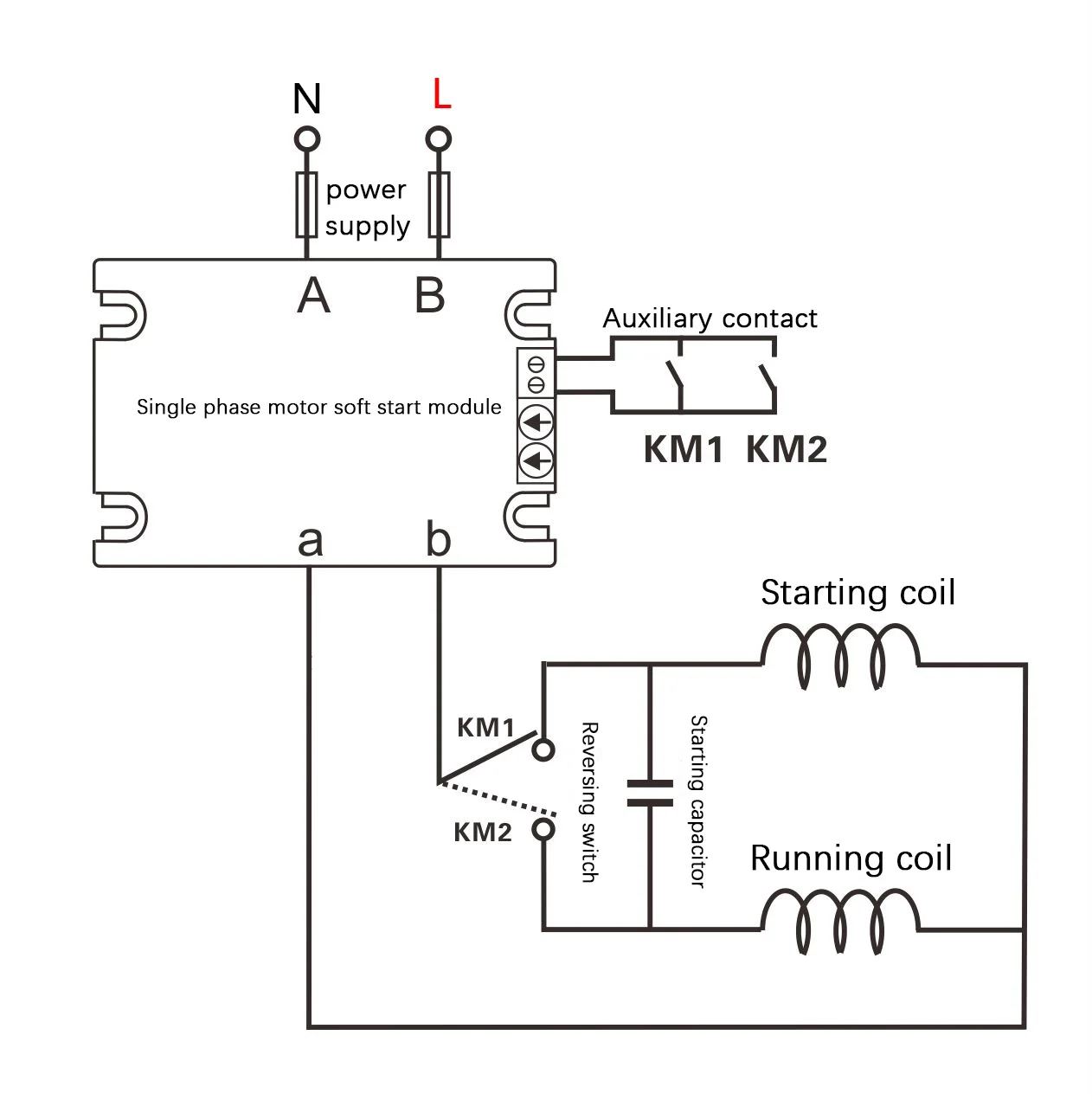

There are two ways to use

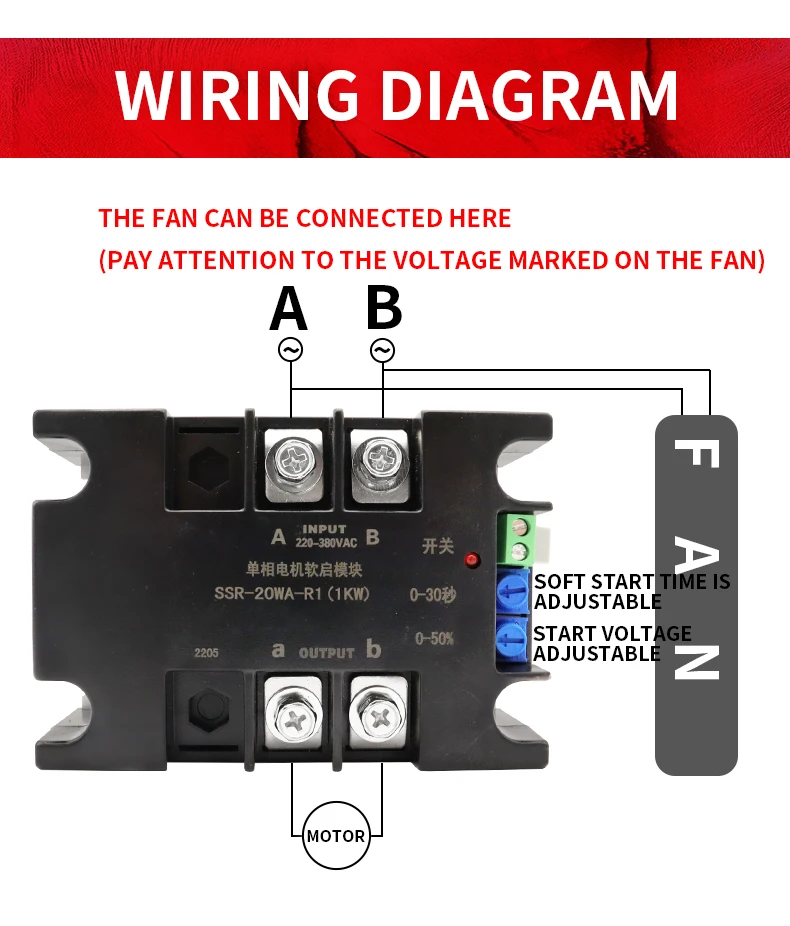

1. When the switch is closed, the main power supply is energized and the soft start starts
2. Use the switch to control, close the soft start and start to open the stop
Note: No voltage can be applied to the switch. The default is R1. Please use this module with a heat sink.
R1 has soft start without soft stop！！！
R2 has soft start and soft stop (start from as much as V stop)！！！
It is recommended that the fan and radiator also be equipped with
1KW-2KW choose Radiator S1 and fan
2KW-4KW choose Radiator DS1 and fan

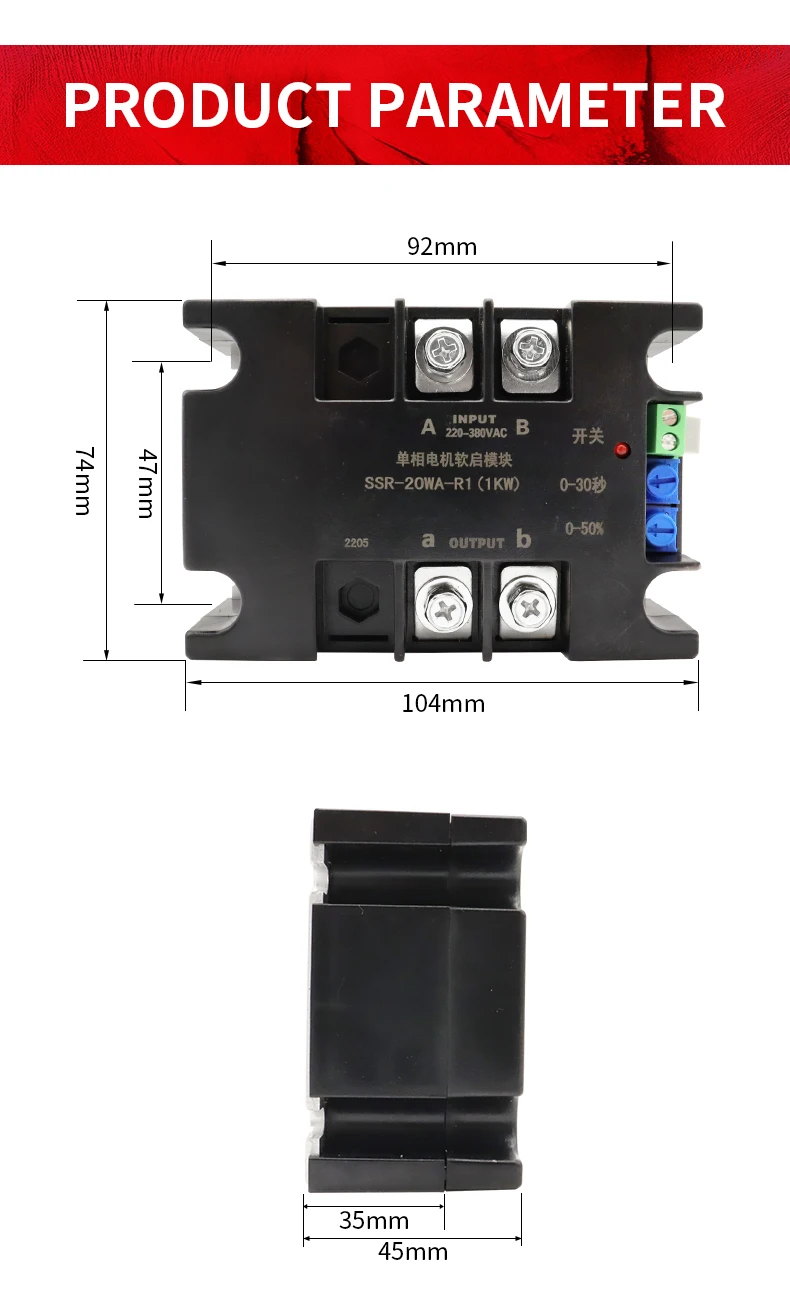

Specification
Rated current: 10A
Setting current: 10-200A
Rated voltage: 220-380

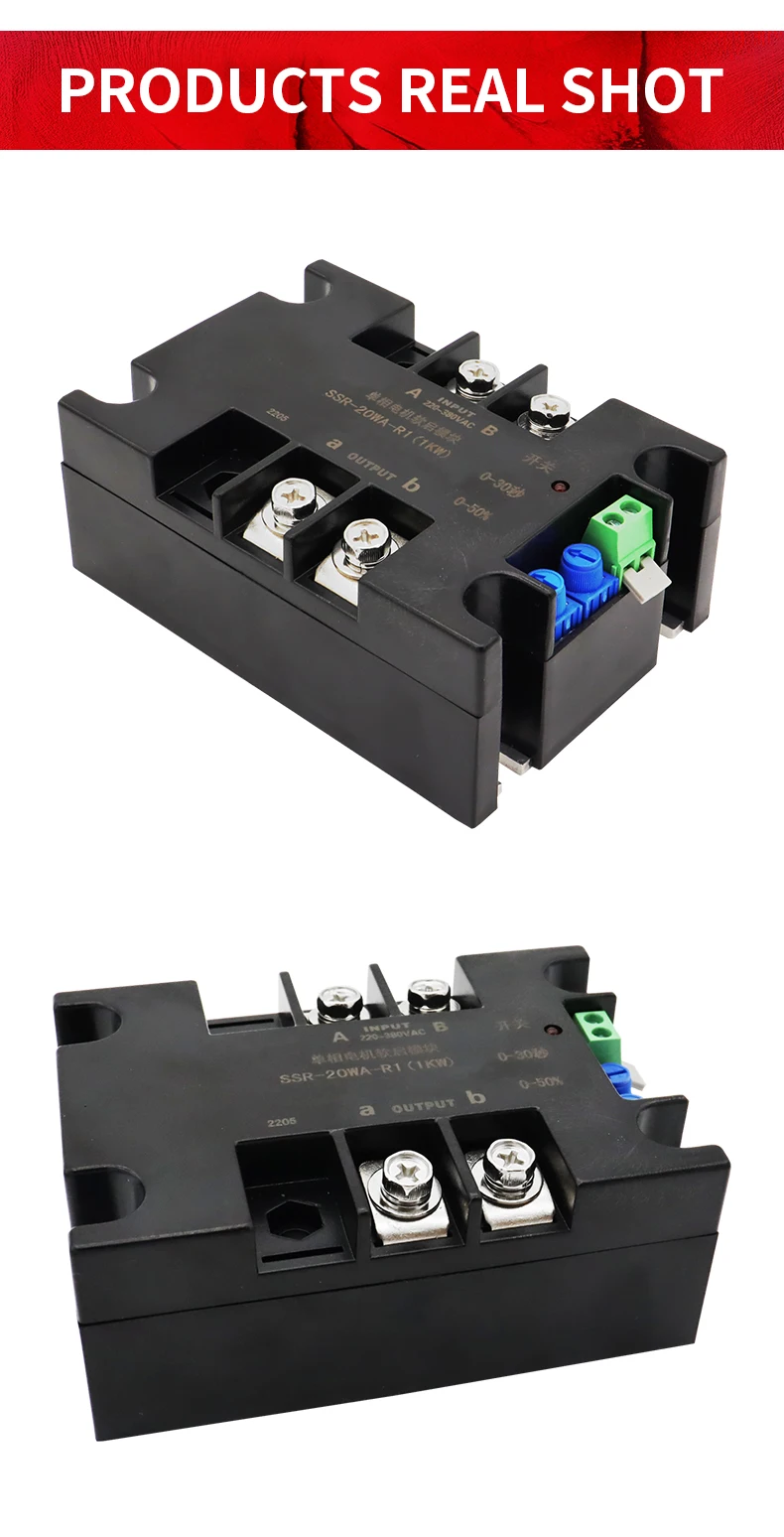

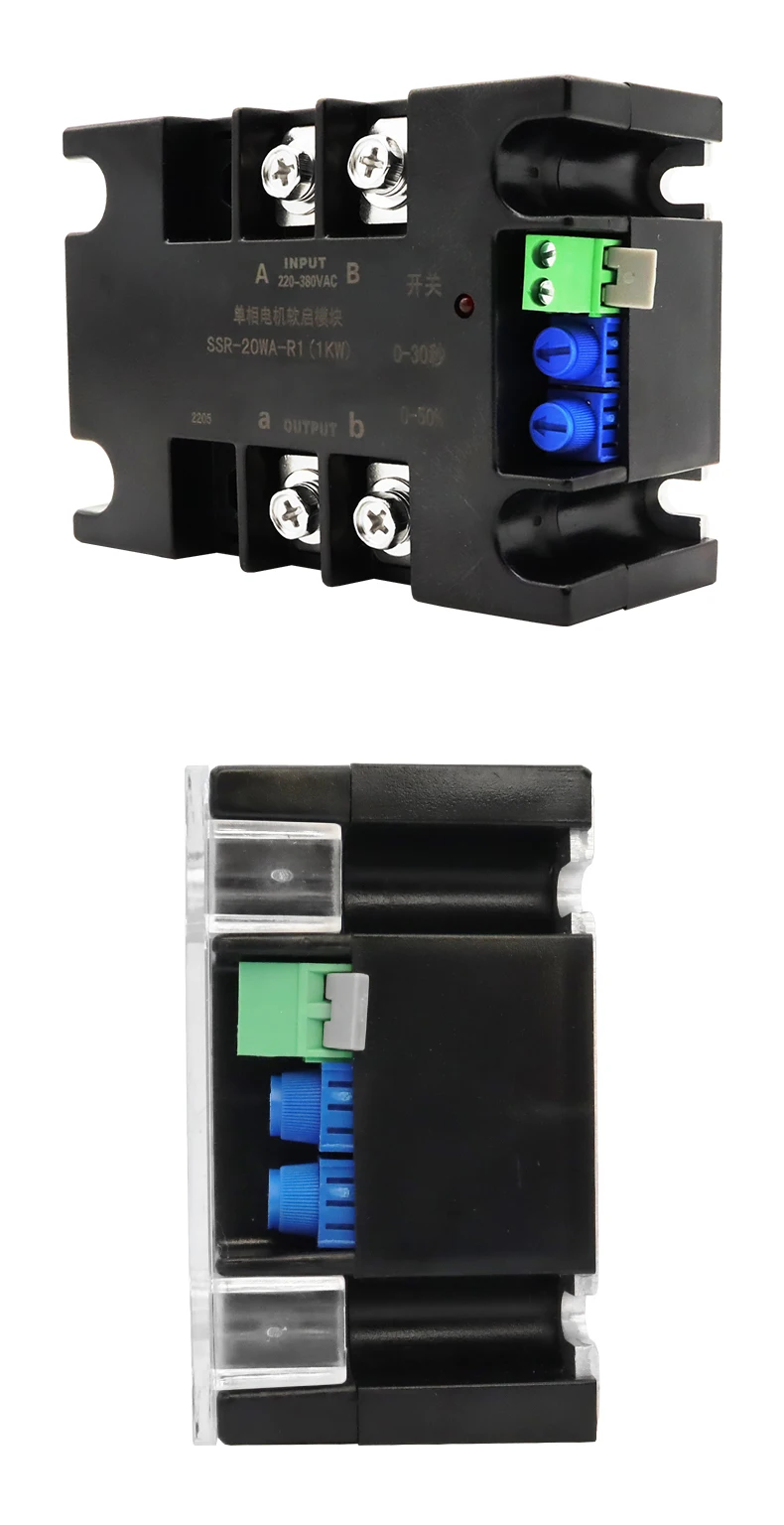

Produktdetails in Bildern

Produkteigenschaften

Markenname

NONE

Ist eine Batterie im Lieferumfang enthalten?

Nein

Hochbetriebenes Chemikalienunternehmen

Keine

EU LVD-Spannung

Niederspannung: Unter 50 VAC oder 75 VDC

Ursprung

CN (Herkunft)

Ist drahtlose Funktionalität enthalten?

Nein

Strom einstellen

10-200A

ist kundenspezifisch

Ja

Modellnummer

SSR-10WA-R1

Zertifizierung

NONE

Spannung

220 V
