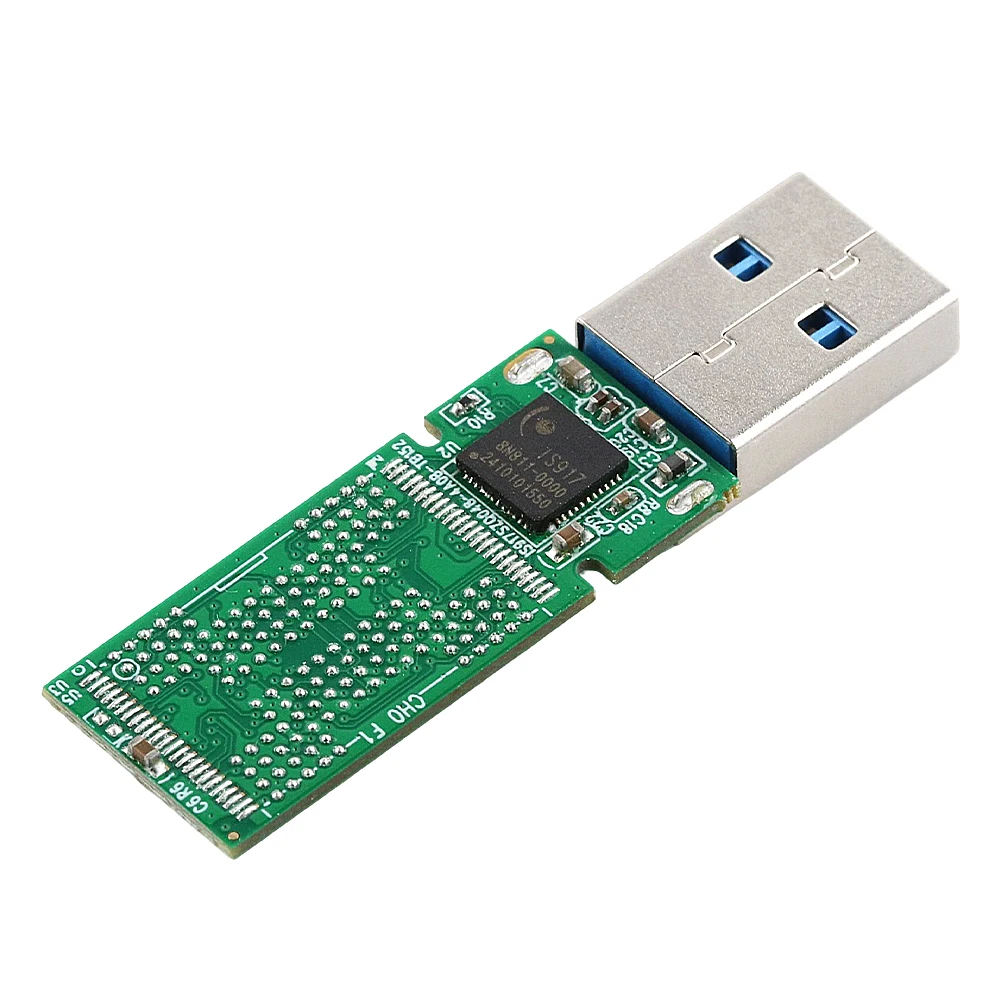

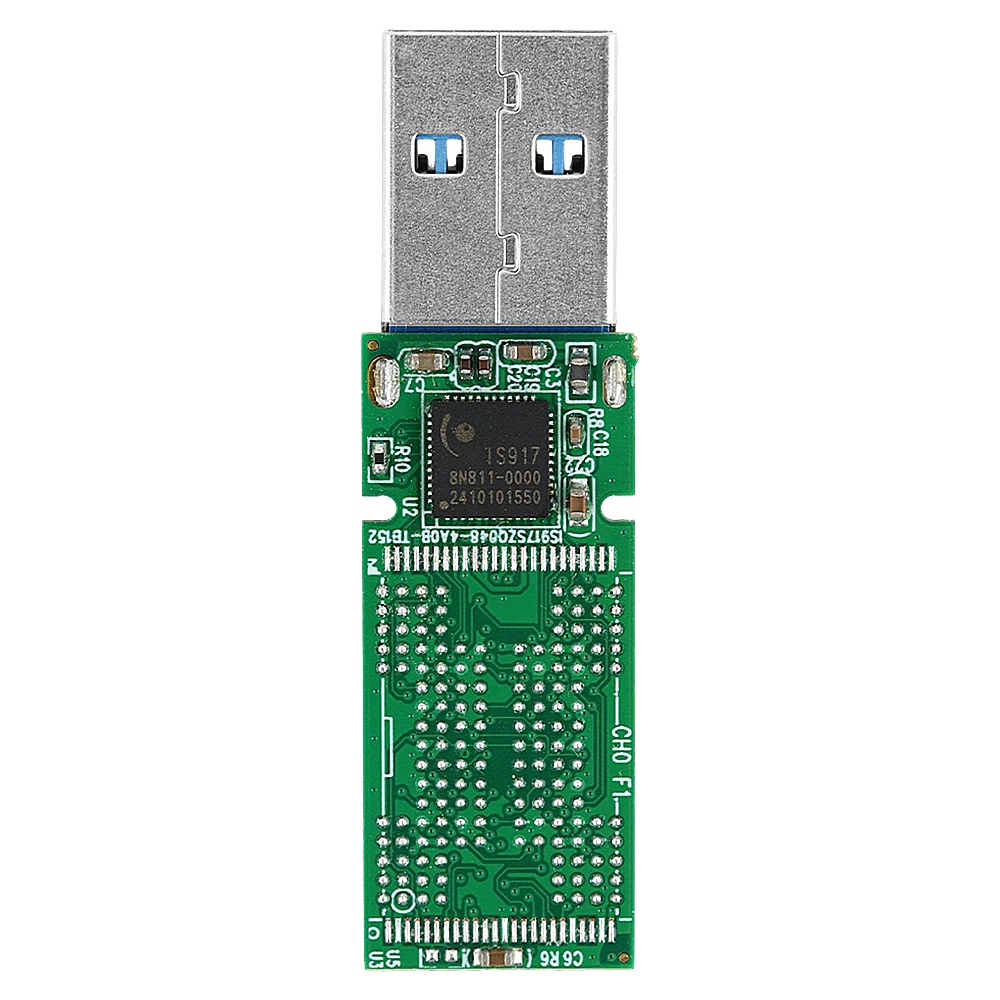

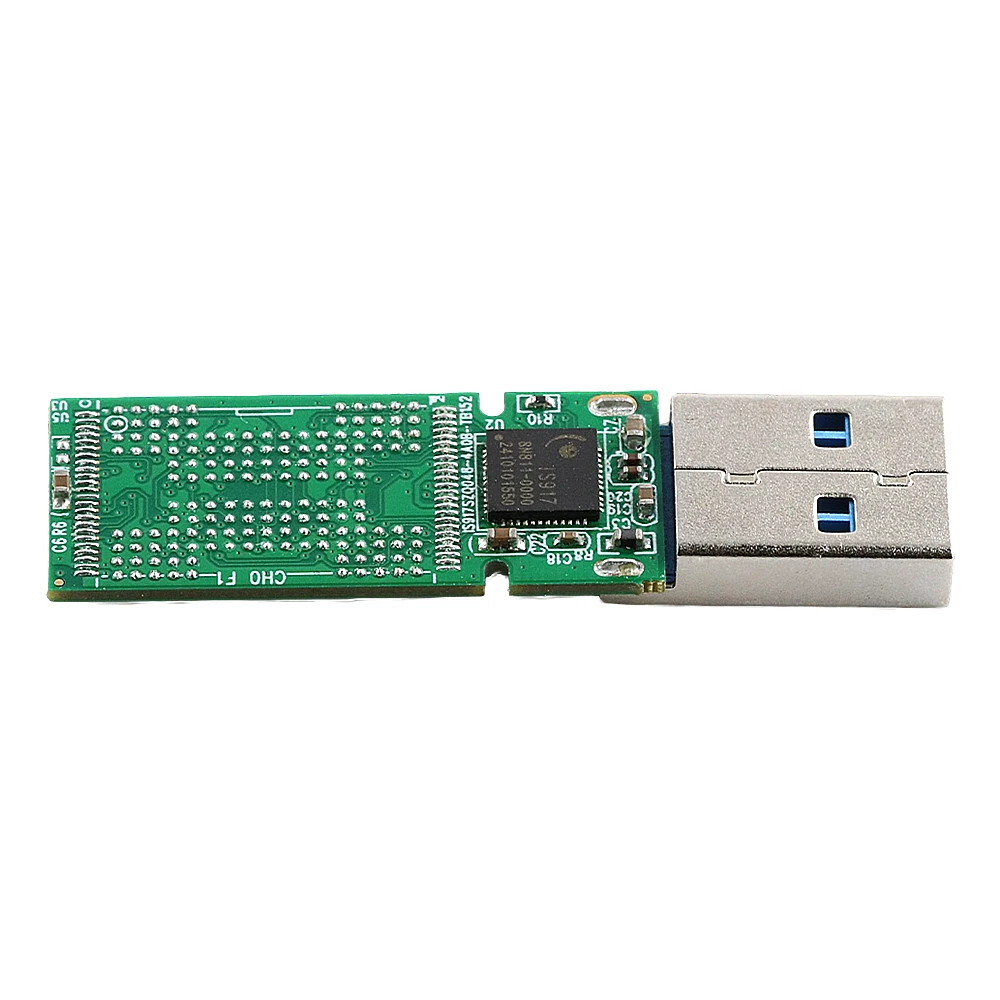

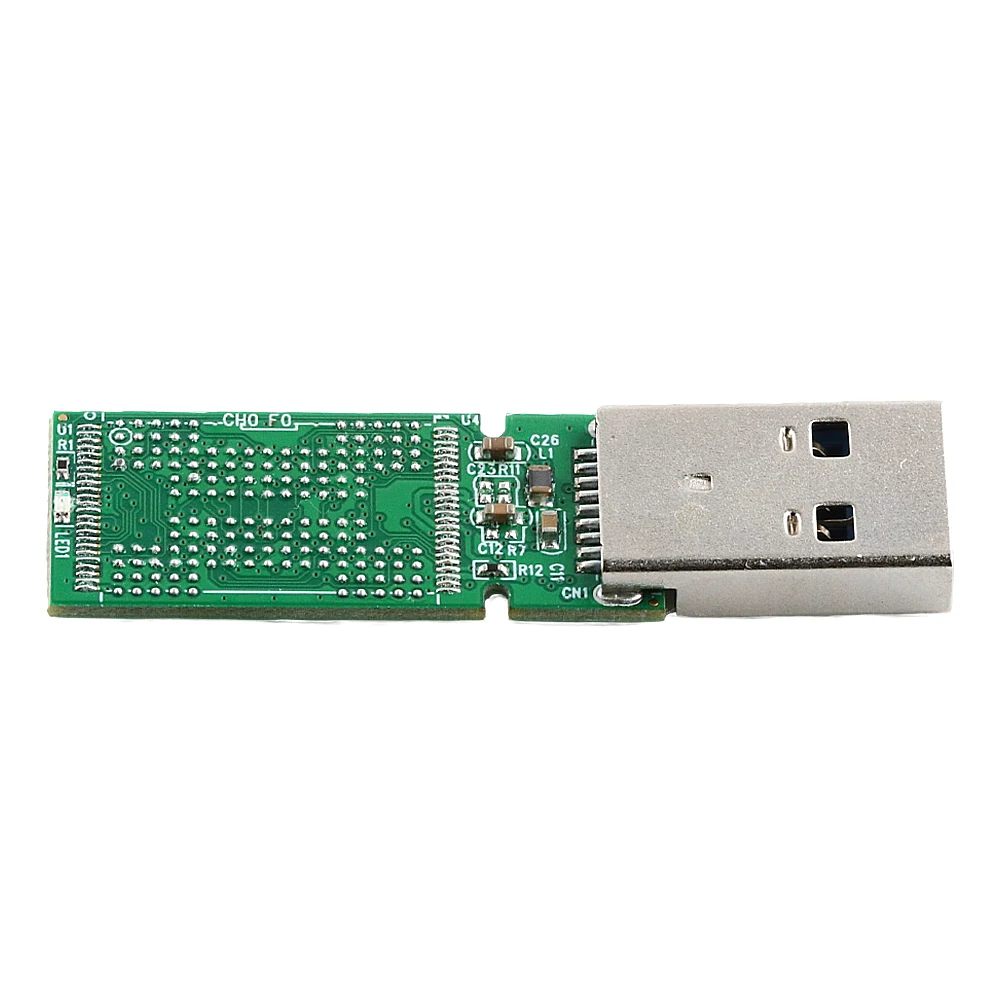

1PC IS917 PCBA für NAND Flash USB 3,0 U Disk Schweißbar TSOP48 BGA132 BGA136 BGA152 Chips USB 3,0 U Disk PCB haupt Controller DIY

Produktbeschreibung

1PC IS917 PCBA for NAND Flash USB3.0 U Disk Weldable TSOP48 BGA132 BGA136 BGA152 Chips USB 3.0 U Disk PCB Main Controller DIY
Main Controller IC: IS917
USB type: USB3.0
PCB size:14*33mm(without the USB port size)
Support IC: BGA152/132/136 TOP48 (two solder chips,every chips need 2CE.But if you weld one chip in PCB,MAX 4CE).
Usage:（USB3.0 interface High speed）, DIY Recycle SSD Flash Chips.
NAND flash R/W Strick
Can be delete all partition
Can be Read & Write

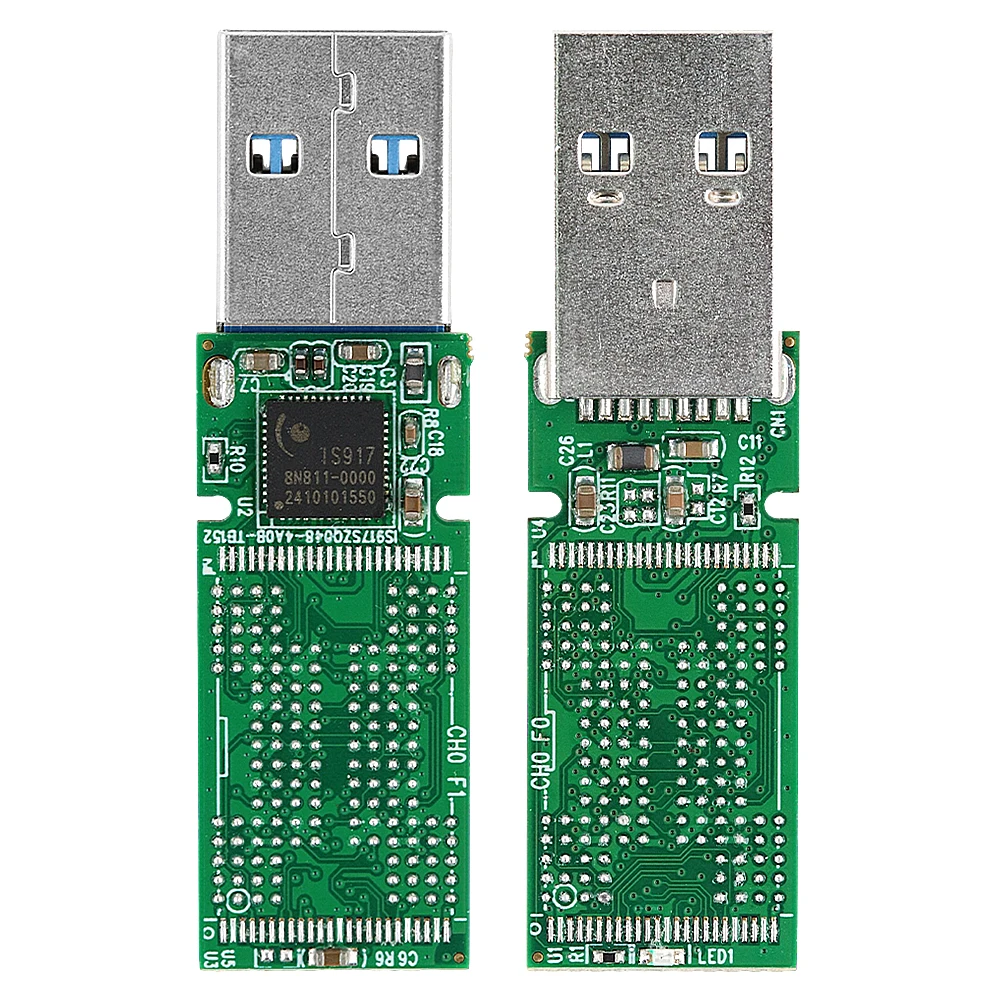

About jumpers
The board defaults to 3D jumpers, please jumper according to the following method (for reference only, please point out if there is an error).
2D particles: first remove R6, R7, R11, if it is Toshiba and SanDisk, short R10 and R12, if it is Micron, short R10 and remove R12 from Intel.
3D particles: Support Micron Intel, short R11 R12 R6 R7, remove R10.
It can weld TSOP48, BGA132, BGA136, BGA152 flash memory chips, and supports up to 4CE. The is917 is a single-channel master control. Theoretically, the speed can reach up to 150MB/s for reading and 100MB/s for writing. The actual speed depends on the chip used.

Produktdetails in Bildern

Produkteigenschaften

Markenname

UICPAL

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Antriebs-IC

ist kundenspezifisch

Ja

Anwendung

Computer

Paket

SMD

Hauptsteuerungs-IC-Modell

IS917

Größe

14x33mm

Schweißbar

TSOP48 BGA(132 136 152) Chips

Anwendung

DIY Recycling von SSD-Flash-Chips

Choice

yes

semi_Choice

yes
