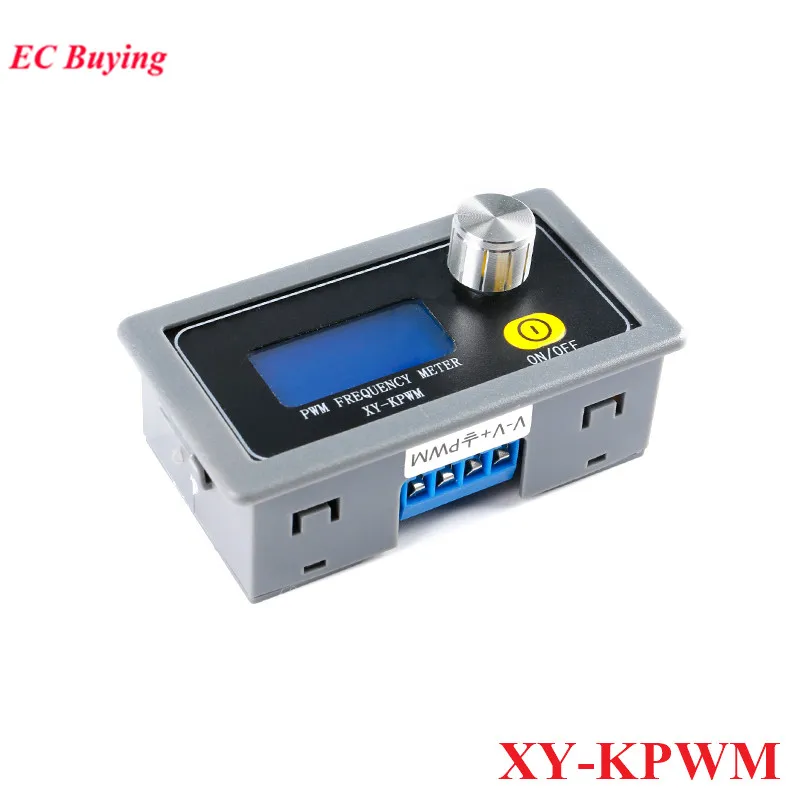

1 Hz-150 kHz XY-KPWM PWM Signalgenerator Pulsfrequenz Arbeitszyklus Einstellbare Modulplatine LCD-Display 1 2 3 Kanal Rechteckwelle

Produktbeschreibung

Main Features

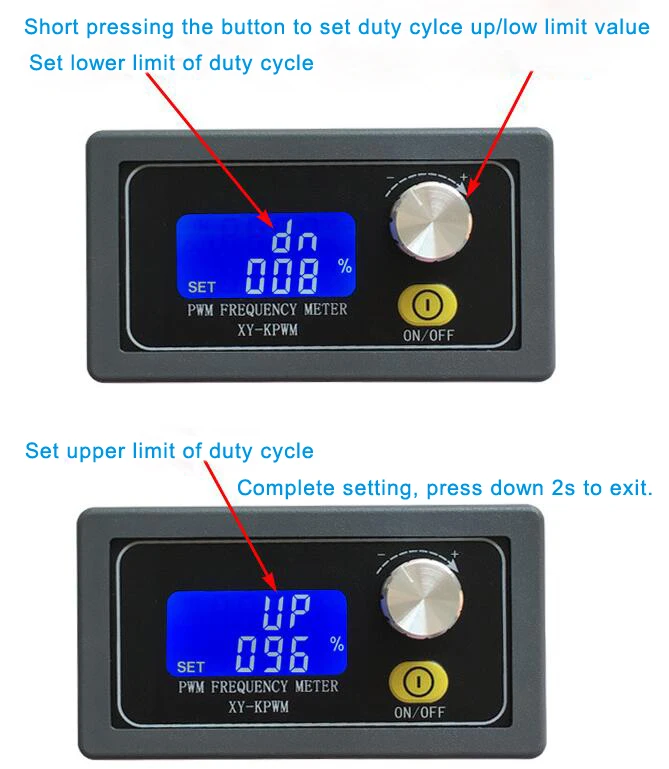

1. Dual adjusting mode,0.1% duty cycle step in fine mode.
2. LCD screen clearly displays frequency and duty cycle.

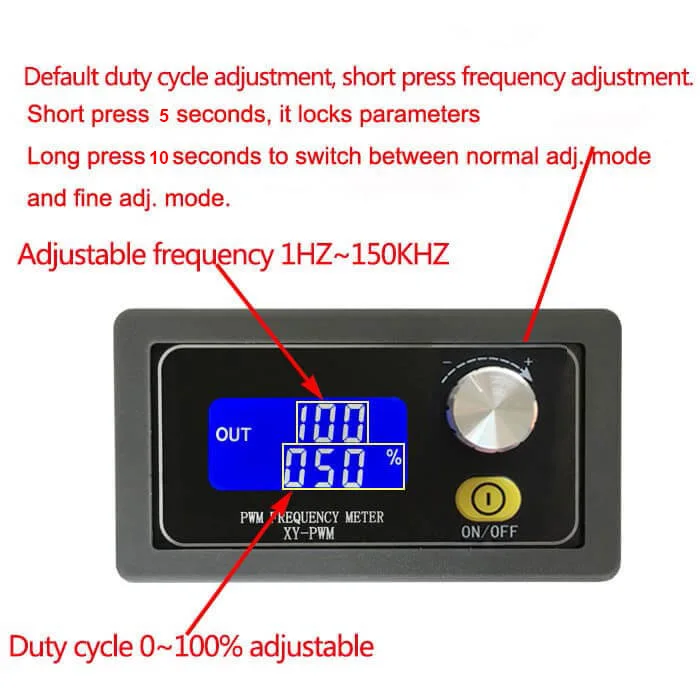

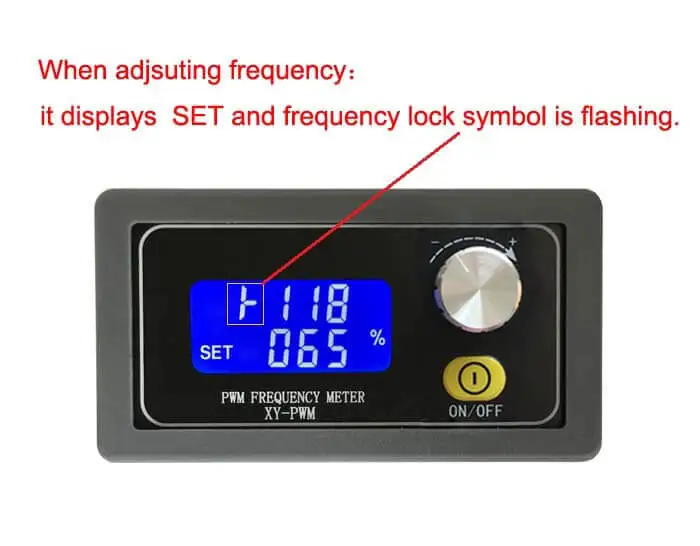

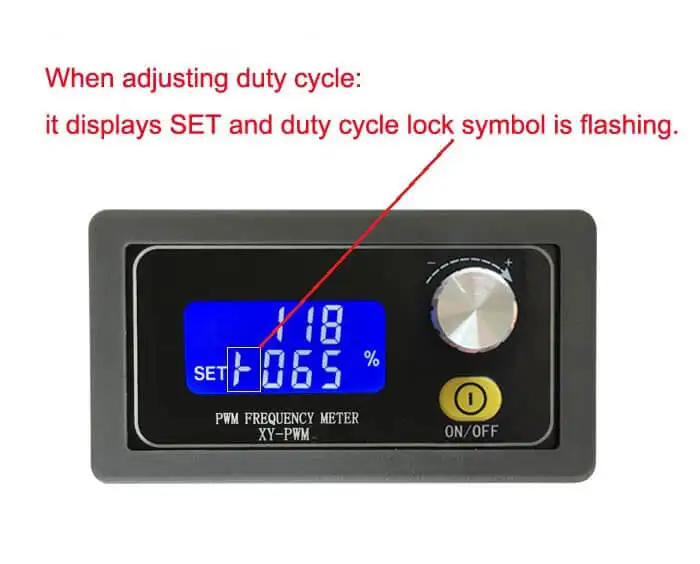

3. Using encoder potentiometer to set the frequency and duty cycle separately.

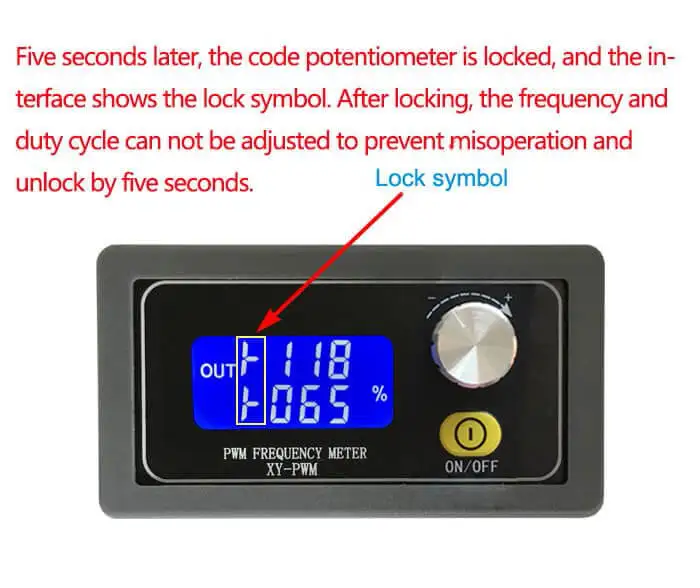

4. With locking function to prevent wrong operation
5. Wide frequency range, high precision

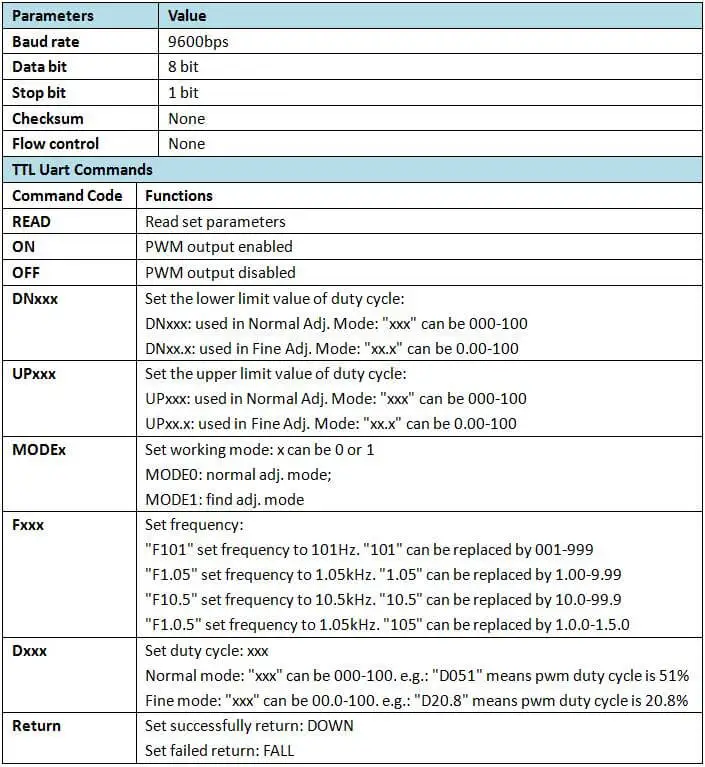

6. Support for serial communication, TTL level.
7. Have ON/OFF button to control output signal output ON/OFF.
8. Integration panel cut-out / hole opening size: 76x40 mm
Technical Parameters
1. Working voltage: 3.3 ~ 30V
2. Frequency range: Normal Adjusting Mode:1Hz ~ 150KHz Fine Adjusting Mode:1Hz~15KHz
3. Frequency accuracy: the accuracy in each range is about 2%
4. Signal load capacity: the output current can be about 5 ~ 30ma
5. Output amplitude: PWM amplitude equals to the supply voltage
6. Ambient temperature: -20 ~ +70 ℃.
Typical Application
1. Used as a square wave signal generator, generate square wave signal for experimental development and use
2. Used to generate a square wave signal that controls the motor driver
3. Output adjustable pulse for MCU use

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

3.3-30V 3.3V-30V

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

Module

Smart Electronics Experiment

Switch And Sensor For Arduino STM32

KPWM PWM PWM1

Voltage regulator Controller

XY-KPWM PWM PWM1 LPWM 1Hz-150KHz Signal Generator

Pulse Frequency Duty Cycle Adjustable Module 1 Channel Square Wave LCD Display

ZK-PP2K DC3.3-30V PWM Signal Generator 8A Dual Mode

Motor Driver Module LCD PWM Pulse Frequency Duty Cycle Adjustable Module

ZK-PP1K Dual Mode Signal Generator LCD PWM 1-Channel

1Hz-150KHz PWM Pulse Frequency Duty Cycle Adjustable Square Wave Generator

High-power PWM Generator Pulse Mode Dimming Speed

Control Module Adjustable Cycle Delay PP2/PP2K Drive LED Motor Load ZK-PP1K

Signal Generator PWM Pulse Frequency Duty Cycle Adjustable

Module LCD Display 1Hz-150Khz 3.3V-30V PWM Board Module

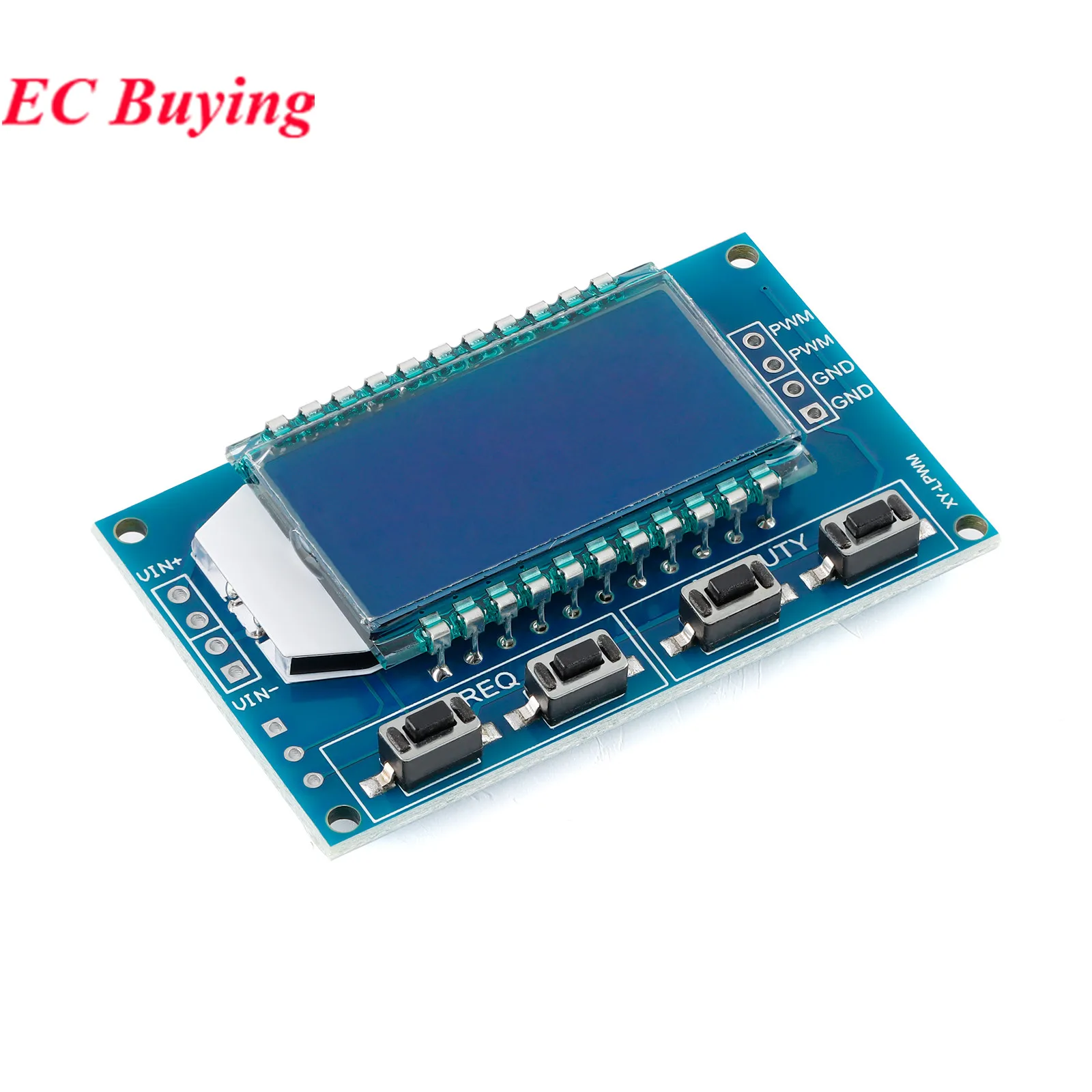

XY-LPWM square wave rectangular wave signal generator module

PWM pulse/LCD liquid crystal display/frequency duty cycle adjustable

XY-LPWM3 3-way PWM pulse adjustable frequency module

Square wave rectangular wave signal generator / duty cycle individually adjustable

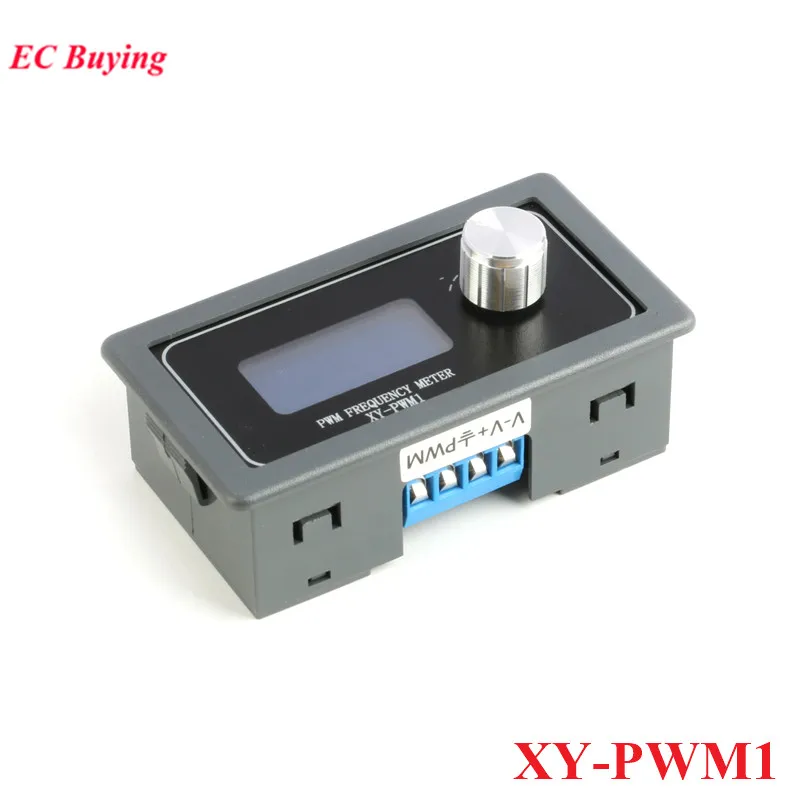

XY-PWM XY-KPWM XY-PWM1 square wave rectangular wave signal generator

pulse frequency duty cycle adjustable / LCD display with shell

ZK-PP1 ZK-PP2

ZK-PP1K ZK-PP2K

High-power PWM dimming motor speed control

solenoid valve pulse number frequency duty cycle adjustable cycle delay driver

1Hz-150Khz Signal Generator PWM Board

Module Pulse Frequency Duty Cycle Adjustable Module LCD Display 3.3V-30V 1Hz - 150Khz
