AXSPEED RC Empfänger Lichter Schalter Auf/off Control Elektronische Schalter für Rc Flugzeuge Autos Modelle

8,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Variante auswählen

Lieferung nach Deutschland
Lieferzeit: 5–8 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

AXSPEED RC Receiver Lights Switch On/off Control Electronic Switch for Rc Planes Cars Models
Features
1: Single channel lighting control

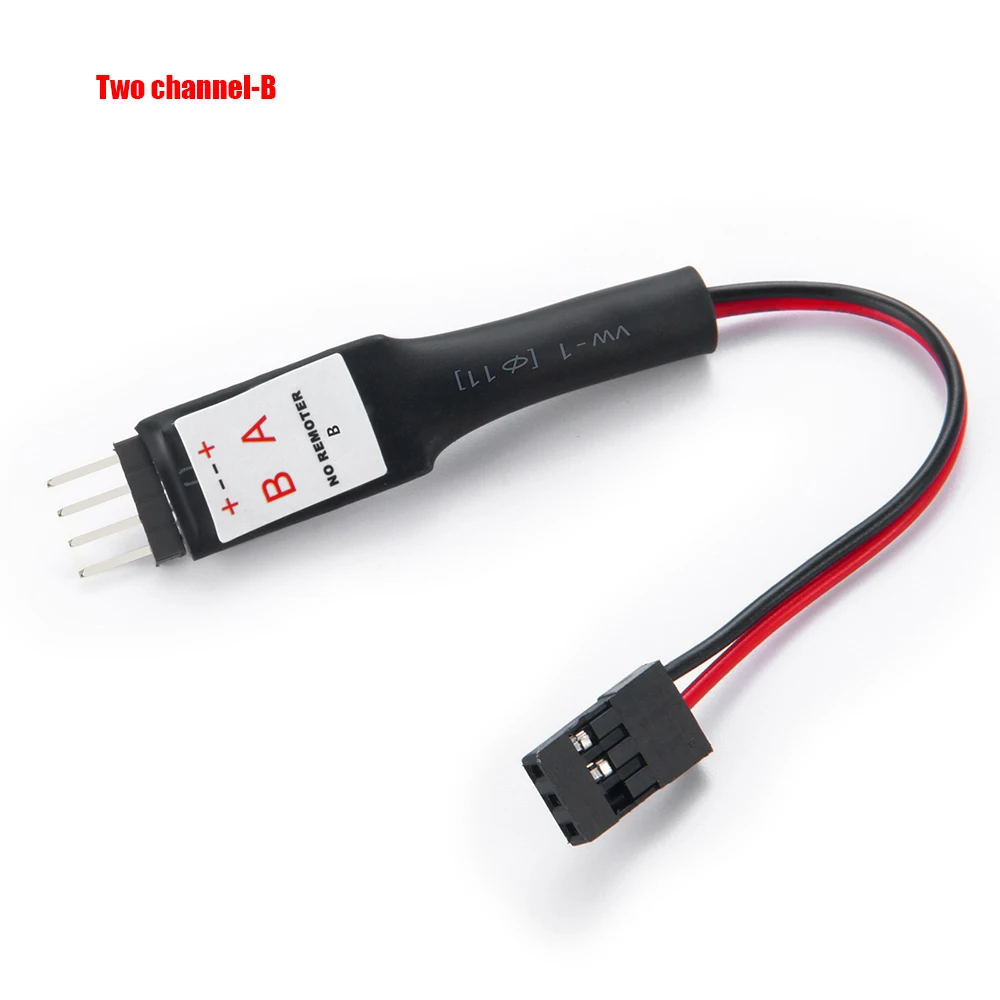

2: Double channel lighting control

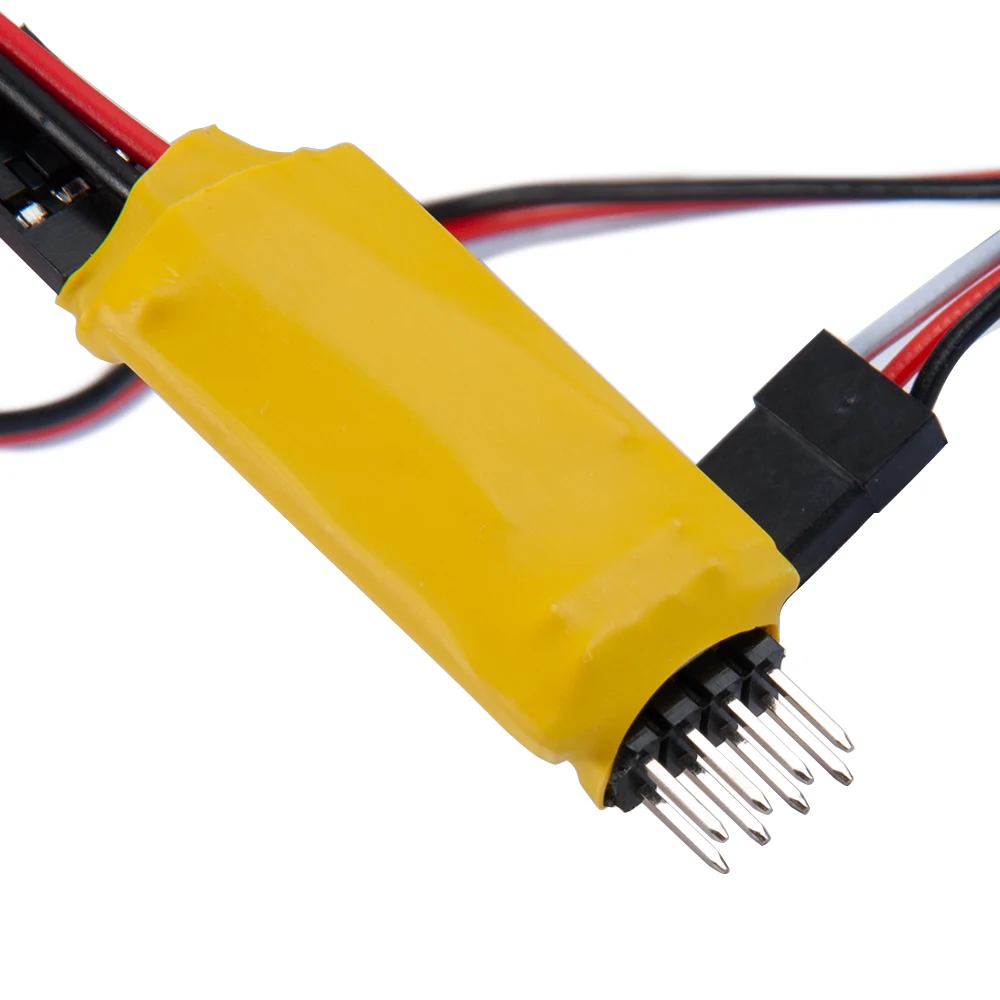

3 Four channel lamp control
4: High current independent power supply
Specifications
Plug into the receiver's CH3 socket, and you will be able to control the car light via the CH3 of the remote receiver.
The single-channel control version and the high-current version are simple switches, without flashing and BLN Control functions.
Max load: 5V 1A (single-channel and two-channel version)

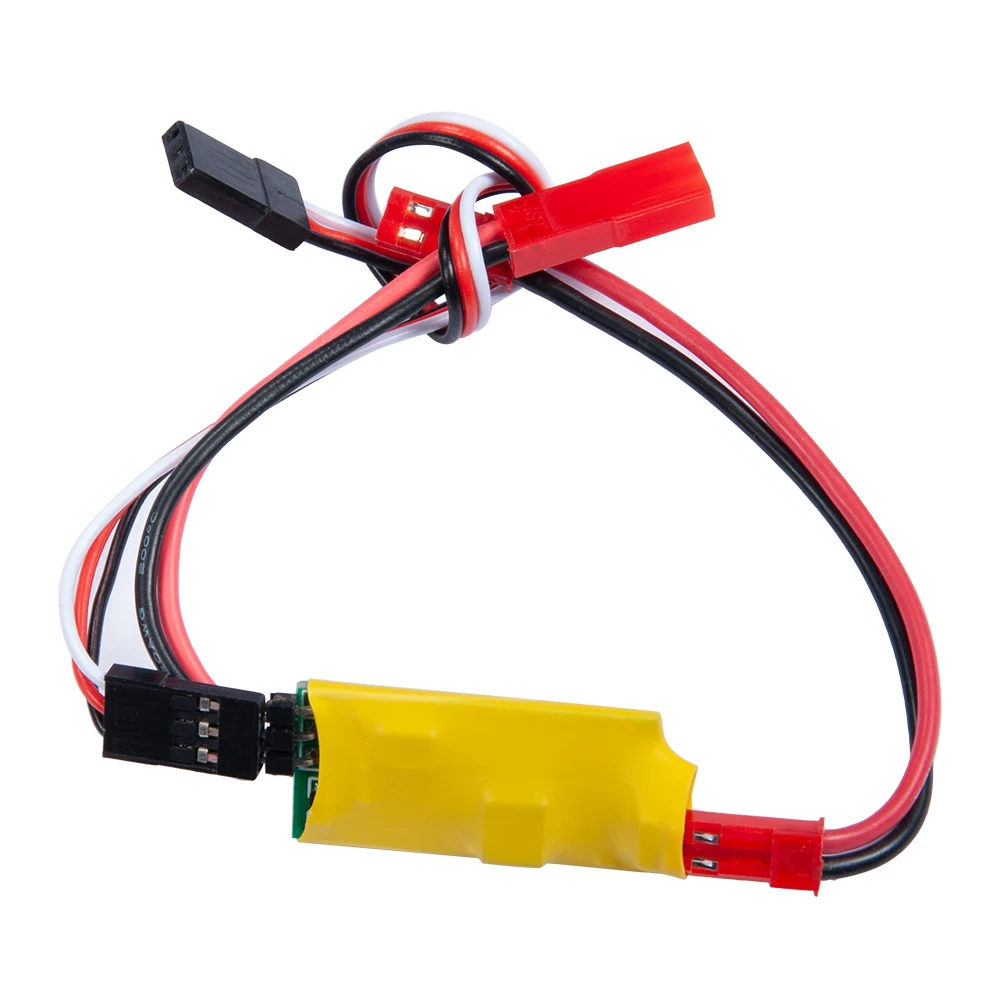

High-current version
Input voltage: 5V-24V, current:5A Inrush current: 10A
Four-channel version
Input voltage: 5V-24V, max load of each single channel is 3A
1#: Single circuit and high current version are pure switches, without explosion flash breathing lamp.
2#: Single channel and double channel lamp control are used to receive power supply output 5v1a, output 1a, and connect other equipment within the allowable range of voltage and current.
3#: Four channel lamp control is independent power supply, input voltage is 5v-24v, single group current is not more than 3a.
4#: The high current version is independent power supply, with input voltage of 5v-24v, current of 5A and instantaneous current of 10A. Output 5A
1. Single channel light control: every time the third channel switch is toggled or the third channel button is pressed, the output turns on - > off - > on - > off... Cycle
2. Two way light control: two output are always on at the same time - > a output is on, B output is off - > a output is off, B output is on - > two output alternate burst - > two output are burst at the same time - > two output breathing light effect - > two output are all off... Cycle
