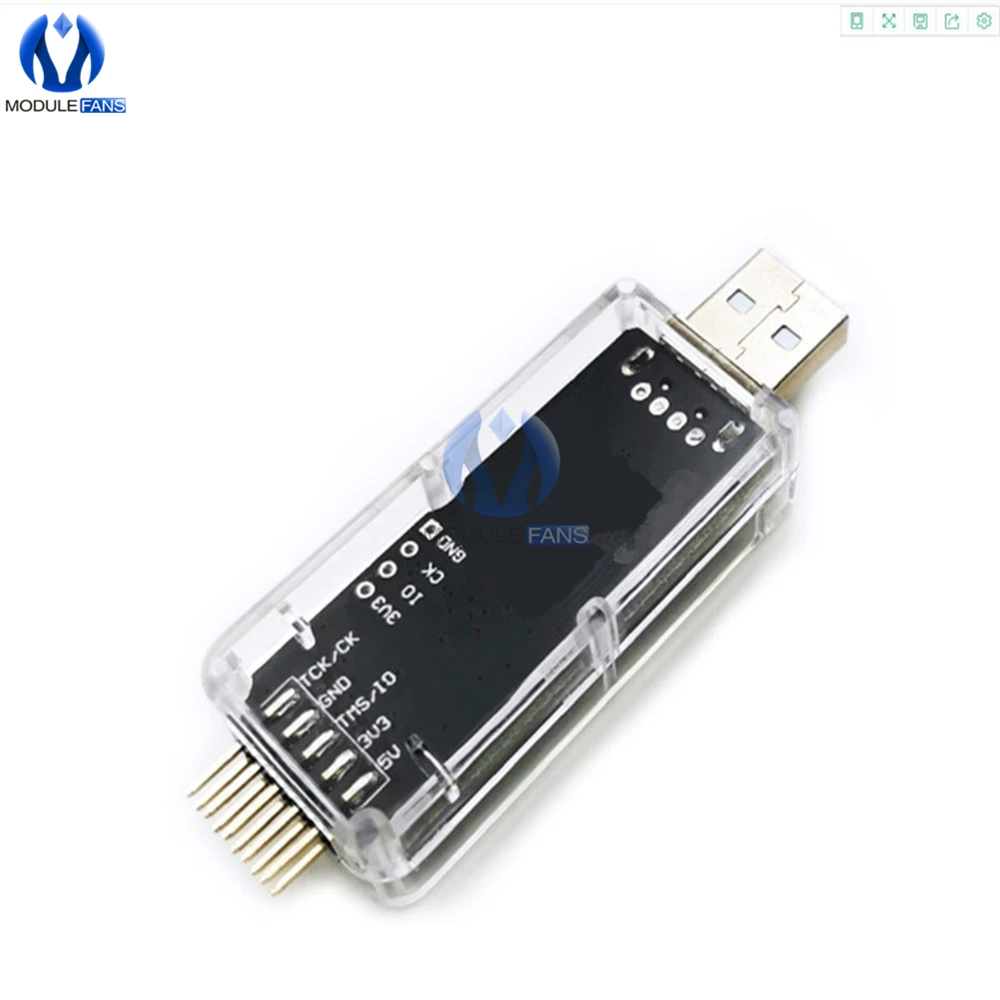

CMSIS DAP/DAPLink Emulator Simulator für STM32 Debugger Downloader JTAG/SWD/Serieller Port/U Disk Drag And Drop Super JLINK/STLINK

Produktbeschreibung

CMSIS DAP/DAPLink Emulator Simulator For STM32 debugger downloader JTAG/SWD/Serial Port/U Disk Drag And Drop Super JLINK/STLINK
Product introduction
CMSIS-DAP/DAPLink simulator is a simulator launched by Muse Lab with open source hardware and software. Compared with the popular jlink/st-link on the market, it has fast burning speed, no firmware loss, no copyright risk, rich functions, small and exquisite appearance, and low price, which can better meet the daily development, debugging and download needs of electronic engineers
Product name: CMSIS-DAP/DAPLink simulator
Debug interface: JTAG, SWD, virtual serial port

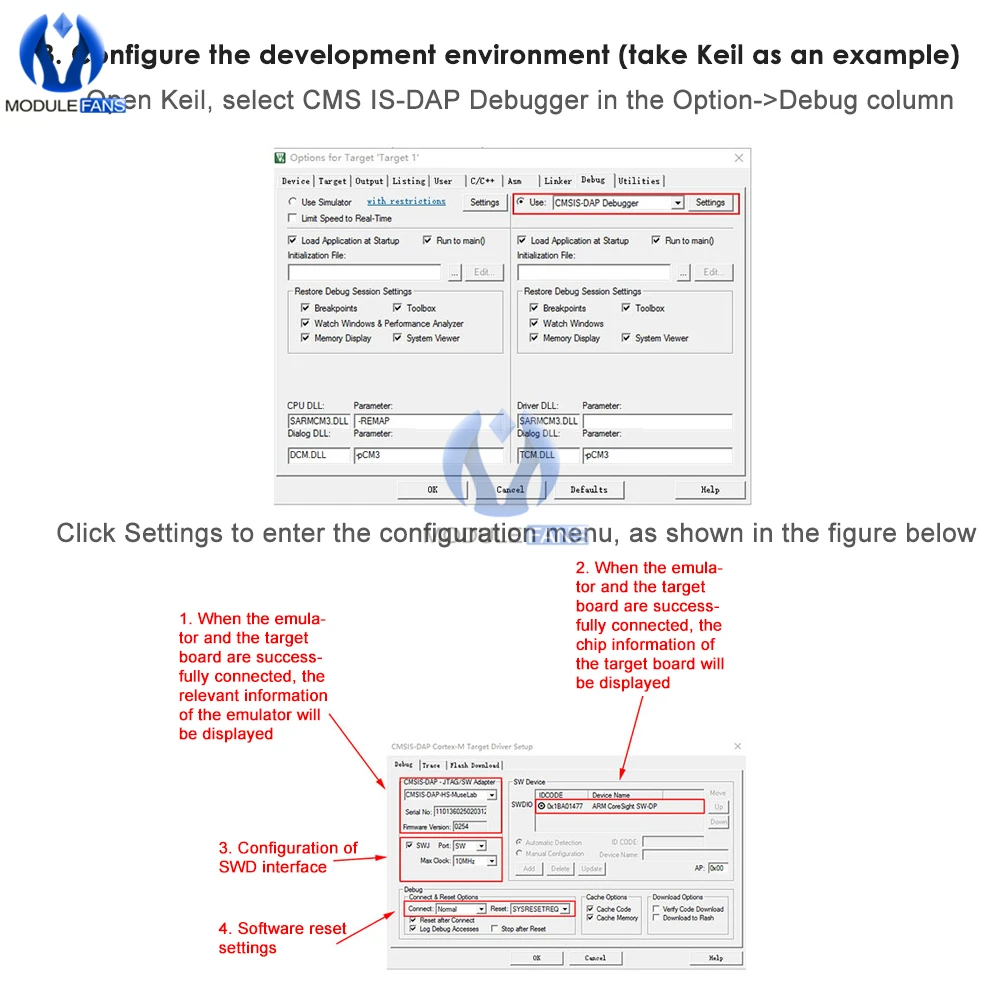

Development environment: Keil/MDK, IAR, OpenOCD
Target chip: All chips based on Cortex-M core, such as STM32, NRF51/52, etc.
Operating system: Windows, Linux, Mac
Input voltage: 5V (USB power supply)
Output voltage: 5V/3.3V (can directly supply power to the target board)
4. The default IO voltage is 3.3V. For some target chips with non-3.3V IO voltage, it is recommended to purchase additional DAP IO level adapter boards for use. You can click here or search for IO level adapter boards in the store.
5. Provide one-click programming tool script, green software is free of installation, you only need to double-click the script to complete the erasing, writing, read protection, etc. of the target chip, and you can also modify the script to complete your customization needs. More convenient and powerful
Package Included
Emulator x1

Produktdetails in Bildern

Produkteigenschaften

Markenname

diymore

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

Intelligente Elektronik

Versorgungsspannung

DAPLink-Emulator

Verlustleistung

DAPLink-Emulator

ist kundenspezifisch

Ja

Betriebstemperatur

40℃ ~ +85℃

Anwendung

Elektronisches Experiment

Paket

SMD
