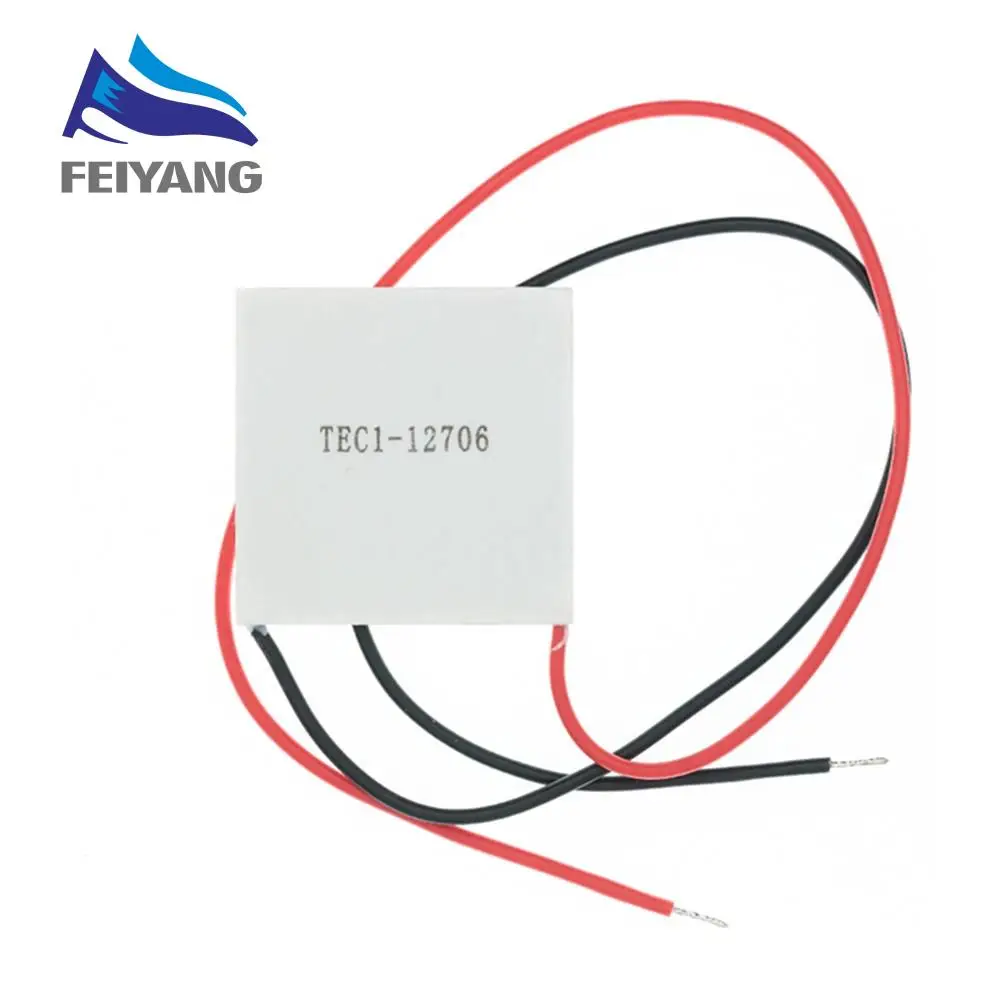

TEC1-12706 12706 TEC1-12715 TEC1-12705 TEC1-12710 Thermoelektrischer Kühler Peltier 40 * 40 MM 12 V Neu der Halbleiterkühlung

Produktbeschreibung

Chip Type: TEC1-12706

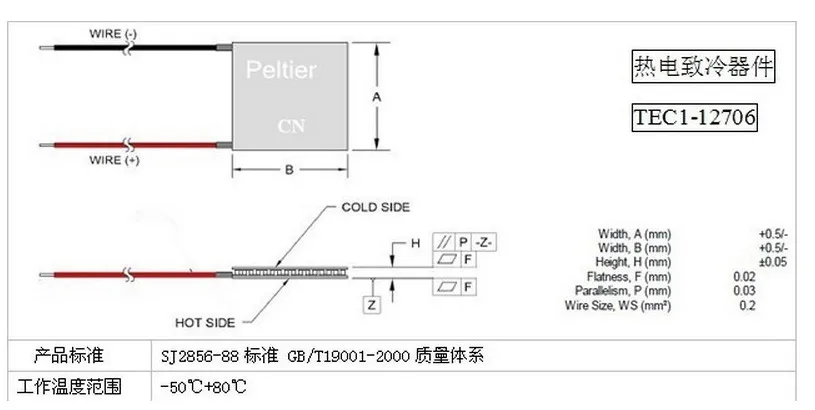

External dimensions: 40 * 40 * 3.75mm
Internal resistance: 2.1 ~ 2.4 (ambient temperature of 23 ± 1 'C, 1kHZ Ac test)
The maximum temperature difference: Tmax (Qc = 0) above 59 'C.
Working current: Imax = 4.3-4.6A (rated at 12V)
Rated voltage: 12V (Vmax: 15V starting current 5.8A)
Cooling power: Qcmax 55W
Working environment: temperature range -55 'C ~ 83'C (high ambient temperature drop directly affect the cooling efficiency)
Description
Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own
custom car drink warmer/cooler.
Since they consit primarily of semiconductor material sandwiched between ceramic plates and have no moving parts
These devices must be used in conjunction with a heat sink to avoid burned
Each device is full inspected and tested
Fitted with 6-inch insulated leads
Chip model: TEC1-12705
Dimensions: 40*40*3.8mm Component logarithm 127
Wire specification: lead length 100±5mm RV standard single lead 5mm tin
Internal resistance: 2.4~2.7Ω (ambient temperature 23±1℃, 1kHz AC test)
Maximum temperature difference: △Tmax(QC =0) above 61℃.

Produktdetails in Bildern

Produkteigenschaften

Markenname

SAMIORE ROBOT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

SPANNUNGSREGELER

Versorgungsspannung

12V 6A

Verlustleistung

For Arduino STM electronic module

ist kundenspezifisch

Ja

Betriebstemperatur

40+80
