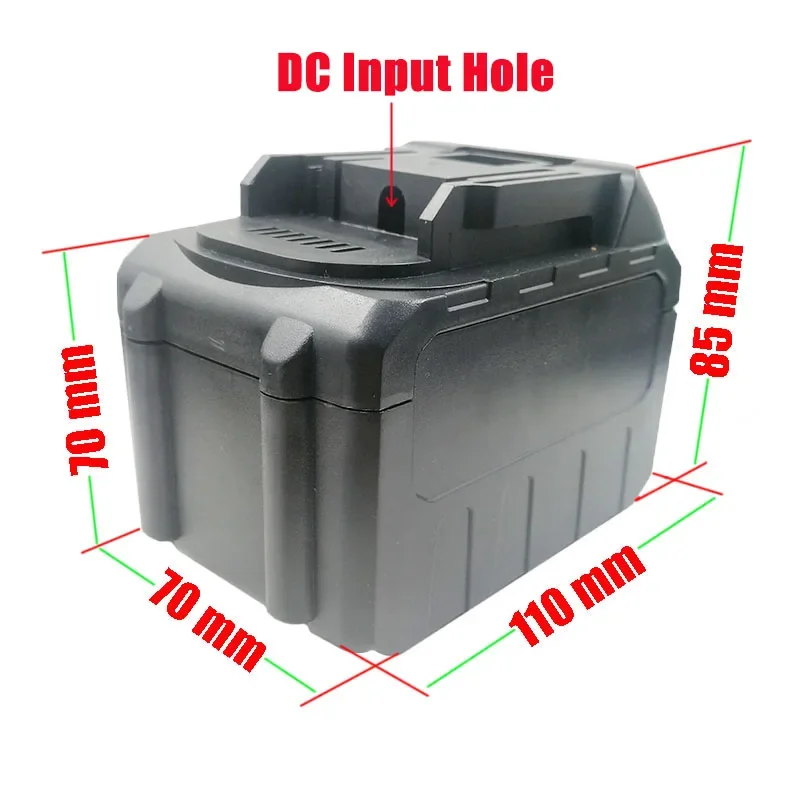

Li-Ionen-Batterie Lades chutz platine Platine für Lomvum Zhipu Hongsong Jingmi 18V Lithium-Ionen-Batterie Nein für Makita

Produktbeschreibung

PCB Specification
(1). High rate discharge: 15A
(2). Maximum discharge current: Continuous 60A, pulse 195A
(3). Discharge termination voltage: 13.75V
(4). Overcharge protection voltage: single section 4.25v ± 0.025v
(5). Overcharge protection recovery voltage: 4.1V ± 0.025v
(5). Over discharge protection voltage: single section 2.7V ± 0.08v
(7). Recovery voltage of over discharge protection: single section 3.0V ± 0.08v
(8). Charging high temperature protection: ＞ 60 ℃± 2 ℃
(9). Discharge overcurrent protection 1: ≥ 100A / 1s Delay protection
(10). Discharge overcurrent protection 2: ≥ 180A / 100ms delay protection
(11). Short circuit protection: ≥ 200A

Produktdetails in Bildern

Produkteigenschaften

Markenname

dawupine

Typ

Batterie-Aufbewahrungsbox

Paket

Ja

Modellnummer

PCB-DC

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Choice

yes

semi_Choice

yes
