1/2/4PCS Aluminium Legierung Unterstützung Halterung SK/SHF8/10/12/16/20/25/30/35/40/50/60 Vertikale Horizontale Halterung Linear Welle Lager

Produktbeschreibung

Description
Product Name: Linear Rail Shaft Support
Material: Aluminum alloy

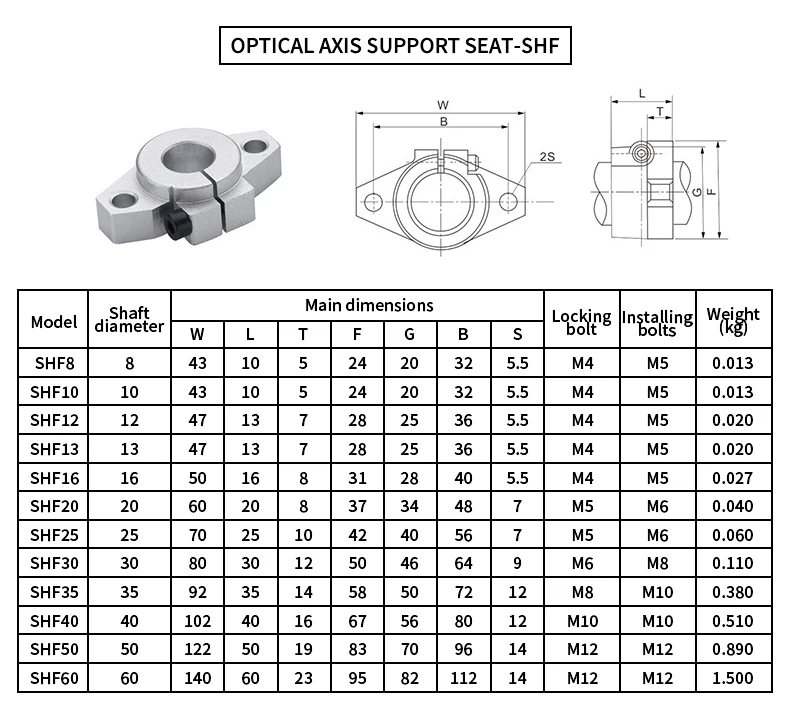

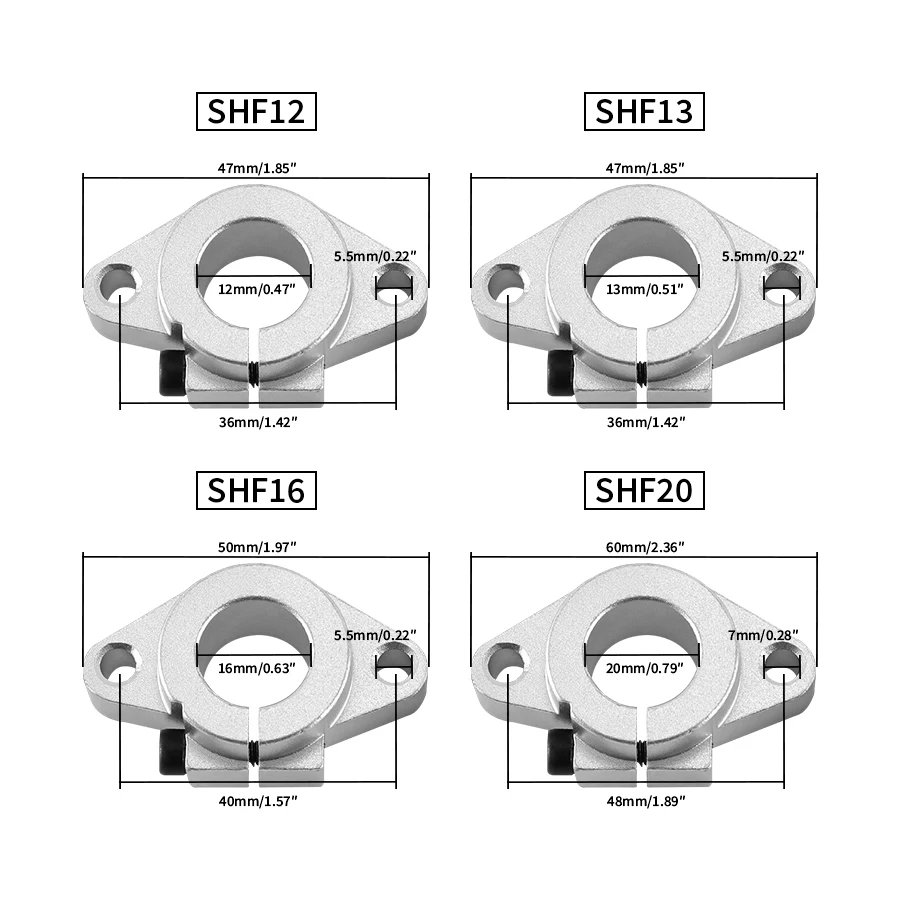

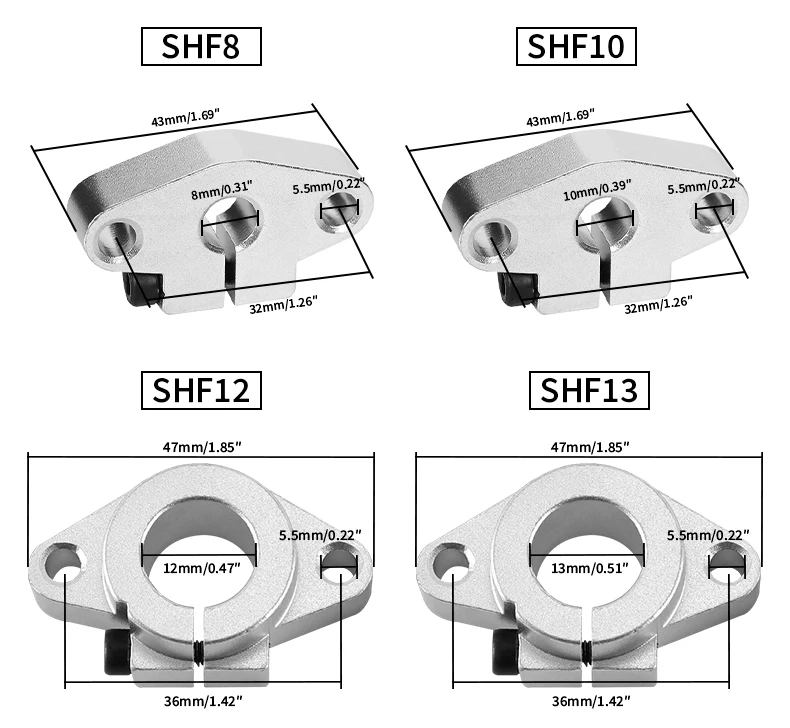

Model Number: SHF10 / SHF12 / SHF13 / SHF16 / SHF20 / SHF25 / SHF30 / SHF35 / SHF40 / SHF50
Inner Diameter: 10mm/12mm/13mm /16mm/20mm/25mm/30mm/35mm/40mm/50mm
Model Number: SK8,SK10,SK12,SK13,SK16,SK20,SK25,SK30,SK35,SK40,SK50
Inner Diameter: 8mm/10mm/12mm/13mm /16mm/20mm/25mm/30mm/35mm/40mm/50mm
Introduce：
SK shaft support is called vertical shaft support
SHF shaft support is also known as horizontal shaft support
It is mainly used to hold the linear optical shaft up, and can be fixed with bolts on both sides of the mechanical wall, so that the linear bearing or slider can travel back and forth in the optical shaft, and complete the mechanical function.
The material is made of aluminum, rust-proof, acid-proof and beautiful. There is a gap in the installation part of the shaft, which is easy to fasten the shaft with bolts. Low cost, unlimited travel, easy installation, easy operation, high precision.
Surface treatment: sandblasting, ordinary oxidation.
Note
1.Please allow minor error due to manual measurement. Thank you!
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
FAQ
Q1: Why choose us?
To provide our customers with first-class services in the supply of quality minimizing costs.
Q2: Is your company a trading company or a manufacturer?

Produktdetails in Bildern

Produkteigenschaften

Markenname

WRPT

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Modellnummer

SK/SHF Support

Zertifizierung

NONE

Model Number

SK8,SK10,SK12,SK13,SK16,SK20,SK25,SK30,SK35,SK40,SK50

Model Number

SHF8,SHF10,SHF12,SHF13,SHF16,SHF20,SHF25,SHF30,SHF35,SHF40,SHF50

Unit Type

piece

Are standard parts

standard parts

Product grade

excellent

Quantity

1 pcs,2 pcs,4 pcs

MATERIAL

Aluminum ALLOY

Function

Linear Shaft Mount Support

Feature

Pillow block bearing

Stocks

Fully Stocked

Guide Width or Diameter

8/10/12/16/20/25/30/35/40/50mm

Application

Mining and metallurgy

SK bearing characteristics

High precision, high temperature resistance, and good anti-corrosion effect

SHF application

Closed mechanical interiors, such as gearboxes; Immersed in an environment of lubricating oil

SK application

Environments that require high-speed operation

SHF bearing characteristics

Corrosion resistance and good support effect

Rolling bearing seat material

Aluminum alloy

Product name

support

Choice

yes

semi_Choice

yes
