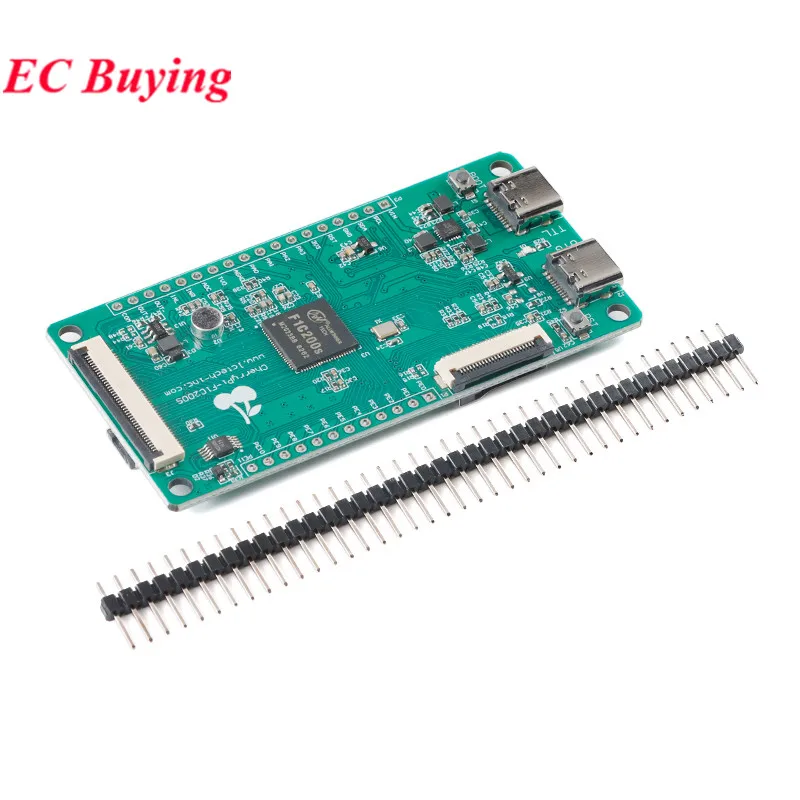

Lctech Pi F1C200S Linux Open Source Maker Demo Development Board OV2640 Modul CherryPi-F1C200S ARM926EJ-S Kernprozessor

Produktbeschreibung

OV2640
The OV2640 is a 1/4-inch CMOS UXGA (1632*1232) image sensor. The sensor's small size and low operating voltage provide all the features of a single UXGA camera and image processor. Through the SCCB bus control, it can output 8/10-bit image data of various resolutions such as full frame, sub-sampling, zooming and windowing. The UXGA image of this product can reach up to 15 frames per second (up to 30 frames for SVGA and 60 frames for CIF). Users have complete control over image quality, data format and transmission. All image processing functions including gamma curve, white balance, contrast, chroma, etc. can be programmed via the SCCB interface. Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, smearing, and floating.
This camera module only leads to some pins of the CSP package sensor chip and an optical lens. Without integrated peripheral components, it needs to be designed by itself.

Produktdetails in Bildern

Produkteigenschaften

Markenname

EC Buying

Ursprung

CN (Herkunft)

Hochbetriebenes Chemikalienunternehmen

Keine

Zustand

Neu

Typ

LOGISCHE ICS

Versorgungsspannung

5V

Verlustleistung

low

ist kundenspezifisch

Ja

Betriebstemperatur

normal

Anwendung

Computer

Paket

Module

Smart Electronics Experiment

Switch And Sensor For Arduino STM32

Support 1

720P video output

Support 2

H.264, MJPEG and other decoding

PK

For Raspberry Pi

Lctech Pi F1C200S Linux Open Source Maker

Demo Development Board Module CherryPi-F1C200S ARM926EJ-S Core Processor Type-C
