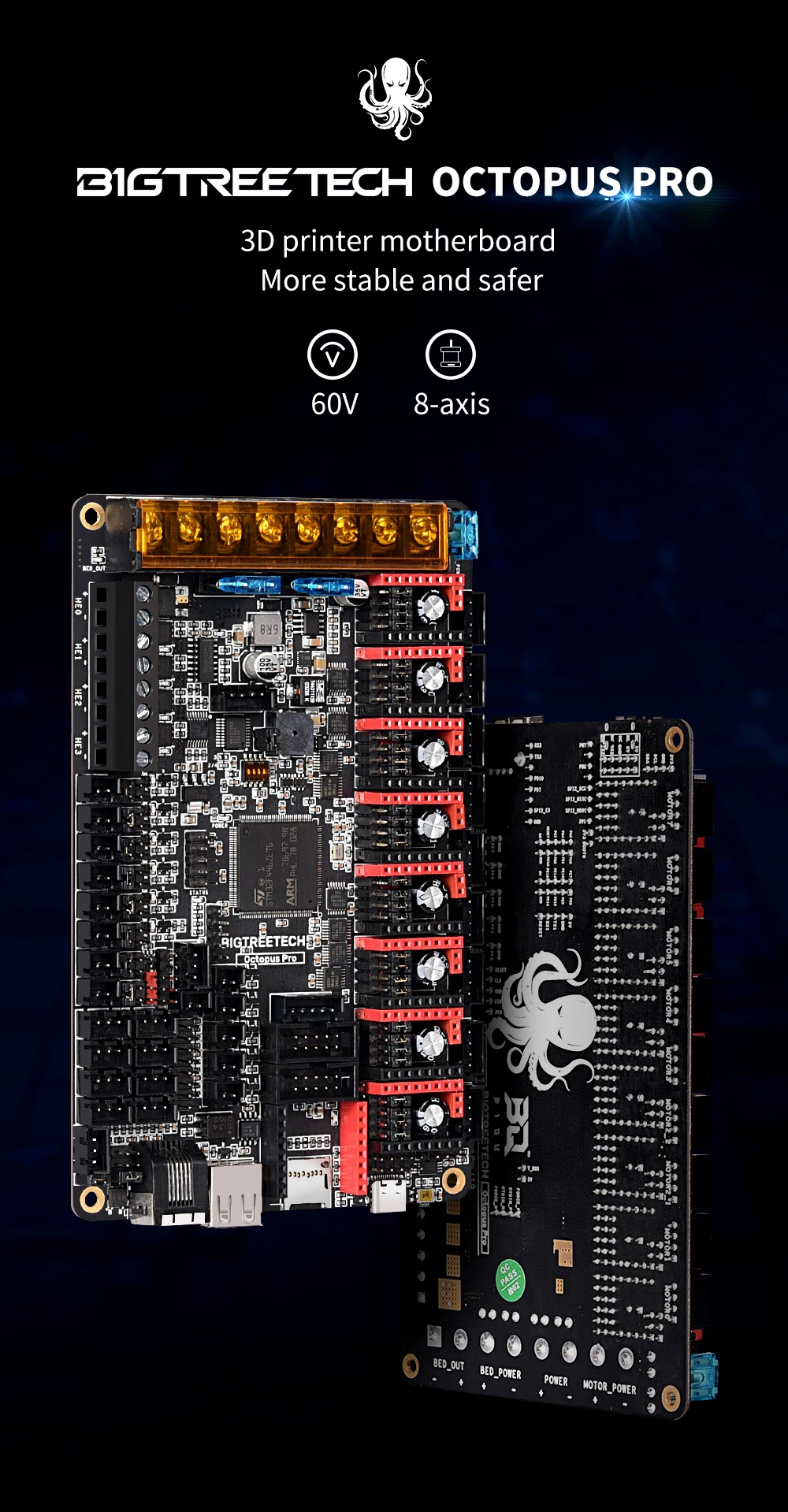

BIGTREETECH Octopus PRO V1.0/V1.1 Motherboard mit integriertem MAX31865 TMC2209 Raspberry Pi Steuerungsboard VS Ender3 V2 für PITFT
inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten
Lieferung nach Deutschland
Lieferzeit: 7–16 Tage
Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.
Produktbeschreibung
【Main Control Chip】
The main control board uses 32-bit ARM-level Cortex-M4 series STM32H723ZE/ STM32F429ZE / STM32F446ZE chip with a frequency of up to 168MHz and the flash is 1MB.
【Support 60V Input】
Supports up to 8 3D printer motherboards with a maximum 60V stepper motor. The motor drive power supply supports up to 60V input (only for the motor drive power supply).
【6 Controllable Fans】
Up to 6 controllable fans, two normally open fans, and both support power supply voltage, 12V, 5V options.
【Update Firmware: Klipper/Marlin/RRF】
Supports firmware update via DFU mode. This is where the firmware is sent to the board directly from the PC and does not require a bootloader however this method is not recommended for novice users as discussed later in this document.

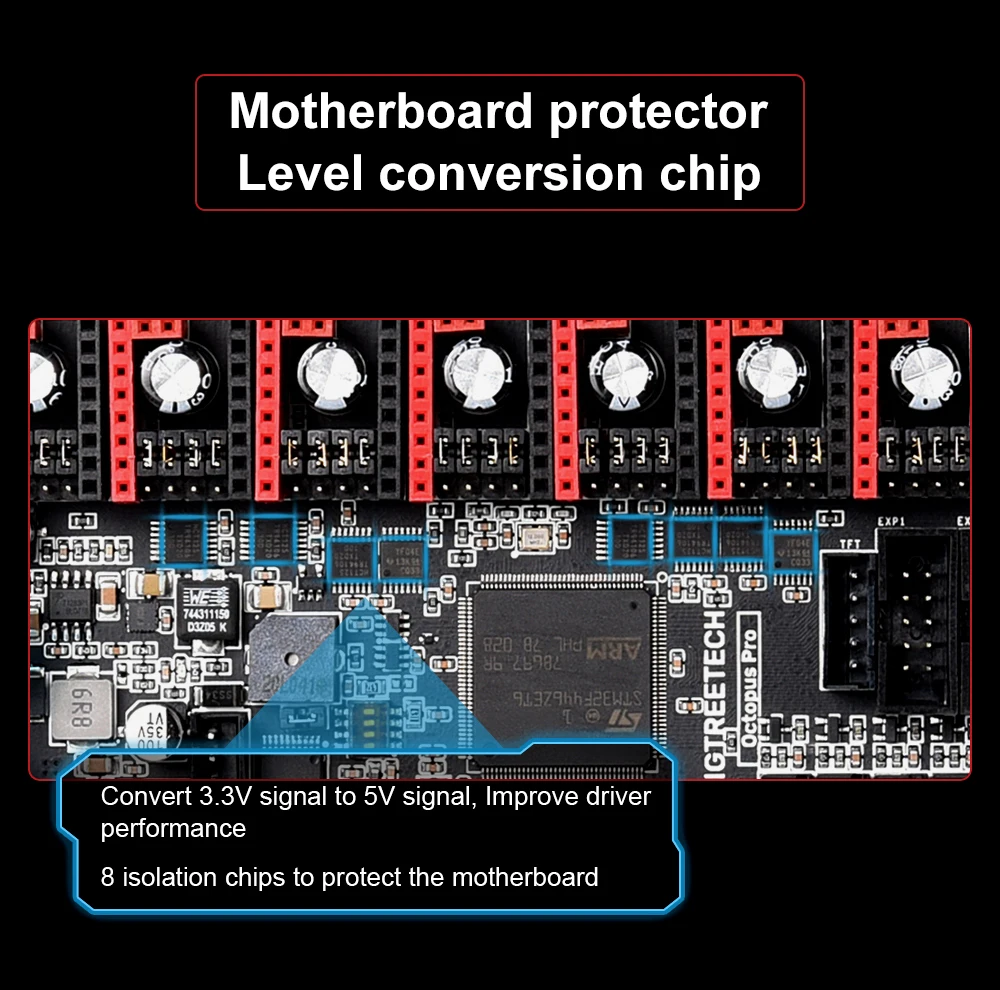

【Level conversion IC】
Supports proximity sensor, jumper optional pull-up resistor, supports more models, supports BL Touch.
Octopus Pro offers different versions of MCUs to meet the individual needs of DIY users.
ARM Cortex-M7 series, STM32H723ZET6, main frequency up to 550MHz, supports Marlin and Klipper, the best choice for Klipper high-speed printing. However, due to the limitation of 512kb flash, currently, RRF is not supported.
ARM Cortex-M4 series, STM32F429ZGT6, 180MHz main frequency, supports Marlin and Klipper, and with 1Mb flash, it can support RRF full function.
ARM Cortex-M4 series, STM32F446ZET6, 180MHz main frequency, supports Marlin and Klipper. However, due to the limitation of 512kb flash, it can only use the BTT custom version of RRF cutting off some functions.
Octopus Pro(F446) With TMC5160T PROx2 option: If you choose the shipping method of "Standard", the driver of TMC5160 Pro V1.1 version will be sent.
Octopus Pro
MINI 12864
Driver
1.Only the Octopus Pro Board
2.Octopus Pro Board + 2pcs TMC5160T Pro
Produktdetails in Bildern

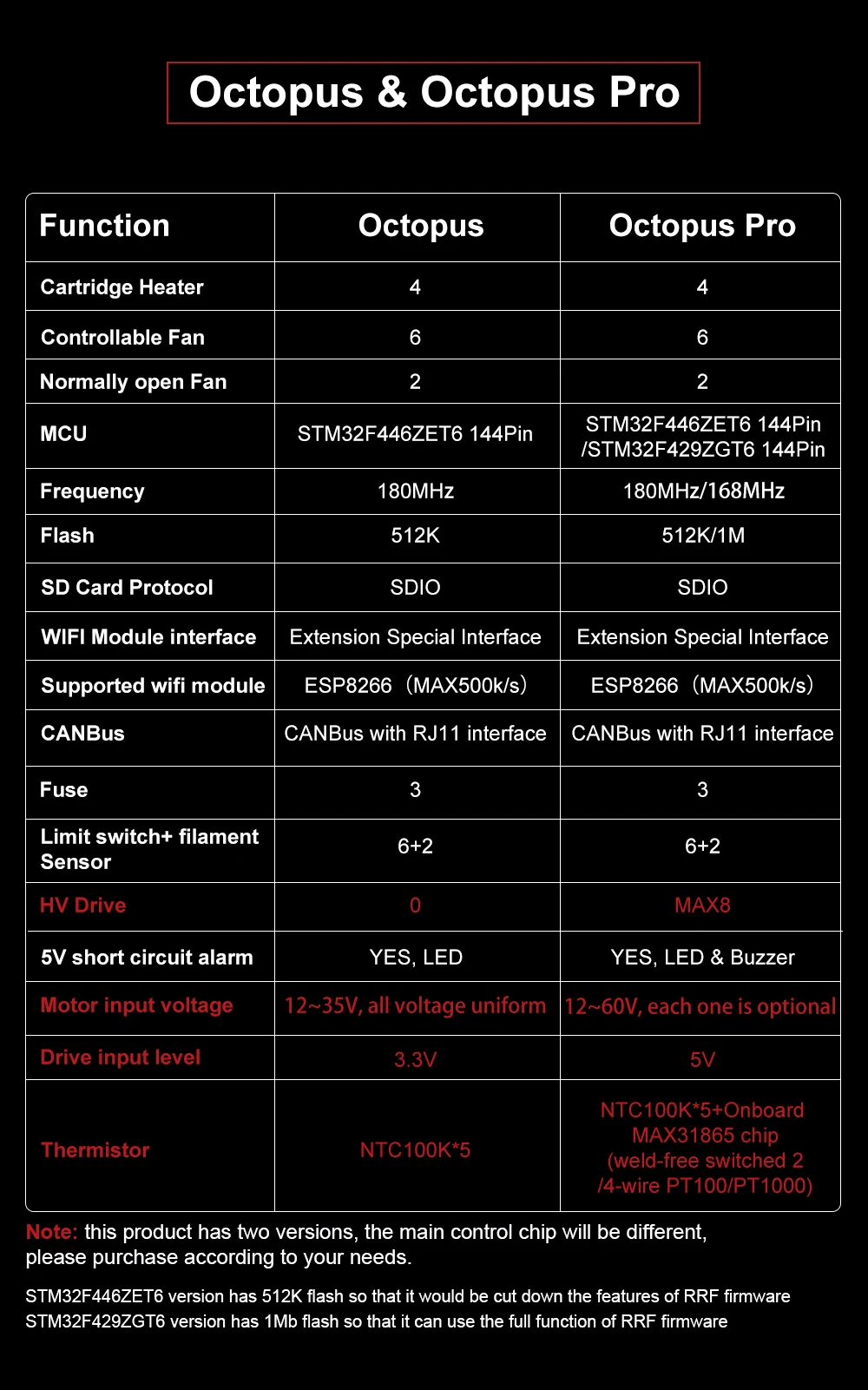

Produkteigenschaften
- Markenname
- BIGTREETECH
- Hochbetriebenes Chemikalienunternehmen
- Keine
- Artikelform
- andere
- Ursprung
- CN (Herkunft)
- Montage Erforderlich
- no
- Kontrollmethode
- andere
- Artikeltyp
- Mainplatine
- Modellnummer
- Octopus PRO V1.0/V1.1
- Product Size
- 160*100mm
- Mounting Size
- 150*90mm
- Micro Processor
- ARM 32-Bit Cortex-M4 CPU
- Input Voltage
- DC15-28V
- Motor Driver
- Pluggable Driver
- Temperature Sensor Interface
- TB T0 T1 T2 T3
- Display
- BIGTREETECH TFT LCD12864 LCD2004 etc
- PC Communication Interface
- Type-c easy to plug communication baud rate 115200
- Expanded Interface
- Broken material detection power failure power off BL Touch etc
- Dile Format
- G-code
- Recommended Slicing Interface Software
- Cura Simplify3D Pronterface Repetier-host Makerware
- Cartridge Heater
- 4
- Controllable Fan
- 6
- Normally Open Fan
- 2
- MCU
- STM32F446ZET6 144Pin/STM32F429ZGT6 144Pin
- Flash
- 512K/1M
- SD Card Protocol
- SDIO
- WIFI Module Interface
- Extension Special Interface
- Supported Wifi Module
- ESP8266 MAX500k/s
- CANBus
- CANBus With RJ11 Interface
- Fuse
- 3
- Limit Switch+Filament Sensor
- 6+2
- HV Drive
- MAX8
- 5V Short Circuit Alarm
- YES,LED&Buzzer
- Motor Input Voltage
- 12~60V,each one is optional
- Drive Input Level
- 5V
- Thermistor
- NTC100K&PT100/PT1000
- Supported Firmware
- Klipper Marlin RRF
- Supported Operating Systems
- Raspberry Pi Octoprint

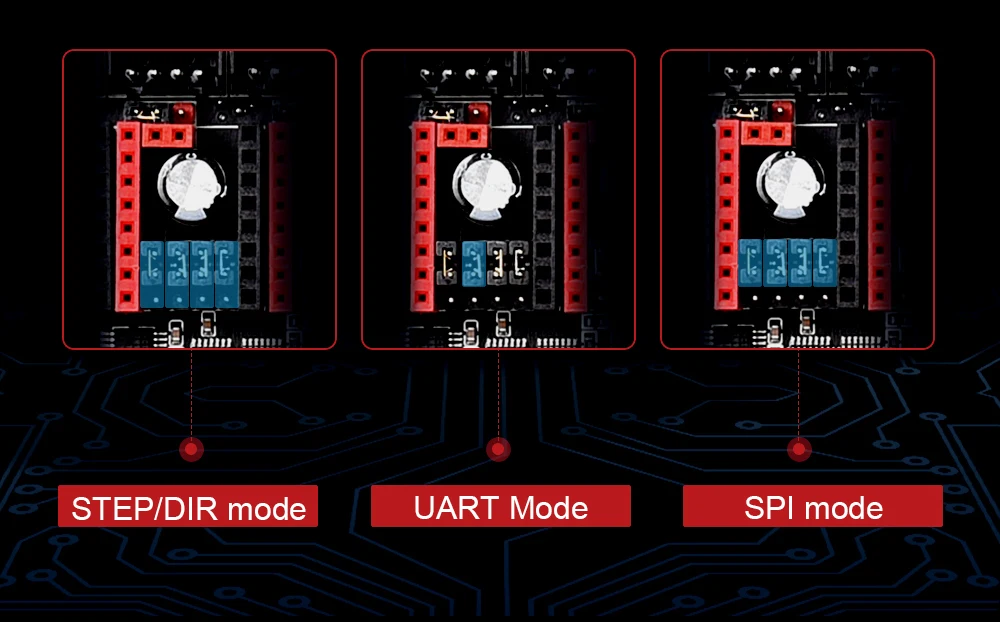

- Mode
- STEP DIR UART SPI
- On-board MAX31865
- YES
- Type-C Interface
- For Online Printing
- Motor Input Voltage
- 60V
- Motor Driver
- 8
- Motherboard Protector
- 8
- Frequency
- 180MHz/168MHz
