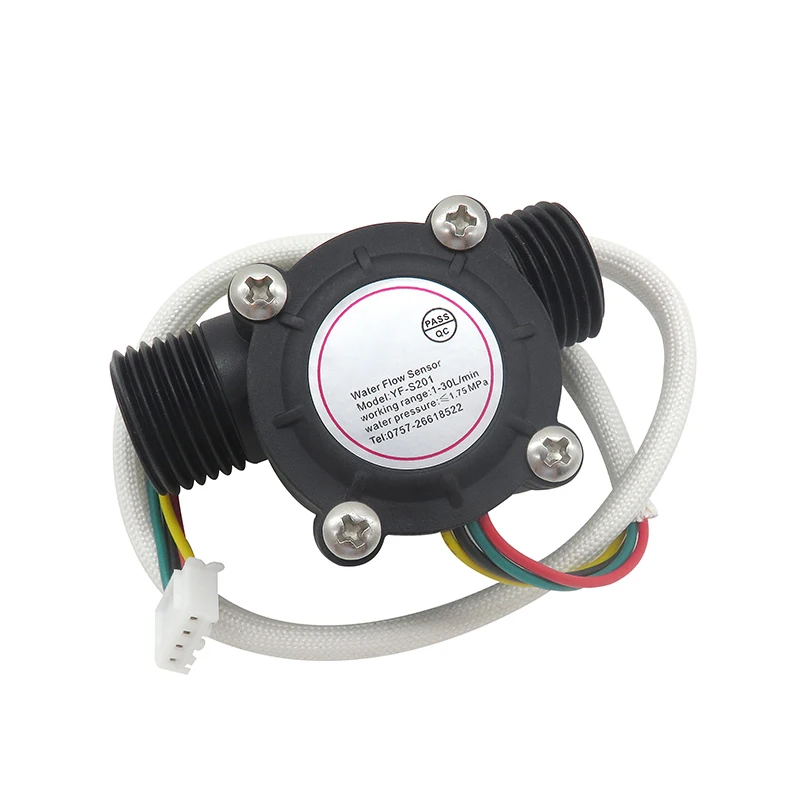

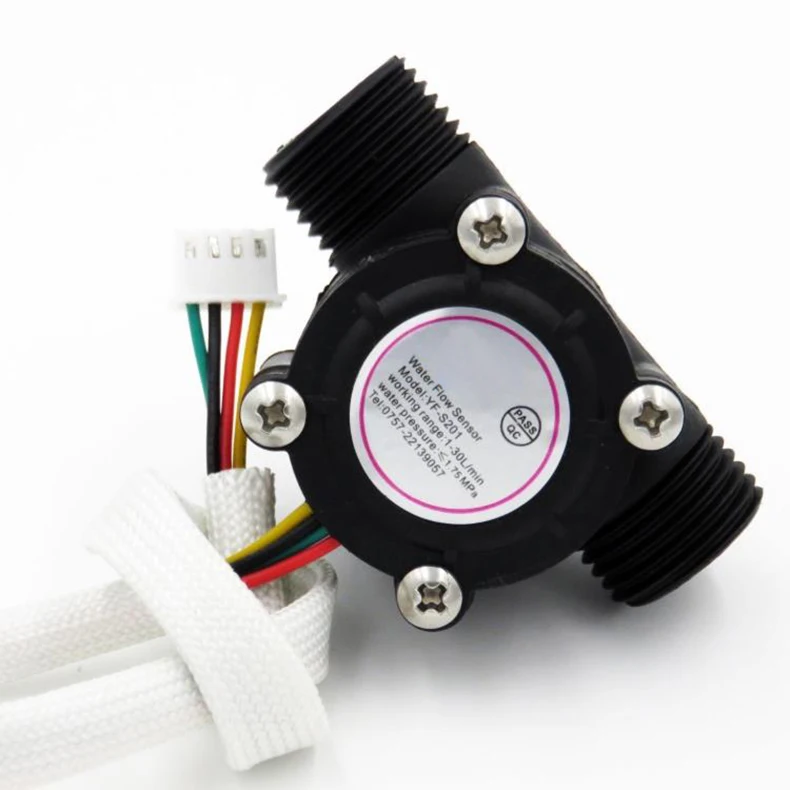

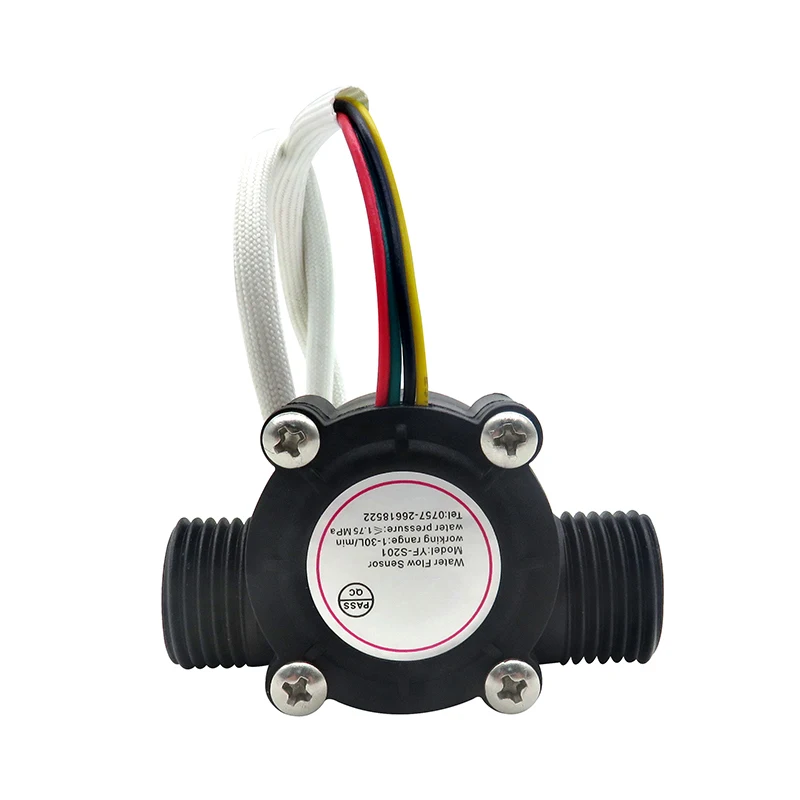

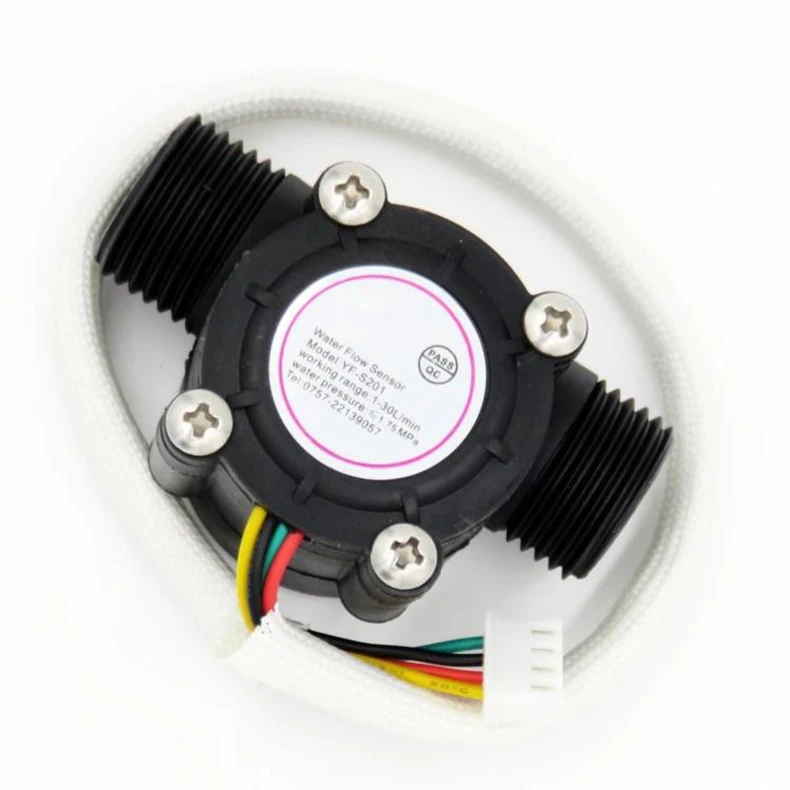

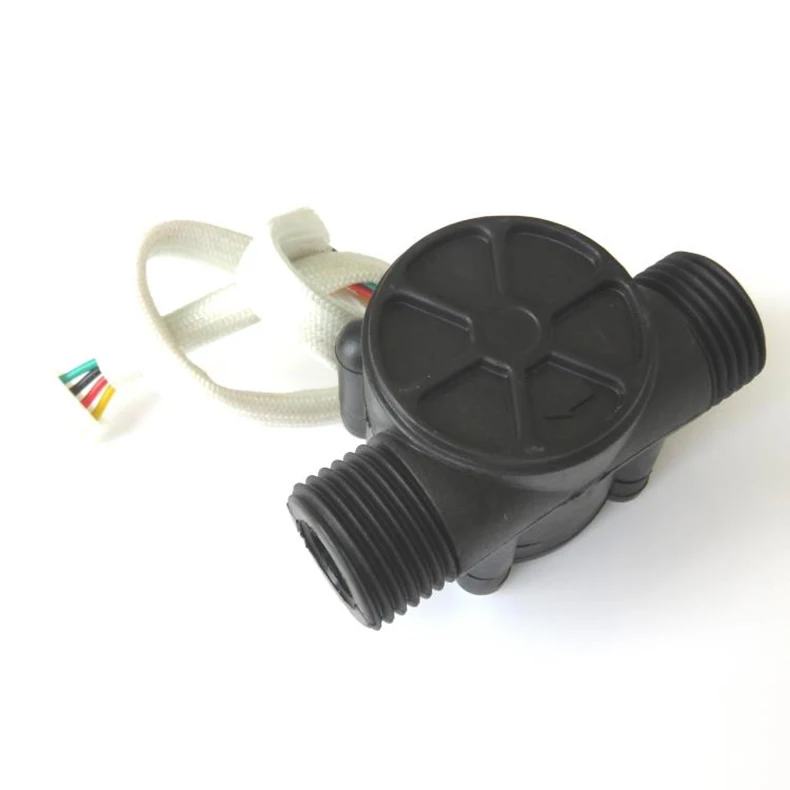

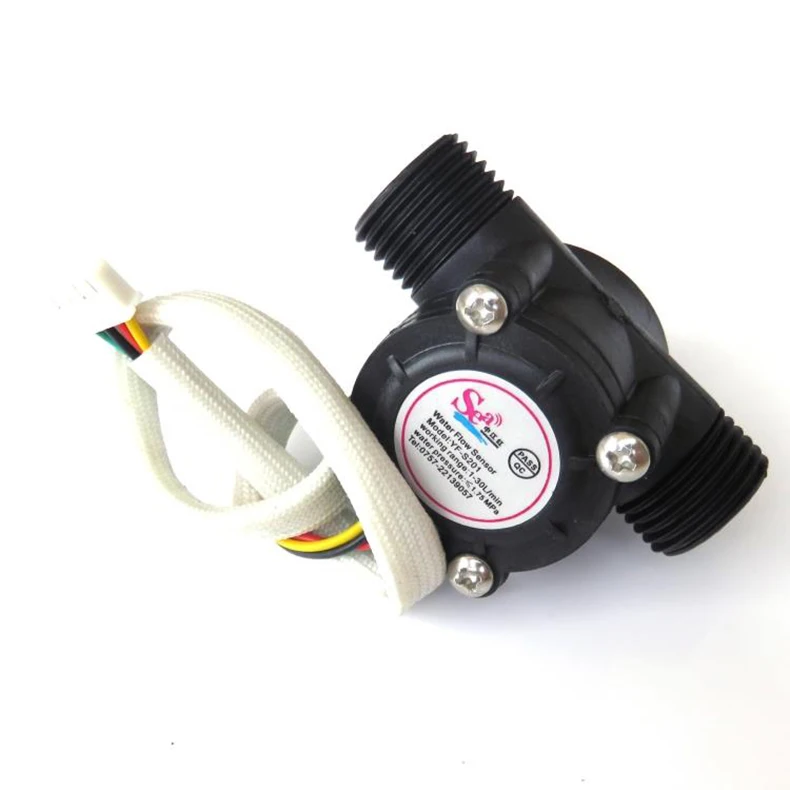

1/2" Warmwasserbereiter Wasserdurchflusssensor 1,75 MPa Hall-Sensor Turbinen-Durchflussmesser DC5 ~ 18 V mit Temperaturinduktion
inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten
Lieferung nach Deutschland
Lieferzeit: 7–16 Tage
Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.
Produktbeschreibung
Product parameter

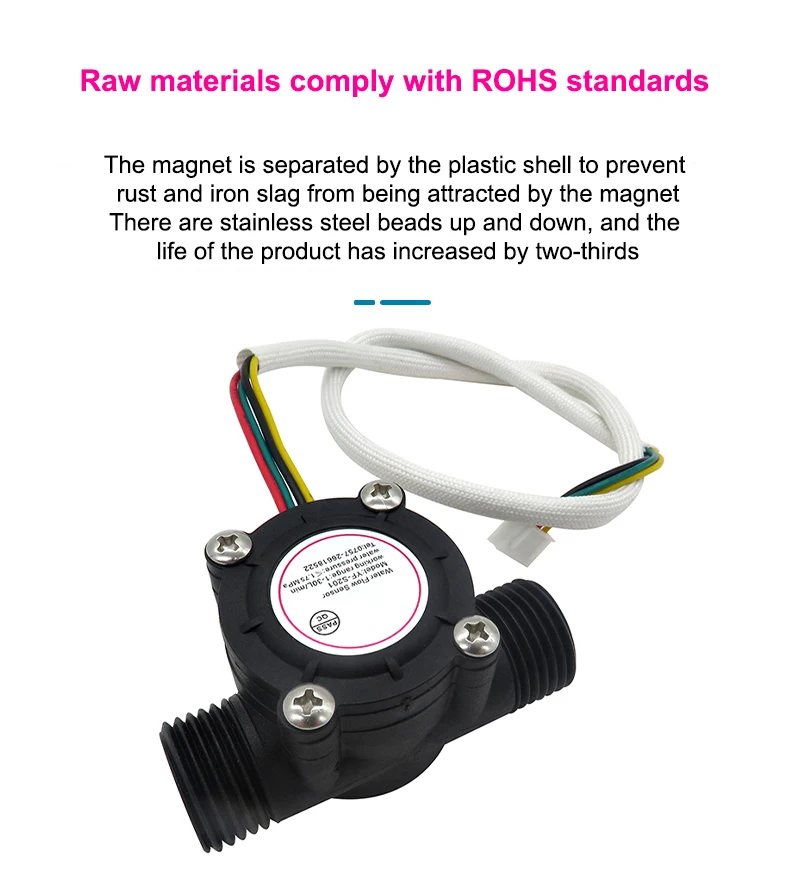

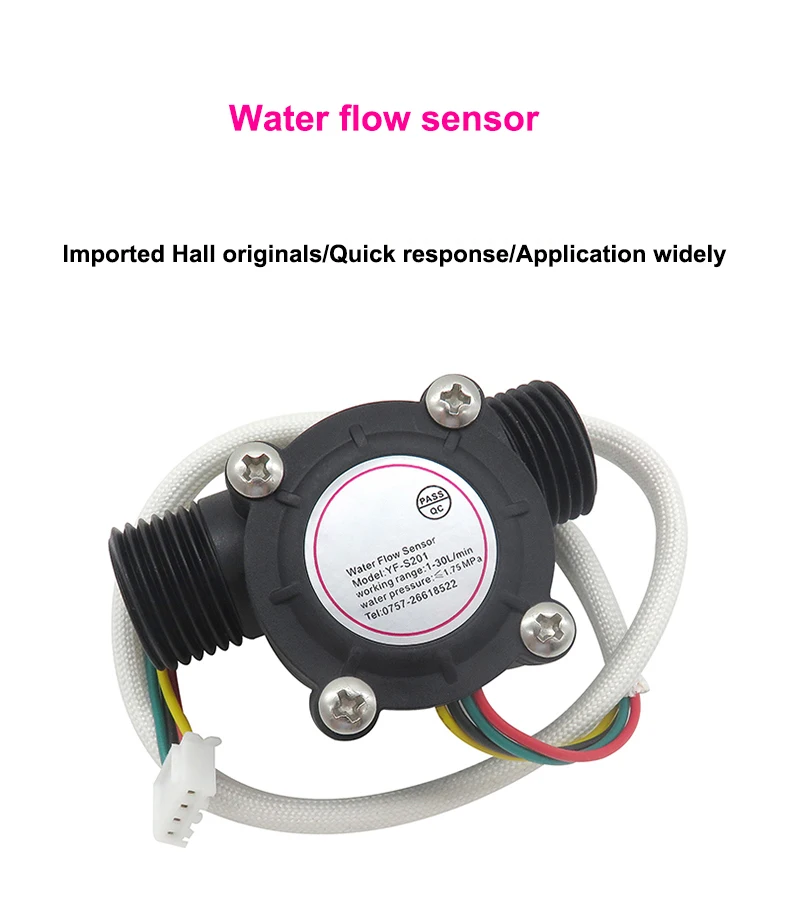

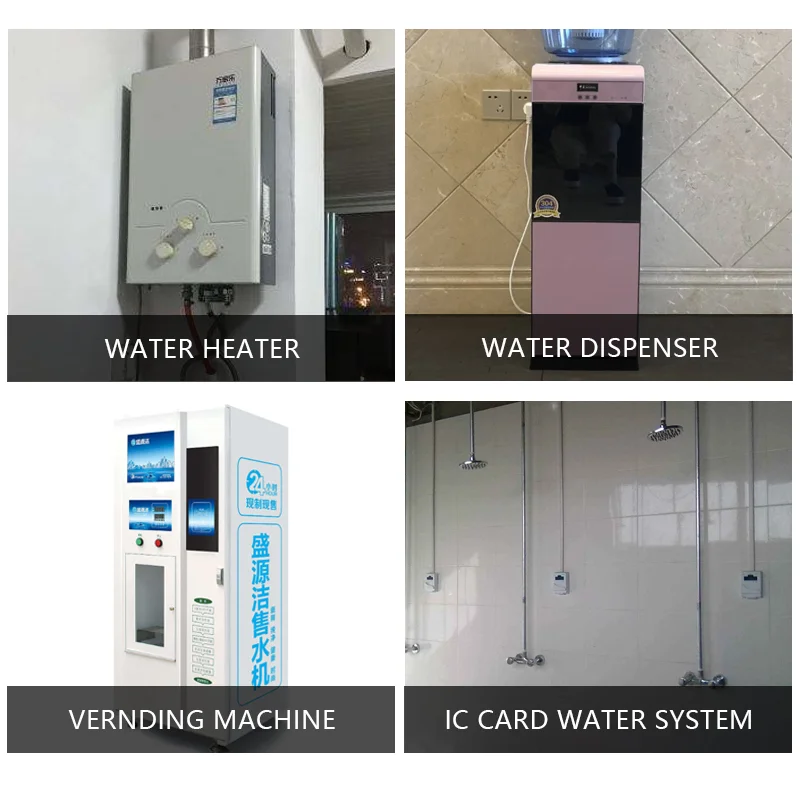

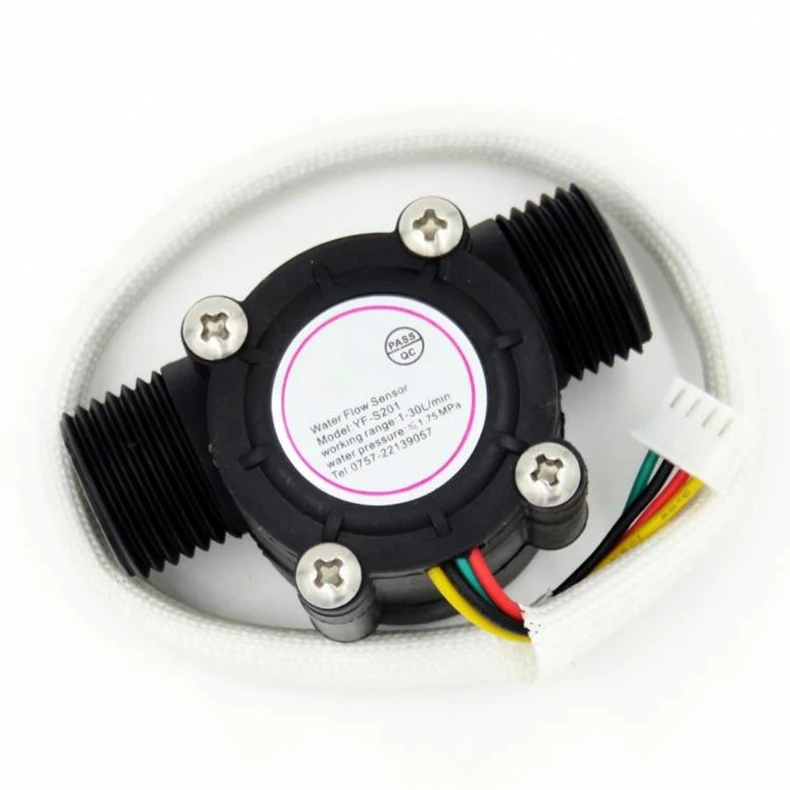

The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly, a steady flow assembly and a Hall element. It is installed at the water inlet end of the water heater to detect the flow rate of the inlet water. When the water passes through the water flow rotor assembly, the magnetic rotor rotates, and the speed changes linearly with the flow rate. The Hall sensor outputs the corresponding pulse signal and feeds it back to the controller. The controller judges the size of the water flow and regulates it.
Output signal: the default output NPN pulse signal (if you need to connect to the PLC, please contact customer service before placing an order).
Model: YF-S201
Interface size: 1/2"
Working voltage range: DC 5～18V
Material: Nylon + Glass Fiber
Medium temperature: -20°C~+100°C
Water pressure resistance: ≤1.75MPa
Output pulse high level: >DC 4.5V (input voltage DC 5V).
Output pulse low level: >100MΩ
Flow range: 1/2"(1~30 L/min within 3% within)
Tightness: Close each hole, add 1.7Mpa water pressure test for 1 minute without leakage and deformation.
Flow pulse characteristics: F=(7.5*Q) error ≤3%

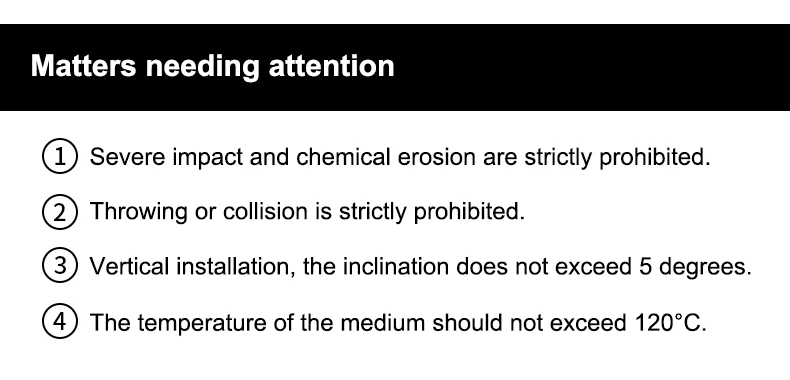

Notice
1. The more you order, the more offers, please contact us.
2. Package list: Water flow sensor*1pc
3. Wiring mode
Red IN is connected to the positive pole
Yellow UOT signal output line
Produktdetails in Bildern
Produkteigenschaften
- Markenname
- Acarps
- Hochbetriebenes Chemikalienunternehmen
- Keine
- Ursprung
- CN (Herkunft)
- Struktur
- control
- EU LVD-Spannung
- Niederspannung: Unter 50 VAC oder 75 VDC
- Portgröße
- 1/2"
- Stromquelle
- Gleichstrom
- Standard oder Nichtstandard
- Standard
- Medien
- Wasser
- Zertifizierung
- CE
- Material
- Kunststoff
- Modellnummer
- YF-S201
- Temperatur der Medien
- hohe Temperatur
- Druck
- Niedriger Druck
- Aktuatormodus
- Ohne Handbuch und Anleitung
- Kraft
- MAGNET
- Output signal
- the default output NPN pulse signal (if you need to connect to the PLC, please contact customer service before placing an order)
- Working voltage range
- DC 5~18V
- Medium temperature
- 20°C~+100°C
- Water pressure resistance
- ��1.75MPa
- Output pulse high level
- >DC 4.5 V (input voltage DC 5V)
- Output pulse low level
- <DC 0.5 V (input voltage DC 5V)
- Insulation resistance
- >100MΩ
