1 bis 20 mm Hartmetall-Fräser verlängern 75/150/200 HRC55 für Aluminium, Holz, Acryl, Kupfer, Kunststoff, 3 Flöten, Wolfram-Schaftfräser

Produktbeschreibung

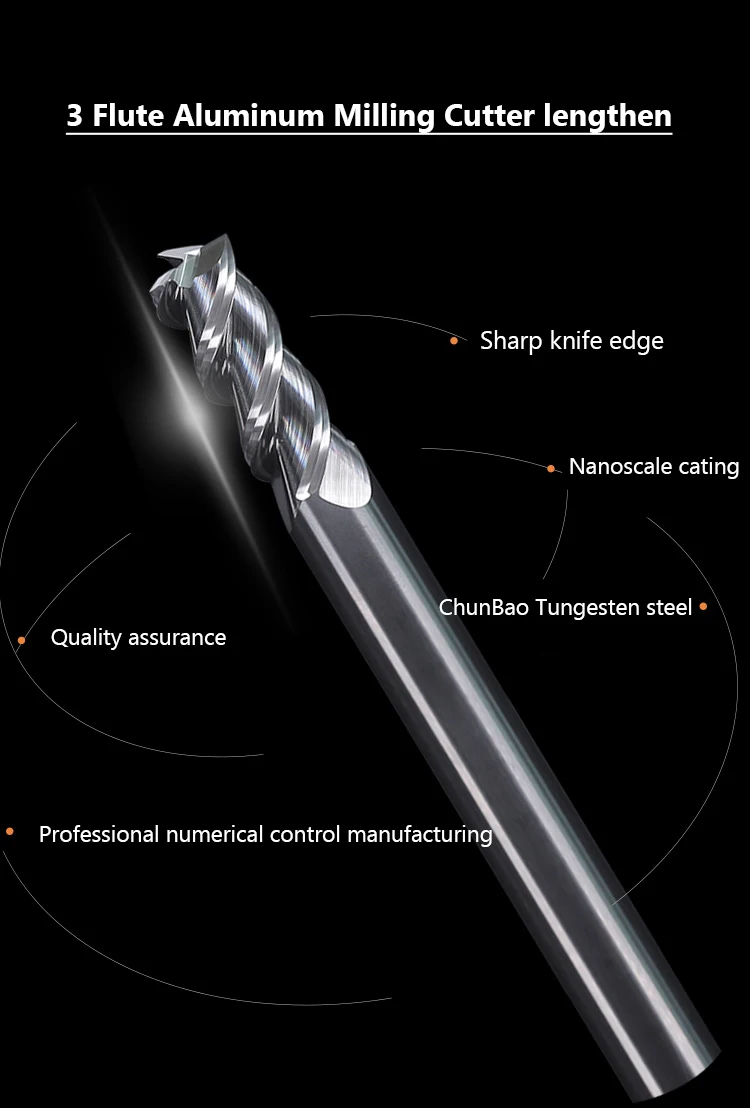

Product Name: special milling cutter for aluminum alloy, 3 Blades
Specification: blade diameter * blade length * number of blades
Cutting edge: 3 edges
Helix angle: 45 degrees
Blade: double edged belt
HRC: 55 degrees
Tool material: German cobalt collar high-performance ultrafine particle cemented carbide bar
Applicable processing materials: aluminum, aluminum alloy, copper alloy, magnesium alloy, various soft alloy materials
Main features
2. Aluminum milling cutter: it has good chip removal effect for groove milling, and the cutting edge is sharp and not easy to stick chips.
3 edge aluminum milling cutter: the machined surface has good finish and good anti vibration structure. It is commonly used for side milling and slot milling, with a wide range of applications. Reduce the times of tool change, improve the actuation rate of machine tool and save the time of die making. Process aluminum alloy and copper alloy, and build houses with water-soluble cutting fluid.
Introduction to dgk aluminum knife: unique chip holding groove shape, sharper super large front angle; Specially designed end tooth structure, smooth chip removal; Special groove section to increase strength and rigidity; Circular arc smooth transition is adopted between the edge and neck to prevent knife joint marks; The edge damping design can suppress the chatter in the machining process and improve the machining surface quality. Dgk is a German brand worthy of your trust.
Hongsheng Seiko is a professional tool manufacturer with 8 years of research and development, design, production, sales and after-sales of cemented carbide high-speed tungsten steel milling cutters.
The core R & D and production technology team of Hongsheng precision has worked in the industry for more than 10 years. In cooperation with several top 500 enterprises, it has developed a variety of practical new cemented carbide high-speed tungsten steel ball cutters, and has obtained more than 30 utility model patents for milling cutters in the R & D and design of cutters.
The ball knives produced by Daofu have been recognized by the CNC processing industry in aviation processing, 3C mobile phones, hardware molds, tablet computers, watch cases and bands, auto parts, and other industries.
Cemented carbide high-speed tungsten steel ball cutter is suitable for appropriate coating. It has excellent cutting performance for a variety of materials such as superalloy, die steel, stainless steel, aluminum alloy, powder metallurgy, graphite die, copper system, titanium alloy and ABS plastic. It can also support one-stop non-standard customization service.

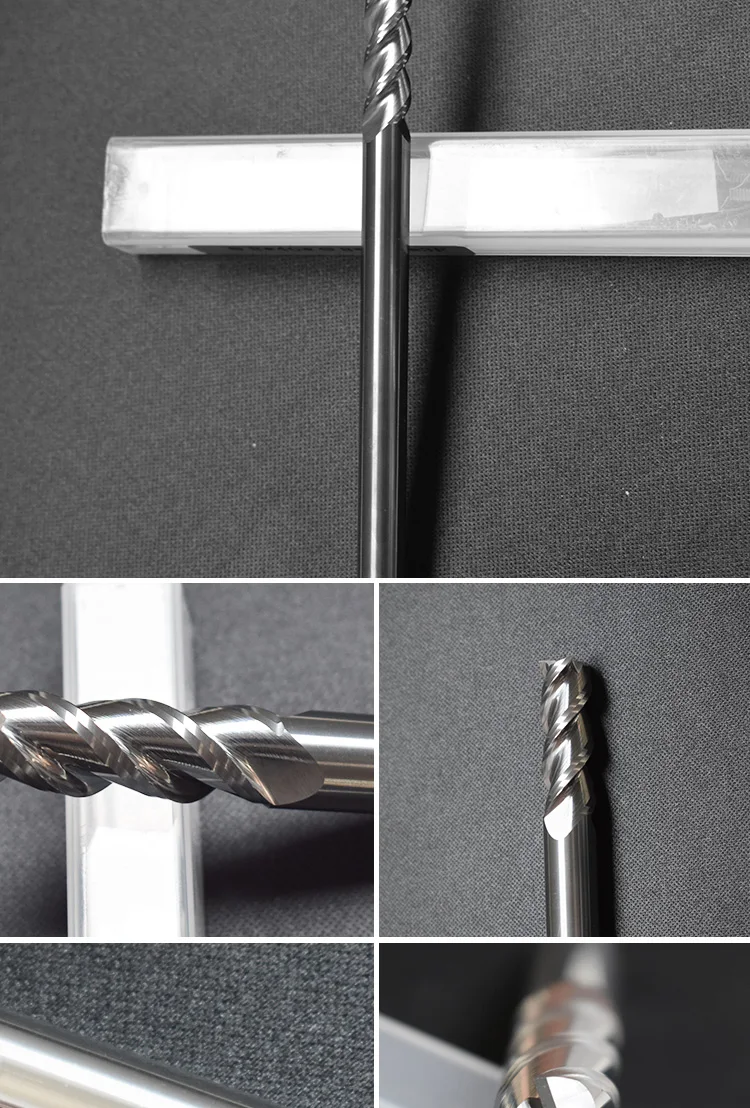

Produktdetails in Bildern

Produkteigenschaften

Markenname

IWOWN

Hochbetriebenes Chemikalienunternehmen

Keine

Ursprung

CN (Herkunft)

Modellnummer

3 Flute Tungsten End Mill

Material

Wolframkobalt-Legierung

Typ

Schaftfräser

Gesamtlänge

50mm75mm100mm150mm200mm

Zertifizierung

CE

Durchmesser

1MM2MM3MM4MM5MM6MM7MM8MM9MM10MM11MMM12MM13MM14MM15MM16MMM17MM18MM~20mm
