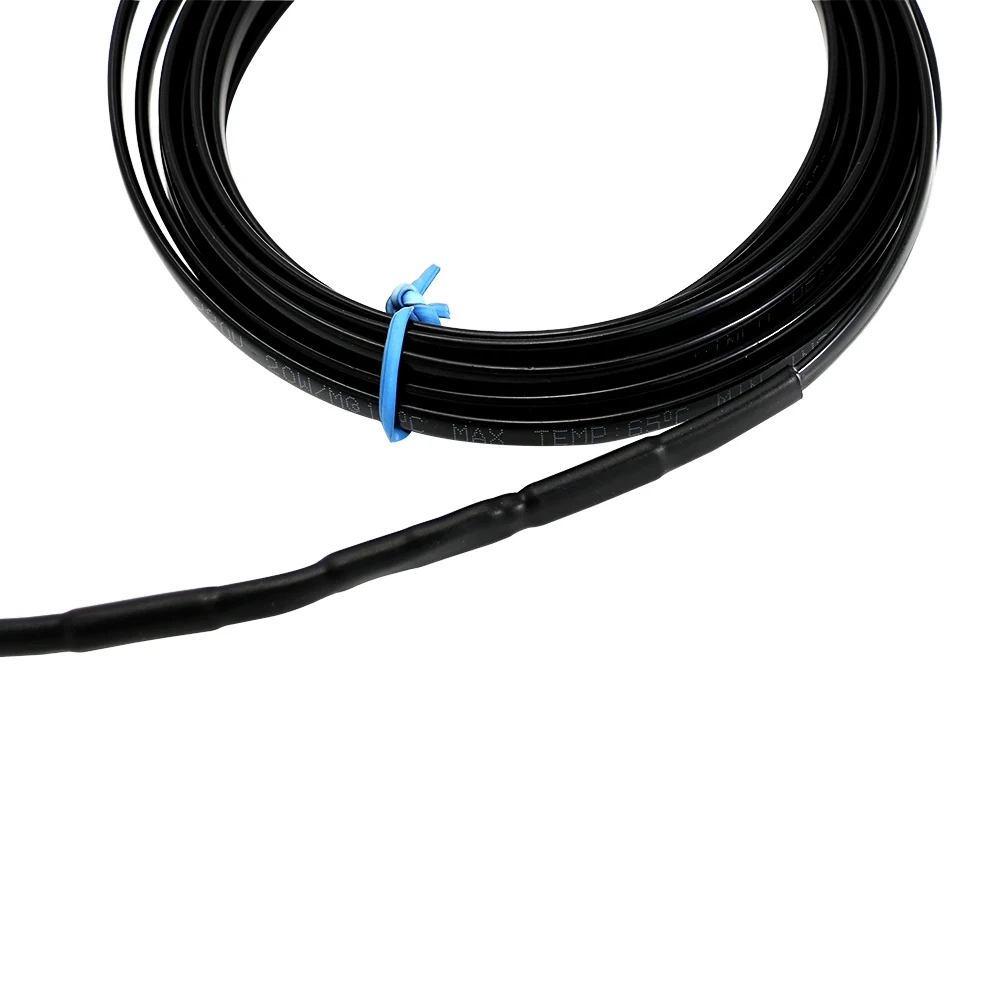

MINCO HEAT 1~10m EU-Stecker mit Netzschalter Selbstregulierendes Heizkabel für Wasserschlauch-Frostschutz Wärmekabel

21,90 €

inkl. 19 % MwSt. auf die Ware; bestätigter Versand nach Deutschland enthalten

Variante auswählen

Lieferung nach Deutschland
Lieferzeit: 8–15 Tage

Angezeigter Planpreis. Bestellungen sind noch nicht freigeschaltet.

Produktbeschreibung

Description
The self-regulating heating cable developed by Minco is widely used in fire protection, petroleum,chemical industry, iron and steel, electric power and so on to keep pipes, tanks warm and prevent frostbite, roof and gutter snow melting.
There is a uniform core strip of
PTC material
between the two parallel metal busbars. When the two busbars at one end of the cable are connected to the power source, current flows laterally from one busbar through the PTC material layer to the other busbar. The PTC layer is a resistance heating body that is continuously connected in parallel between the busbars to convert electrical energy into heat. The core strip resistance increases with temperature, reaching about 65 degrees, the resistance is so large that it almost blocks the current, and the core strip temperature reaches the high limit and no longer rises but automatically limits the temperature. The self-limiting temperature heating belt has uniform temperature, does
not overheat
saves electric energy
and has a
rapid heating
temperature. It can be arbitrarily cut and used within the longest use length of the electric heating belt, and can be overlapped and crossed.
Advantages
The cable is designed for house water pipe and solar upper water pipe freeze protection requirement in winter, to maintain the water in pipes above 0 centigrade, and do not need a controller.
The cable is very easy to install, suit for metal and plastic water pipes.
We use the pure copper as the conductor, and the PE jacket, it's durable, UV resist, better than PVC jacket.
Specifications
Product name: water pipe heating cable/self regulating heat trace cable
Voltage: 220V 230V 240V
Length of power cord: 1.5 meter
Max working temperature: 60 Celsius
Min installation temperature: -40 Celsius
