Trianglelab 115W Hochleistungs-CHC Pro Kit PT1000 Keramik-Heizkern Schnellheizung für Ender 3 Volcano Hotend CR10 MK3S BLV

Produktbeschreibung

Announcement
The ceramic heating core is officially named CHC series.
It will be used as the core to make a variety of HOTEND assemblies.
Currently available for purchase are V6 specifications, HEMERA specifications, CR10 specifications.
New models will be added after March. That is the ultimate perfect CHC HOTEND. Stay tuned.
Ceramic heating core calendar represents
1: The first generation of products (2015~2017)
2: Second-generation products (2019~2021)
3: The third generation of new products (2022)
��Name

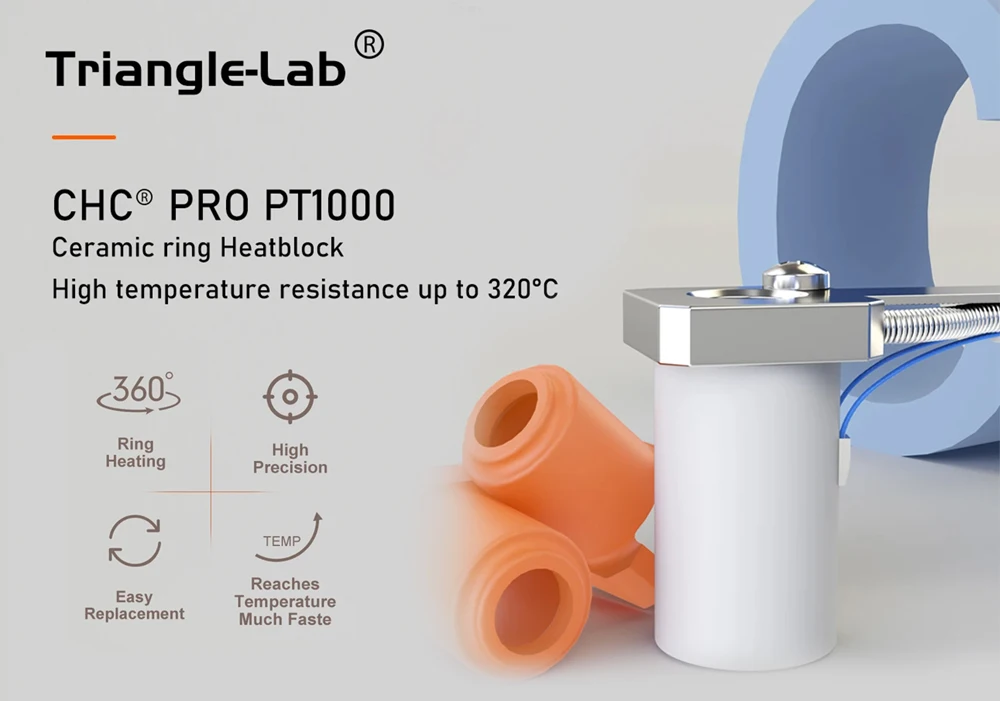

Trianglelab CHC(Ceramic Heating Core) Pro KIT PT1000
Technical details
Please click here!
��Marlin Firmware Configuration
Connect directly to the thermal interface of the control board and then determine which one to choose according to the pull-up resistor of the interface. In most cases it is 4.7K ohms, please check your motherboard manual for details.
* 1010: Pt1000 with 1kΩ pullup
* 1022: Pt1000 with 2.2kΩ pullup
* 1047: Pt1000 with 4.7kΩ pullup
��Klipper documentation
Directly connected PT1000 sensor. The following parameters are available in heater sections that use one of these sensors.

Produktdetails in Bildern

Produkteigenschaften

Markenname

Trianglelab

Hochbetriebenes Chemikalienunternehmen

Keine

Artikelform

andere

Ursprung

CN (Herkunft)

Montage Erforderlich

no

Kontrollmethode

andere

Artikeltyp

Heißes Ende

Modellnummer

CHC Pro Kit PT1000
